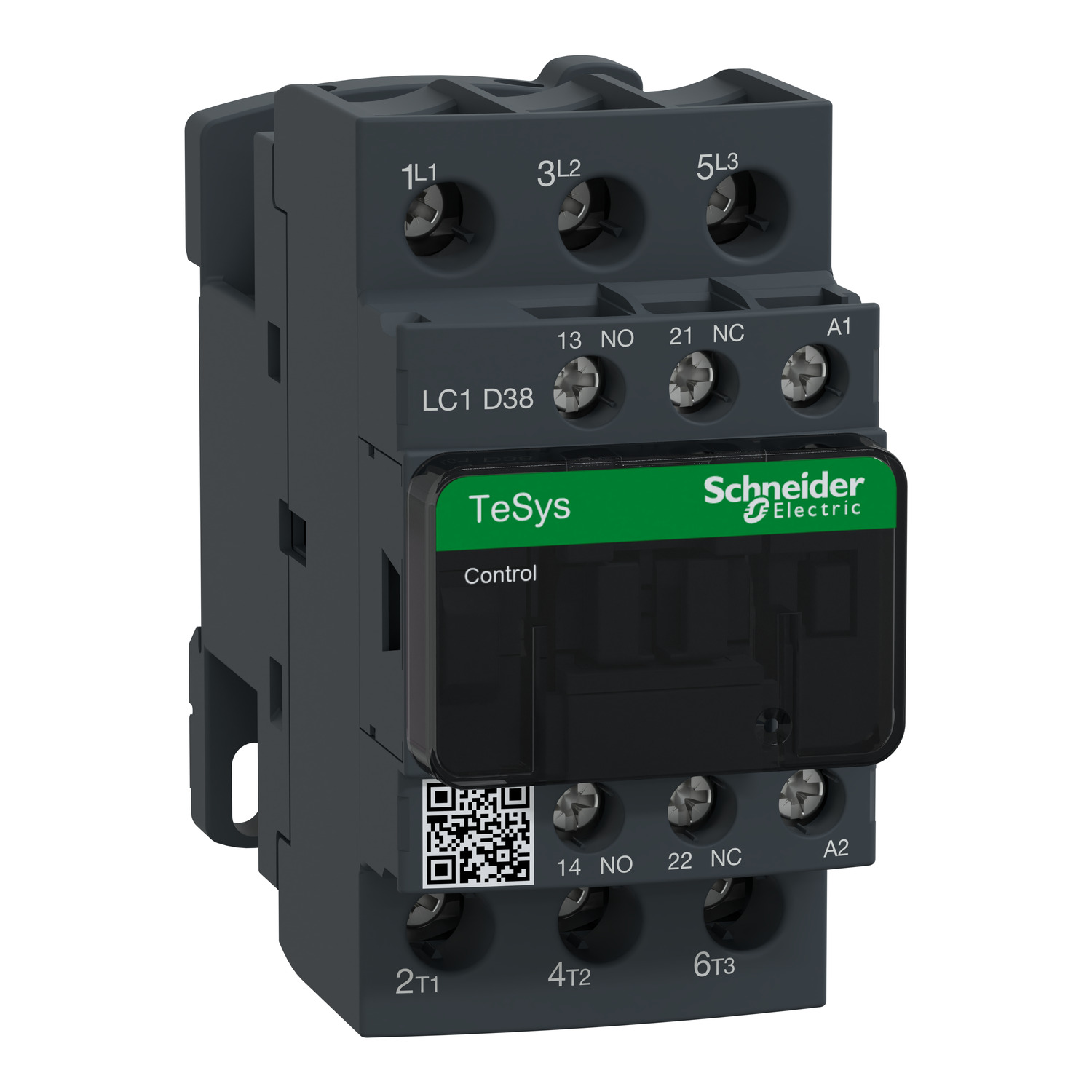

Schneider TeSys LC1D Power Contactor · 3P · 50 A AC-3 · 1 NO + 1 NC aux · 230 V AC coil · IP20 · LC1D38P7LC1D38P7↓ 1% off MRP1 / 8
BrandSchneider
CategoryIndustrial Control
Specification3P · 50 A AC-3 · 1 NO + 1 NC aux · 230 V AC coil
Brand SKULC1D38P7
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider TeSys LC1D Power Contactor · 3P · 50 A AC-3 · 1 NO + 1 NC aux · 230 V AC coil · IP20 · LC1D38P7

Rating: 50 A AC-3
Coil: 230 V AC coil
NEW added this week
₹16,974/pcincl. GST-1%
₹14,385 + 18% GST · MRP ₹17,145
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹16,974 /pc incl. GST
Free pan-India delivery

Schneider TeSys LC1D Power Contactor · 3P · 50 A AC-3 · 1 NO + 1 NC aux · 230 V AC coil · IP20 · LC1D38P7: Elume price today ₹16,974 per pc incl. GST, 1% below the ₹17,145 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹18,345₹17,705₹17,065₹16,426₹15,786₹17,145₹16,974
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹16,974
MRP
₹17,145
Lowest in view · 17 Oct
₹16,974
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹16,125/pc on this product

TeSys D contactor, 3 poles (3NO), for motor control applications up to 38A/440V AC-3/3e (18.5kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LC1D Power Contactor · 3P · 50 A AC-3 · 1 NO + 1 NC aux · 230 V AC coil · IP20 · LC1D38P7 · LC1D38P7
Poles3P
Rated current50 A
Ingress protectionIP20 front face
Reference standardCSA C22.2 No 14
coil voltage230 V AC 50/60 Hz
Net weight0.38 kg
BrandSchneider
Brand SKULC1D38P7
ELINEDMGFRDKJP
Sold asPer pc
RangeTeSys · TeSys Deca
Motor power hp10 hp at 230/240 V AC 50/60 Hz for 3 phases motors · 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors · 5 hp at 240 V AC 50/60 Hz for 1 phase motors · 20 hp at 480 V AC 50/60 Hz for 3 phases motors · 25 hp at 600 V AC 50/60 Hz for 3 phases motors
Motor power kW9 kW at 220/230 V AC 50/60 Hz (AC-3) · 18.5 kW at 380/400 V AC 50/60 Hz (AC-3) · 18.5 kW at 415/440 V AC 50/60 Hz (AC-3) · 18.5 kW at 500 V AC 50/60 Hz (AC-3) · 18.5 kW at 660/690 V AC 50/60 Hz (AC-3) · 9 kW at 220/230 V AC 50/60 Hz (AC-3e) · 18.5 kW at 380/400 V AC 50/60 Hz (AC-3e) · 18.5 kW at 415/440 V AC 50/60 Hz (AC-3e) · 18.5 kW at 500 V AC 50/60 Hz (AC-3e) · 18.5 kW at 660/690 V AC 50/60 Hz
Operating time4...19 ms opening · 12...22 ms closing
Coil technologyWithout built-in suppressor module
Heat dissipation2…3 W at 50/60 Hz
Pollution degree3
Protective coverWith
Range of productTeSys Deca Advanced
Average impedance2 mOhm - Ith 50 A 50 Hz for power circuit
Device short nameLC1D
Poles description3P
Tightening torqueControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm · Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 · Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm · Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2 · Control circuit: 1.7 N.m - on screw clamp terminals - with scr
Compatibility codeLC1D
Inrush power in VA70 VA 60 Hz cos phi 0.75 (at 20 °C) · 70 VA 50 Hz cos phi 0.75 (at 20 °C)
Control circuit typeAC at 50/60 Hz
Overvoltage categoryIII
Utilisation categoryAC-3 · AC-3e · AC-1 · AC-4
Contactor applicationResistive load · Motor control
Electrical durability1.4 Mcycles 50 A AC-1 at Ue <= 440 V · 1.4 Mcycles 38 A AC-3 at Ue <= 440 V · 1.4 Mcycles 38 A AC-3e at Ue <= 440 V
Insulation resistance> 10 MOhm for signalling circuit
Mechanical durability15 Mcycles
Associated fuse rating10 A gG for signalling circuit conforming to IEC 60947-5-1 · 63 A gG at <= 690 V coordination type 1 for power circuit · 63 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Auxiliary contacts typetype mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 · type mirror contact 1 NC conforming to IEC 60947-4-1
Connections - terminalsControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end · Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end · Control circuit:
Rated breaking capacity550 A at 440 V for power circuit conforming to IEC 60947
Pole contact composition3 NO
Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 · B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Minimum switching current5 mA for signalling circuit
Minimum switching voltage17 V for signalling circuit
Product or component typeContactor
Irms rated making capacity140 A AC for signalling circuit conforming to IEC 60947-5-1 · 250 A DC for signalling circuit conforming to IEC 60947-5-1 · 550 A at 440 V for power circuit conforming to IEC 60947
Power dissipation per pole5 W AC-1 · 3 W AC-3 · 3 W AC-3e
Signalling circuit frequency25...400 Hz
[Uc] control circuit voltage230 V AC 50/60 Hz
Auxiliary contact composition1 NO + 1 NC
[Ui] rated insulation voltagePower circuit: 600 V CSA certified · Power circuit: 600 V UL certified · Signalling circuit: 690 V conforming to IEC 60947-1 · Signalling circuit: 600 V CSA certified · Signalling circuit: 600 V UL certified · Power circuit: 690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz · 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz · 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz · 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz
[Ie] rated operational current50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit · 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit · 38 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Ue] rated operational voltagePower circuit: <= 690 V AC 25...400 Hz · Power circuit: <= 300 V DC
Hold-in power consumption in VA7.5 VA 60 Hz cos phi 0.3 (at 20 °C) · 7 VA 50 Hz cos phi 0.3 (at 20 °C)
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
[Icw] rated short-time withstand current60 A 40 °C - 10 min for power circuit · 430 A 40 °C - 1 s for power circuit · 150 A 40 °C - 1 min for power circuit · 310 A 40 °C - 10 s for power circuit · 100 A - 1 s for signalling circuit · 120 A - 500 ms for signalling circuit · 140 A - 100 ms for signalling circuit
[Ith] conventional free air thermal current10 A (at 60 °C) for signalling circuit · 50 A (at 60 °C) for power circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Is Schneider TeSys LC1D Power Contactor · 3P · 50 A AC-3 · 1 NO + 1 NC aux · 230 V AC coil · IP20 · LC1D38P7 genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
