Legrand Allzy Cover Plate with Frame · 8 M · Aluminium Champagne · 681349: Elume price today ₹338 per pc incl. GST, 33% below the ₹502 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹273, ₹65 less than here. The lowest tracked seller lists it at ₹273, ₹65 below it (tell us and we match it).

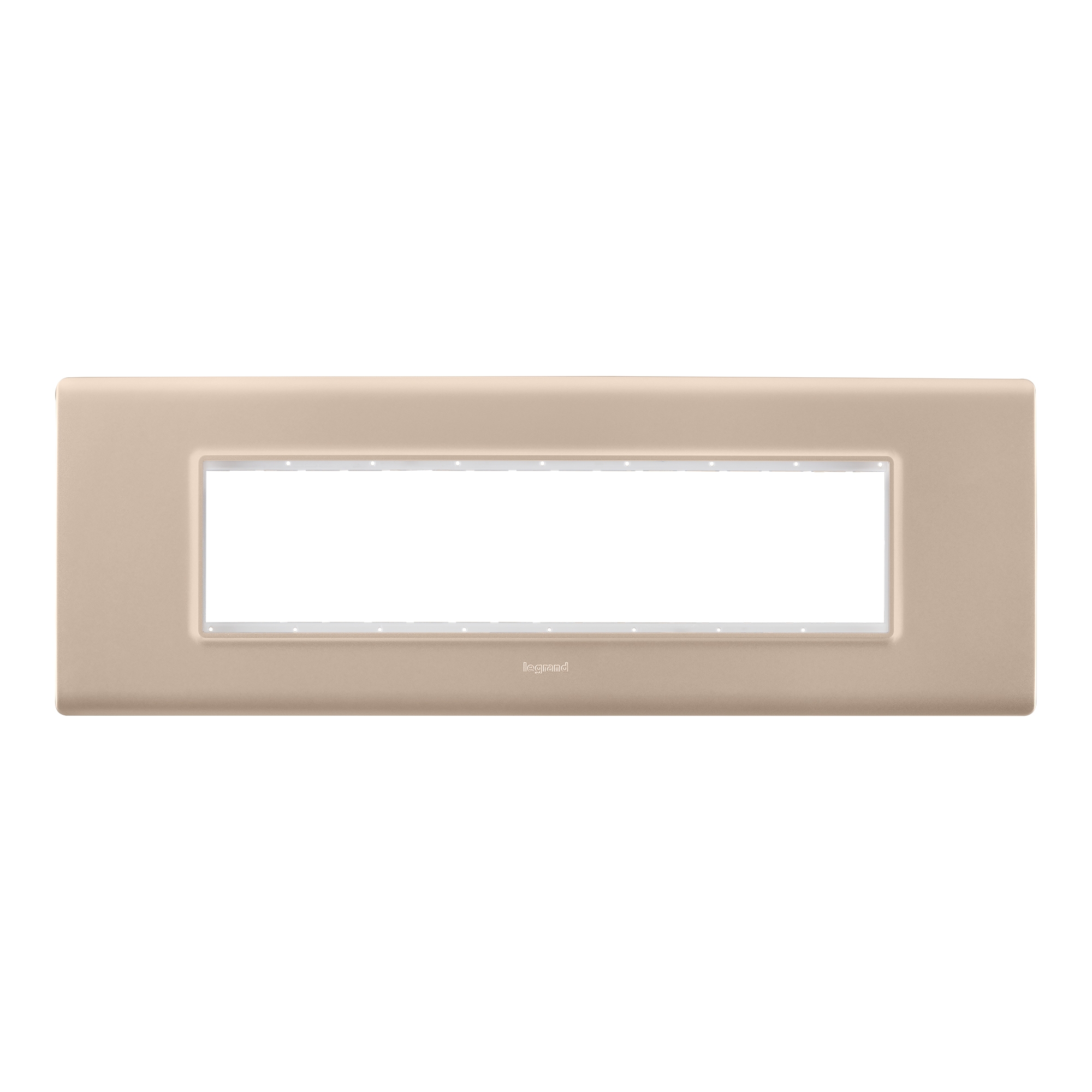

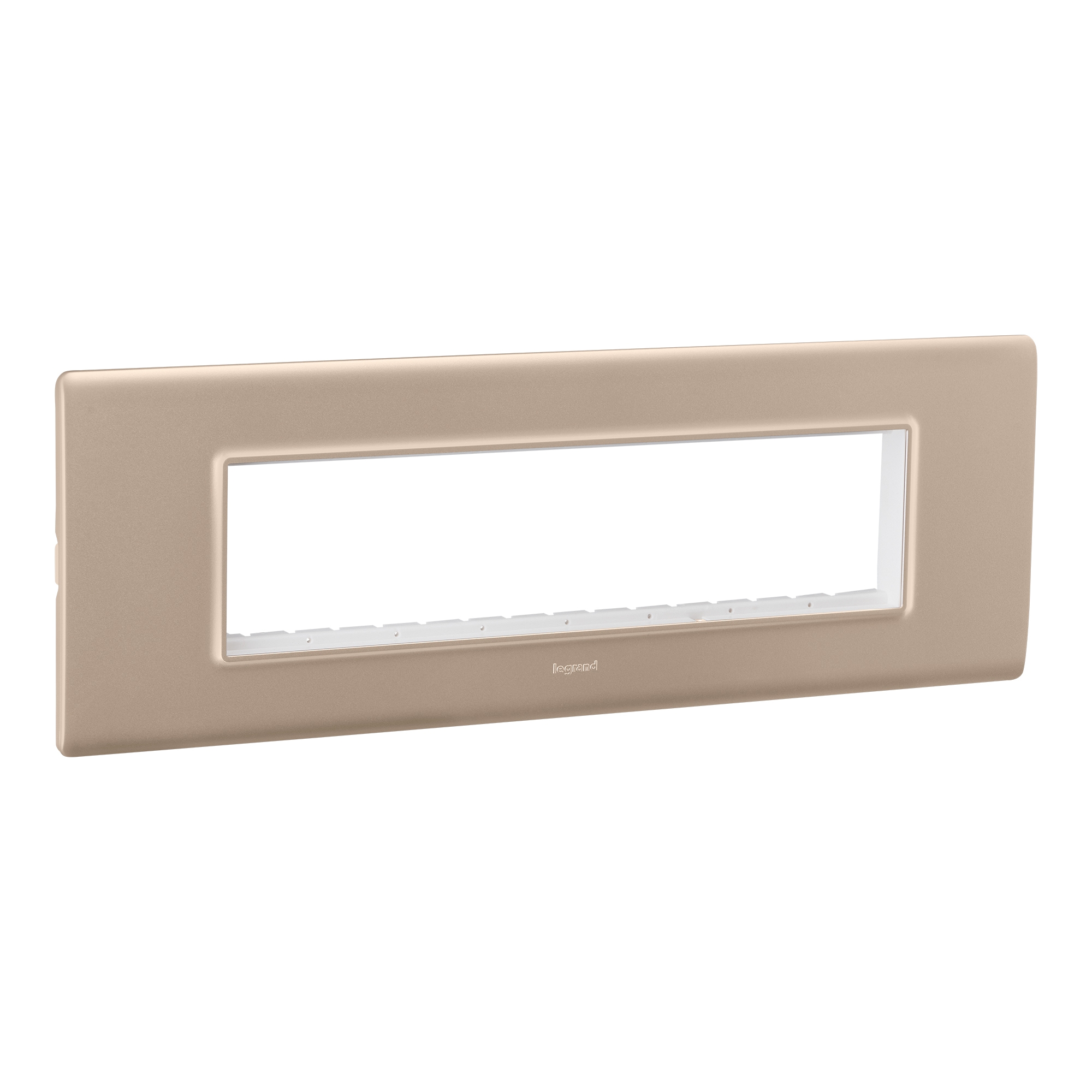

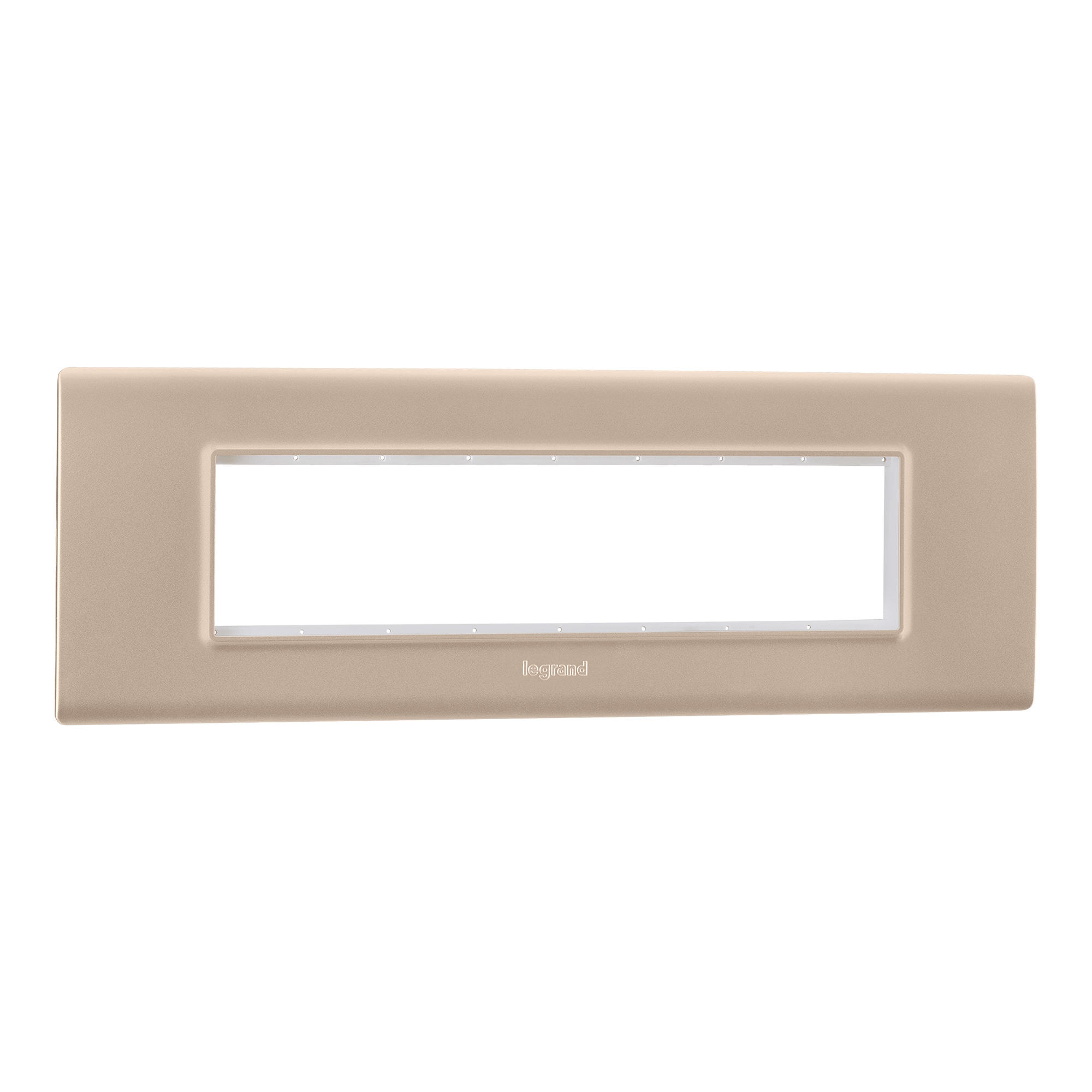

The Allzy range CAT number 681349 refers to a Plate and Frame 8M (H) in Aluminium Champagne color. It is designed for mechanism mounting and subsequent fixing of the complete assembly on the wall, suitable for both flush and surface mounting. The plate is made of polycarbonate white, while the frame is constructed from high impact polystyrene (HIPS). The overall dimensions are 260 mm in width, 90 mm in height, and 8.2 mm in depth, with a weight of 105 grams. The connection is achieved through screwing with screws on a flush box or surface box, and it features self-extinguishing properties at 850°C for 30 seconds. This product conforms to company standards.
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
