Legrand Myrius NextGen Cover Plate with Frame · 3 M · Ice Black · 679543: Elume price today ₹272 per pc incl. GST, 36% below the ₹422 MRP. Today's price is the lowest of the last 30 days (high ₹273). The average price across the sellers we track is ₹220, ₹52 less than here. The lowest tracked seller lists it at ₹220, ₹52 below it (tell us and we match it).

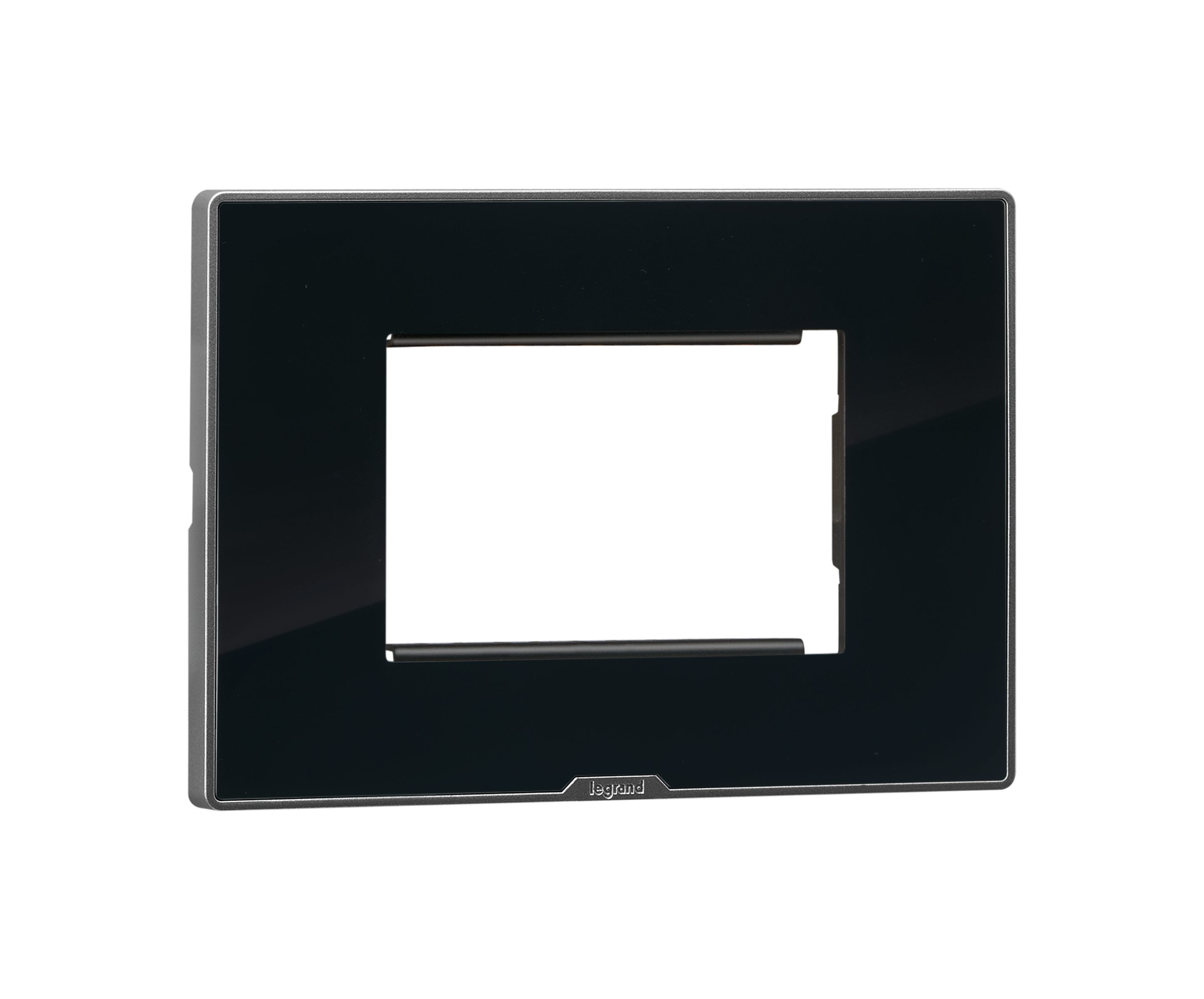

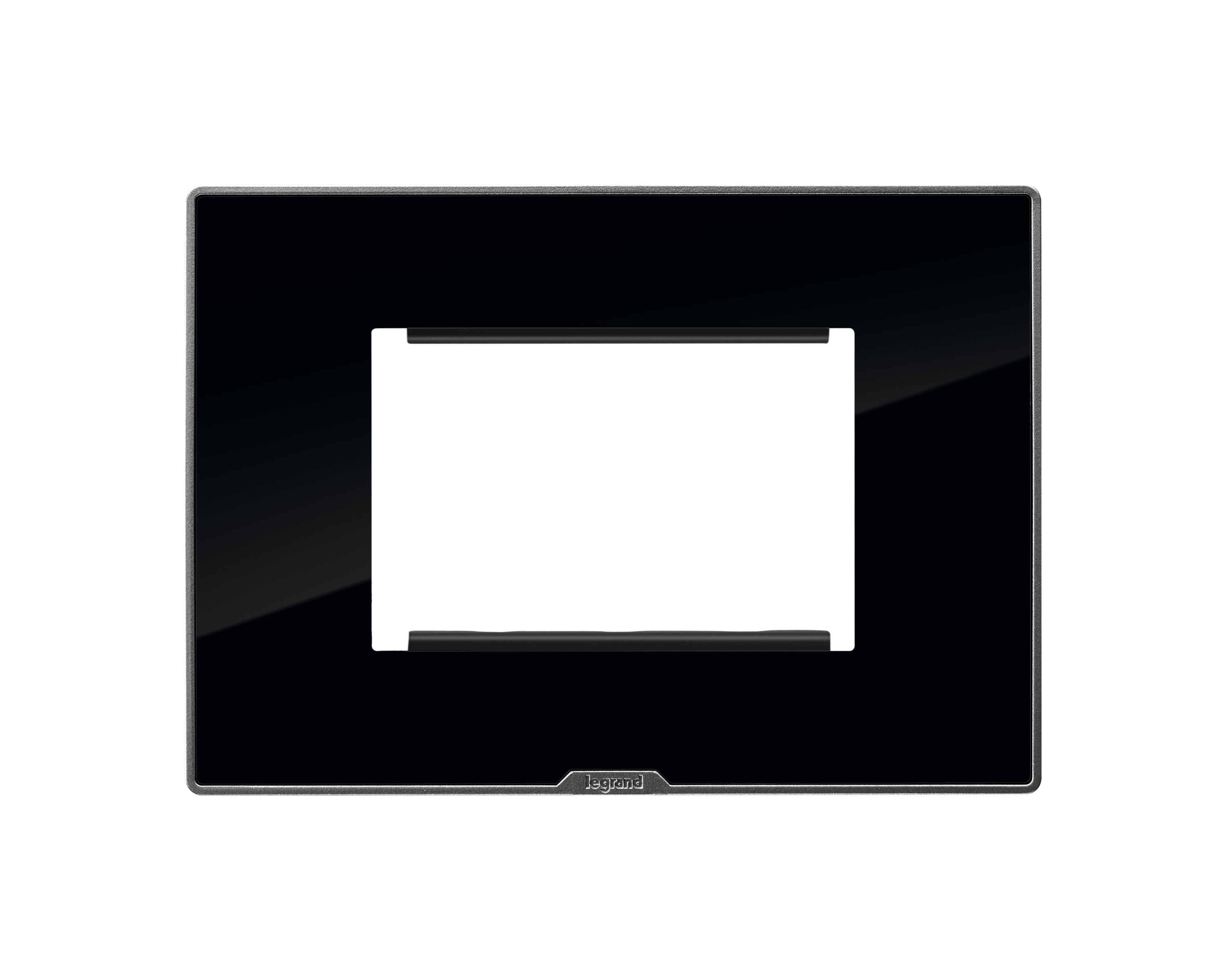

The Myrius range product with CAT number 679543 is a "Plate and Frame 3M Ice Black" designed for mechanism mounting and subsequent fixing of the complete assembly on walls. It is a 3-module plate with flush and surface mounting options, featuring a sleek Ice Black color. The overall dimensions are 121 mm (width) x 86 mm (height) x 6.5 mm (depth), and it weighs 83 grams. The front plate is made of Acrylonitrile Butadiene Styrene (ABS) with a decorative film, while the under plate is polycarbonate with painting. The frame is constructed from CRCA steel, and the screws are steel with zinc plating. It is self-extinguishing at 850°C for 30 seconds and conforms to Legrand standards.
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
