Schneider EasyLogic EM6433H Energy Meter · 1P/3P · 5 A · Class 1 active energy · Class 2 reMETSEEM6433HCL10RS↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
Specification1P/3P · 5 A · Class 1 active energy· Class 2 re · Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2-wire, insulation 2500 V
Brand SKUMETSEEM6433HCL10RS
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

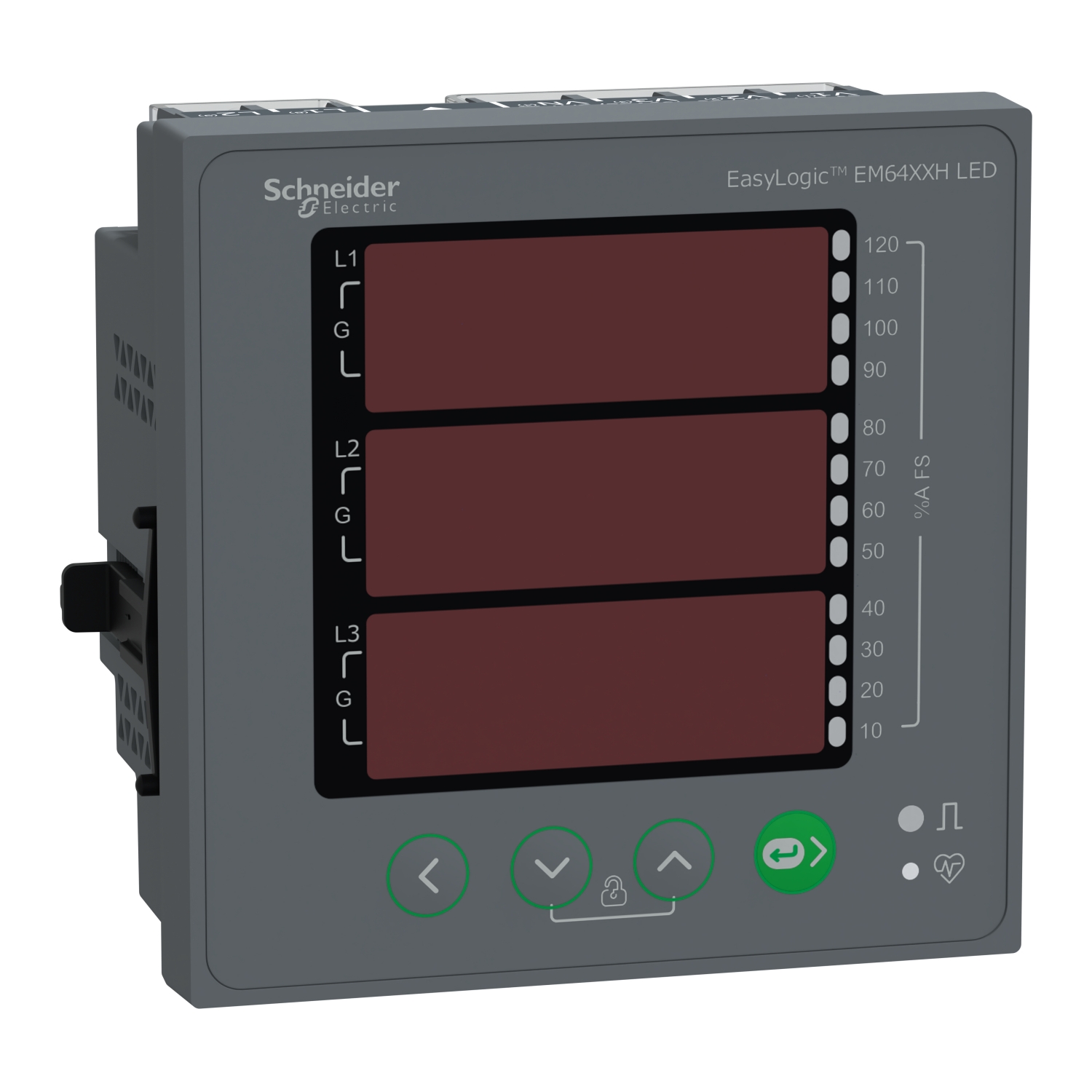

Schneider EasyLogic EM6433H Energy Meter · 1P/3P · 5 A · Class 1 active energy · Class 2 re

NEW added this week
₹11,814/pcincl. GST-1%
₹10,012 + 18% GST · MRP ₹11,933
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹11,814 /pc incl. GST
Free pan-India delivery

Schneider EasyLogic EM6433H Energy Meter · 1P/3P · 5 A · Class 1 active energy · Class 2 re: Elume price today ₹11,814 per pc incl. GST, 1% below the ₹11,933 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹12,768₹12,323₹11,878₹11,432₹10,987₹11,933₹11,814
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹11,814
MRP
₹11,933
Lowest in view · 17 Oct
₹11,814
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹11,223/pc on this product

EM6433H monitors active and apparent power or energy consumption, run mode and current. The meter can save up to 10 years of integrated data. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure active and reactive energy. Communication protocol is Modbus RTU with RS485 port support. The display has 3 rows 14 mm height, 7 segment 4 digit LED display, can screen the current and power measurement. Mechanical dimensions are 96 mm in width, 96 mm in height and 90 mm in depth.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider EasyLogic EM6433H Energy Meter · 1P/3P · 5 A · Class 1 active energy · Class 2 re · METSEEM6433HCL10RS
Rated current5 A
Ingress protectionIP51 front:· IP30 body:
Reference standardIEC 61010-1:ed. 3
Net weight0.3 kg
BrandSchneider
Brand SKUMETSEEM6433HCL10RS
ELINEC6F9RG9JJ
Sold asPer pc
RangeEasyLogic
SignalCurrent 0.005...10 A (impedance 0.3 MOhm)6 x
MaterialPolycarbonate
fixing modeBy clamp
Display type8 segments LED
Product nameEasyLogic EM64XXH RS
Metering typeActive power P, P1, P2, P3 · Average current Iavg · Reactive power Q1, Q2 · Phase currents · Apparent power S, S1, S2, S3 · Calculated neutral current · Power factor and displacement PF (signed, four quadrant) · Unbalance current · Active, reactive, apparent energy (signed, two quadrant)
Mounting modeFlush-mounted
Sampling rate32 samples/cycle
Accuracy classClass 1 active energy conforming to IEC 62053-21 · Class 2 reactive energy conforming to IEC 62053-24
Data recordingEnergy consumption logs
Display colourRed
Display digits12 digit(s) - 14.2 mm in height
Output voltage5...40 V DC@20 mA
type of network3P · 2P + N · 1P + N · 2P · 3P + N
Demand intervals1 s
Flame retardanceV-0 conforming to UL 94
Impulse duration20 ms
Local signallingGreen LED: activity · Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Mounting supportFramework
Device short nameEM6433H
Network frequency60 Hz · 50 Hz
Number of outputs1 pulse
Device applicationPower monitoring
Provided equipmentInstallation guide
[In] rated current5 A · 1 A
Measurement current5…6000 mA
Measurement voltage35…480 V AC 50...60 Hz between phases · 35…277 V AC 50...60 Hz between phase and neutral · 277…999000 V AC 50...60 Hz with external VT
Type of measurementCurrent · Active power · Active energy
Measurement accuracyCurrent +/- 0.5 % · Power +/- 0.5 % · Frequency +/- 0.05 % · Reactive power +/- 2 % · Active power +/- 0.5 % · Apparent power +/- 0.5 % · Active energy +/- 0.5 % · Apparent energy +/- 0.5 %
Measurement categoryCategory III 35…480 V
Type of installationIndoor installation
Communication of dataReading of measurements
Installation categoryIII
Connections - terminalsCurrent circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) · Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Communication: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s)
Tamperproof of settingsProtected by access code
Messages display capacity3 fields of 4 characters
Product or component typeEnergy meter
[Us] rated supply voltage44...300 V AC 45...65 Hz · 44...300 V DC
Communication port supportScrew connector: RS485
Communication port protocolModbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2-wire, insulation 2500 V
Electrical insulation classClass II
Frequency measurement range45…65 Hz
Maximum power consumption in W2 W at 240 V
Maximum power consumption in VA4 VA at 240 V between phase and neutral
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
