Schneider TeSys Deca Advanced LC1D Power Contactor · 3P · 9 A AC-3 · 1 NO + 1 NC aux · 110 V DC coilLC1D09FD↓ 1% off MRP1 / 8
BrandSchneider
CategoryIndustrial Control
Brand SKULC1D09FD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

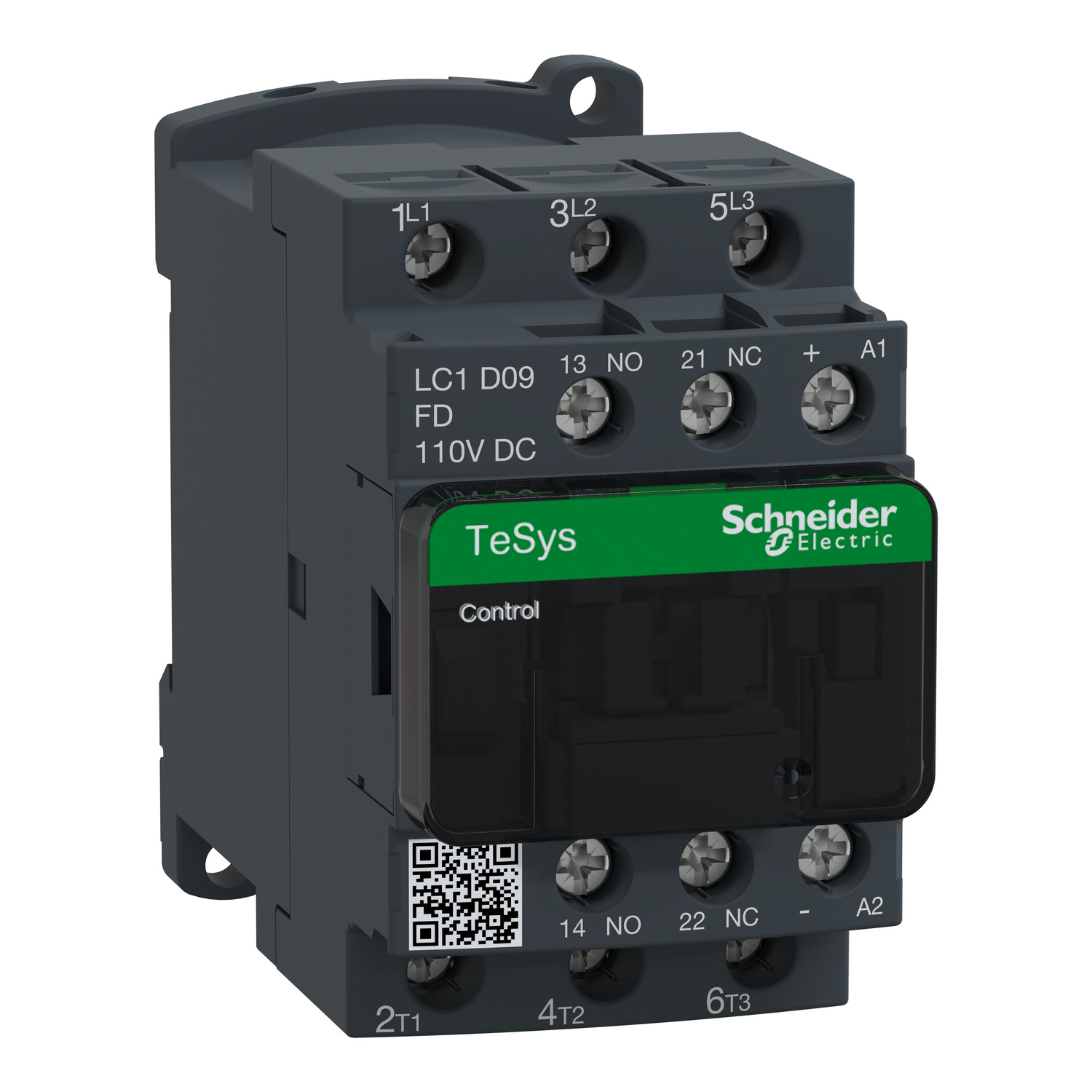

Schneider TeSys Deca Advanced LC1D Power Contactor · 3P · 9 A AC-3 · 1 NO + 1 NC aux · 110 V DC coil

Rating: 9 A AC-3
Coil: 110 V DC coil
NEW added this week
₹3,779/pcincl. GST-1%
₹3,203 + 18% GST · MRP ₹3,817
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹3,779 /pc incl. GST
Free delivery over ₹4,000

Schneider TeSys Deca Advanced LC1D Power Contactor · 3P · 9 A AC-3 · 1 NO + 1 NC aux · 110 V DC coil: Elume price today ₹3,779 per pc incl. GST, 1% below the ₹3,817 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹4,084₹3,942₹3,799₹3,657₹3,514₹3,817₹3,779
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹3,779
MRP
₹3,817
Lowest in view · 17 Oct
₹3,779
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹3,590/pc on this product

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 110V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys Deca Advanced LC1D Power Contactor · 3P · 9 A AC-3 · 1 NO + 1 NC aux · 110 V DC coil · LC1D09FD
Poles3P
Rated current9 A
Ingress protectionIP20 front face
Reference standardCSA C22.2 No 14
coil voltage110 V DC
Net weight0.48 kg
BrandSchneider
Brand SKULC1D09FD
ELINEC4CDJ2CPF
Sold asPer pc
Time constant28 ms
Motor power hp1 hp at 230/240 V AC 50/60 Hz for 1 phase motors · 2 hp at 200/208 V AC 50/60 Hz for 3 phases motors · 2 hp at 230/240 V AC 50/60 Hz for 3 phases motors · 5 hp at 460/480 V AC 50/60 Hz for 3 phases motors · 7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors · 0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
Motor power kW2.2 kW at 220/230 V AC 50/60 Hz (AC-3) · 4 kW at 380/400 V AC 50/60 Hz (AC-3) · 4 kW at 415/440 V AC 50/60 Hz (AC-3) · 5.5 kW at 500 V AC 50/60 Hz (AC-3) · 5.5 kW at 660/690 V AC 50/60 Hz (AC-3) · 2.2 kW at 220/230 V AC 50/60 Hz (AC-3e) · 4 kW at 380/400 V AC 50/60 Hz (AC-3e) · 4 kW at 415/440 V AC 50/60 Hz (AC-3e) · 5.5 kW at 500 V AC 50/60 Hz (AC-3e) · 5.5 kW at 660/690 V AC 50/60 Hz (AC-3e) · 2
Operating time63 ±15 % ms closing · 20 ±20 % ms opening
Coil technologyBuilt-in bidirectional peak limiting diode suppressor
Non-overlap time1.5 ms on de-energisation between NC and NO contact · 1.5 ms on energisation between NC and NO contact
Pollution degree3
Protective coverWith
Range of productTeSys Deca Advanced
Average impedance2.5 mOhm - Ith 25 A 50 Hz for power circuit
Device short nameLC1D
Inrush power in W5.4 W (at 20 °C)
Poles description3P
Tightening torquePower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm · Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 · Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm · Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 · Control circuit: 1.7 N.m - on screw clamp terminals - with scr
Compatibility codeLC1D
Control circuit typeDC standard
Overvoltage categoryIII
Utilisation categoryAC-3 · AC-3e · AC-1 · AC-4
Contactor applicationResistive load · Motor control
Electrical durability0.6 Mcycles 25 A AC-1 at Ue <= 440 V · 2 Mcycles 9 A AC-3 at Ue <= 440 V · 2 Mcycles 9 A AC-3e at Ue <= 440 V
Insulation resistance> 10 MOhm for signalling circuit
Mechanical durability30 Mcycles
Associated fuse rating10 A gG for signalling circuit conforming to IEC 60947-5-1 · 25 A gG at <= 690 V coordination type 1 for power circuit · 20 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Auxiliary contacts typetype mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 · type mirror contact 1 NC conforming to IEC 60947-4-1
Connections - terminalsPower circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end · Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end · Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end · Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end · Power circuit: screw cla
Rated breaking capacity250 A at 440 V for power circuit conforming to IEC 60947
Pole contact composition3 NO
Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 · B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Minimum switching current5 mA for signalling circuit
Minimum switching voltage17 V for signalling circuit
Product or component typeContactor
Irms rated making capacity250 A at 440 V for power circuit conforming to IEC 60947 · 140 A AC for signalling circuit conforming to IEC 60947-5-1 · 250 A DC for signalling circuit conforming to IEC 60947-5-1
Power dissipation per pole1.56 W AC-1 · 0.2 W AC-3 · 0.2 W AC-3e
Signalling circuit frequency25...400 Hz
[Uc] control circuit voltage110 V DC
Auxiliary contact composition1 NO + 1 NC
[Ui] rated insulation voltagePower circuit: 690 V conforming to IEC 60947-4-1 · Power circuit: 600 V CSA certified · Power circuit: 600 V UL certified · Signalling circuit: 690 V conforming to IEC 60947-1 · Signalling circuit: 600 V CSA certified · Signalling circuit: 600 V UL certified
Control circuit voltage limits0.1...0.25 Uc (-40…70 °C):drop-out DC · 0.7...1.25 Uc (-40…60 °C):operational DC · 1...1.25 Uc (60…70 °C):operational DC
Hold-in power consumption in W5.4 W at 20 °C
[Ie] rated operational current9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit · 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit · 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Ue] rated operational voltagePower circuit: <= 690 V AC 25...400 Hz · Power circuit: <= 300 V DC
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
[Icw] rated short-time withstand current105 A 40 °C - 10 s for power circuit · 210 A 40 °C - 1 s for power circuit · 30 A 40 °C - 10 min for power circuit · 61 A 40 °C - 1 min for power circuit · 100 A - 1 s for signalling circuit · 120 A - 500 ms for signalling circuit · 140 A - 100 ms for signalling circuit
[Ith] conventional free air thermal current25 A (at 60 °C) for power circuit · 10 A (at 60 °C) for signalling circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
