Schneider Acti9 iPRD40r SPD · 1PA9L40101↓ 1% off MRP1 / 2
BrandSchneider
CategorySwitchgear
Brand SKUA9L40101
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 iPRD40r SPD · 1P

Poles: 1P
NEW added this week
₹11,911/pcincl. GST-1%
₹10,094 + 18% GST · MRP ₹12,031
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹11,911 /pc incl. GST
Free pan-India delivery

Schneider Acti9 iPRD40r SPD · 1P: Elume price today ₹11,911 per pc incl. GST, 1% below the ₹12,031 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹12,873₹12,424₹11,975₹11,526₹11,077₹12,031₹11,911
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹11,911
MRP
₹12,031
Lowest in view · 17 Oct
₹11,911
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹11,315/pc on this product

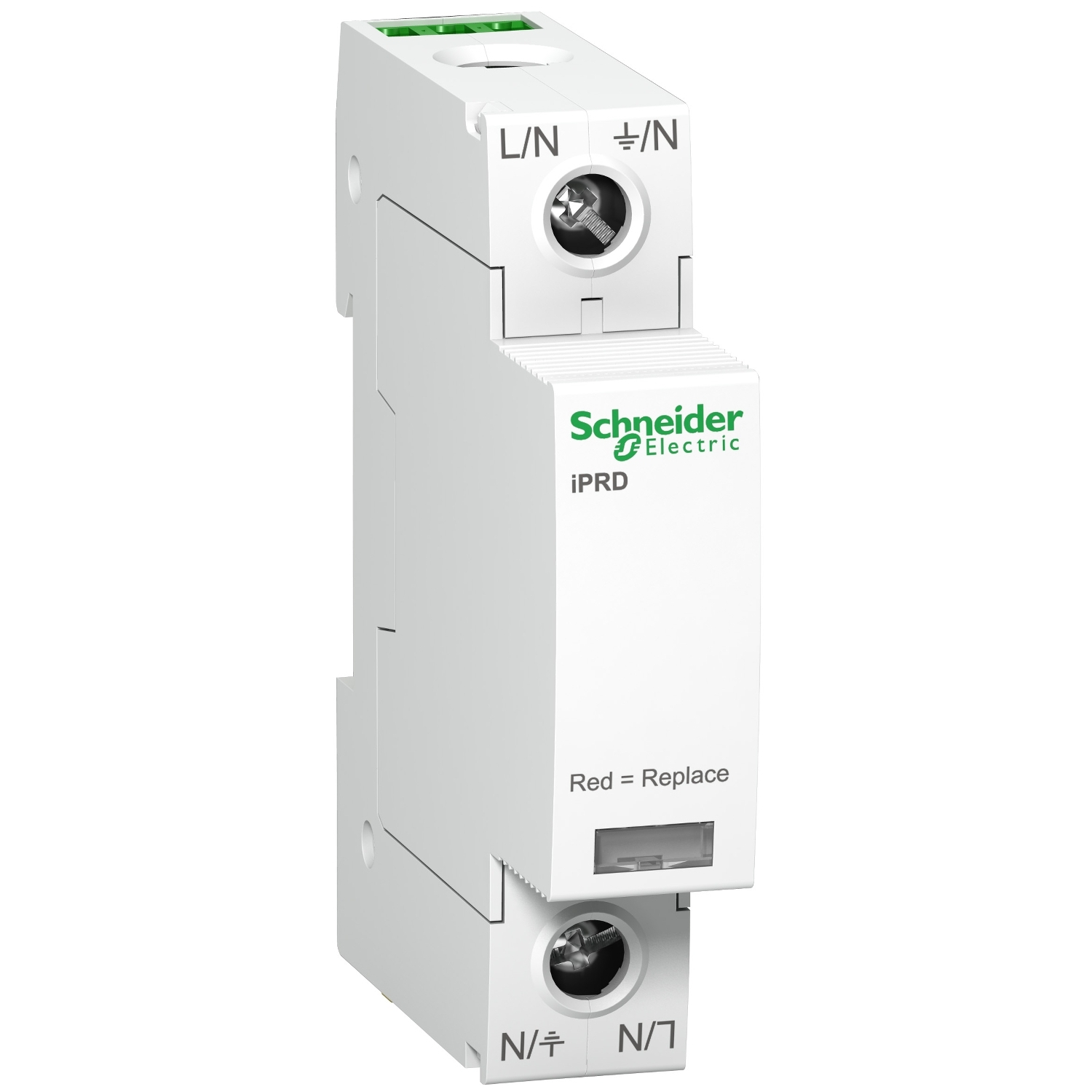

This Acti9 iPRD40r surge arrester protects 1P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (L/PE or N/PE) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 85mm x (D) 69mm. The weight is 112g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iPRD40r SPD · 1P · A9L40101
Poles1P
Reference standardEN 61643-11:2012
Net weight0.112 kg
ColourWhite (RAL 9003)
Device typeMiniature circuit breaker (MCB)
BrandSchneider
Brand SKUA9L40101
ELINE9RH44JM2D
Sold asPer pc
Depth69 mm
Width18 mm
Height85 mm
StandardsEN 61643-11:2012 · IEC 61643-11:2011
9 mm pitches2
Product nameActi9 iPRD
Mounting modeClip-on (DIN rail)
Quality labelsNF · KEMA-KEUR
Earthing systemTN-C · IT 230
Range of productIPRD
Device short nameiPRD40r
Poles description1P
Relative humidity5…95 %
Remote signallingWith
Tightening torque2.5 N.m
Compatibility codeIPRD40r
Device applicationDistribution
Operating altitude2000 m
Surge arrester typeElectrical distribution network
Product certificationsCE
Connections - terminalsTunnel type terminal (downside) 2.5…35 mm² · Tunnel type terminal (upside) 2.5…35 mm²
IK degree of protectionIK03 conforming to IEC 62262
Disconnector device typeAssociated circuit breaker iC60H 40 A curve C - Icu 15 kA · Associated circuit breaker IC60N 40 A curve C - Icu 10 kA · Associated circuit breaker NG125H 40 A curve C - Icu 36 kA · Associated circuit breaker NG125L 40 A curve C - Icu 50 kA · Associated circuit breaker NG125N 40 A curve C - Icu 25 kA · Associated fuse gG 63 A - Icu 15 kA · Associated fuse gG 80 A - Icu 50 kA
Maximum discharge currentCommon mode: 40 kA L/PE
Nominal discharge currentCommon mode: 15 kA (L/PE) · Common mode: 15 kA (N/PE)
Product or component typeSurge arrester with pluggable cartridge
Surge arrester class typeType 2
Surge arrester technologyMOV
Signalling circuit voltage0.25 A/250 V AC 50/60 Hz
[Ut] temporary overvoltage337 V L/N 5 s withstand · 1200 V N/PE 200 ms safe failure mode
Signal contacts composition1 SD (1 C/O)
[Ipe] Ground residual current0.6 mA · 0.003 mA
[Ue] rated operational voltage230 V AC (+/- 10 %) at 50/60 Hz
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…60 °C
Maximum [Up] voltage protection levelCommon mode 1.4 kV type 2 L/PE
[Uc] maximum continuous operating voltageCommon mode: 350 V L/PE · Common mode: 350 V N/PE
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
