Legrand Allzy Cover Plate with Frame · 1 M · White · 681300: Elume price today ₹104 per pc incl. GST, 33% below the ₹156 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹84, ₹20 less than here. The lowest tracked seller lists it at ₹84, ₹20 below it (tell us and we match it).

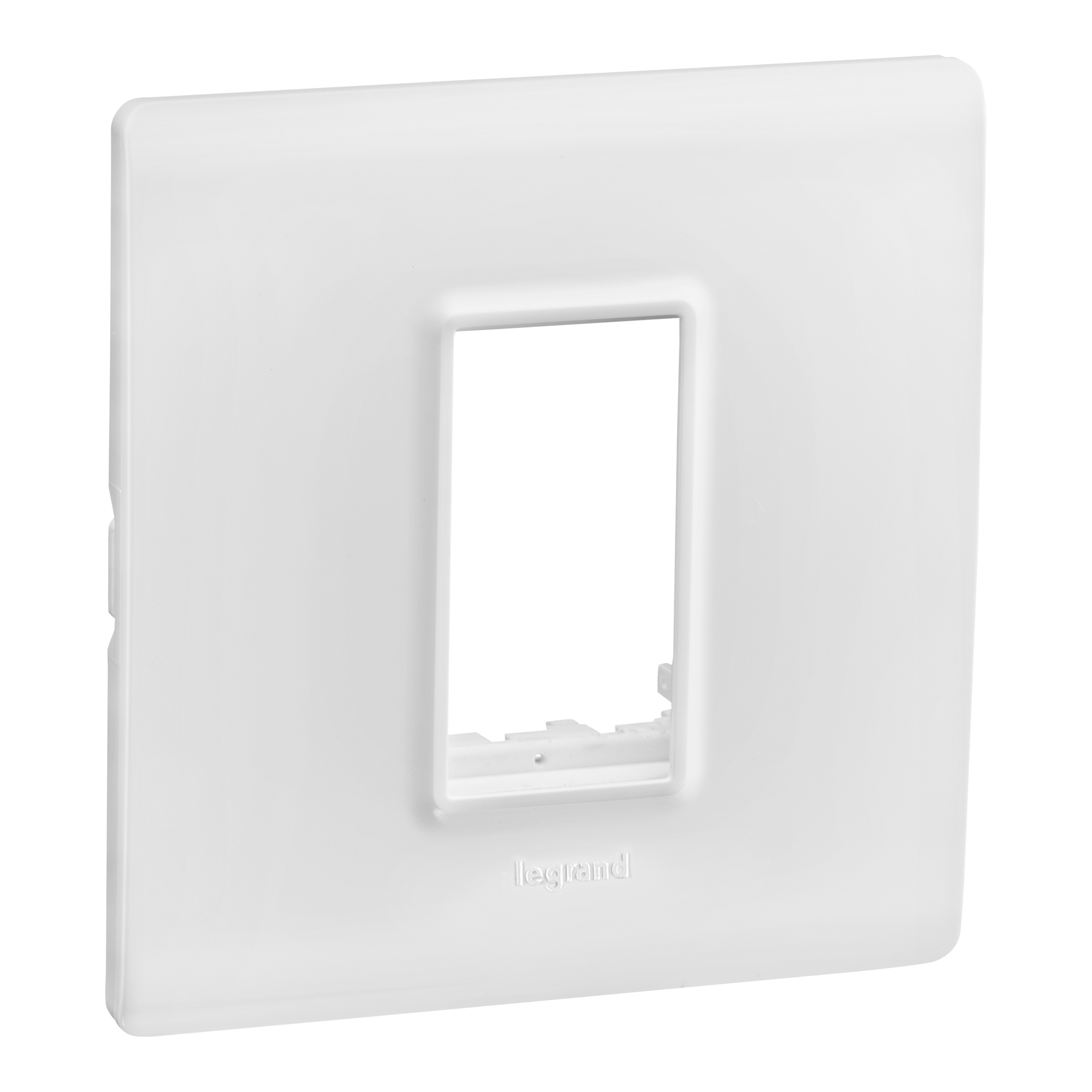

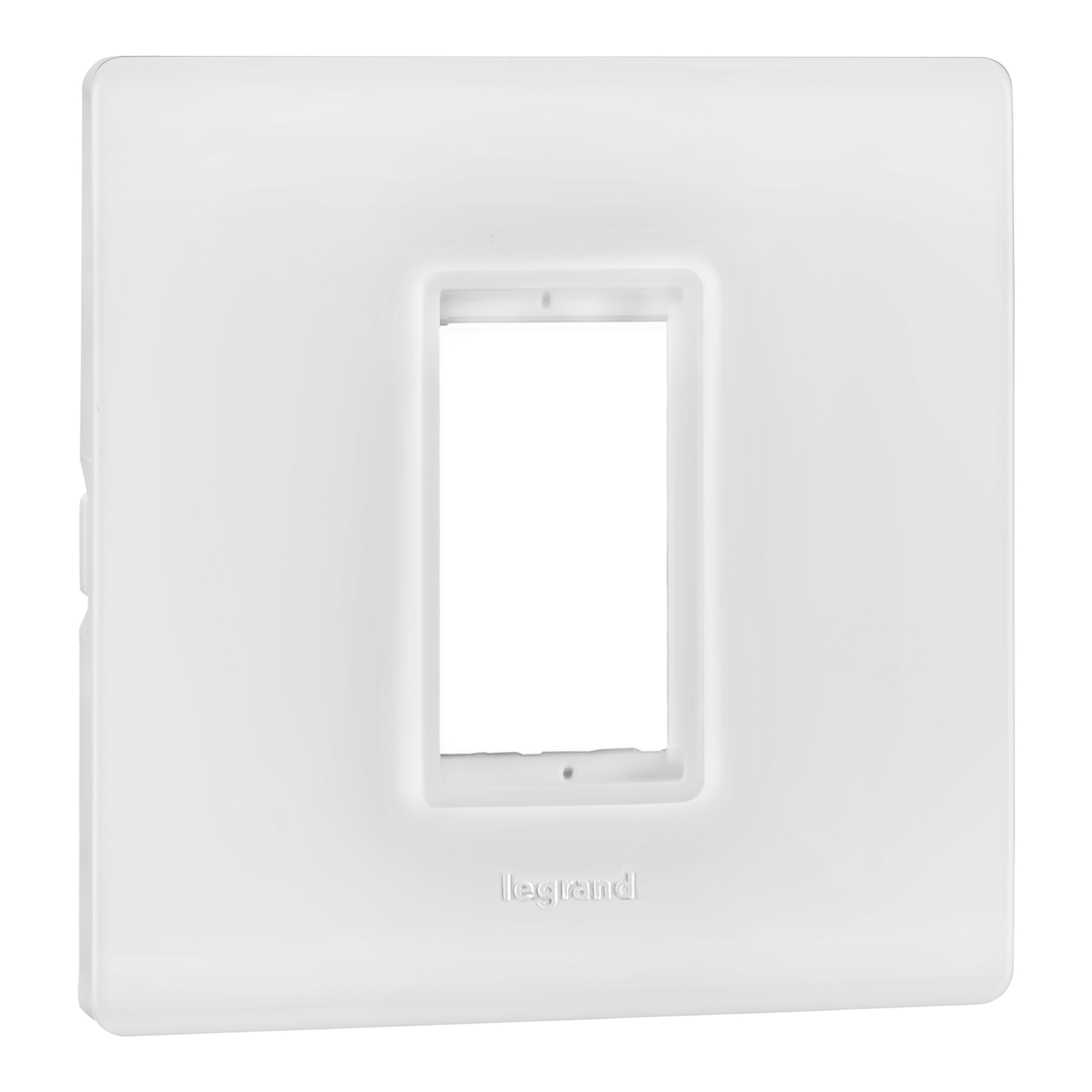

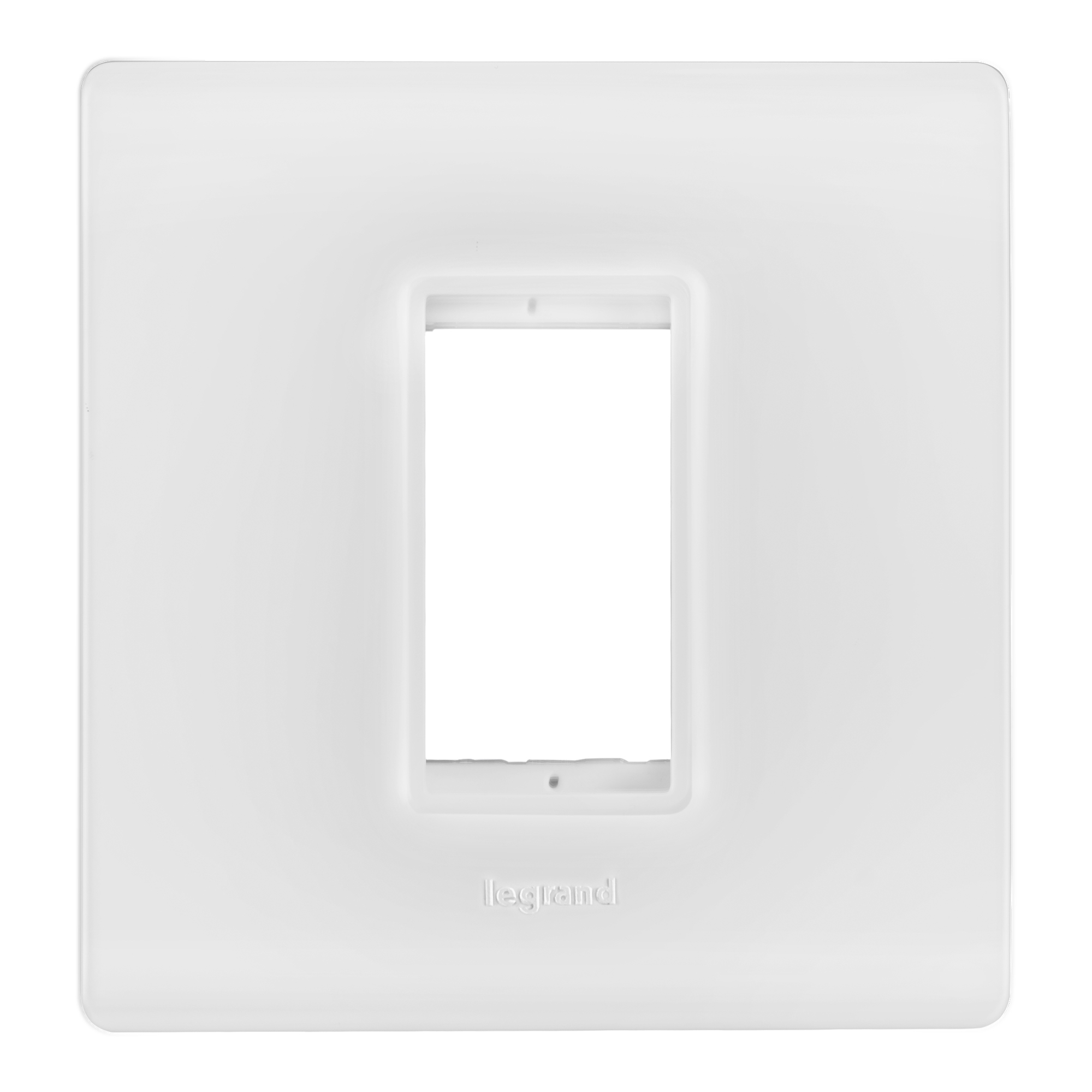

The Allzy range product with CAT number 681300 is a Plate and Frame 1M White, designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. This plate and frame combination is specifically crafted to accommodate one module and is available in a sleek white color, making it suitable for both flush and surface-mounted installations. The overall dimensions of the plate and frame are 86 mm in width, 90 mm in height, and 8.2 mm in depth, with a weight of 38 grams, ensuring a compact and lightweight design. The connection is facilitated through screwing with screws on either a flush box or a surface box, providing a secure and stable installation. The material characteristics include a polycarbonate white plate and a frame made of High Impact Polystyrene (HIPS), with steel screws that are zinc-plated for enhanced durability and corrosion resistance. The electrical characteristics of the plate and frame include a self-extinguishing property rated at 850°C for 30 seconds, ensuring safety and compliance with fire safety standards. The product conforms to the company's standard, ensuring reliability and quality. This plate and frame combination is ideal for vari
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
