Schneider Harmony XB2 Complete Body/Contact Assembly · body for control button · Ø 22 mm · 30 mm · ZB2BZ103CZB2BZ103C↓ 1% off MRP1 / 11
BrandSchneider
CategoryIndustrial Control
Specificationbody for control button · Ø 22 mm · 2 NO contact
Brand SKUZB2BZ103C
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB2 Complete Body/Contact Assembly · body for control button · Ø 22 mm · 30 mm · ZB2BZ103C

NEW added this week
₹356/pcincl. GST-1%
₹302 + 18% GST · MRP ₹360
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹356 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB2 Complete Body/Contact Assembly · body for control button · Ø 22 mm · 30 mm · ZB2BZ103C: Elume price today ₹356 per pc incl. GST, 1% below the ₹360 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹385₹372₹358₹345₹331₹360₹356
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹356
MRP
₹360
Lowest in view · 17 Oct
₹356
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹338/pc on this product

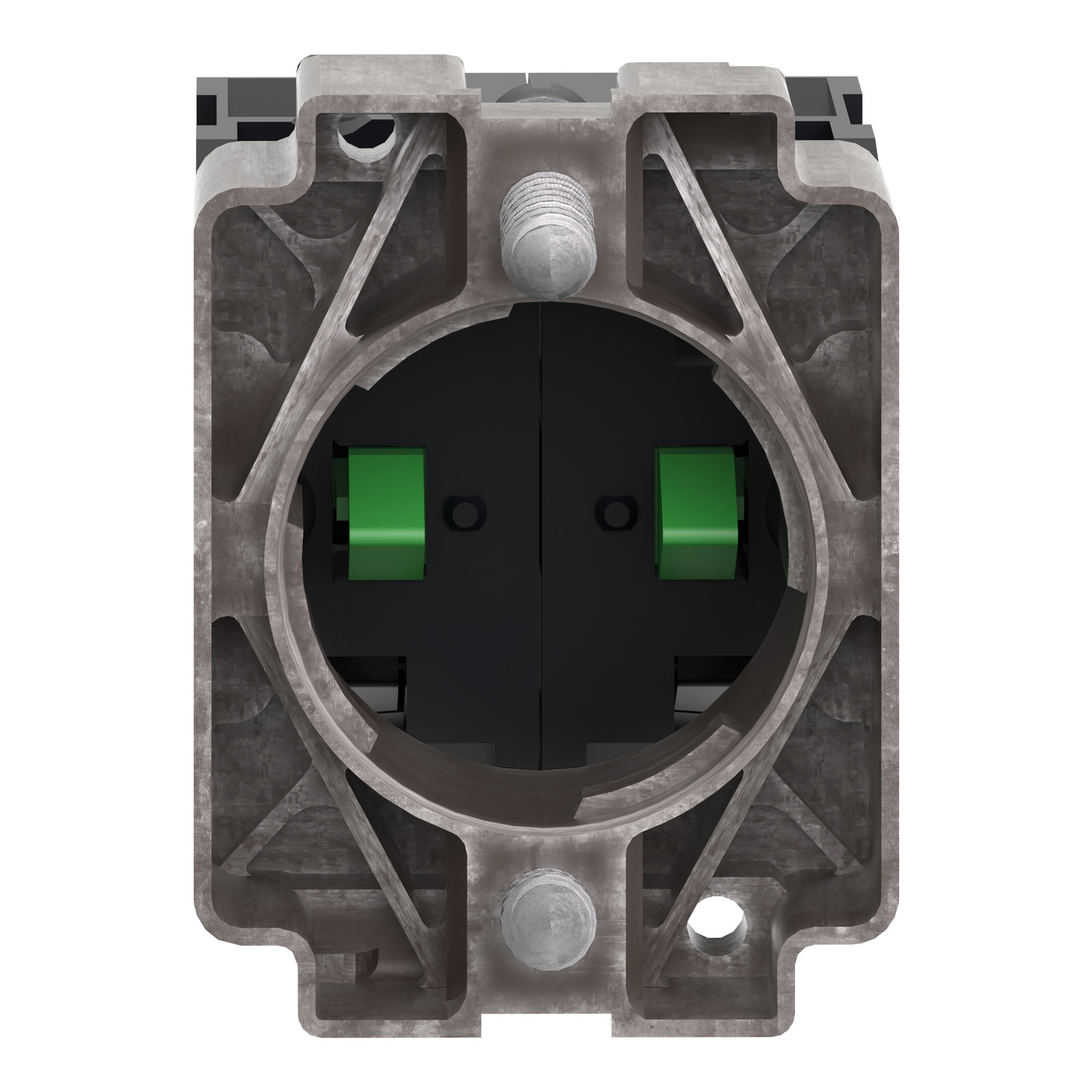

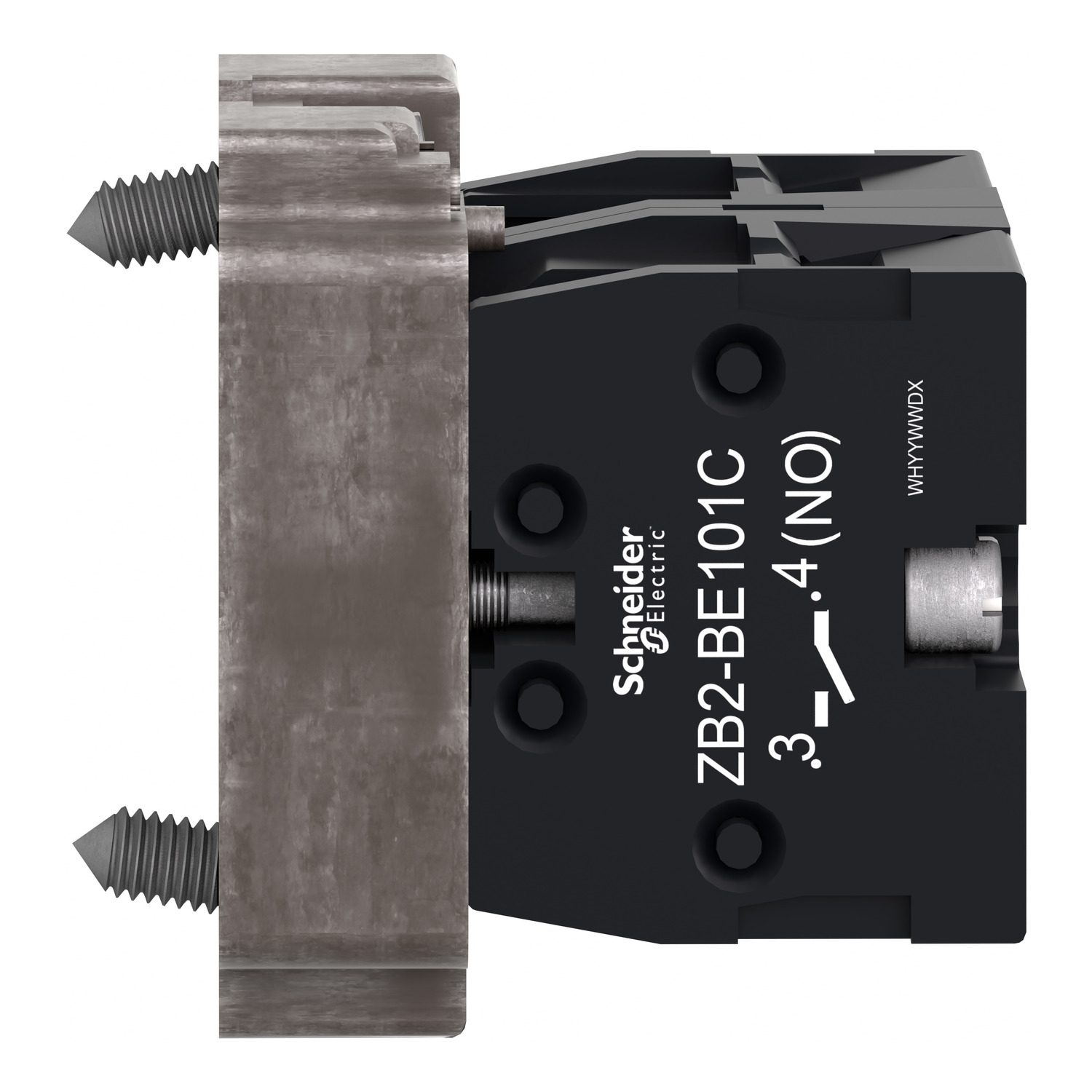

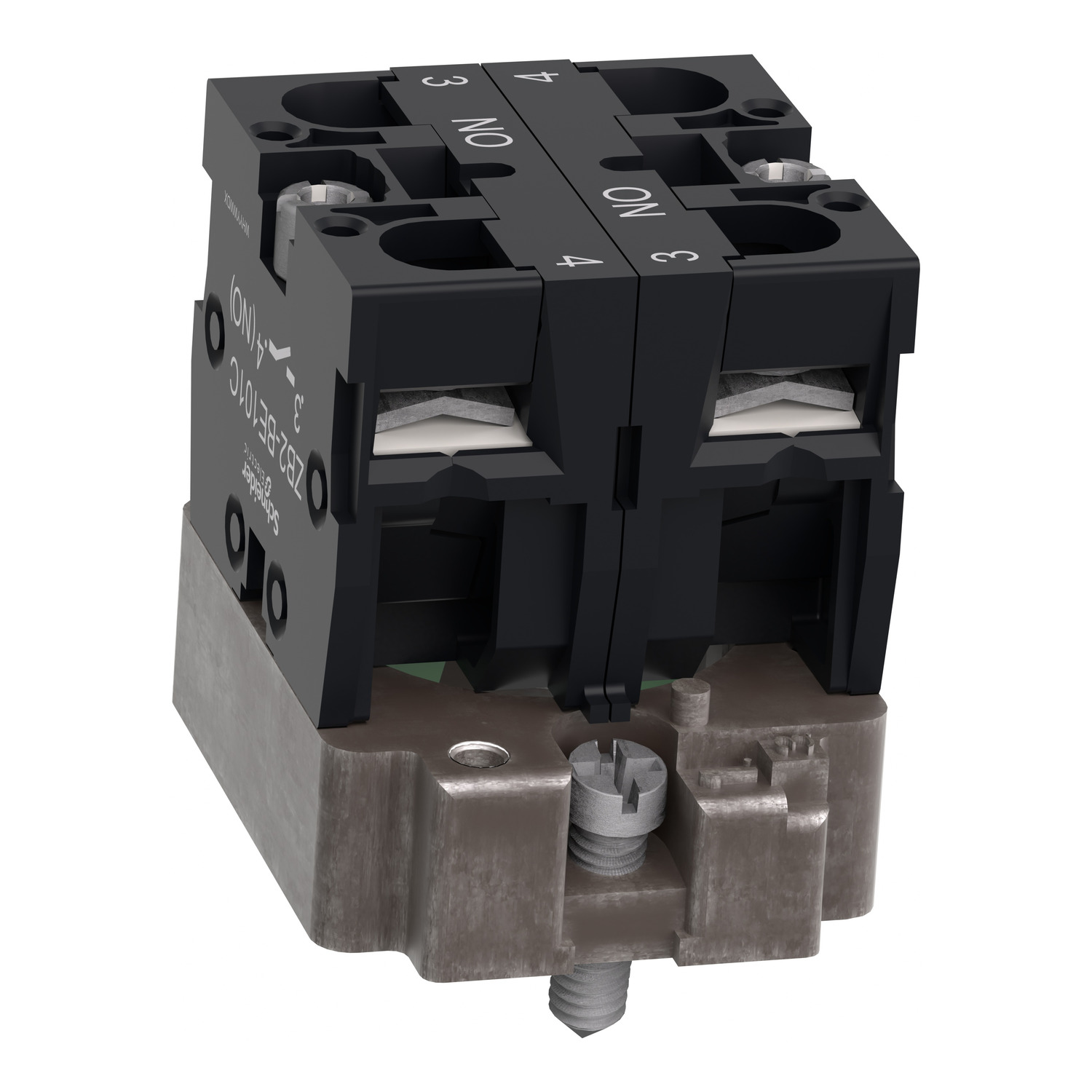

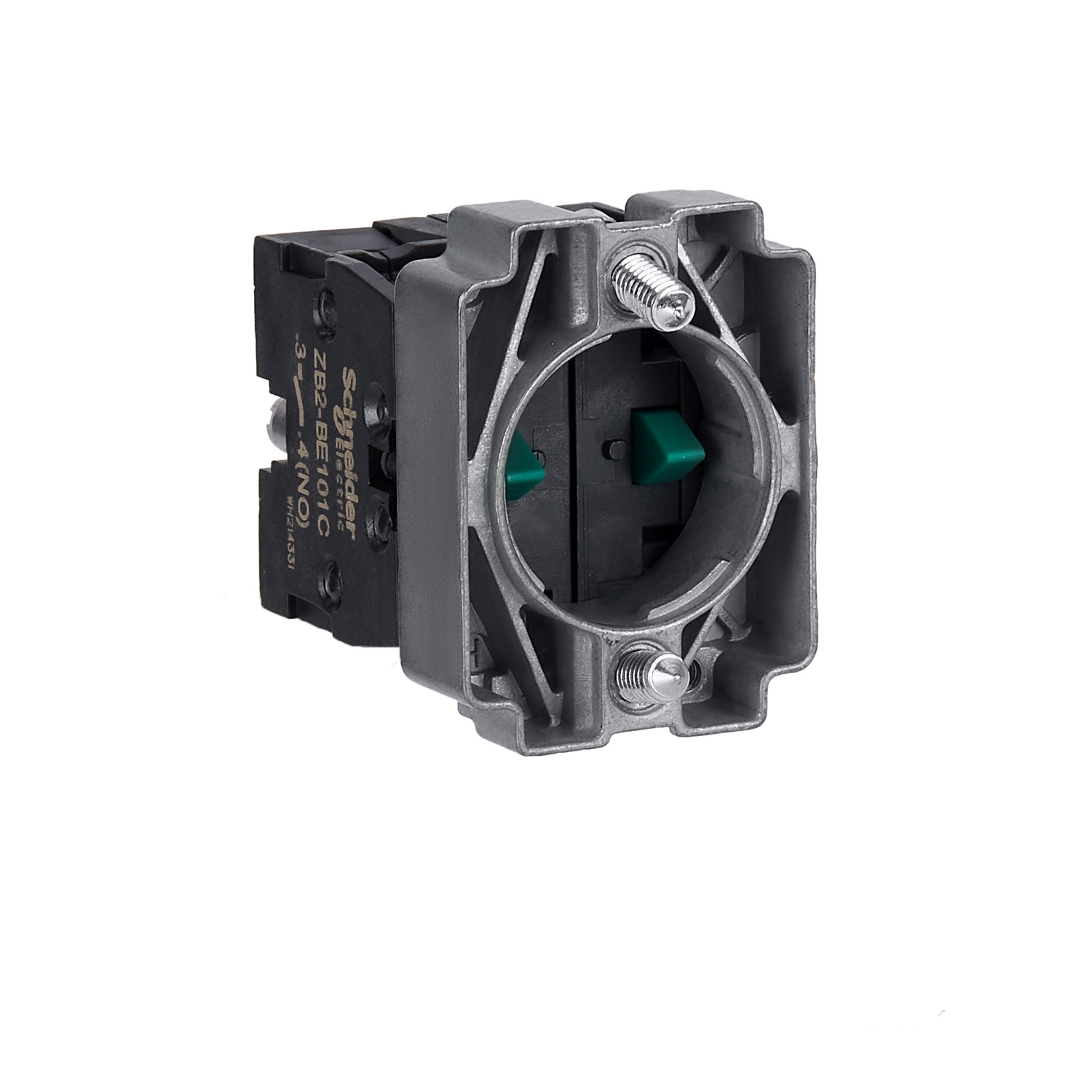

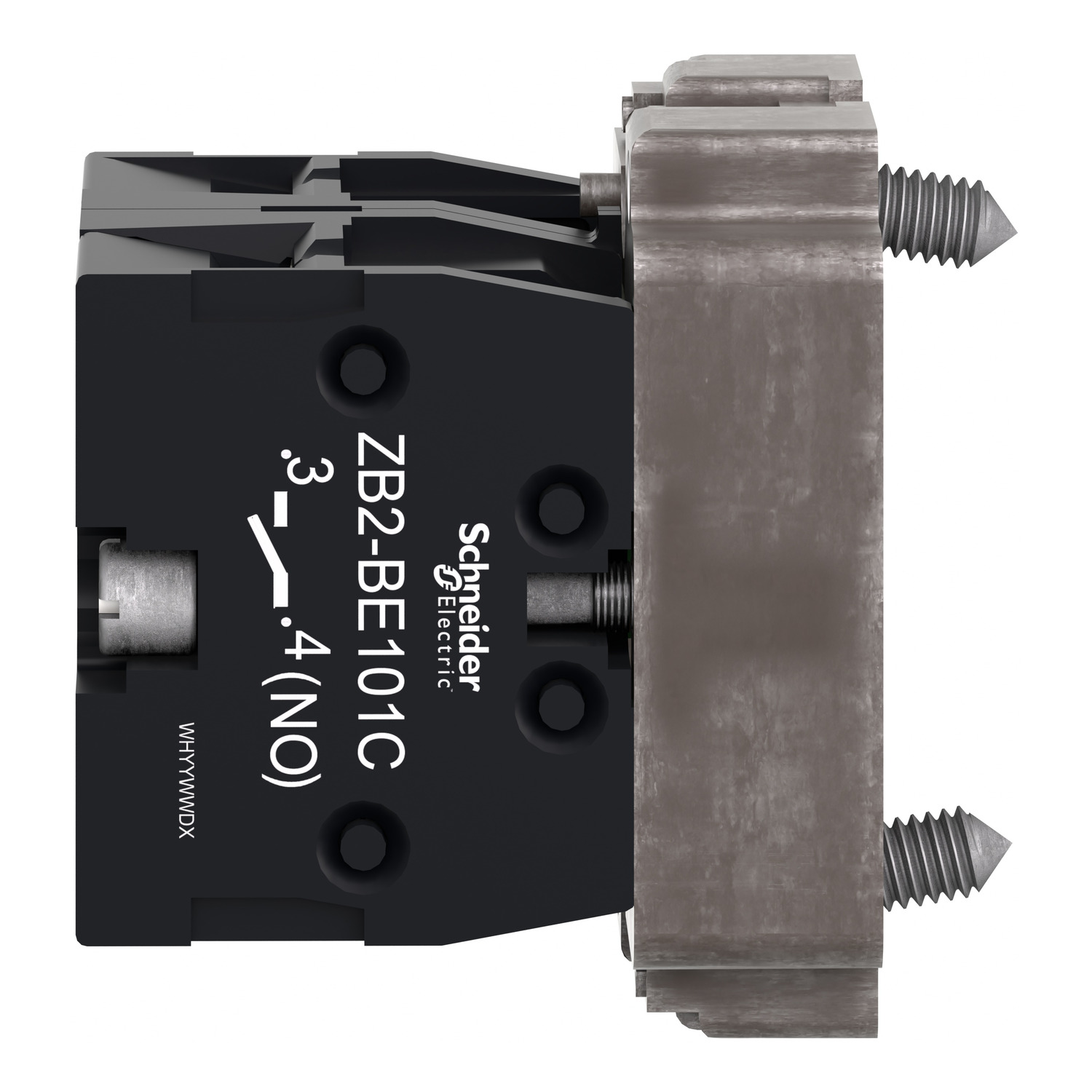

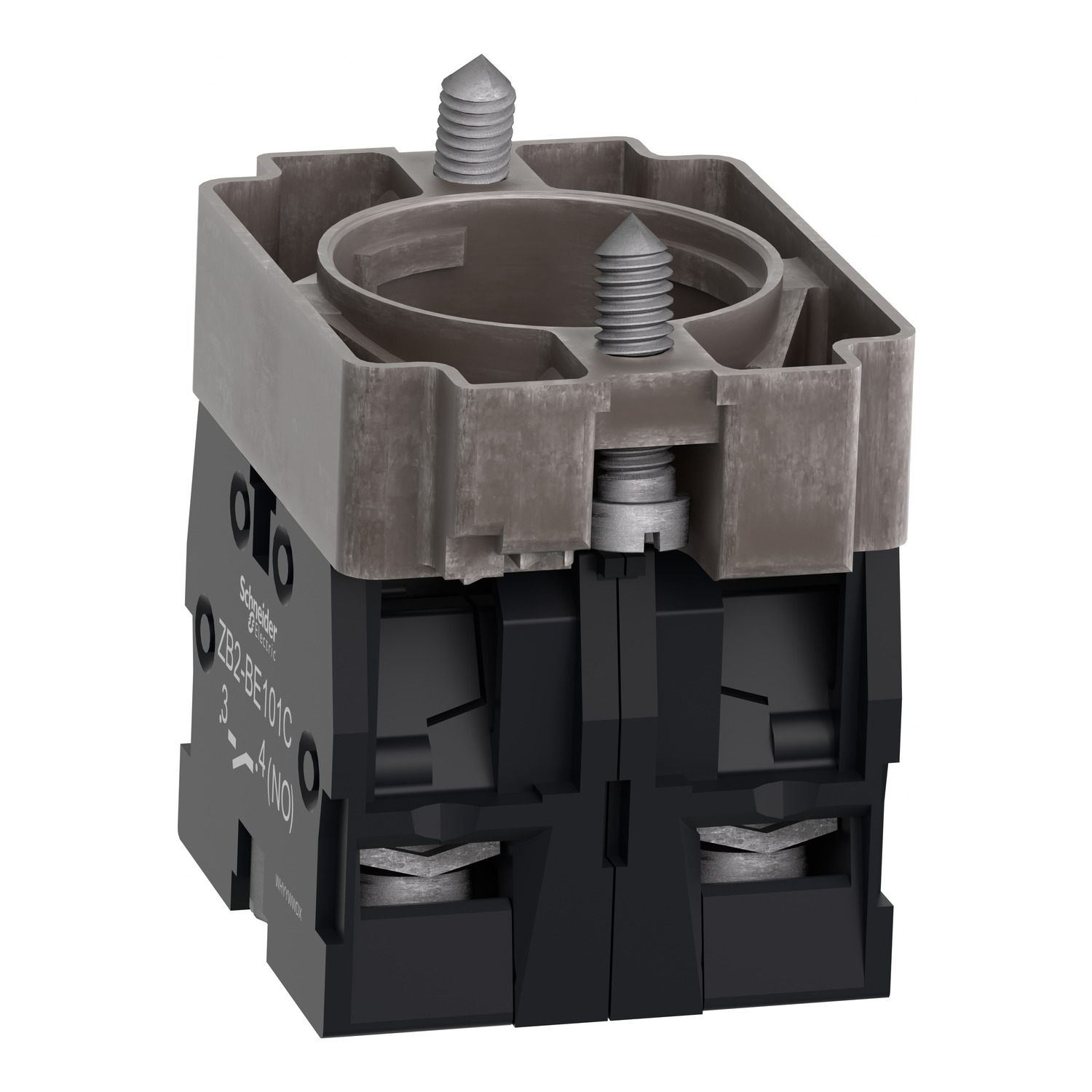

This Harmony XB2 metal body/ fixing collar is pre-mounted with 2 NO contact blocks. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It is easily installed with compatible push button and selector switch heads. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is rated for 3 million mechanical cycles and 1 million electrical cycles, ensuring less maintenance and downtime in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB2 Complete Body/Contact Assembly · body for control button · Ø 22 mm · 30 mm · ZB2BZ103C · ZB2BZ103C
Rated current3 A
Reference standardIEC 60947-1
Net weight0.055 kg
BrandSchneider
Brand SKUZB2BZ103C
ELINE7F36C423P
Sold asPer pc

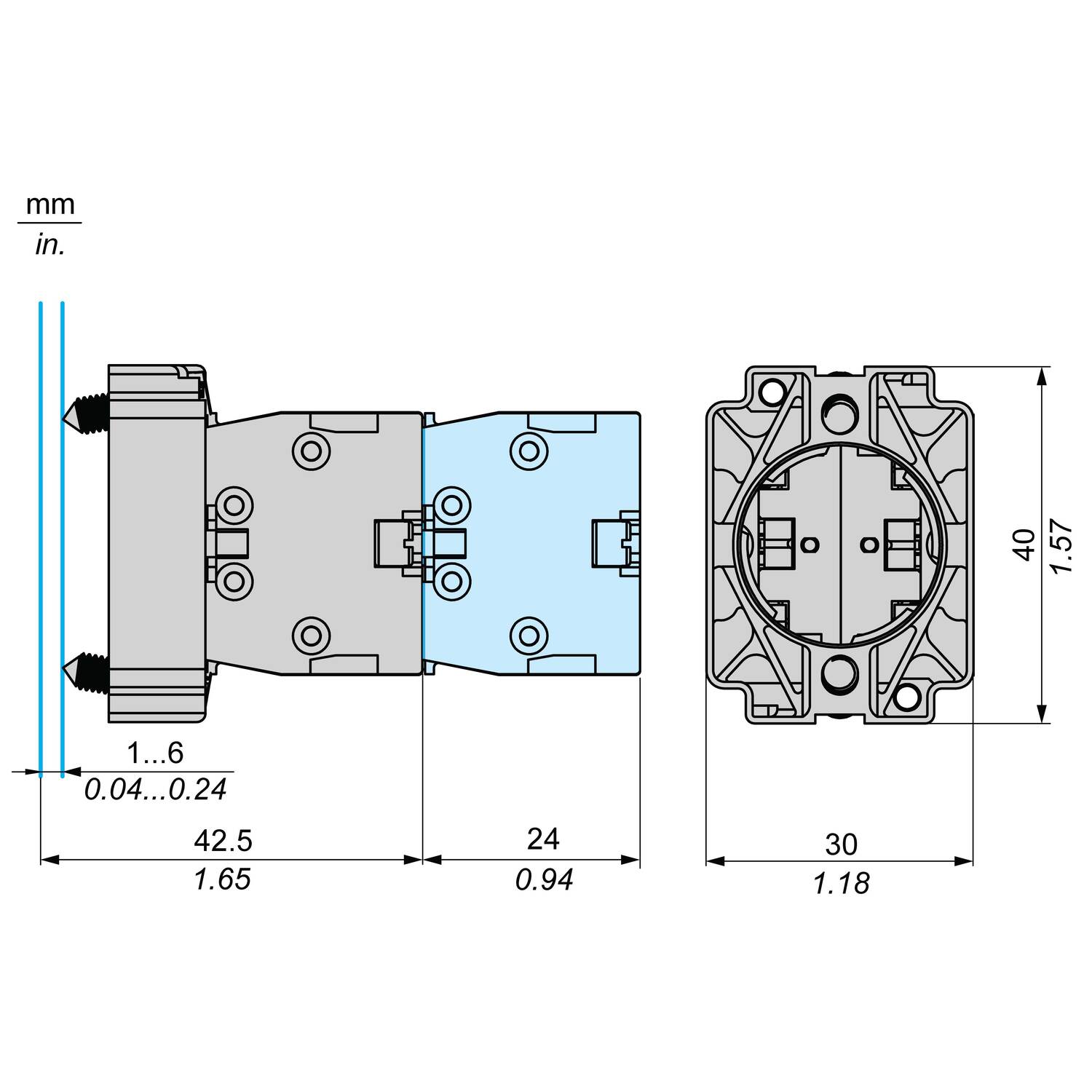

Depth42.5 mm
Width30 mm
Height40 mm
Body typeBody for control button
Fixing modeFixing screw beneath head recommended torque: 0.8 N.m · Fixing screw beneath head recommended torque: 1.0 N.m
CustomizableNo
Light sourceWithout
Bezel materialChromium plated metal
Component nameZB2
Contacts usageStandard contacts
Operating travel2.38 mm (NO changing electrical state) · 5 mm (total travel)
Positive openingWithout
Range of productHarmony XB2
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB2
Mounting diameter22.5 mm
Tightening torque0.8…1.0 N.m
Light block colourNone
Light block supplyWithout supply
Device presentationBasic sub-assemblies
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Protective treatmentTC/TH
Electrical connectionCaptive screw clamp terminal
Electrical durability1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Mechanical durability3000000 cycles
NC auxiliary contacts0
NO auxiliary contacts2
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialZamak
Connections - terminalsScrew clamps terminals
Contact code designationA600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A · A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A · Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A · Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A
Short-circuit protection10 A gL fuse type gG conforming to IEC 60947-5-1
Product or component typeComplete body/contact assembly
Rated operational power in W40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 conforming to IEC 60947-5-1 · 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 conforming to IEC 60947-5-1 · 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 conforming to IEC 60947-5-1
Contacts type and composition2 NO
Sale per indivisible quantity1
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1

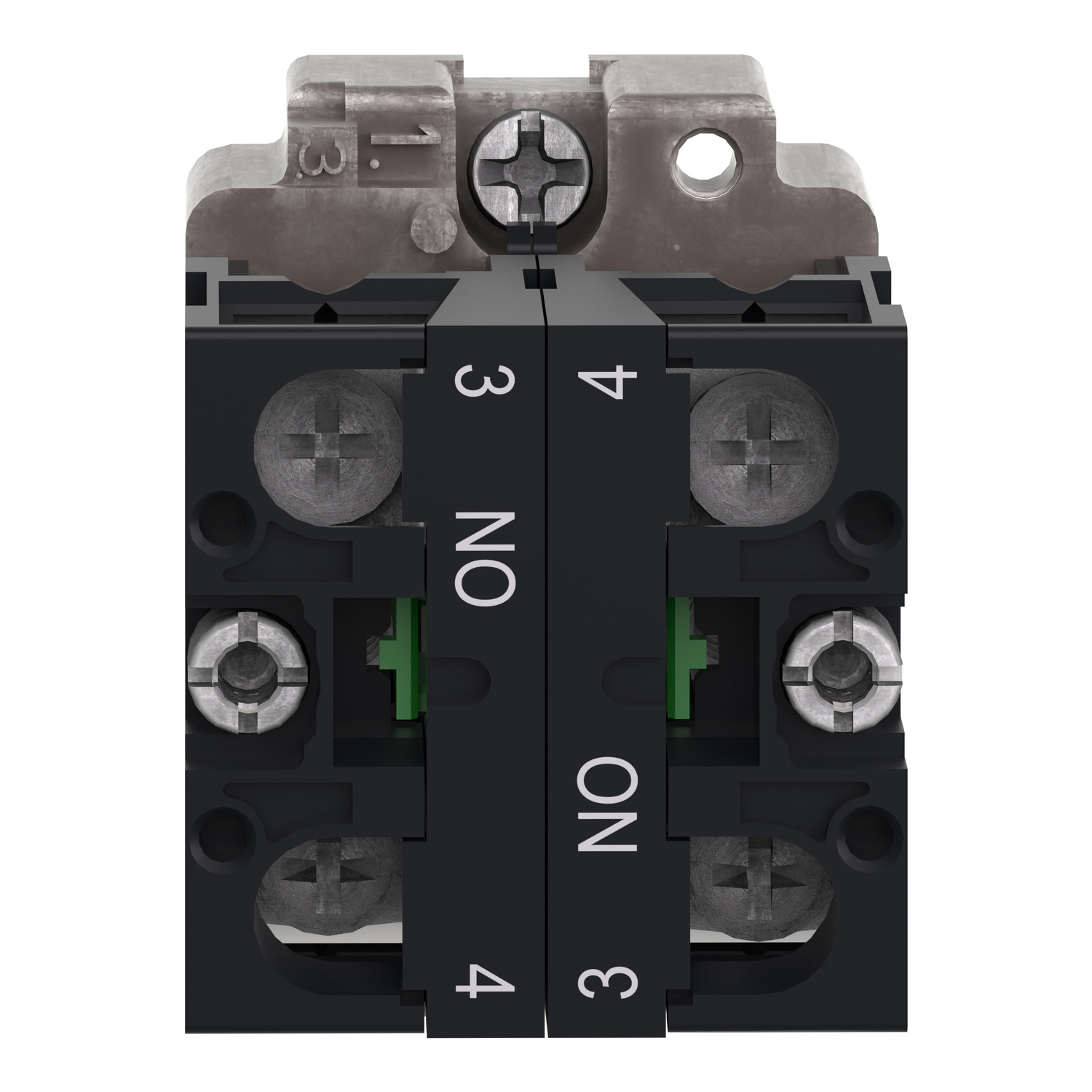

Terminals description ISO n°1(13-14)NO · (23-24)NO
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
[Ie] rated operational current AC3 A 240 V AC-15
[Ie] rated operational current DCDC-13: 0.27 A at 250 V
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
