Schneider Easy TeSys LC1E Power Contactor · 3P · 630 A AC-3 · Without aux · 220 V AC coilLC1E630M7↓ 1% off MRP1 / 6
BrandSchneider
CategoryIndustrial Control
Brand SKULC1E630M7
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

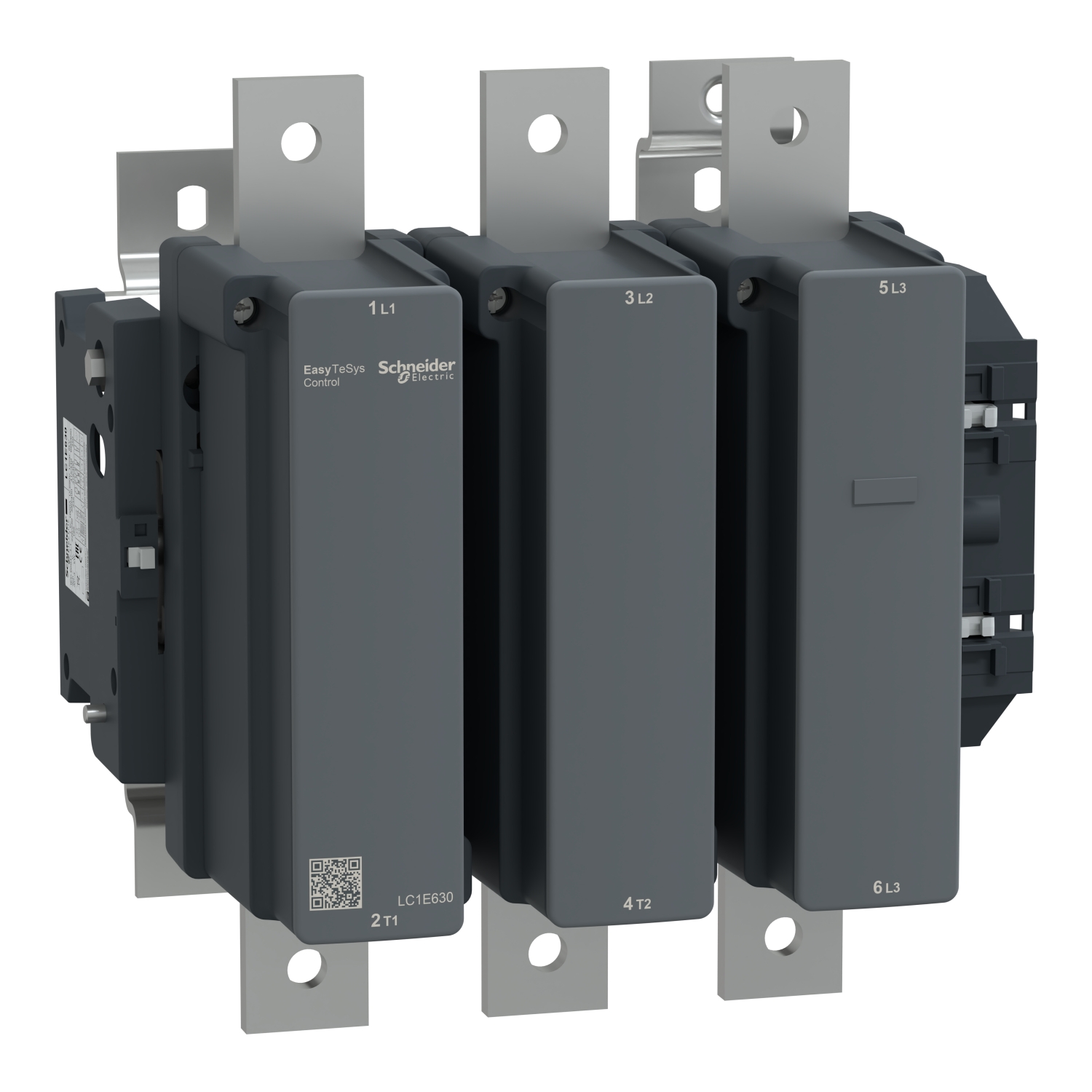

Schneider Easy TeSys LC1E Power Contactor · 3P · 630 A AC-3 · Without aux · 220 V AC coil

Rating: 630 A AC-3
Coil: 220 V AC coil
NEW added this week
₹3,69,204/pcincl. GST-1%
₹3,12,885 + 18% GST · MRP ₹3,72,933
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹3,69,204 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Easy TeSys LC1E Power Contactor · 3P · 630 A AC-3 · Without aux · 220 V AC coil: Elume price today ₹3,69,204 per pc incl. GST, 1% below the ₹3,72,933 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹3,99,038₹3,85,119₹3,71,199₹3,57,279₹3,43,360₹3,72,933₹3,69,204
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹3,69,204
MRP
₹3,72,933
Lowest in view · 17 Oct
₹3,69,204
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Heavy item
18.6 kg per unit · ₹1,000 freight per 10 kg beyond the first 10 kg of an order, added at checkout · 3-7 working days
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹3,50,744/pc on this product

EasyPact TVS contactor 3 poles for motor applications up to 630A 400kW@440V. It provides a 220V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 309mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.6 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Easy TeSys LC1E Power Contactor · 3P · 630 A AC-3 · Without aux · 220 V AC coil · LC1E630M7
Poles3P
Rated current630 A
Ingress protectionIP00
Reference standardEN/IEC 60947-1
coil voltage220 V AC 50/60 Hz
Net weight18.6 kg
BrandSchneider
Brand SKULC1E630M7
ELINE76GF4RM32
Sold asPer pc
RangeEasy TeSys

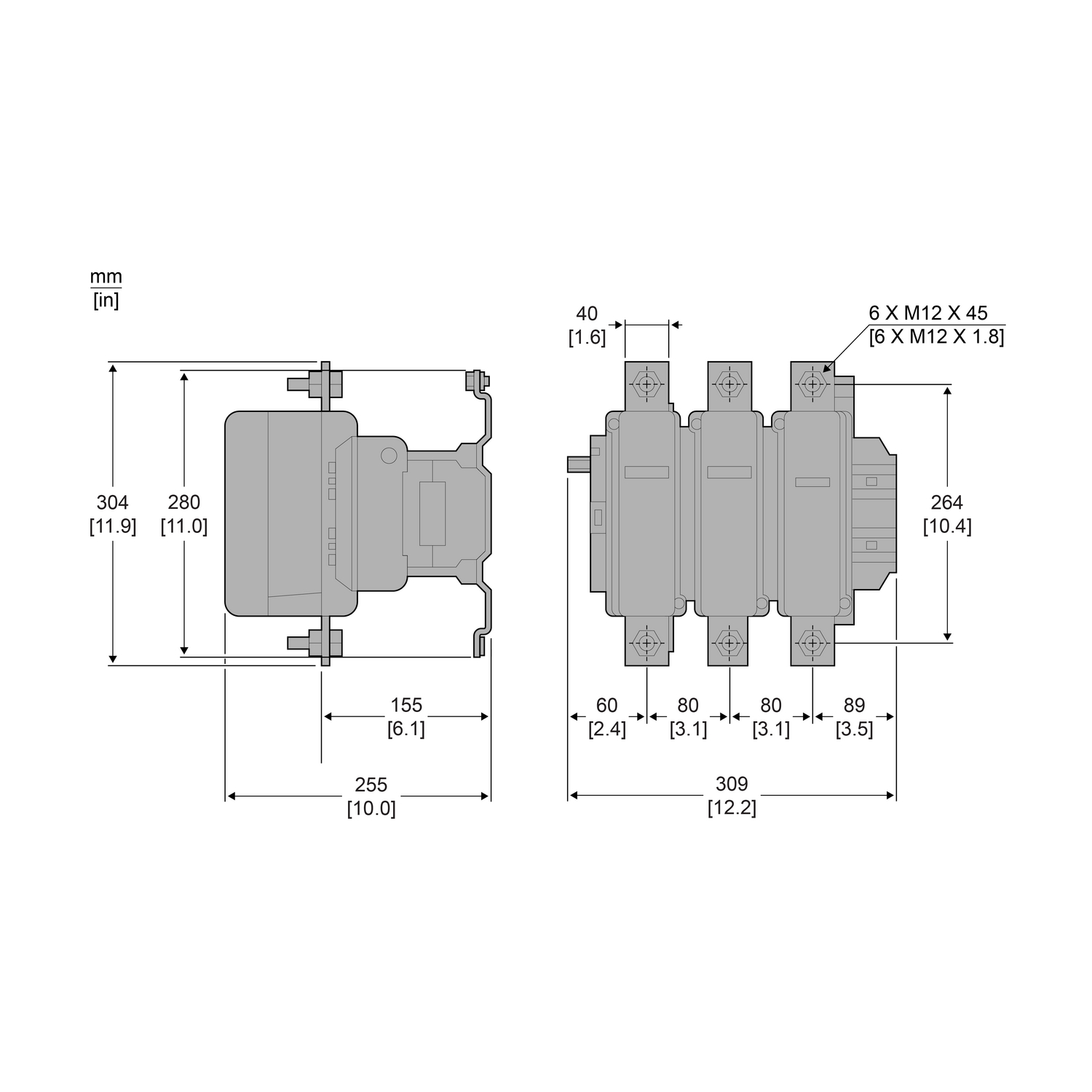

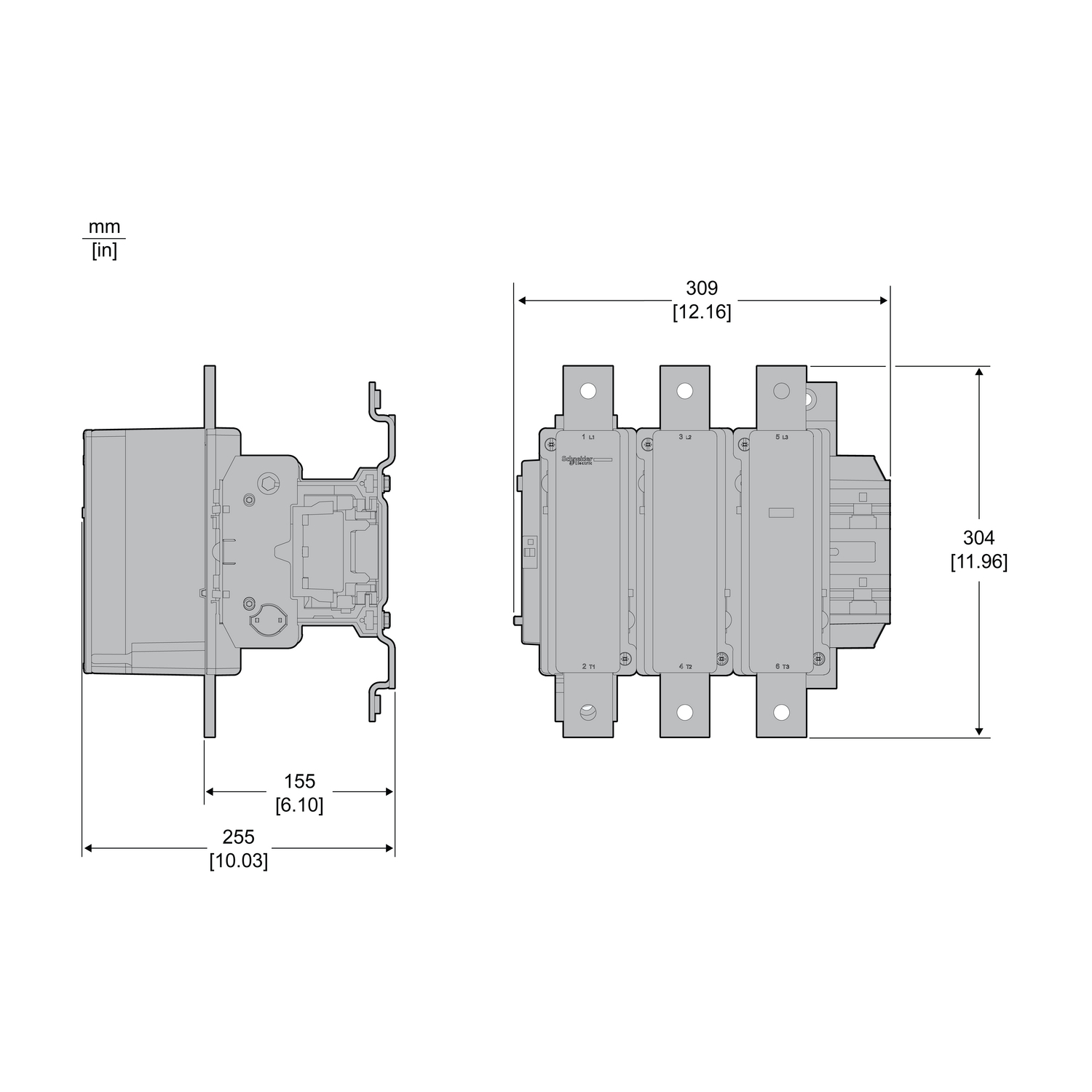

Width309 mm
Height304 mm
StandardsEN/IEC 60947-1 · EN/IEC 60947-4-1 · GB/T 14048.1 · GB/T 14048.4
Motor power kW185 kW at 220/230 V AC 50/60 Hz · 335 kW at 380/400 V AC · 375 kW at 415 V AC · 400 kW at 440 V AC · 400 kW at 500 V AC · 450 kW at 660/690 V AC
Operating time40...80 ms on closing · 100...200 ms on opening
Fire resistance850 °C conforming to IEC 60695-2-1
Heat dissipation20 W for control circuit · 20 W
Mounting supportPlate
Pollution degree3
Range of productEasy TeSys Control
Average impedance0.12 mOhm - Ith 1000 A 50 Hz for power circuit
Device short nameLC1E
Poles description3P
Tightening torqueControl circuit: 1.2 N.m · Power circuit: 58 N.m
Inrush power in VA1650 VA 50 Hz cos phi 0.9 (at 20 °C) · 1650 VA 60 Hz cos phi 0.9 (at 20 °C)
Operating altitude3000 m without derating
Control circuit typeAC at 50/60 Hz
Overvoltage categoryIII
Utilisation categoryAC-3 · AC-3e · AC-1
Contactor applicationMotor control · Resistive load
Electrical durability200000 cycles AC-1 · 600000 cycles AC-3
Mechanical durability4000000 cycles
Mechanical robustnessShocks contactor open (6 Gn for 11 ms) · Shocks contactor closed (15 Gn for 11 ms) · Vibrations contactor open (2 Gn, 5...300 Hz) · Vibrations contactor closed (4 Gn, 5...300 Hz)
Associated fuse rating800 A gG at <= 690 V coordination type 1 for power circuit
Maximum operating rate1200 cyc/h 55 °C
Product certificationsCB Scheme · CCC · CE · EAC
Connections - terminalsPower circuit: bars 2 1…4 mm² - cable stiffness: flexible without cable end - busbar cross section: 60 x 5 mm · Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end ·
IP degree of protectionIP00 conforming to IEC 60529
Rated breaking capacity5040 A at 440 V for power circuit conforming to IEC 60947
Pole contact composition3 NO
Product or component typeContactor
Irms rated making capacity6300 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Power dissipation per pole48 W AC-3 · 120 W AC-1
[Uc] control circuit voltage220 V AC 50/60 Hz
Auxiliary contact compositionWithout
[Ui] rated insulation voltage690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz · 0.25...0.5 Uc (-5…55 °C):drop-out 50/60 Hz
[Ie] rated operational current630 A (at <55 °C) at <= 440 V AC AC-3 for power circuit · 500 A (at <55 °C) at <= 440 V AC AC-3e for power circuit · 1000 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
Hold-in power consumption in VA22 VA 50 Hz cos phi 0.9 (at 20 °C) · 22 VA 60 Hz cos phi 0.9 (at 20 °C)
[Uimp] rated impulse withstand voltage8 kV coil not connected to the power circuit conforming to IEC 60947
[Icw] rated short-time withstand current5050 A 40 °C - 10 s for power circuit
[Ith] conventional free air thermal current1000 A (at 40 °C) for power circuit
Permissible ambient air temperature around the device-20…70 °C at Uc · -60…80 °C storage · -5…55 °C operation
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
