Schneider Harmony XB5N XB7N Pilot Light · 22 mm · LED · 120 V AC/DC · GreenXB7EV03GPN↓ 1% off MRP1 / 7
BrandSchneider
CategoryIndustrial Control
Brand SKUXB7EV03GPN
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB5N XB7N Pilot Light · 22 mm · LED · 120 V AC/DC · Green

Colour: Green
Voltage: 120 V AC/DC
NEW added this week
₹416/pcincl. GST-1%
₹353 + 18% GST · MRP ₹420
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹416 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB5N XB7N Pilot Light · 22 mm · LED · 120 V AC/DC · Green: Elume price today ₹416 per pc incl. GST, 1% below the ₹420 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹449₹434₹418₹403₹387₹420₹416
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹416
MRP
₹420
Lowest in view · 17 Oct
₹416
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹395/pc on this product

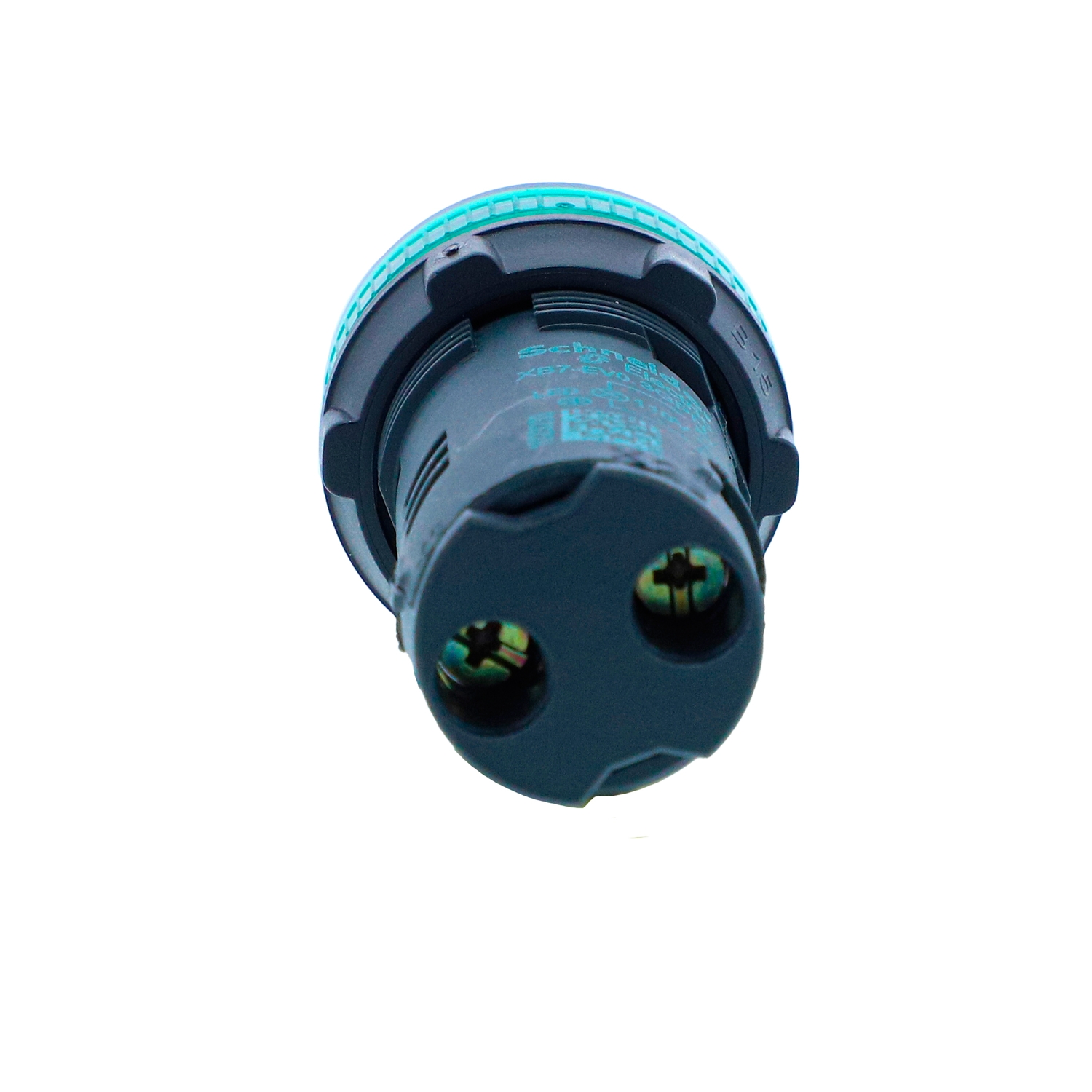

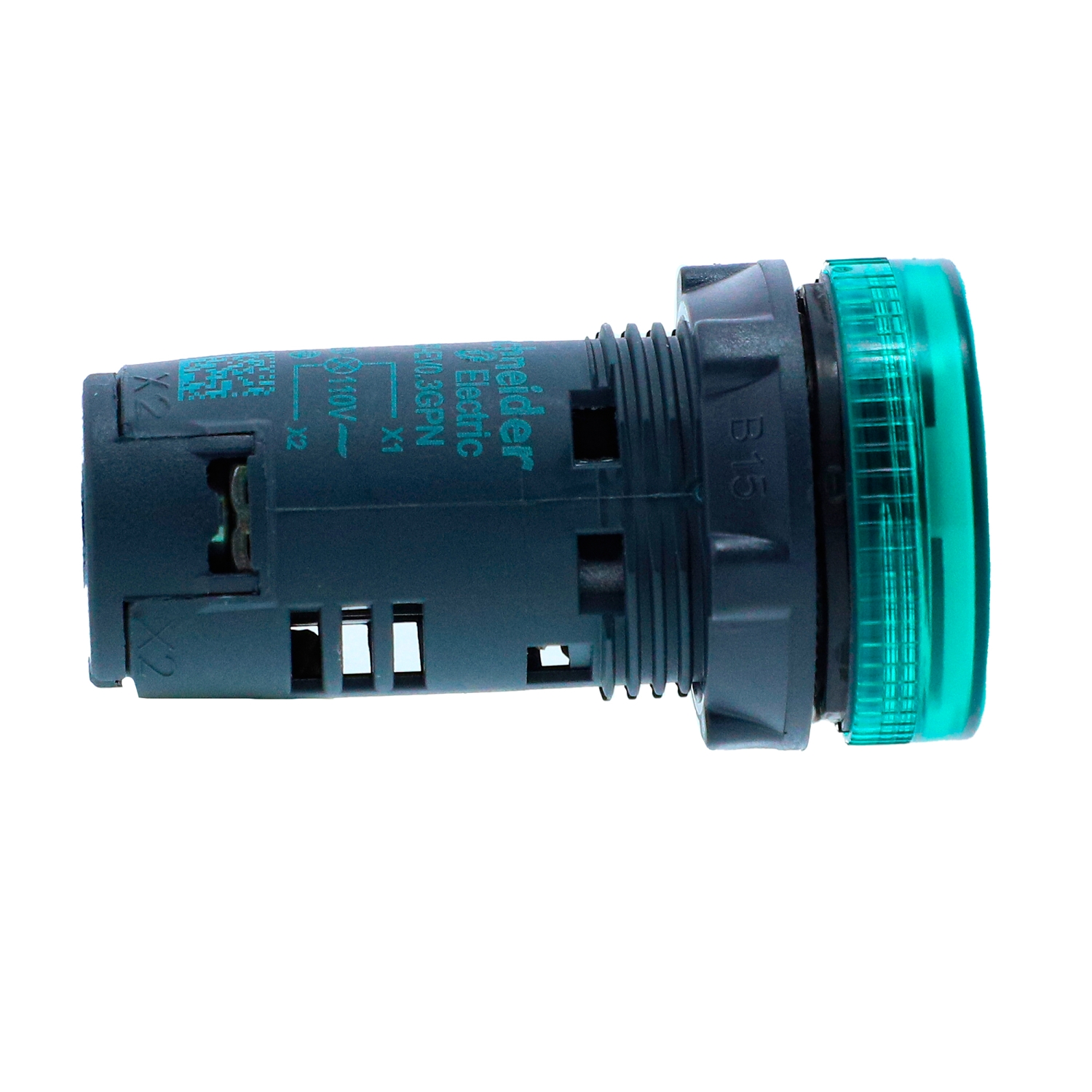

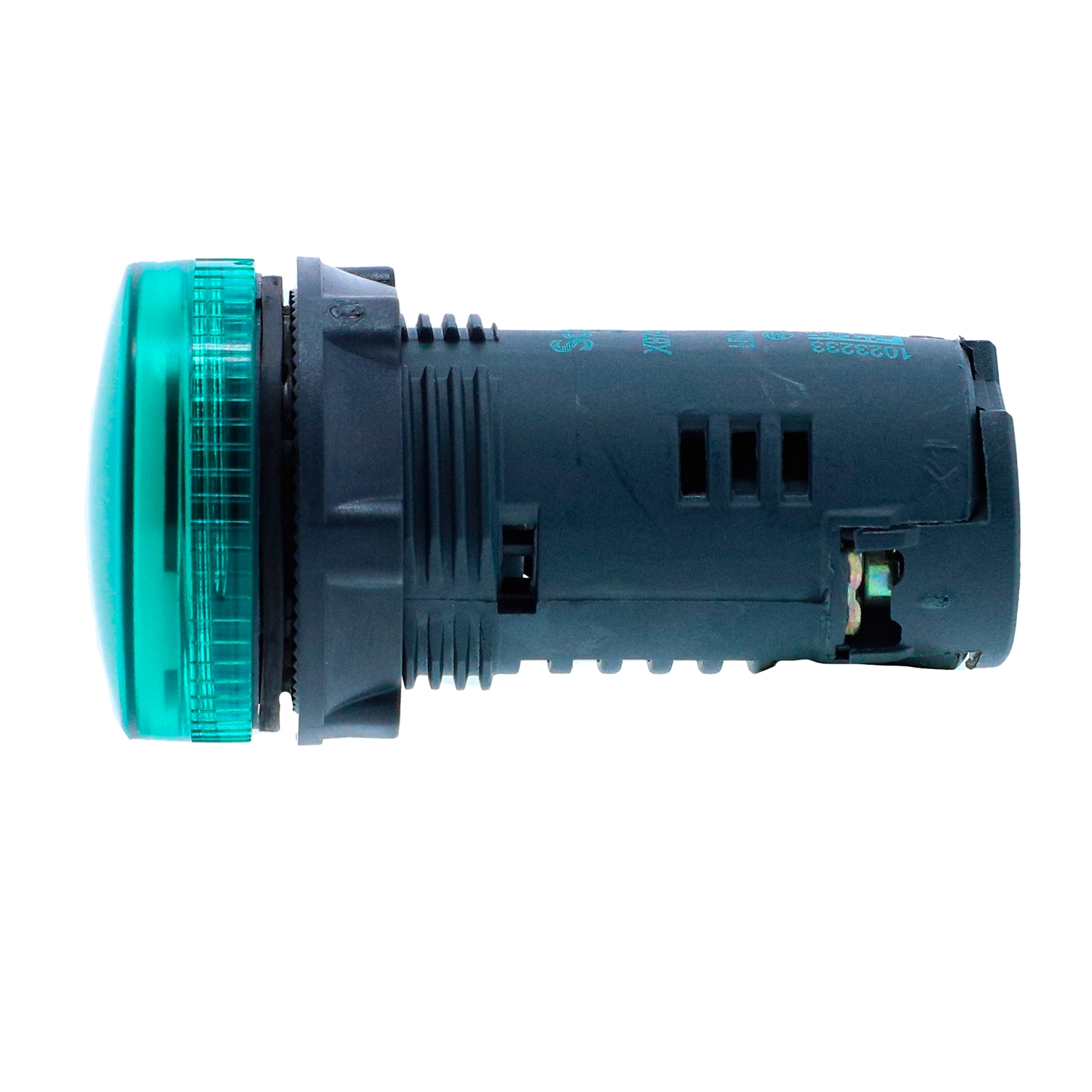

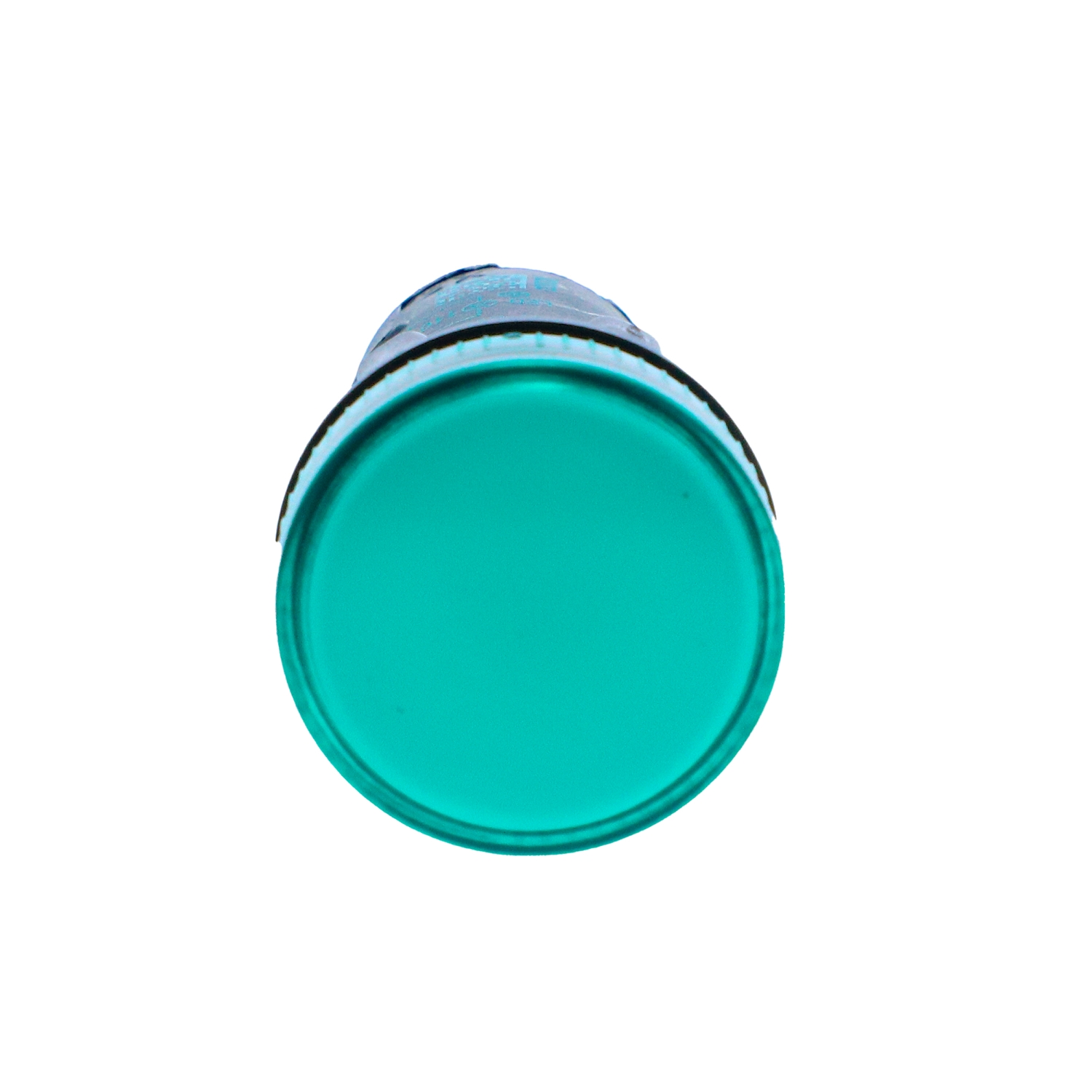

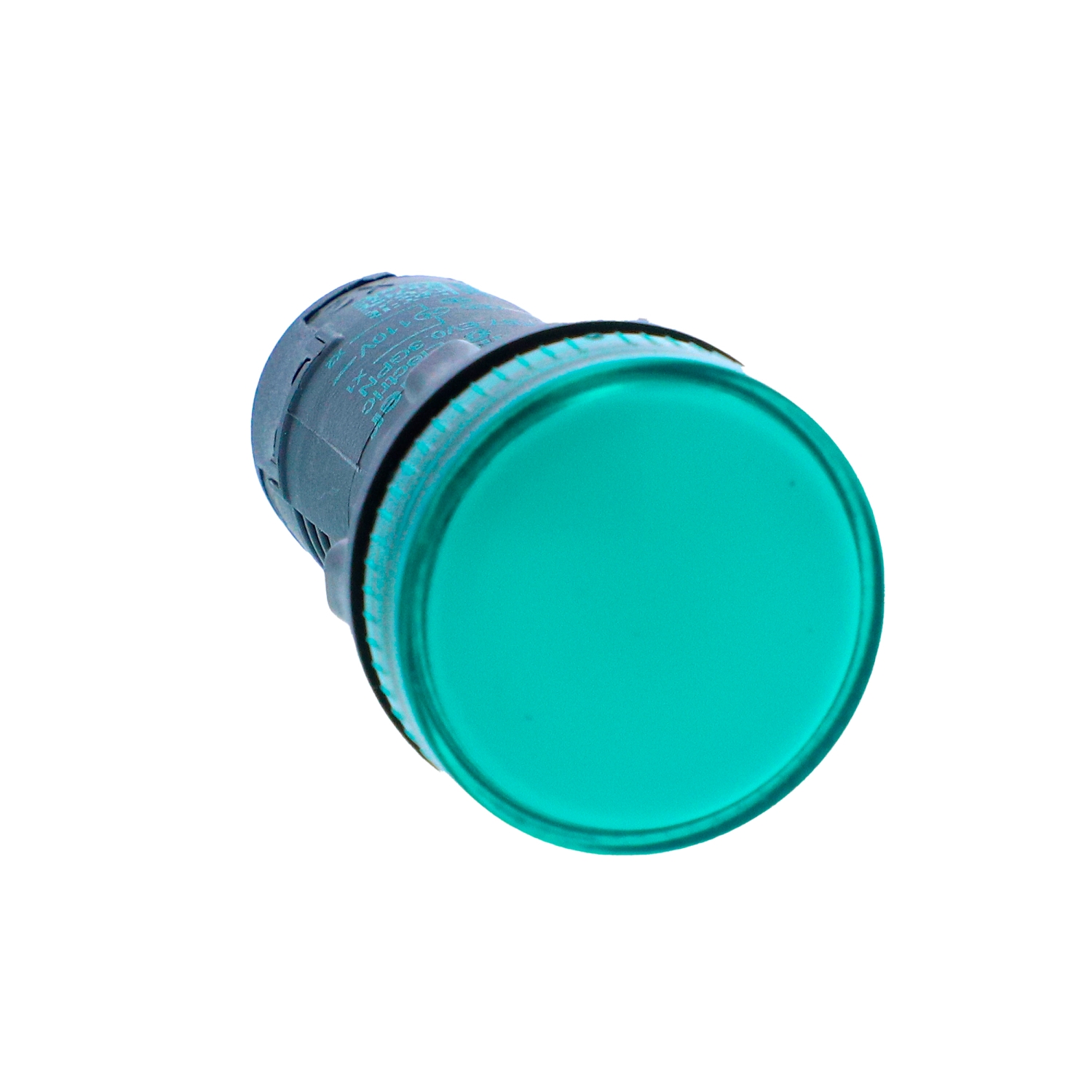

This Harmony XB5N/XB7N, monolithic green pilot light is supplied with 120V AC/DC, uses an integral LED and uses screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB5N XB7N Pilot Light · 22 mm · LED · 120 V AC/DC · Green · XB7EV03GPN
Ingress protectionIP65
Reference standardIEC 60947-1
Net weight0.02 kg
BrandSchneider
Brand SKUXB7EV03GPN
ELINE72G6JK3P4
Sold asPer pc
Depth54 mm
Width29 mm
Height29 mm
Bulb baseIntegral LED
StandardsIEC 60947-1 · IEC 60947-5-1 · IS 13947-5-1
Fixing modeFixing nut: 2…2.4 N.m
Light sourceLED
Service life100000 h at rated voltage and 25 °C
Fixing center>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm · >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
Bezel materialDark grey plastic
Device mountingFixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
Signalling typeSteady
Surge withstand1 kV conforming to IEC 61000-4-5
Range of productHarmony XB5N/XB7N
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 · 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Device short nameXB7N
Mounting diameter22.5 mm
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Current consumption18...21 mA
Device presentationMonolithic product
Light source colourGreen
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Overvoltage categoryClass II conforming to IEC 60536
Protective treatmentTH
Vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Supply voltage limits100…132 V AC
Fixing collar materialPlastic
Product certificationsCE
Connections - terminalsScrew clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
IP degree of protectionIP65
Product or component typePilot light
[Us] rated supply voltage120 V AC/DC 50/60 Hz
Cap/operator or lens colourGreen
Shape of signaling unit headRound
Electromagnetic compatibilityDisturbing field emission class B conforming to EN 55011
Resistance to fast transients2 kV conforming to IEC 61000-4-4
Sale per indivisible quantity20
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1(X1-X2)PL
Operator additional informationWith plain lens
Ambient air temperature for storage-40…70 °C
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
