Schneider Easy TeSys LC1E Power Contactor · 4P · 125 A AC-3 · Without aux · 24 V AC coilLC1E95004B7↓ 1% off MRP1 / 5
BrandSchneider
CategoryIndustrial Control
Brand SKULC1E95004B7
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

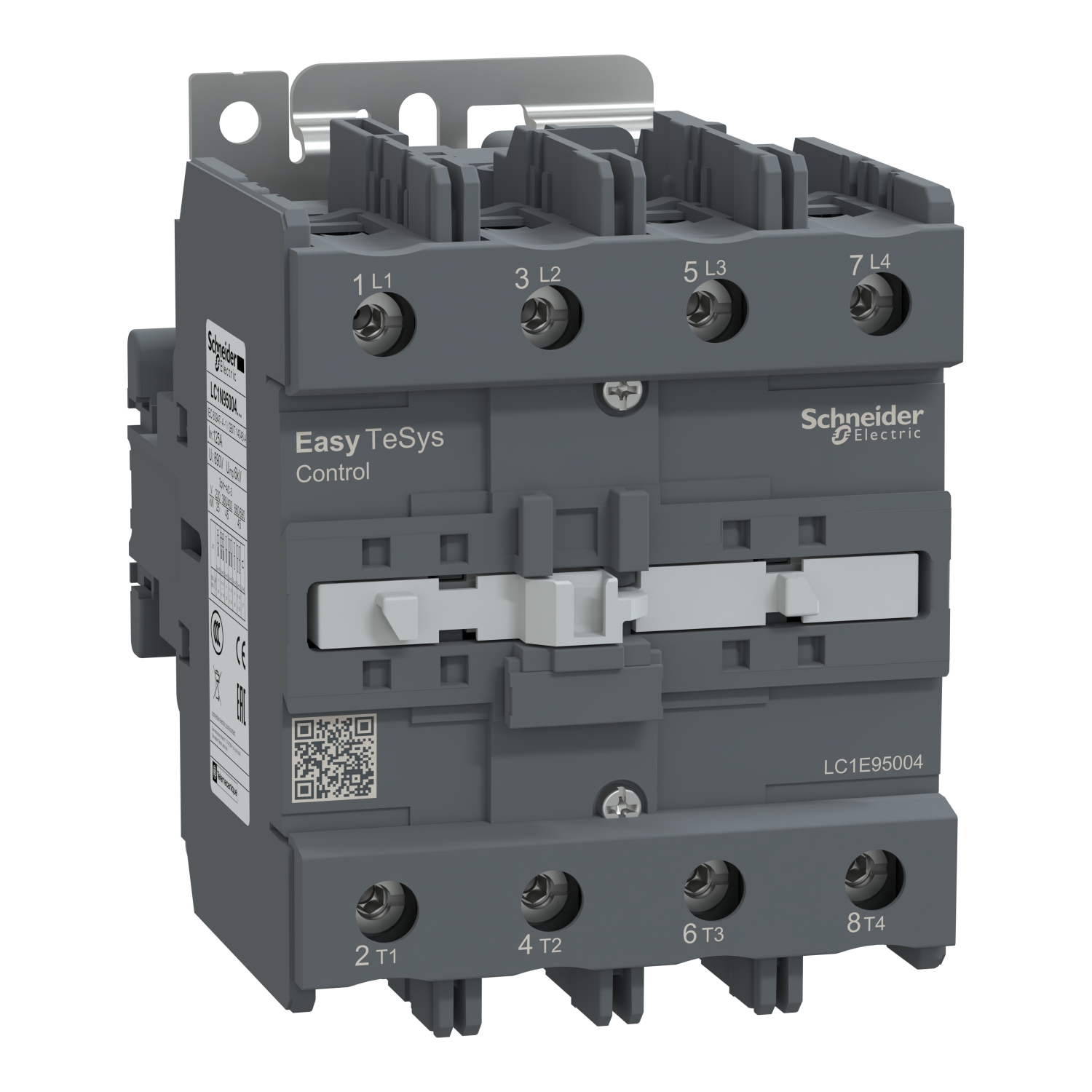

Schneider Easy TeSys LC1E Power Contactor · 4P · 125 A AC-3 · Without aux · 24 V AC coil

NEW added this week
₹41,693/pcincl. GST-1%
₹35,333 + 18% GST · MRP ₹42,114
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹41,693 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Easy TeSys LC1E Power Contactor · 4P · 125 A AC-3 · Without aux · 24 V AC coil: Elume price today ₹41,693 per pc incl. GST, 1% below the ₹42,114 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹45,062₹43,490₹41,918₹40,346₹38,774₹42,114₹41,693
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹41,693
MRP
₹42,114
Lowest in view · 17 Oct
₹41,693
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹39,608/pc on this product

EasyPact TVS contactor 4 poles for category AC-1 applications up to 125A. It provides a 24V 50/60Hz AC coil, 4NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 95.5mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.35 Mcycles electrical durability and 3 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Easy TeSys LC1E Power Contactor · 4P · 125 A AC-3 · Without aux · 24 V AC coil · LC1E95004B7
Poles4P
Rated current125 A
Ingress protectionIP2X
Reference standardEN/IEC 60947-1
coil voltage24 V AC 50/60 Hz
Net weight1.6 kg
BrandSchneider
Brand SKULC1E95004B7
ELINE6K7K6JGK2
Sold asPer pc
RangeEasy TeSys

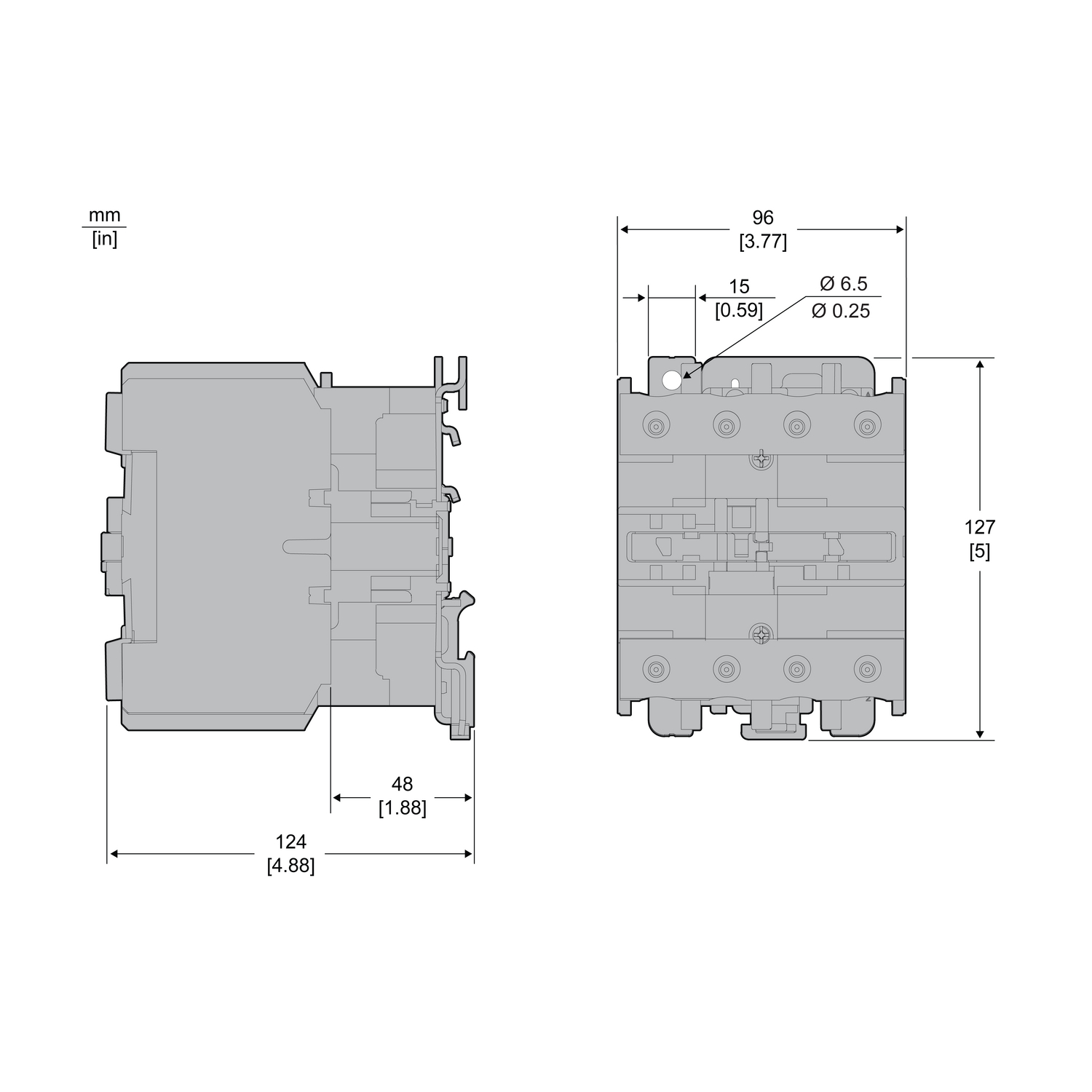

Width95 mm
Height127 mm
StandardsEN/IEC 60947-1 · EN/IEC 60947-4-1 · GB/T 14048.1 · GB/T 14048.4
Operating time20...35 ms on closing · 6...30 ms on opening
Fire resistance850 °C conforming to IEC 60695-2-1
Heat dissipation6…10 W for control circuit
Mounting supportPlate · DIN rail
Pollution degree3
Range of productEasy TeSys Control
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLC1E
Poles description4P
Tightening torqueControl circuit: 1.2 N.m · Power circuit: 12 N.m
Inrush power in VA200 VA 50 Hz cos phi 0.75 (at 20 °C) · 220 VA 60 Hz cos phi 0.75 (at 20 °C)
Operating altitude3000 m without derating
Control circuit typeAC at 50/60 Hz
Overvoltage categoryIII
Protective treatmentTH (pollution degree 3) conforming to IEC 60068-2-30
Utilisation categoryAC-1
Contactor applicationResistive load
Electrical durability900000 cycles AC-3 · 350000 cycles AC-1
Mechanical durability3000000 cycles
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) · Vibrations contactor closed (3 Gn, 5...300 Hz) · Shocks contactor open (6 Gn for 11 ms) · Shocks contactor closed (7 Gn for 11 ms)
Associated fuse rating160 A gG at <= 690 V coordination type 1 for power circuit
Maximum operating rate1200 cyc/h 60 °C
Product certificationsCB Scheme · CCC · CE · EAC
Connections - terminalsControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end · Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end · Control circuit:
IP degree of protectionIP2X conforming to IEC 60529
Rated breaking capacity760 A at 440 V for power circuit conforming to IEC 60947
Pole contact composition4 NO
Product or component typeContactor
Irms rated making capacity950 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Power dissipation per pole7.2 W AC-3 · 12 W AC-1
[Uc] control circuit voltage24 V AC 50/60 Hz
Auxiliary contact compositionWithout
[Ui] rated insulation voltage690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz · 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz
[Ie] rated operational current125 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
Hold-in power consumption in VA22 VA 60 Hz cos phi 0.3 (at 20 °C) · 20 VA 50 Hz cos phi 0.3 (at 20 °C)
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
[Icw] rated short-time withstand current135 A 40 °C - 600 s for power circuit · 800 A 40 °C - 10 s for power circuit · 400 A 40 °C - 60 s for power circuit
[Ith] conventional free air thermal current125 A (at 55 °C) for power circuit
Permissible ambient air temperature around the device-20…70 °C at Uc · -60…80 °C storage · -5…55 °C operation
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
