Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 63 A · 30 mAA9N26643↓ 1% off MRP
BrandSchneider
CategorySwitchgear
Brand SKUA9N26643
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 63 A · 30 mA

Rating: 63 A
Poles: 4P
Sensitivity: 30 mA
NEW added this week
₹18,260/pcincl. GST-1%
₹15,475 + 18% GST · MRP ₹18,445
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹18,260 /pc incl. GST
Free pan-India delivery

Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 63 A · 30 mA: Elume price today ₹18,260 per pc incl. GST, 1% below the ₹18,445 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹19,736₹19,048₹18,359₹17,670₹16,982₹18,445₹18,260
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹18,260
MRP
₹18,445
Lowest in view · 17 Oct
₹18,260
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹17,347/pc on this product

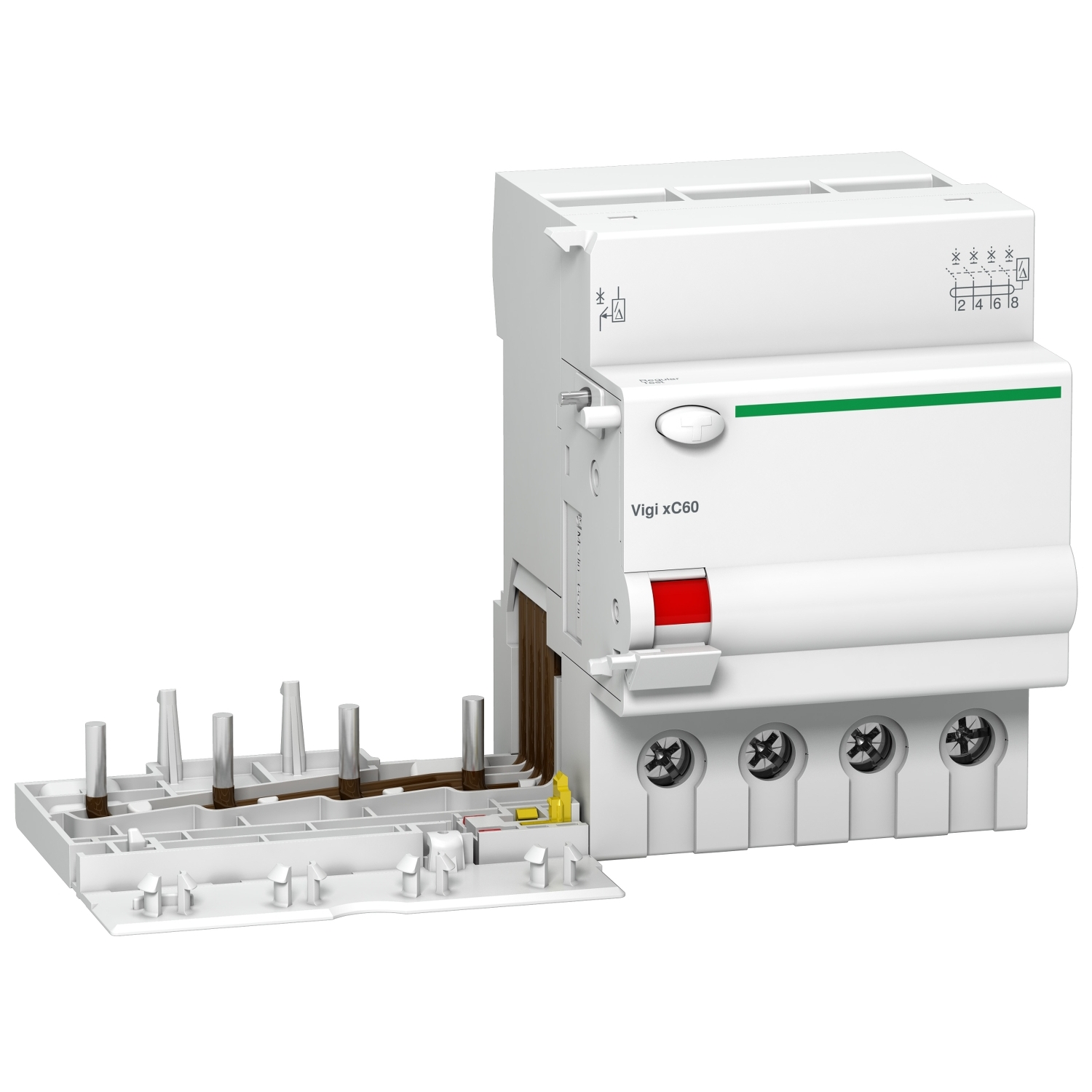

This Acti9 Vigi xC60 is a modular add-on residual current devices. It is a 4P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 30mA and a electromechanical technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-2-1 and EN/IEC 61009-1 standard. The Ue rated operational voltage is from 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The dimensions are (W) 135mm x (H) 87mm x (D) 74.5mm. The weight is 285g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 63 A · 30 mA · A9N26643
Poles4P
Rated current63 A
Ingress protectionIP20· IP40 (modular enclosure)
Reference standardEN/IEC 61009-2-1
Net weight0.285 kg
Device typeMiniature circuit breaker (MCB)
Current rating63 A
BrandSchneider
Brand SKUA9N26643
ELINE6J9K43FJH
Sold asPer pc
Depth74.5 mm
RangeActi9
Width135 mm
Height87 mm
StandardsEN/IEC 61009-2-1 · EN/IEC 61009-1
9 mm pitches7
Network typeAC
Mounting modeClip-on
Local signallingRed indicator light on the front face
Mounting supportDIN rail
Pollution degree3
Device short nameVigi xC60
Network frequency50/60 Hz
Poles description4P
Tightening torque3.5 N.m bottom
[In] rated current63 A
Range compatibilityActi9 iC60
Wire stripping length14 mm for bottom connection
Connections - terminalsTunnel type terminal downside for 1 cable(s) 1…35 mm² rigid without cable end · Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible without cable end · Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible with cable end
IP degree of protectionIP20 conforming to IEC 60529 · IP40 (modular enclosure) conforming to IEC 60529
Device location in systemOutgoer
Earth-leakage sensitivity30 mA
Product or component typeAdd-on residual current device
Electrical connection to mcbBy screws
Earth leakage protection typeType AC
Electromagnetic compatibility8/20 µs impulse withstand, 250 A
[Ui] rated insulation voltage500 V AC 50/60 Hz
[Ue] rated operational voltage400...415 V AC 50/60 Hz conforming to EN/IEC 61009-1 · 400...415 V conforming to EN/IEC 61009-2-1
Ambient air temperature for storage-40…85 °C
Earth-leakage protection time delayInstantaneous
Residual current tripping technologyElectromechanical · Voltage independent
Ambient air temperature for operation-5…60 °C
[Uimp] rated impulse withstand voltage6 kV
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
