Legrand Arteor Cover Plate with Frame · 8 M · White · 575750: Elume price today ₹570 per pc incl. GST, 36% below the ₹886 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹461, ₹109 less than here. The lowest tracked seller lists it at ₹461, ₹109 below it (tell us and we match it).

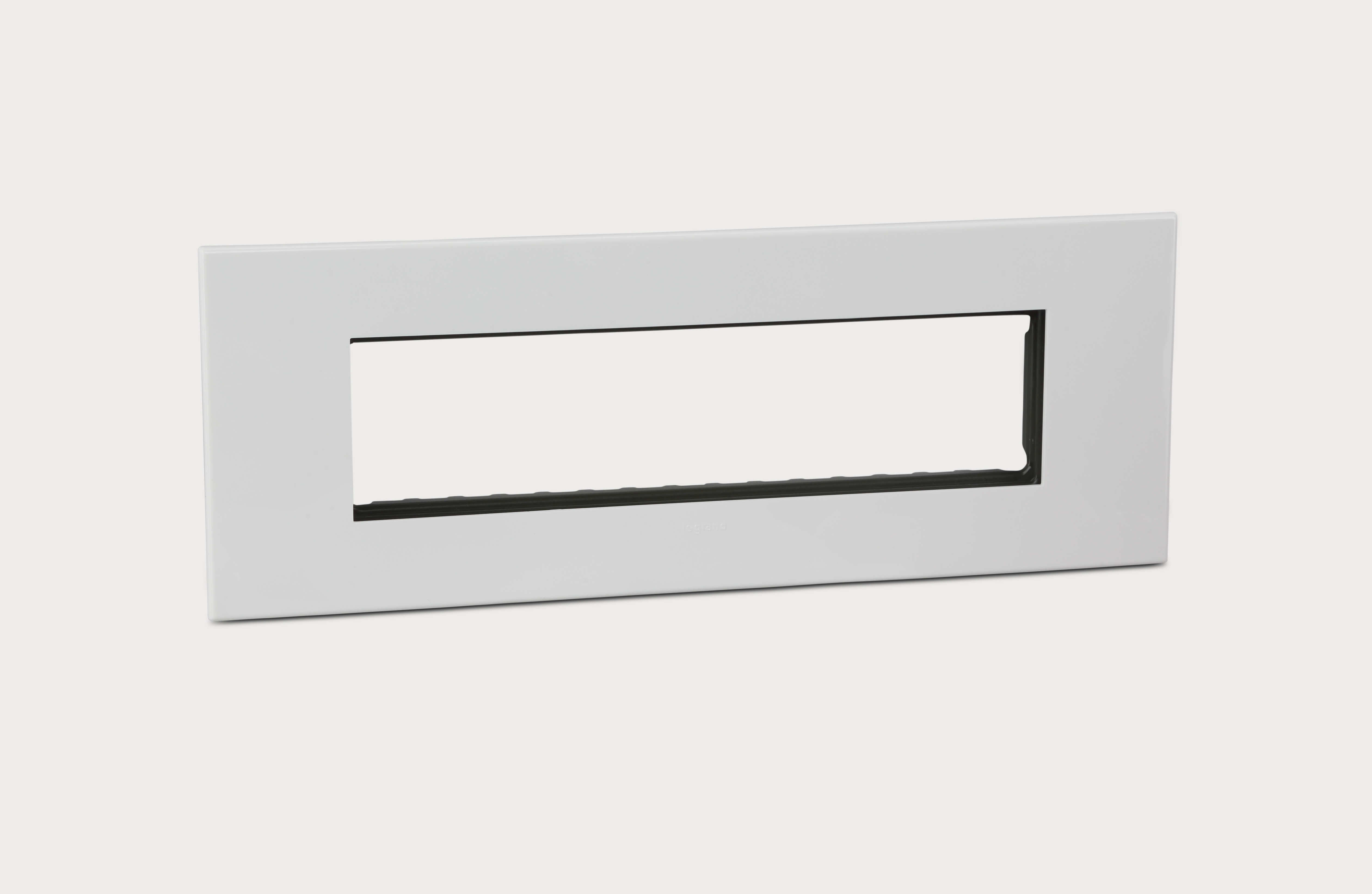

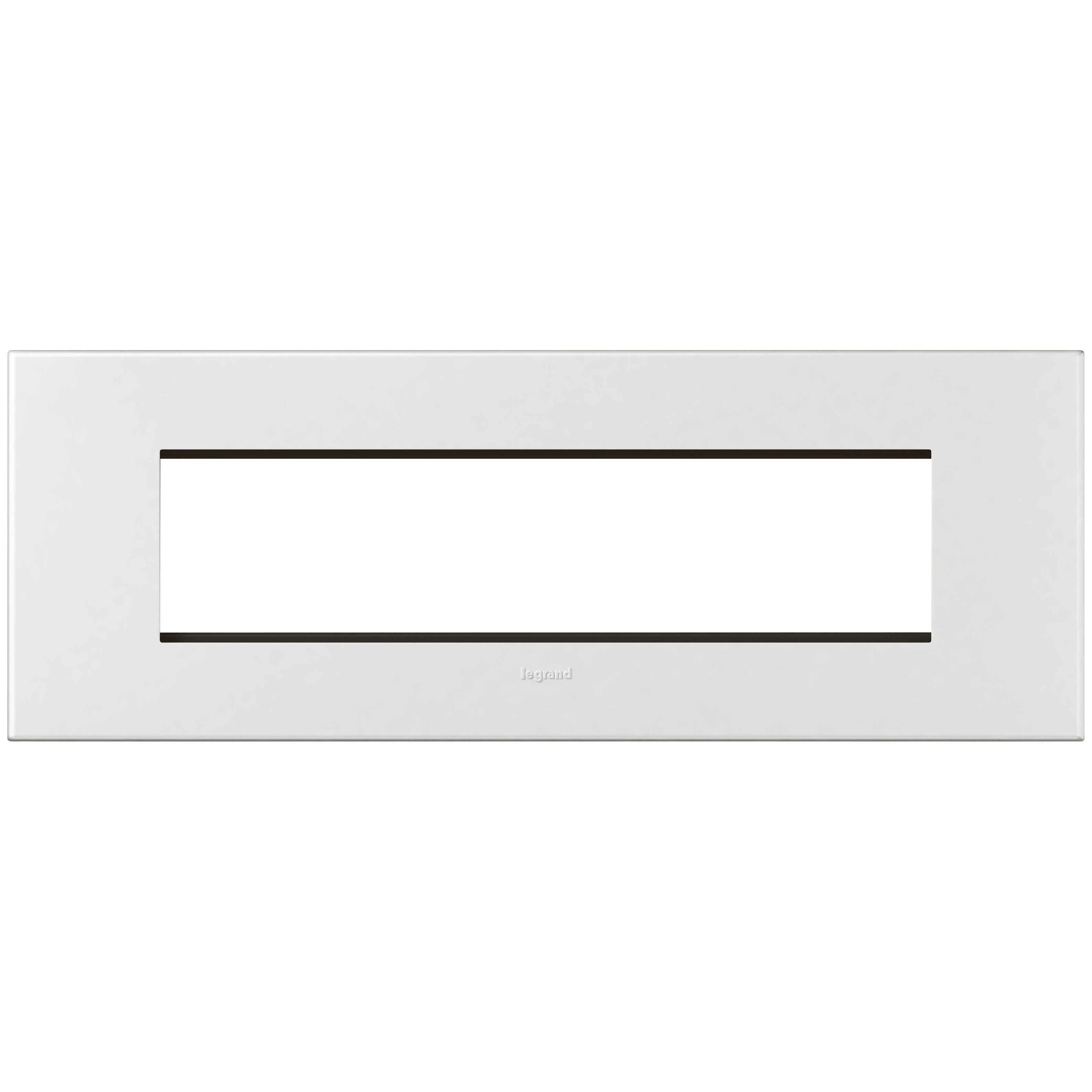

The Arteor range product with CAT number 575750 is an "8M Plate and Frame" designed for mechanism mounting. It supports both flush and surface mounting and is available in six finishes: White, Magnesium, Dark Bronze, Graphite, Pearl Aluminium, and Champagne. The product has dimensions of 252.5 mm (width) x 92 mm (height) x 12.2 mm (depth) and weighs 188.3 g. It is constructed with a polycarbonate front plate, an Acrylonitrile Butadiene Styrene (ABS) underplate, a CRCA steel frame, and steel screws with zinc plating. The connection is achieved through clipping and screws on flush or surface boxes. It is self-extinguishing at 650°C for 30 seconds and conforms to Legrand standards.
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
