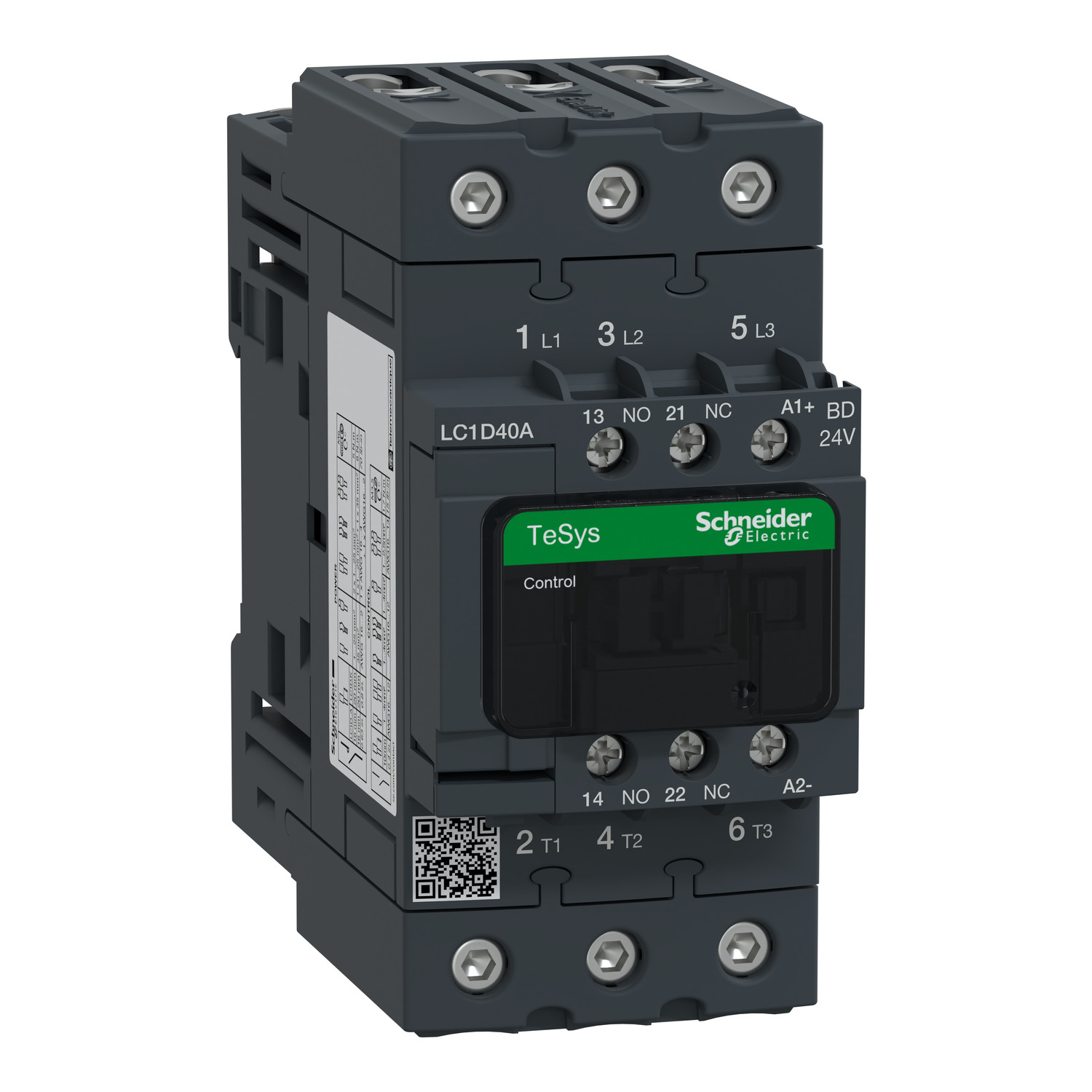

Schneider TeSys LC1D Power Contactor · 3P · 60 A AC-3 · 1 NO + 1 NC aux · 24 V DC coilLC1D40ABD↓ 1% off MRP1 / 5
BrandSchneider
CategoryIndustrial Control
Brand SKULC1D40ABD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider TeSys LC1D Power Contactor · 3P · 60 A AC-3 · 1 NO + 1 NC aux · 24 V DC coil

Rating: 60 A AC-3
Coil: 24 V DC coil
NEW added this week
₹18,160/pcincl. GST-1%
₹15,390 + 18% GST · MRP ₹18,343
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹18,160 /pc incl. GST
Free pan-India delivery

Schneider TeSys LC1D Power Contactor · 3P · 60 A AC-3 · 1 NO + 1 NC aux · 24 V DC coil: Elume price today ₹18,160 per pc incl. GST, 1% below the ₹18,343 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹19,627₹18,942₹18,258₹17,573₹16,889₹18,343₹18,160
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹18,160
MRP
₹18,343
Lowest in view · 17 Oct
₹18,160
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹17,252/pc on this product

TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3/3e (18.5kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LC1D Power Contactor · 3P · 60 A AC-3 · 1 NO + 1 NC aux · 24 V DC coil · LC1D40ABD
Poles3P
Rated current60 A
Ingress protectionIP20 front face
Reference standardEN 60947-4-1
coil voltage24 V DC
Net weight0.925 kg
BrandSchneider
Brand SKULC1D40ABD
ELINE49C7PHJ7M
Sold asPer pc
RangeTeSys · TeSys Deca
Time constant34 ms
Motor power hp5 hp at 230/240 V AC 50/60 Hz for 1 phase motors · 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors · 30 hp at 575/600 V AC 50/60 Hz for 3 phases motors · 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors · 3 hp at 115 V AC 50/60 Hz for 1 phase motors · 30 hp at 460/480 V AC 50/60 Hz for 3 phases motors
Motor power kW11 kW at 220/230 V AC 50/60 Hz (AC-3) · 18.5 kW at 380/400 V AC 50/60 Hz (AC-3) · 22 kW at 415/440 V AC 50/60 Hz (AC-3) · 22 kW at 500 V AC 50/60 Hz (AC-3) · 30 kW at 660/690 V AC 50/60 Hz (AC-3) · 11 kW at 220/230 V AC 50/60 Hz (AC-3e) · 18.5 kW at 380/400 V AC 50/60 Hz (AC-3e) · 22 kW at 415/440 V AC 50/60 Hz (AC-3e) · 22 kW at 500 V AC 50/60 Hz (AC-3e) · 30 kW at 660/690 V AC 50/60 Hz (AC-3e) ·
Operating time50 ±15 % ms closing · 20 ±20 % ms opening
Coil technologyBuilt-in bidirectional peak limiting diode suppressor
Pollution degree3
Protective coverWith
Range of productTeSys Deca Advanced
Average impedance1.5 mOhm - Ith 60 A 50 Hz for power circuit
Device short nameLC1D
Inrush power in W19 W (at 20 °C)
Poles description3P
Tightening torqueControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm · Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 · Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm · Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm · Control circuit: 1.7 N.m -
Compatibility codeLC1D
Control circuit typeDC standard
Overvoltage categoryIII
Utilisation categoryAC-3 · AC-3e · AC-1 · AC-4
Contactor applicationResistive load · Motor control
Electrical durability0.7 Mcycles 60 A AC-1 at Ue <= 440 V · 1.5 Mcycles 40 A AC-3 at Ue <= 440 V · 1.5 Mcycles 40 A AC-3e at Ue <= 440 V
Insulation resistance> 10 MOhm for signalling circuit
Mechanical durability10 Mcycles
Associated fuse rating10 A gG for signalling circuit conforming to IEC 60947-5-1 · 80 A gG at <= 690 V coordination type 1 for power circuit · 80 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Auxiliary contacts typetype mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 · type mirror contact 1 NC conforming to IEC 60947-4-1
Connections - terminalsControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end · Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end · Control circuit:
Rated breaking capacity800 A at 440 V for power circuit conforming to IEC 60947
Pole contact composition3 NO
Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 · B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Minimum switching current5 mA for signalling circuit
Minimum switching voltage17 V for signalling circuit
Product or component typeContactor
Irms rated making capacity140 A AC for signalling circuit conforming to IEC 60947-5-1 · 250 A DC for signalling circuit conforming to IEC 60947-5-1 · 800 A at 440 V for power circuit conforming to IEC 60947
Power dissipation per pole2.4 W AC-3 · 5.4 W AC-1 · 2.4 W AC-3e
Signalling circuit frequency25...400 Hz
[Uc] control circuit voltage24 V DC
Auxiliary contact composition1 NO + 1 NC
[Ui] rated insulation voltagePower circuit: 600 V CSA certified · Power circuit: 600 V UL certified · Signalling circuit: 690 V conforming to IEC 60947-1 · Signalling circuit: 600 V CSA certified · Signalling circuit: 600 V UL certified · Power circuit: 690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.1...0.3 Uc (-40…70 °C):drop-out DC · 0.75...1.25 Uc (-40…60 °C):operational DC · 1...1.25 Uc (60…70 °C):operational DC
Hold-in power consumption in W7.4 W at 20 °C
[Ie] rated operational current60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit · 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit · 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Ue] rated operational voltagePower circuit: <= 690 V AC 25...400 Hz · Power circuit: <= 300 V DC
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
[Icw] rated short-time withstand current320 A 40 °C - 10 s for power circuit · 720 A 40 °C - 1 s for power circuit · 72 A 40 °C - 10 min for power circuit · 165 A 40 °C - 1 min for power circuit · 100 A - 1 s for signalling circuit · 120 A - 500 ms for signalling circuit · 140 A - 100 ms for signalling circuit
[Ith] conventional free air thermal current10 A (at 60 °C) for signalling circuit · 60 A (at 60 °C) for power circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
