Schneider Acti9 SD Fault Contact · Auxiliary contact · Acti9 A9N · 1 C/O · 100mA to 6 A · 24-415 VACA9N26907↓ 1% off MRP1 / 2
BrandSchneider
CategorySwitchgear
Brand SKUA9N26907
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 SD Fault Contact · Auxiliary contact · Acti9 A9N · 1 C/O · 100mA to 6 A · 24-415 VAC

NEW added this week
₹2,551/pcincl. GST-1%
₹2,162 + 18% GST · MRP ₹2,577
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹2,551 /pc incl. GST
Free delivery over ₹4,000

Schneider Acti9 SD Fault Contact · Auxiliary contact · Acti9 A9N · 1 C/O · 100mA to 6 A · 24-415 VAC: Elume price today ₹2,551 per pc incl. GST, 1% below the ₹2,577 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹2,757₹2,661₹2,565₹2,469₹2,372₹2,577₹2,551
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹2,551
MRP
₹2,577
Lowest in view · 17 Oct
₹2,551
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹2,423/pc on this product

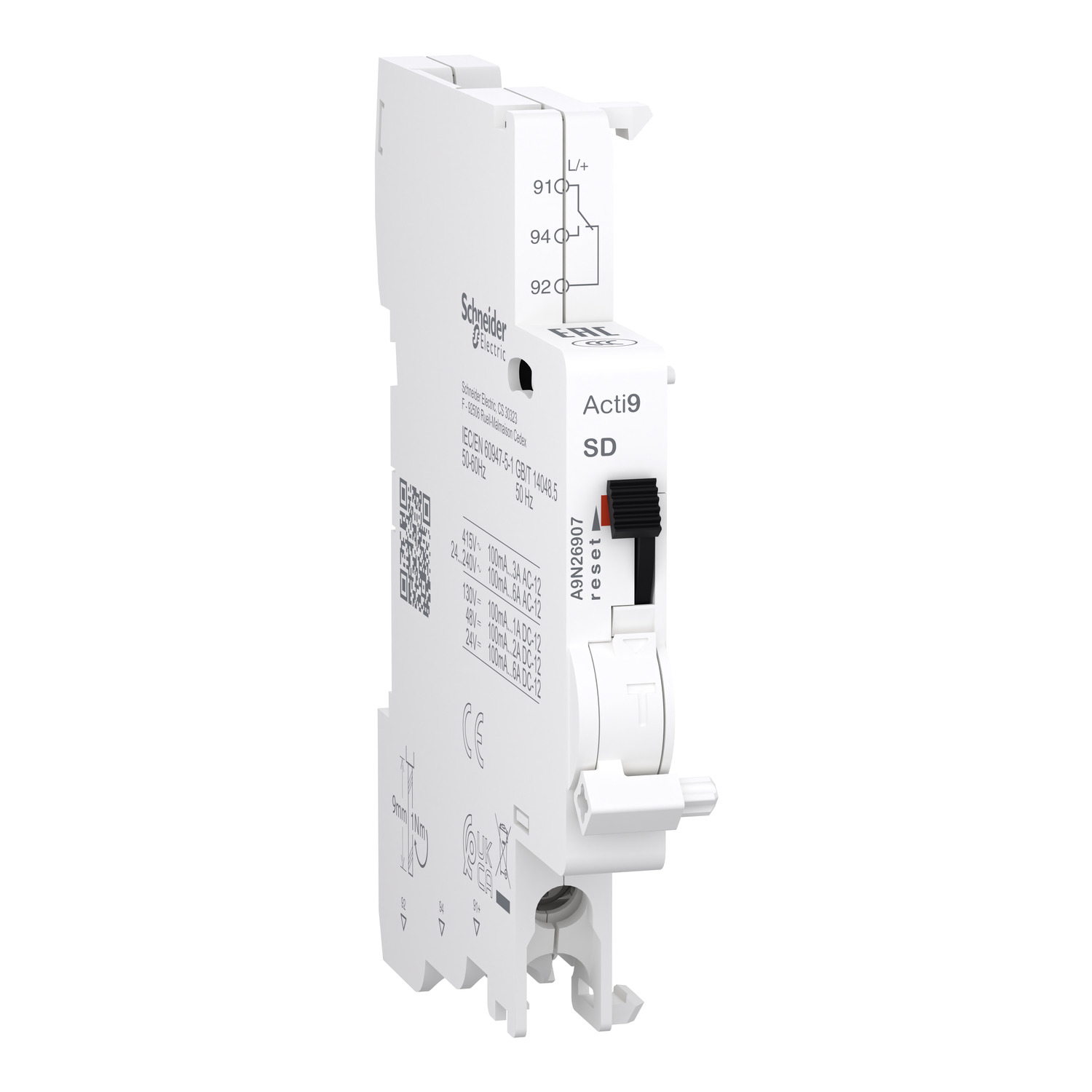

This Acti9 electrical auxiliary is a modular fault contact used as remote indication of tripping upon a fault of the associated device. In AC network, the In rated current is 6A at 24VAC to 240VAC and 3A at 415VAC with operating frequency of 50Hz to 60Hz. In DC network, the In rated current is 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC and 1A at 130VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial and buildings. This fault contact is compatible with Acti9 ranges such as C120, C60H-DC, SW60-DC, C60PV-DC, and xC60. The SD is either used for device short name or compatibility code. The mechanical indicator is provided within the product for local signalling. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable with a cable cross section of 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cables (2 cables) with a cable cross section of 1.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables) with a cable cross section of 1.5mm². The Ui rated insul

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 SD Fault Contact · Auxiliary contact · Acti9 A9N · 1 C/O · 100mA to 6 A · 24-415 VAC · A9N26907
Rated current6 A
Ingress protectionIP20
Reference standardEN/IEC 60947-5-1
Net weight0.03 kg
ColourWhite
Device typeMiniature circuit breaker (MCB)
Current rating6 A
BrandSchneider
Brand SKUA9N26907
ELINE3CCR2P2MM
Sold asPer pc
Depth68 mm
Width9 mm
Height85.3 mm
StandardsEN/IEC 60947-5-1 · GB/T 14048.5
9 mm pitches1
Mounting modeClip-on
Quality labelsEAC · CCC
Tropicalisation2
Local signallingMechanical indicator
Mounting supportDIN rail
Pollution degree3
range of productActi9
Device short nameSD
Mounting locationLeft side of circuit-breaker
Tightening torque1 N.m bottom
[In] rated current0.1…6 A at 24...250 V, AC 50/60 Hz · 0.1…6 A at 24...240 V, AC 50/60 Hz · 0.1…3 A at 415 V, AC 50/60 Hz · 0.1…6 A at 24 V, DC · 0.1…2 A at 48 V, DC · 0.1…1.5 A at 60 V, DC · 0.1…1 A at 130 V, DC
Range compatibilityActi9 C120 · Acti9 C60H-DC · Acti9 SW60-DC · Acti9 C60PV-DC · Acti9 xC60
Wire stripping length9 mm
Product certificationsCE · UKCA
Connections - terminalsScrew clamp terminal (bottom): 1 cable(s) 0.5…2.5 mm² - rigid · Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible · Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible with ferrule
IP degree of protectionIP20
Product or component typeFault contact
Signal contacts composition1 C/O
[Ui] rated insulation voltage500 V
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage4 kV
Comb busbar and distribution block compatibilityTop: YES
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
