Schneider Harmony XAC XACA pistol grip Control Station · IP65 · XACA215XACA215↓ 1% off MRP1 / 9
BrandSchneider
CategoryIndustrial Control
SpecificationIP65
Brand SKUXACA215
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XAC XACA pistol grip Control Station · IP65 · XACA215

NEW added this week
₹10,168/pcincl. GST-1%
₹8,617 + 18% GST · MRP ₹10,271
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹10,168 /pc incl. GST
Free pan-India delivery

Schneider Harmony XAC XACA pistol grip Control Station · IP65 · XACA215: Elume price today ₹10,168 per pc incl. GST, 1% below the ₹10,271 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹10,990₹10,607₹10,223₹9,840₹9,456₹10,271₹10,168
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹10,168
MRP
₹10,271
Lowest in view · 17 Oct
₹10,168
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹9,660/pc on this product

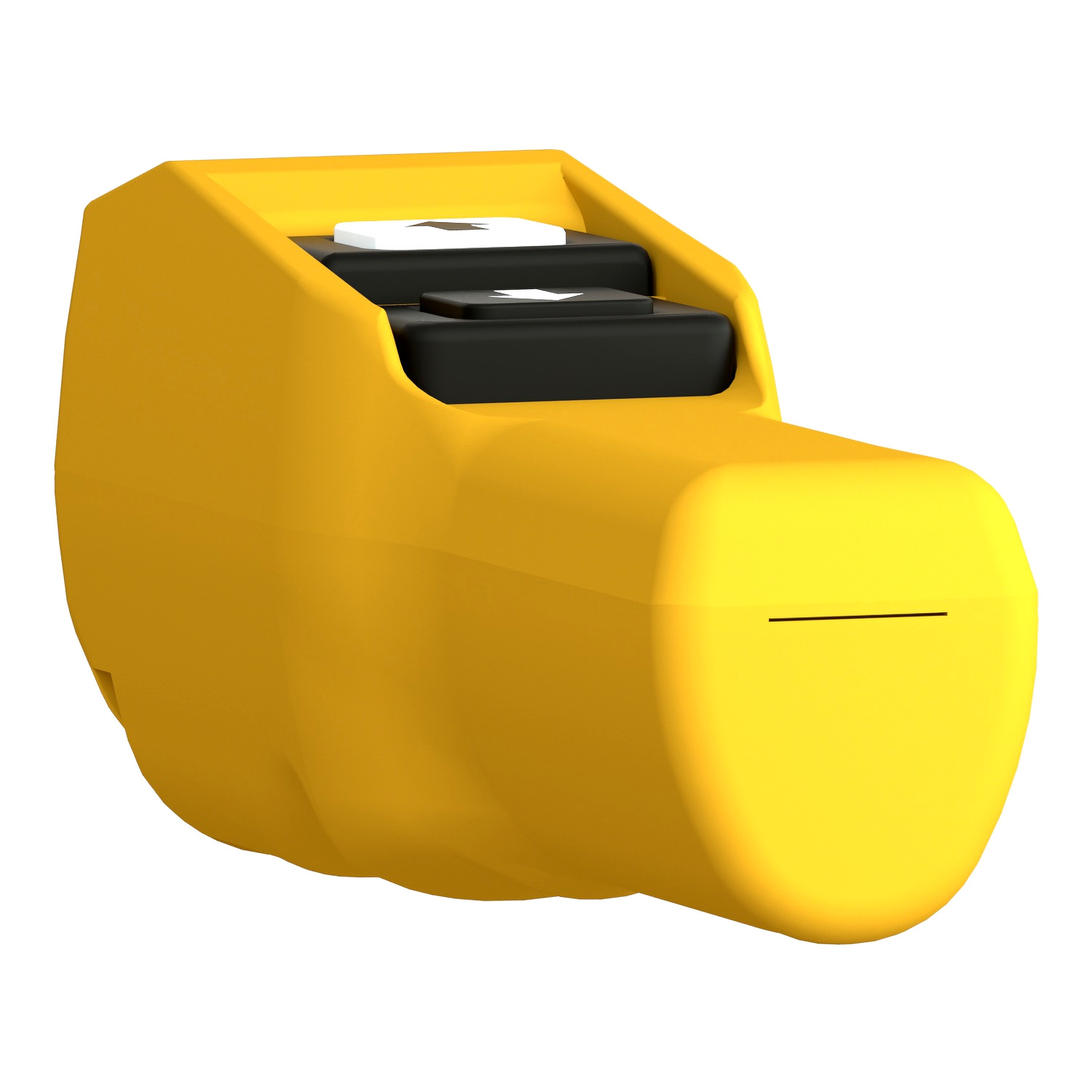

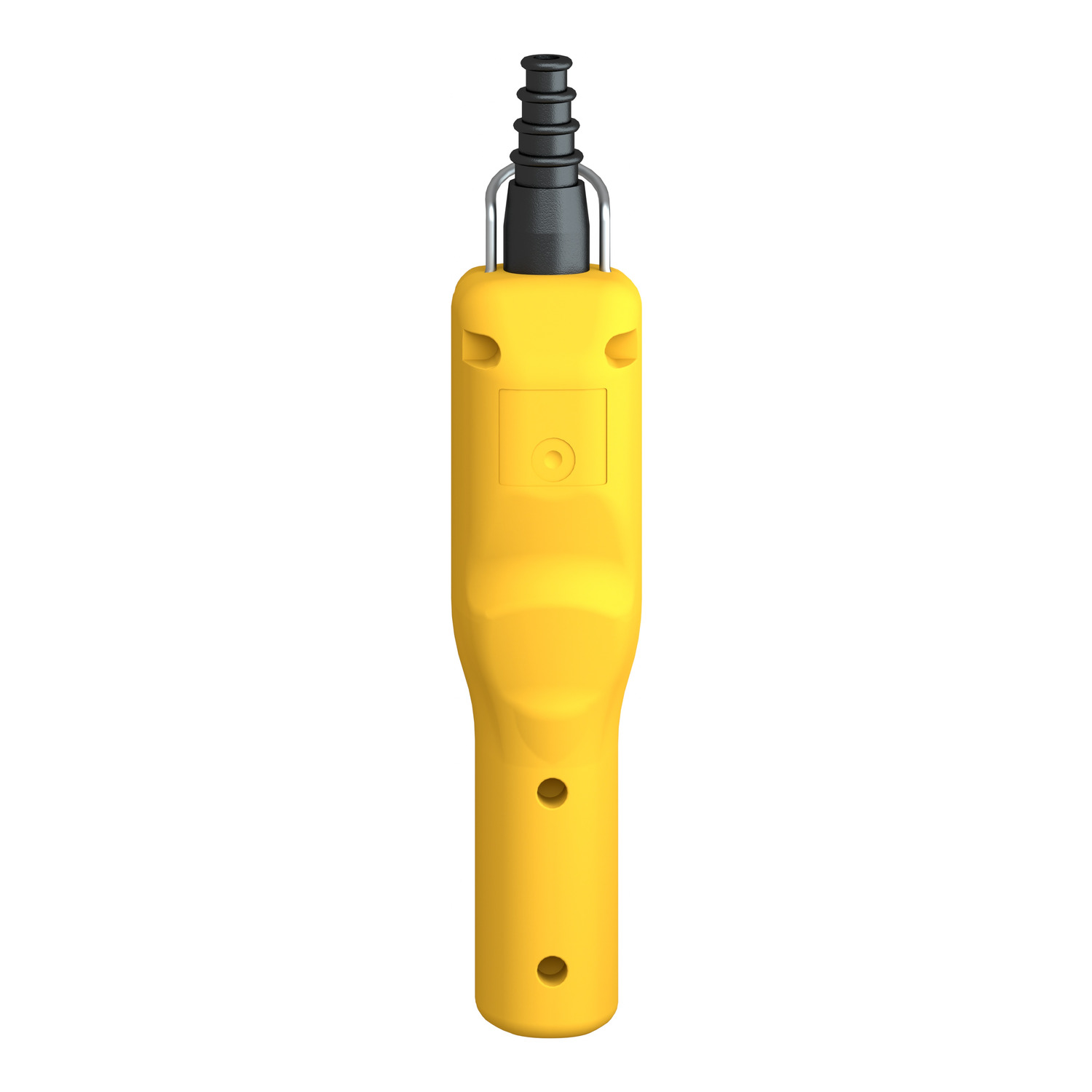

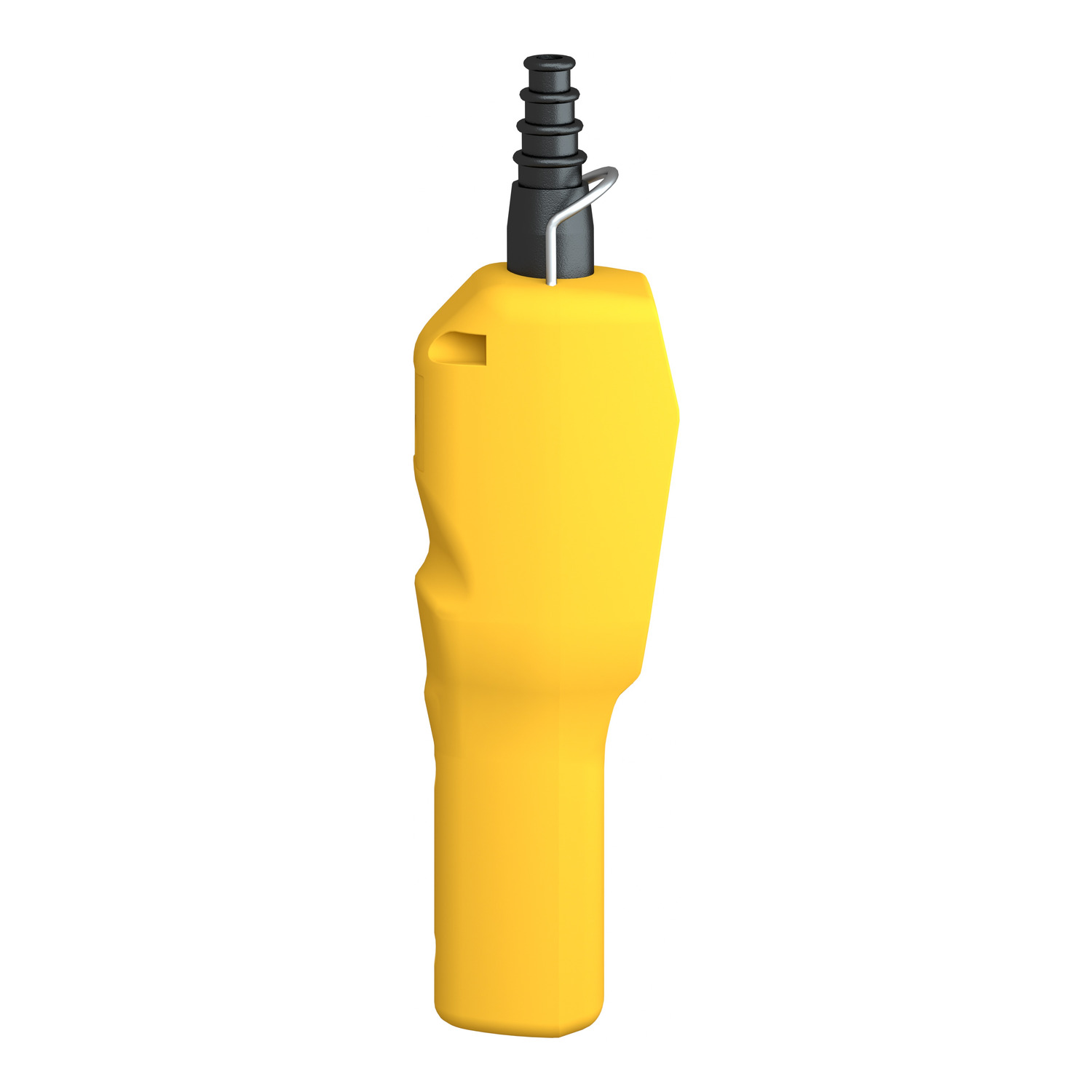

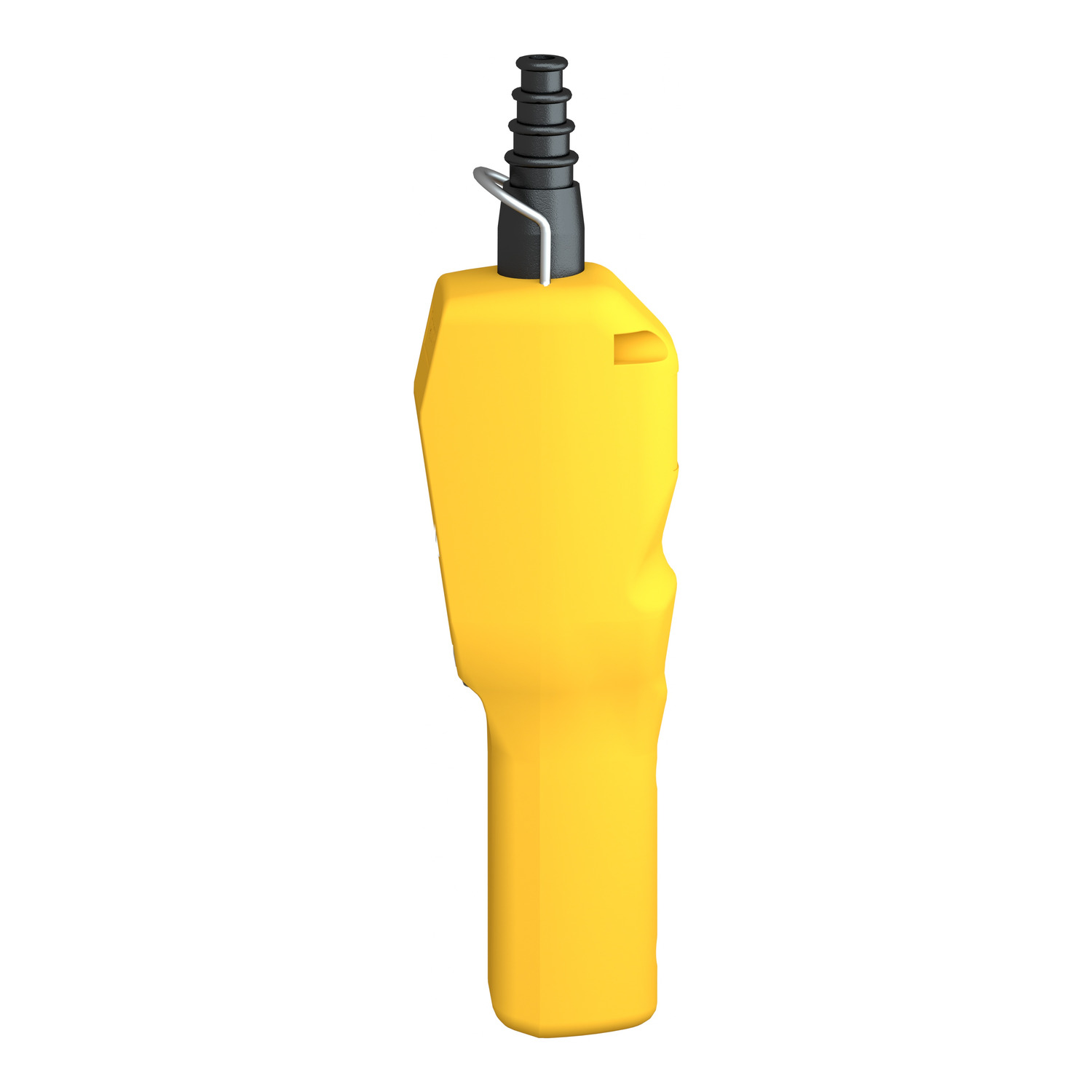

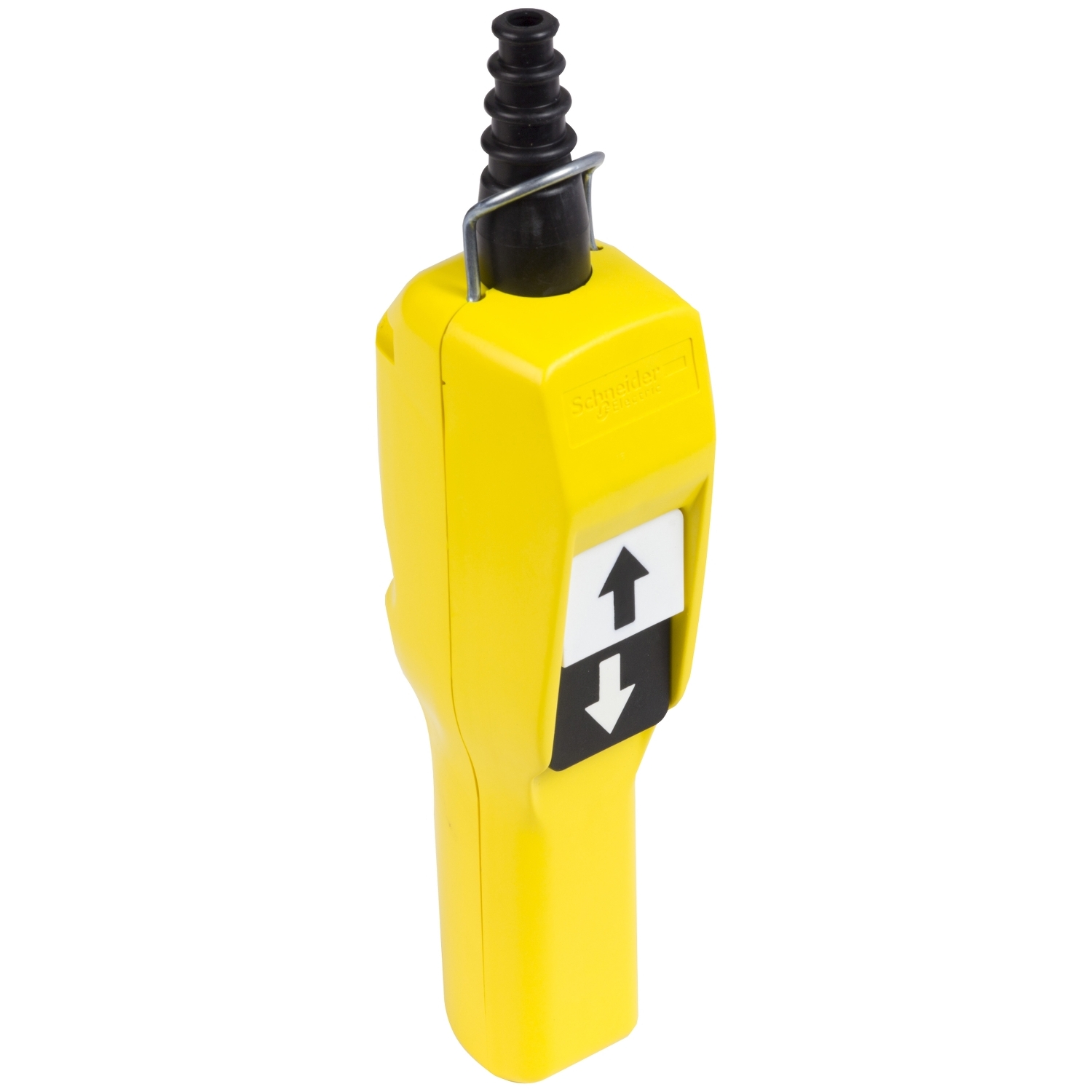

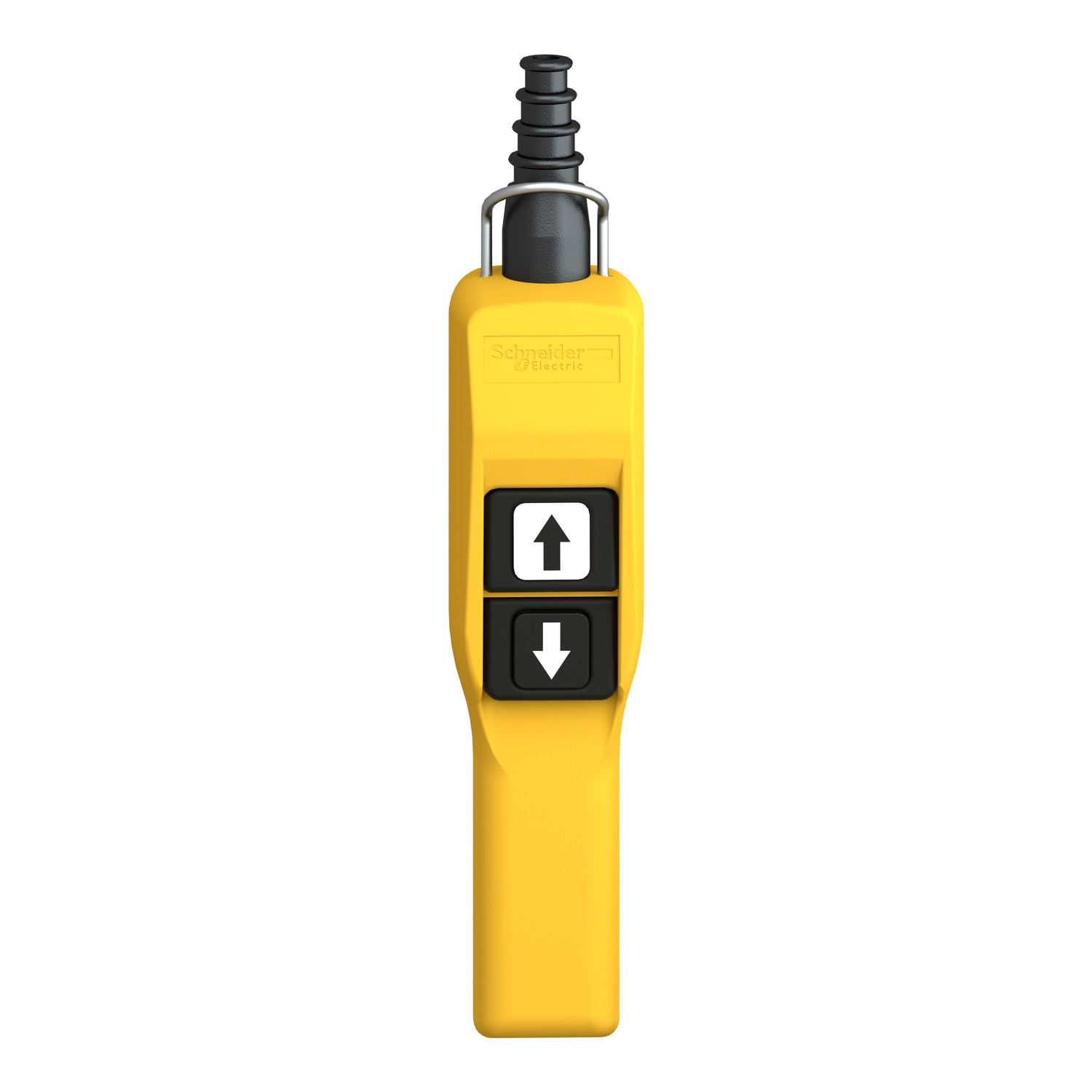

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XAC XACA pistol grip Control Station · IP65 · XACA215 · XACA215
Ingress protectionIP65
Reference standardEN/ISO 13850: 2006
Net weight0.32 kg
BrandSchneider
Brand SKUXACA215
ELINE2KDH2J769
Sold asPer pc
StandardsEN/ISO 13850: 2006 · UL 508 · IEC 60204-32 · CSA C22.2 No 14 · IEC 60947-5-1 · IEC 60947-5-5

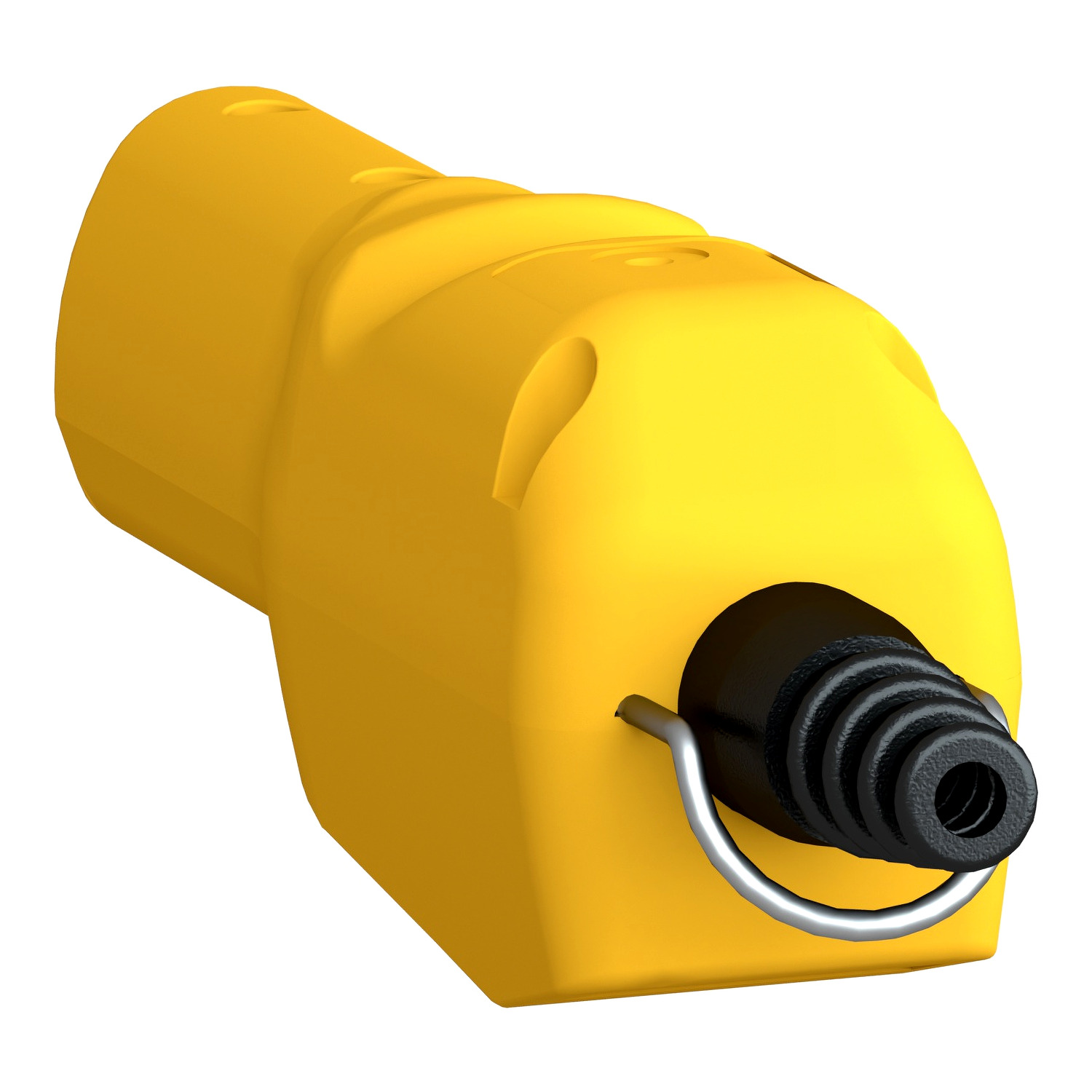

Cable entryRubber sleeve with stepped entry 7…15 mm
Control typeIntuitive
enclosure typeComplete ready for use
Operating force13…15 N
Range of productHarmony XAC
Shock resistance100 gn conforming to IEC 60068-2-27
Contact operationSlow-break
Device short nameXACA pistol grip
Enclosure materialPolypropylene
Control button typeFirst push-button 1 NC + 1 NO raise, slow · Second push-button 1 NC + 1 NO lower, slow
Terminal identifier(11-12)NC · (13-14)NO
Control station typeDouble insulated
Overvoltage categoryClass II conforming to IEC 61140
Protective treatmentTH
Vibration resistance15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Mechanical durability1000000 cycles
Product compatibilityZB2BE102 + ZB2BE101 for each direction
Control station colourYellow
Product certificationsUL · CSA
Connections - terminalsScrew clamp terminals, 1 x 2.5 mm² with or without cable end · Screw clamp terminals, 2 x 1.5 mm² with or without cable end
Electrical circuit typeControl circuit
IK degree of protectionIK08 conforming to IEC 62262
IP degree of protectionIP65 conforming to IEC 60529
Mechanical interlockingWith mechanical interlocking
Contact code designationA600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A · A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A · Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A · Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Short-circuit protection10 A fuse protection by cartridge fuse type gG
Product or component typePendant control station

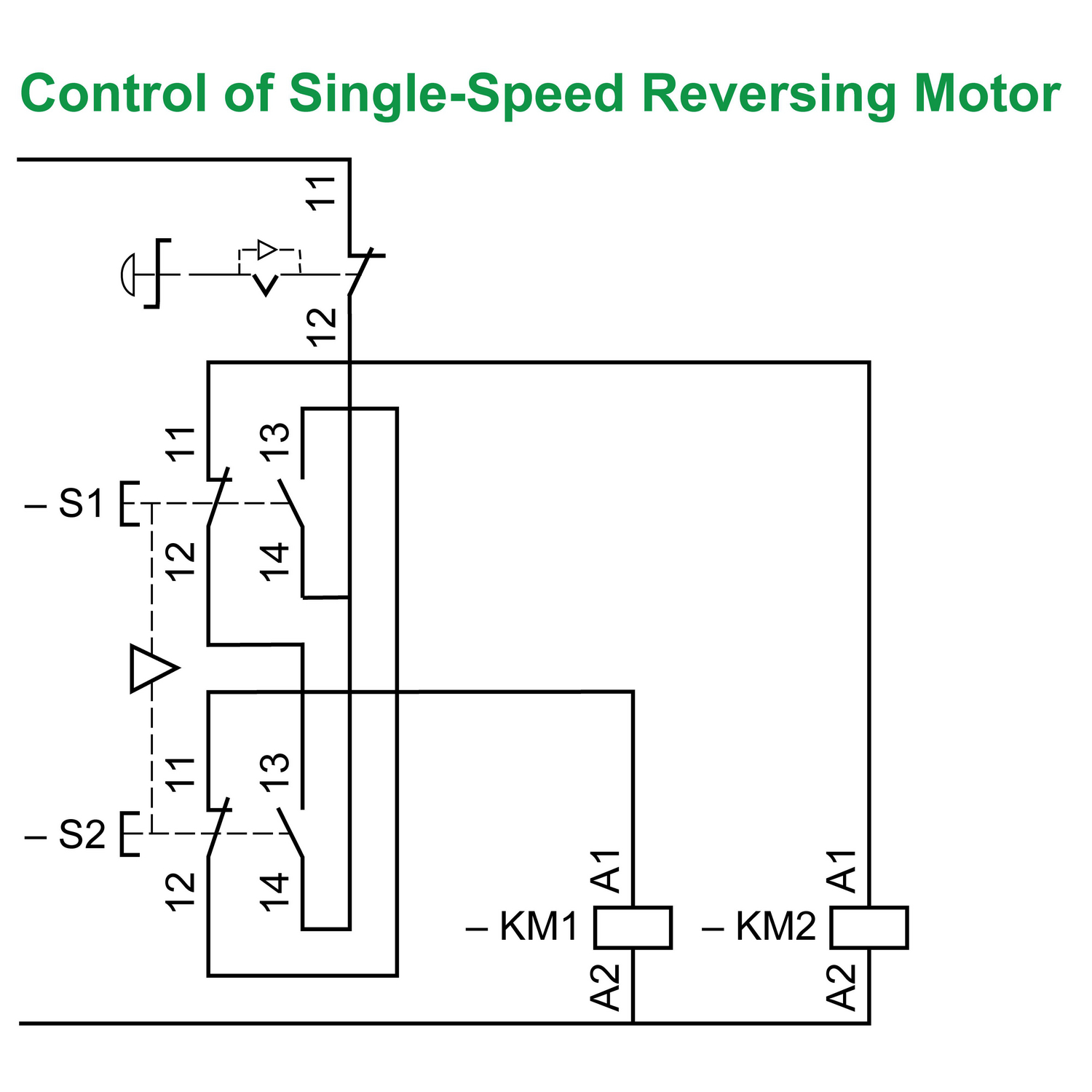

Control station applicationControl of single speed hoist motor
Control station composition2 booted push-buttons
Rated operational power in W40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C · 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C · 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1(13-14)NO · (11-12)NC
Ambient air temperature for storage-40…70 °C
Maximum resistance across terminals25 MOhm
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current10 A
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
