A9XMSB11↓ 1% off MRP
Schneider EcoStruxure Smart Link Smart Communication Module · Acti9 Smartlink · Modbus RS485 slave
NEW added this week- Secured by Razorpay · UPI, cards, net banking, wallets
- GST invoice with every order
- Tracked delivery, 3 to 7 working days
Schneider EcoStruxure Smart Link Smart Communication Module · Acti9 Smartlink · Modbus RS485 slave: Elume price today ₹71,044 per pc incl. GST, 1% below the ₹71,762 MRP. The price has held steady for the last 30 days.

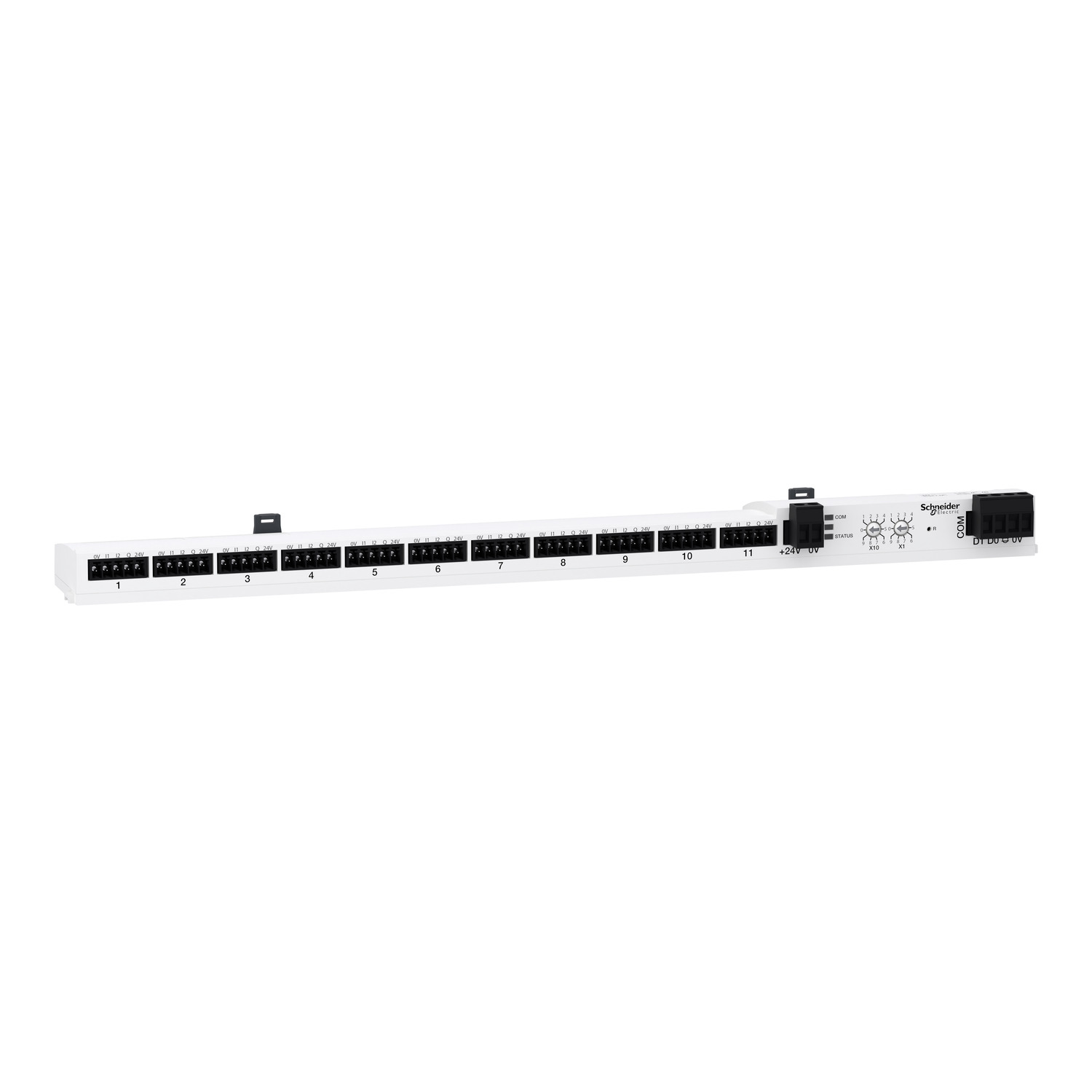

This Acti 9 SmartLink Modbus Slave is a smart communication module with 11 channels. It communicates with the auxiliaries iACT24 for iCT contactors, iATL24 for iTL impulse relays, iOF+SD24 for iC60, iID, ARA, RCA & iSW-NA. It needs to be associated to a Master SmartLink SI B thanks to the Modbus RS485 connector. It is used to transfer data from Acti 9 devices to a PLC or network monitoring system thanks to the Ethernet connector. It communicates also with OF+SD24 for C60, C120, DPN, ID & C60H-DC, Ti24 for RCA iC60 & Reflex iC60. It is supplied with 1 power supply connector 24VDC, 2 bolts for mounting on Linergy FM80. The link is Modbus, RTU, RS485 serial connection. The transfer rate is self-adaptable from 9600 to 19200 baud. The Modbus addresing range is 1 to 99. It is a 4-pin connector type of bus. It is a plug-in connection. The maximum length of the bus is 1000m. The maximum cable length is 500m. The voltage power supply is 24VDC +/- 10%. The Maximum input current is 1,5A. The Maximum inrush current is 3A. The degree of protection is IP20. The pollution degree is 3. It complies with RoHS directive. The duration of saving memory is 10 years. The dimensions are (W) 359mm x (H) 23
Is Schneider EcoStruxure Smart Link Smart Communication Module · Acti9 Smartlink · Modbus RS485 slave genuine and warranty-backed?
Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.
Do you deliver across India?
Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.
Can I get a GST invoice?
Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.
Is there a wholesale or bulk rate?
Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.
What if I find it cheaper somewhere else?
Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.
What is the return policy?
For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
