Legrand Myrius NextGen Bell Push Switch · 1-way · with Indicator · 6 A · 1 M · Charcoal Grey · 679421: Elume price today ₹328 per pc incl. GST, 36% below the ₹514 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹265, ₹63 less than here.

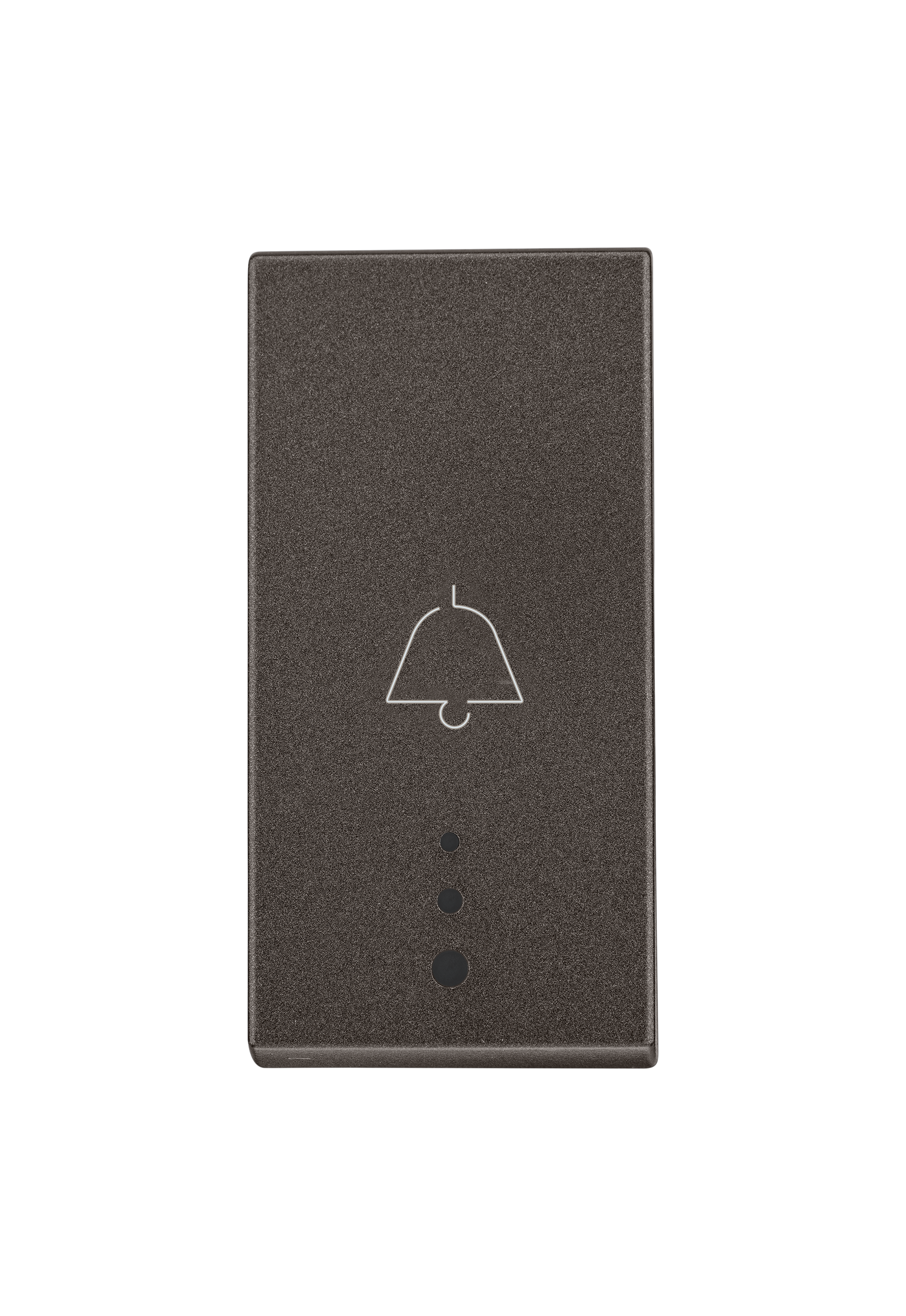

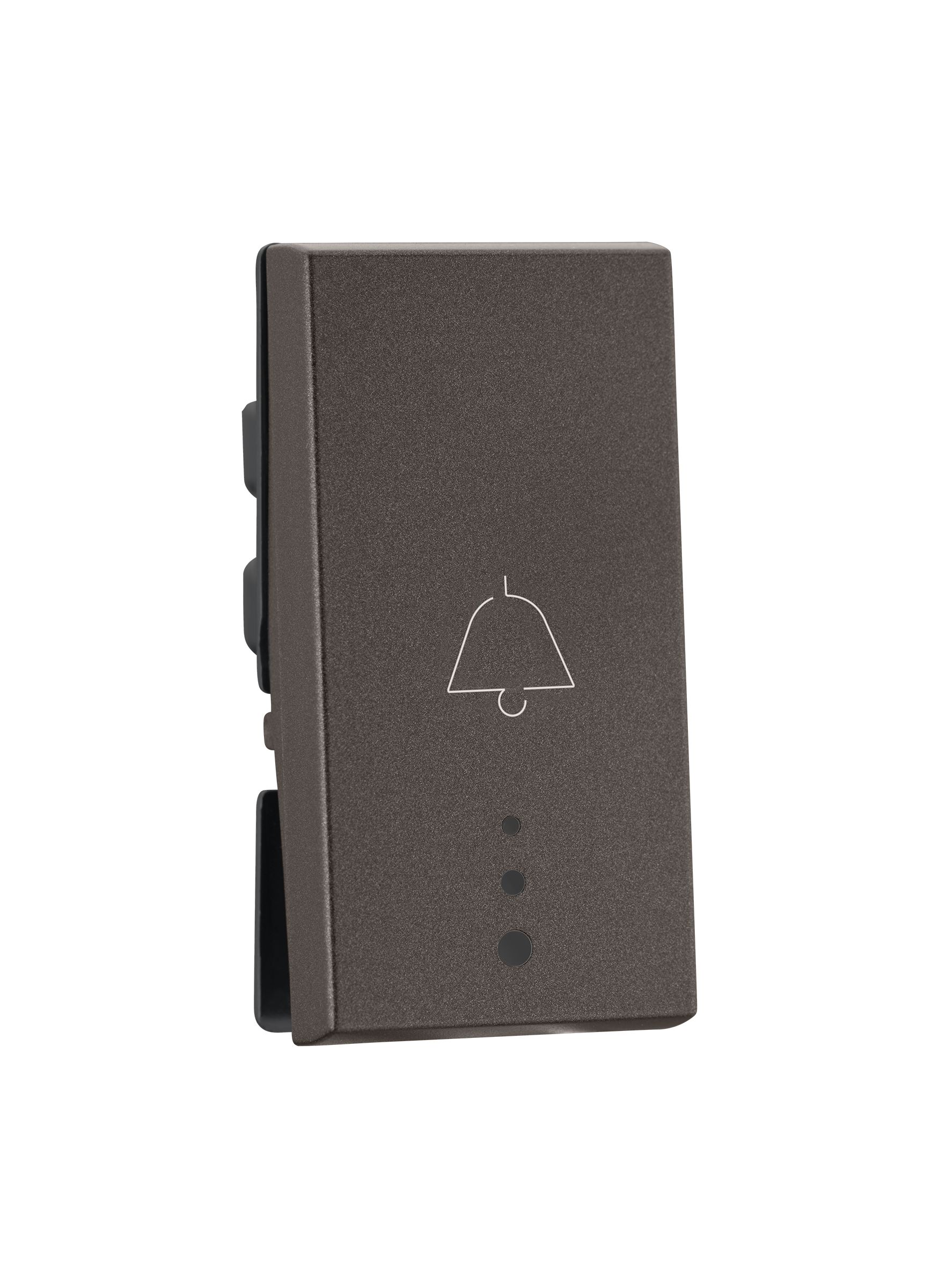

The Myrius range product with CAT number 679421 refers to the "6A Bell Push 1 Way 1M with Indicator" in Charcoal Grey color. It is designed for general lighting control and features a one-way single-pole bell push mechanism with a square indicator. The product supports both flush and surface mounting. Its dimensions are 22.5 mm (width), 45.1 mm (height), and 37.8 mm (depth), with a weight of 18.5 grams. The terminal connection is screw-based, accommodating wire capacities from 0.75mm² to 1.5mm², with a stripping length of 10 mm. The switch operates with a rocker mechanism and is constructed using durable materials such as polycarbonate, brass, stainless steel, and silver. It supports 230V AC voltage and 6A current, with self-extinguishing properties rated at 850°C/30s. The product conforms to IS:3854 standards.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
