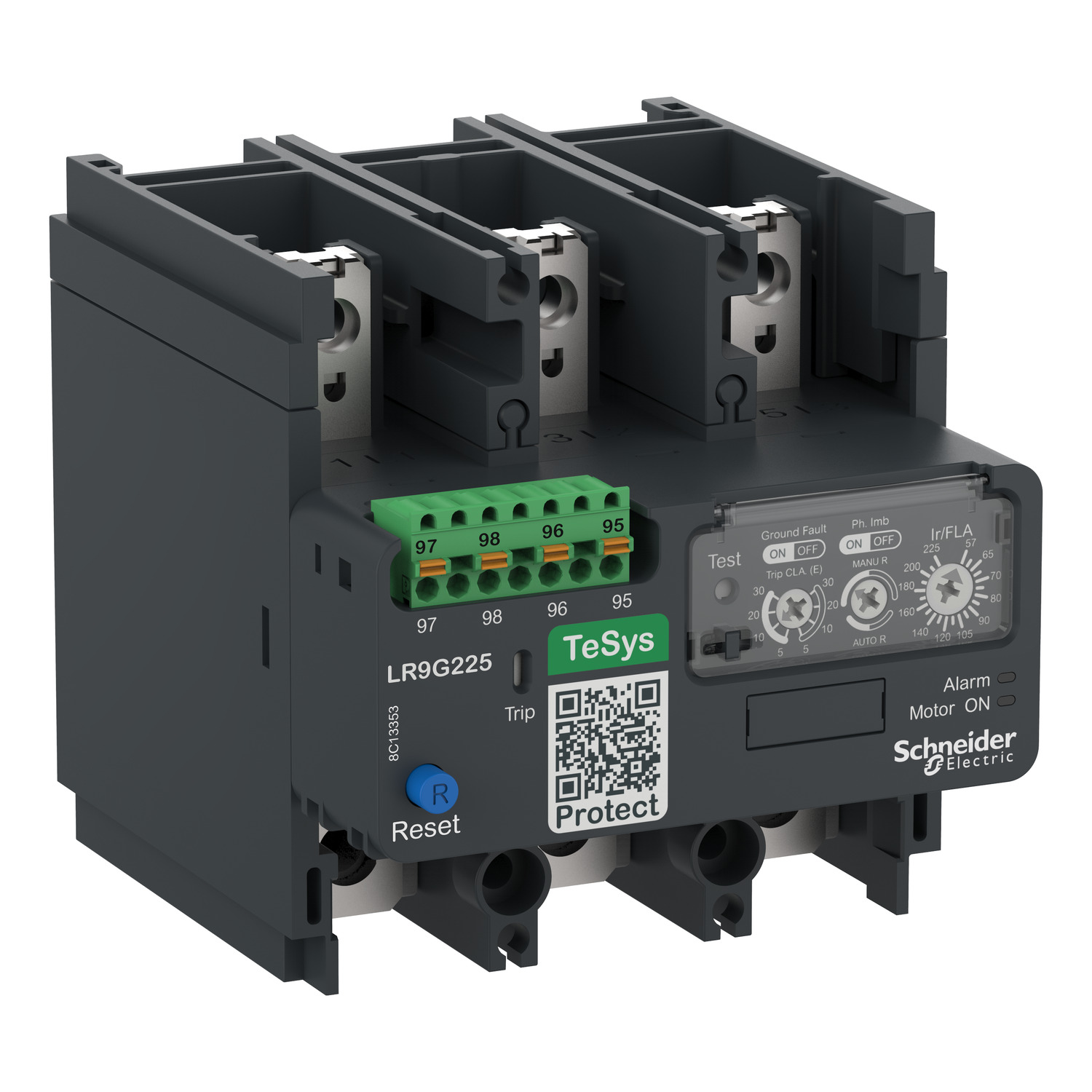

Schneider TeSys LR9G Thermal Overload Relay · 57…225 A

Setting: 57…225 A
NEW added this week
₹47,861/pcincl. GST-1%
₹40,560 + 18% GST · MRP ₹48,345
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹47,861 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider TeSys LR9G Thermal Overload Relay · 57…225 A: Elume price today ₹47,861 per pc incl. GST, 1% below the ₹48,345 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹51,729₹49,925₹48,120₹46,315₹44,511₹48,345₹47,861
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹47,861
MRP
₹48,345
Lowest in view · 17 Oct
₹47,861
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹45,468/pc on this product

TeSys LR9G 225A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LR9G Thermal Overload Relay · 57…225 A · LR9G225
Ingress protectionIP2X front face with shrouds· IP2X front face with shrouds
Reference standardEN/IEC 60947-4-1
coil voltage24...500 V AC 50/60 Hz
ColourDark grey
Net weight0.8 kg
BrandSchneider
Brand SKULR9G225
ELINERKFPRPDHG
Sold asPer pc
Depth126 mm
RangeTeSys
ResetAutomatic reset · Manual
Width105 mm
Height107 mm
StandardsEN/IEC 60947-4-1 · EN/IEC 60947-5-1 · UL 60947-4-1 · CSA C22.2 No 60947-4-1 · JIS C8201-4-1 · JIS C8201-5-1 · IEC 60335-1:Clause 30.2 · IEC 60335-2-40:Annex JJ · UL 60335-2-40:Annex JJ · UL 60335-1
Network typeAC
Product nameTeSys LRG
Protection typeGround fault protection - tripping time adjustment: 0…1 s - for alarm circuit conforming to IEC 60947-4-1 · Ground fault protection - tripping time adjustment: 0…1 s - for alarm circuit conforming to UL 60947-4-1 · Phase loss - tripping time adjustment: 0…4 s - for alarm circuit · Phase imbalance - tripping time adjustment: 0…5 s - for alarm circuit conforming to IEC 60947-4-1 · Phase imbalance -
Surge withstand4 kV
Local signallingLED · Trip indicator
Mounting supportDirect on contactor · Plate
Device short nameLR9G
Network frequency30...60 Hz · 100 Hz
Relay applicationMotor protection
Tightening torque18 N.m
Tripping threshold1.125 +/- 0.07 In conforming to IEC 60947-4-1
Overvoltage categoryIII
Protective treatmentTH
Mechanical durability7000 cycles
Mechanical robustnessVibrations 5…300 Hz 6 gn contactor open · Shocks 15 gn 11 ms contactor closed
Product certificationsCB Scheme · CCC · cULus · UKCA · ATEX · EU-RO-MR by DNV-GL · EAC
Thermal overload classClass 5E...30E conforming to IEC 60947-4-1
Connections - terminalsPower circuit: bar - busbar cross section: 25 x 6 mm · Power circuit: lugs-ring terminals 1 185 mm² · Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end · Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end · Control circuit: push-in 2 0.5…1.0 mm² with cable end
IP degree of protectionIP2X front face with shrouds conforming to IEC 60529 · IP2X front face with shrouds conforming to VDE 0106
Product or component typeElectronic thermal overload relay
Adjustment of dial setting-25…60 °C
[Uc] control circuit voltage24...500 V AC 50/60 Hz · 24...250 V DC
Contacts type and composition1 NO + 1 NC
Electromagnetic compatibilityEMC immunity conforming to IEC 60947-4-1 · Emission tests criteria A conforming to IEC 60947-4-1 · Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 · Voltage dips and interruptions immunity test conforming to SEMI F47
[Ue] rated operational voltage1000 V AC 50/60 Hz
Ambient air temperature for storage-60…80 °C
Thermal protection adjustment range57…225 A
Ambient air temperature for operation-25…60 °C
[Uimp] rated impulse withstand voltage8 kV
[Ith] conventional free air thermal current5 A
Permissible ambient air temperature around the device-40…60 °C at Uc
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
