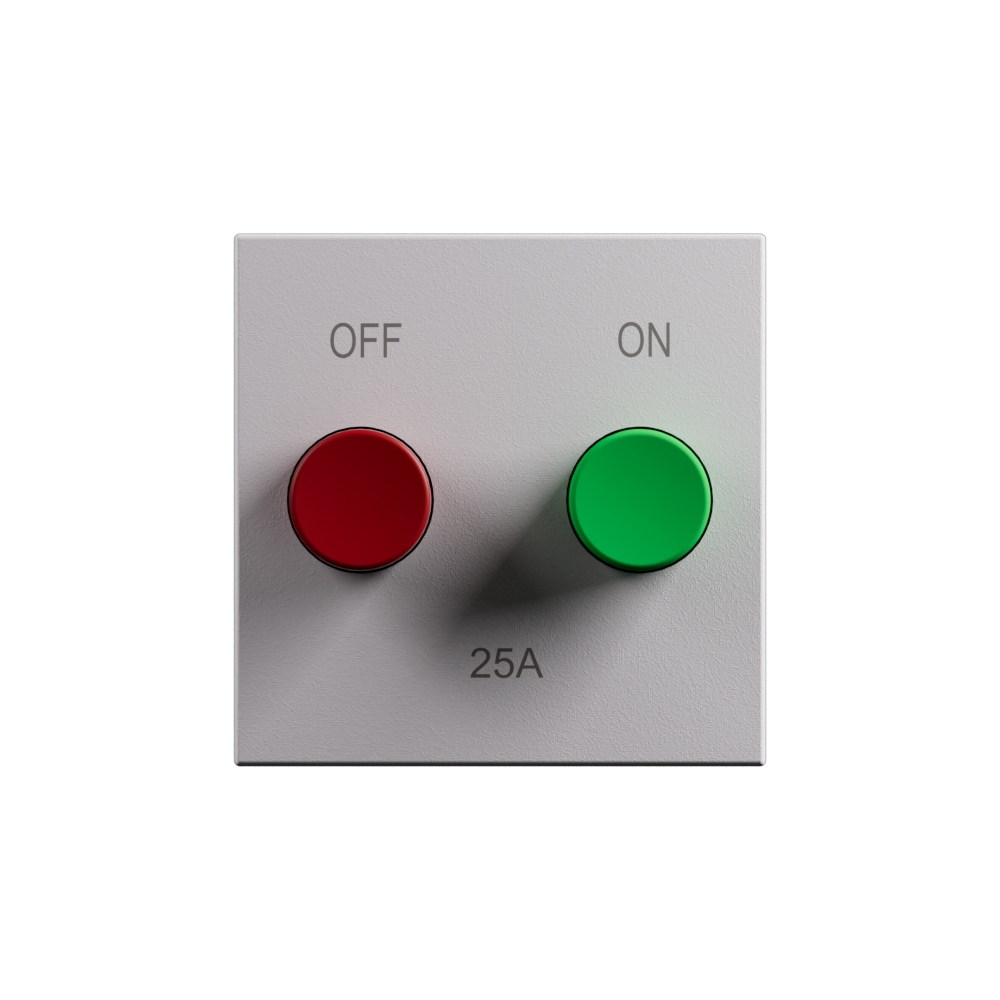

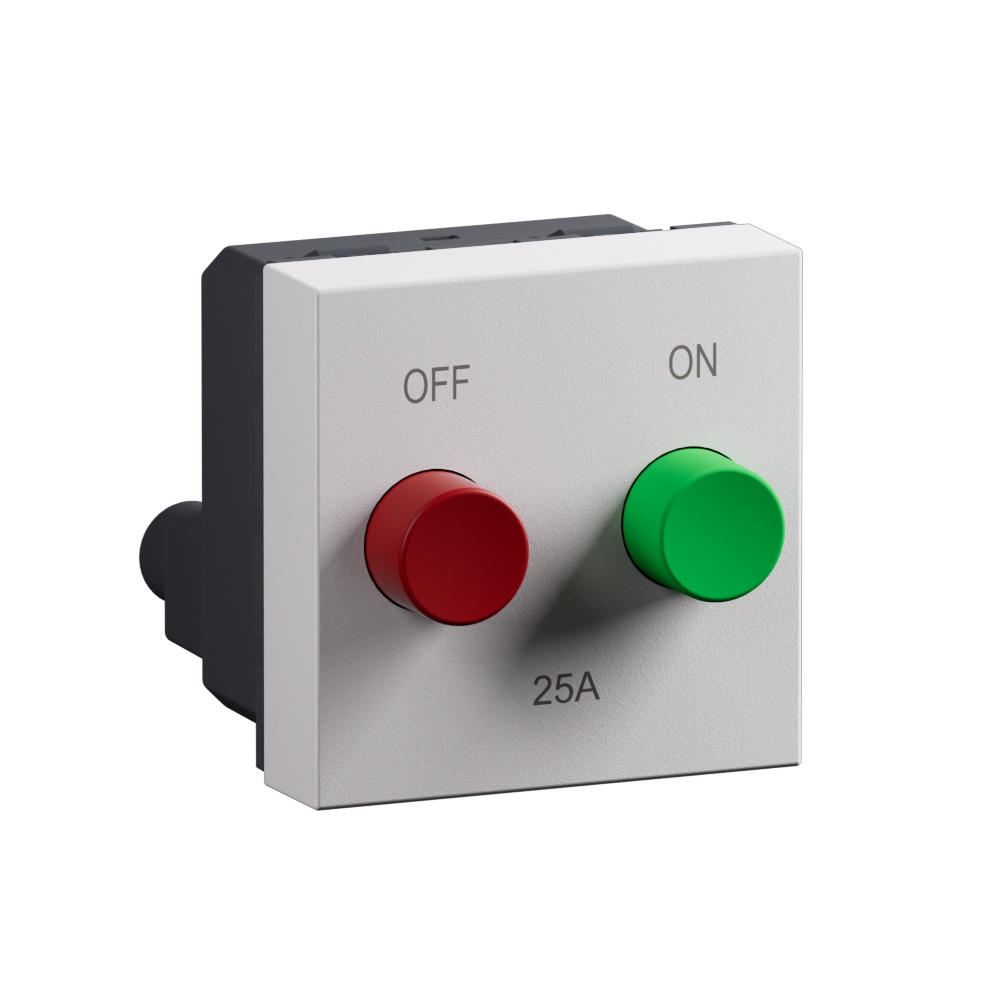

Legrand Legrand Arteor Advance Classic Motor Starter · 25 A · 2 M · Matt White · AC20112MW · AC20112MW
Device typeMotor starter
SeriesArteor Advance Classic
Module size2 M
Rated current25 A
Rated voltage240 V AC
ColourMatt White
MaterialPolycarbonate Intermediate
Country of originIndia
Current rating25 A
FinishWhite
BrandLegrand
Brand SKUAC20112MW
ELINEPPGJMJRC3
Sold asPer pc
ColorMatt White
Warranty2 years warranty provided by the manufacturer from date of purchase
Product CodeAC20112MW
Product features• 25A Motor Starter• Contemporary and Clean Finish
• Double module mechanism
• Protection against Over load• Made From High-Grade Polycarbonate Material
• ON-OFF with Knob
• Flush and Surface -mounted• Screw terminals
Product Width (mm)45
Product Technical specifications6.1 Material Characteristics Stop (Knob) : Polyamide (PA6) Top Plate : Polycarbonate Intermediate Cover : Polybutylene terephthalate (PBT) + Glassfilled(30%) Base : Polybutylene terephthalate (PBT) + Glassfilled(30%) Screws : Brass with silver plating Terminal : Brass with silver plating 6.2 Electricals Characteristics Voltage :240V AC Current : 25A .6.3 MarkingRating ,Voltage , ON-OFF indication , Made in India,Single phase motor Starter ,TracebiIity
Ratings as published by Legrand (shop.legrand.co.in). Verify critical parameters against the datasheet before specifying.
