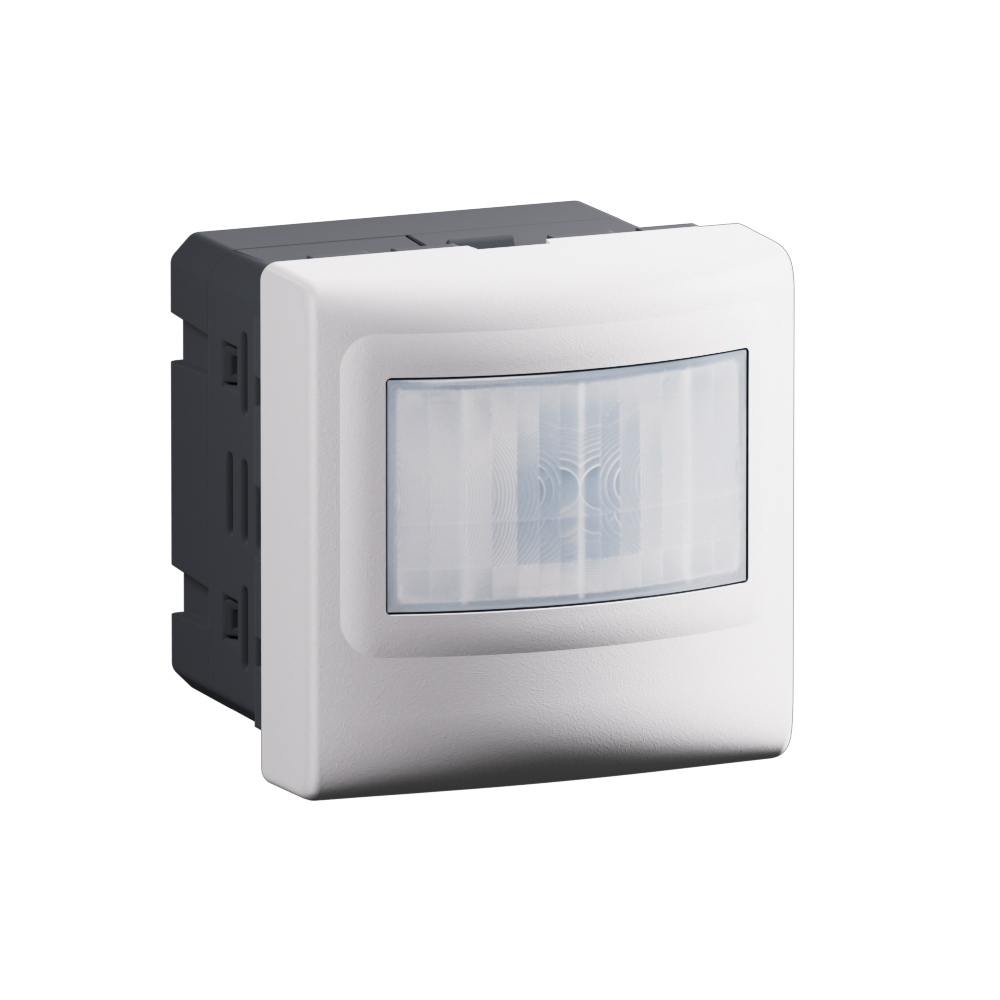

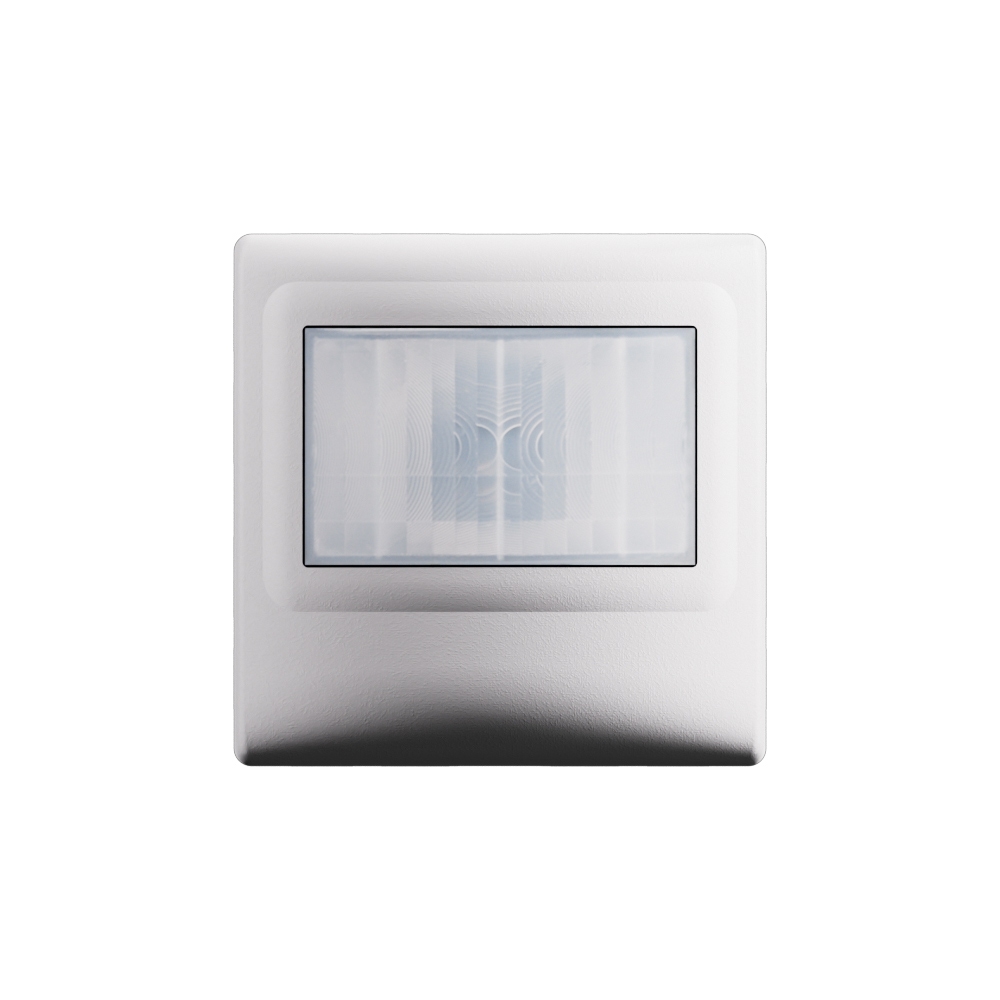

Legrand Legrand Arteor Advance Classic IR Movement Detector · with neutral · 2 M · Matt White · AC25102MW · AC25102MW
Device typeMovement detector
SeriesArteor Advance Classic
Module size2 M
Rated voltage250 V
ColourMatt White
Ingress protectionIP20
Country of originIndia
FinishWhite
BrandLegrand
Brand SKUAC25102MW
ELINEPD4HC92KR
Sold asPer pc
ColorMatt White
Warranty2 years warranty provided by the manufacturer from date of purchase
Product CodeAC25102MW
Product features• Infrared Movement Detector
• Double Module Mechanism
• Led infrared movement detector
• Movement Detector with Neutral
• Better energy efficiency
Product Width (mm)45
Product Technical specifications6.1 General characteristicsMotion detectors with 170° detection angle.Detection range: 8 m max. 6.2 Mechanical characteristicsImpact tests: IK 04Protection against solid bodies and liquids: IP 20 6.3 Material characteristicsMechanism casing: PC Lens: opalescent whiteCover plate: painted ABSHalogen-freeUV-resistantSelf-extinguishing:850°C/30 s for insulating components holding live parts in place650°C/30 s for other insulating components. 6.4 Climate characteristicsUsage temperature: -5°C to +35°CStorage temperature: -10°C to +70°C 6.5 Electrical characteristics - 3-wire with neutralVoltage: 110-240 V~Current: 8.5 A MAXPower: 150W maxFrequency: 50/60 HzStandby consumption: < 0.015 W 6.6 Energy characteristicsStandby consumption for 1000 hours:3-wire with neutral: 0.131 kWh
Ratings as published by Legrand (shop.legrand.co.in). Verify critical parameters against the datasheet before specifying.
