Schneider TeSys LRD Thermal Overload Relay · 0.16…0.25 ALRD02↓ 1% off MRP1 / 6
BrandSchneider
CategoryIndustrial Control
Brand SKULRD02
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

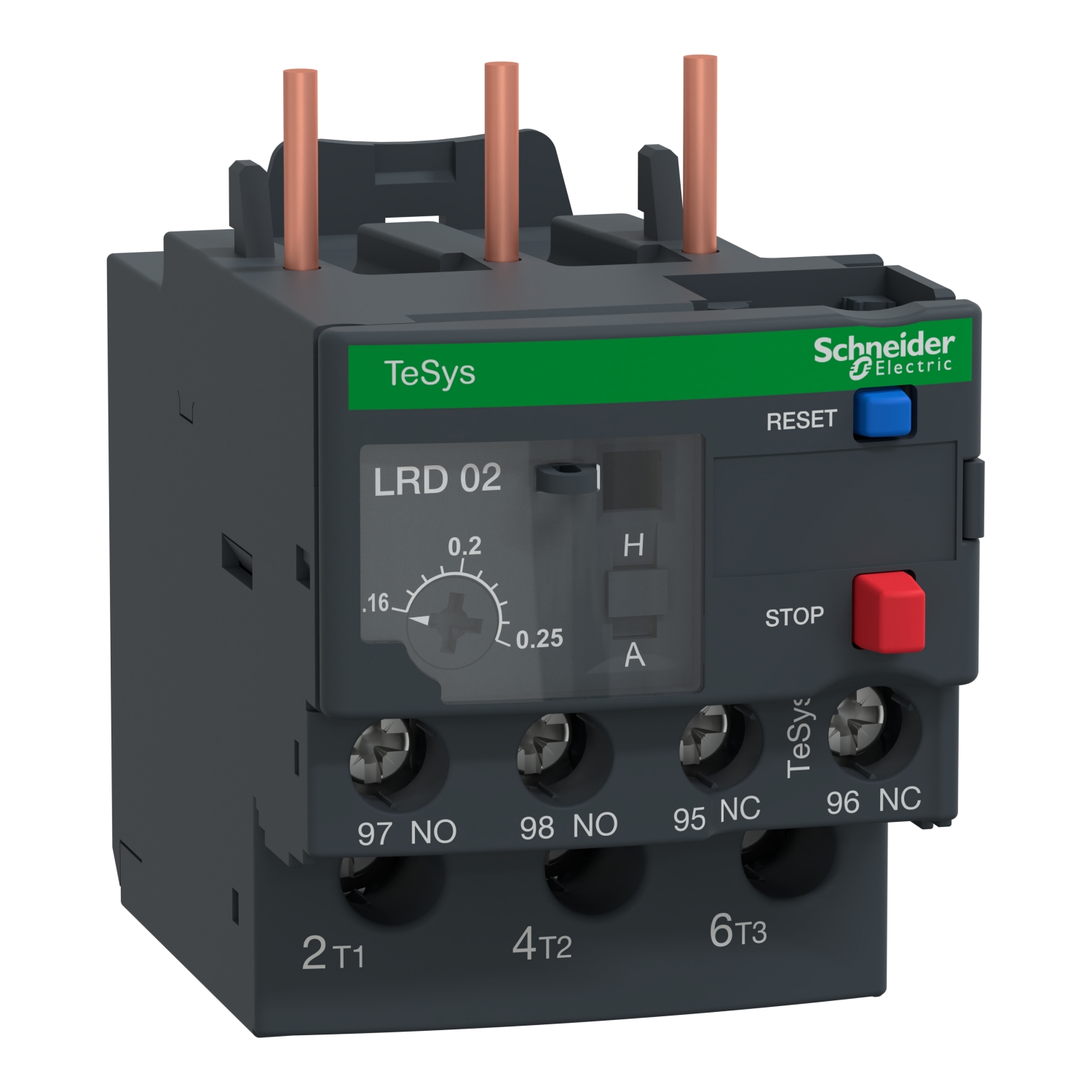

Schneider TeSys LRD Thermal Overload Relay · 0.16…0.25 A

Setting: 0.16…0.25 A
NEW added this week
₹5,029/pcincl. GST-1%
₹4,262 + 18% GST · MRP ₹5,080
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹5,029 /pc incl. GST
Free pan-India delivery

Schneider TeSys LRD Thermal Overload Relay · 0.16…0.25 A: Elume price today ₹5,029 per pc incl. GST, 1% below the ₹5,080 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹5,436₹5,246₹5,056₹4,867₹4,677₹5,080₹5,029
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹5,029
MRP
₹5,080
Lowest in view · 17 Oct
₹5,029
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹4,778/pc on this product

TeSys LRD thermal overload relay, 0.25A/690V, thermal setting range 0.16-0.25A, tripping class 10A, for protection of 3-phase motors 0.06kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LRD Thermal Overload Relay · 0.16…0.25 A · LRD02
Ingress protectionIP20
Reference standardEN/IEC 60947-4-1
Net weight0.124 kg
BrandSchneider
Brand SKULRD02
ELINEMJ737GKGG
Sold asPer pc
Depth70 mm
RangeTeSys · TeSys Deca
Width45 mm
Height66 mm
StandardsEN/IEC 60947-4-1 · EN/IEC 60947-5-1 · UL 60947-4-1 · UL 60947-5-1 · CSA C22.2 No 60947-4-1 · CSA C22.2 No 60947-5-1 · GB/T 14048.4 · GB/T 14048.5 · EN 50495
Control typeRed push-button: stop · Blue push-button: reset
Network typeDC · AC
Product nameTeSys LRD · TeSys Deca
Flame retardanceV1 conforming to UL 94
Mounting supportPlate, with specific accessories · Rail, with specific accessories · Under contactor
Device short nameLRD
Network frequency0...400 Hz
Relay applicationMotor protection
Tightening torqueControl circuit: 1.7 N.m - on screw clamp terminals · Power circuit: 1.7 N.m - on screw clamp terminals
Climatic withstandconforming to IACS E10
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Dielectric strength1.89 kV at 50 Hz conforming to IEC 60947-1
Permissible current3 A at 120 V AC-15 for signalling circuit · 0.22 A at 125 V DC-13 for signalling circuit
Mechanical robustnessVibrations: 6 Gn conforming to IEC 60068-2-6 · Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Product compatibilityLC1D25 · LC1D38 · LC1D12 · LC1D09 · LC1D18 · LC1D32
Associated fuse rating4 A gG for signalling circuit · 4 A BS for signalling circuit
Product certificationsIEC · UL · CSA · CCC · EAC · BV · RINA · DNV-GL · LROS (Lloyds register of shipping) · ATEX INERIS · UKCA
Thermal overload classClass 10A conforming to IEC 60947-4-1
Connections - terminalsControl circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end · Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end · Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end · Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end · Power circuit: screw clamp terminals 1 cable(s) 1…4
IP degree of protectionIP20 conforming to IEC 60529
Temperature compensation-20…60 °C
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0
Product or component typeDifferential thermal overload relay
Auxiliary contact composition1 NO + 1 NC
[Ui] rated insulation voltagePower circuit: 600 V conforming to CSA · Power circuit: 600 V conforming to UL · Power circuit: 690 V conforming to IEC 60947-4-1
[Ue] rated operational voltage690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Ambient air temperature for storage-60…70 °C
Thermal protection adjustment range0.16…0.25 A
Ambient air temperature for operation-20…60 °C without derating conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage6 kV
[Ith] conventional free air thermal current5 A for signalling circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
