Schneider EcoStruxure PAS600LWD Gateway · EcoStruxure Panel Server Wired by DesignPAS600LWD↓ 1% off MRP1 / 3
BrandSchneider
CategoryIndustrial Control
Brand SKUPAS600LWD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

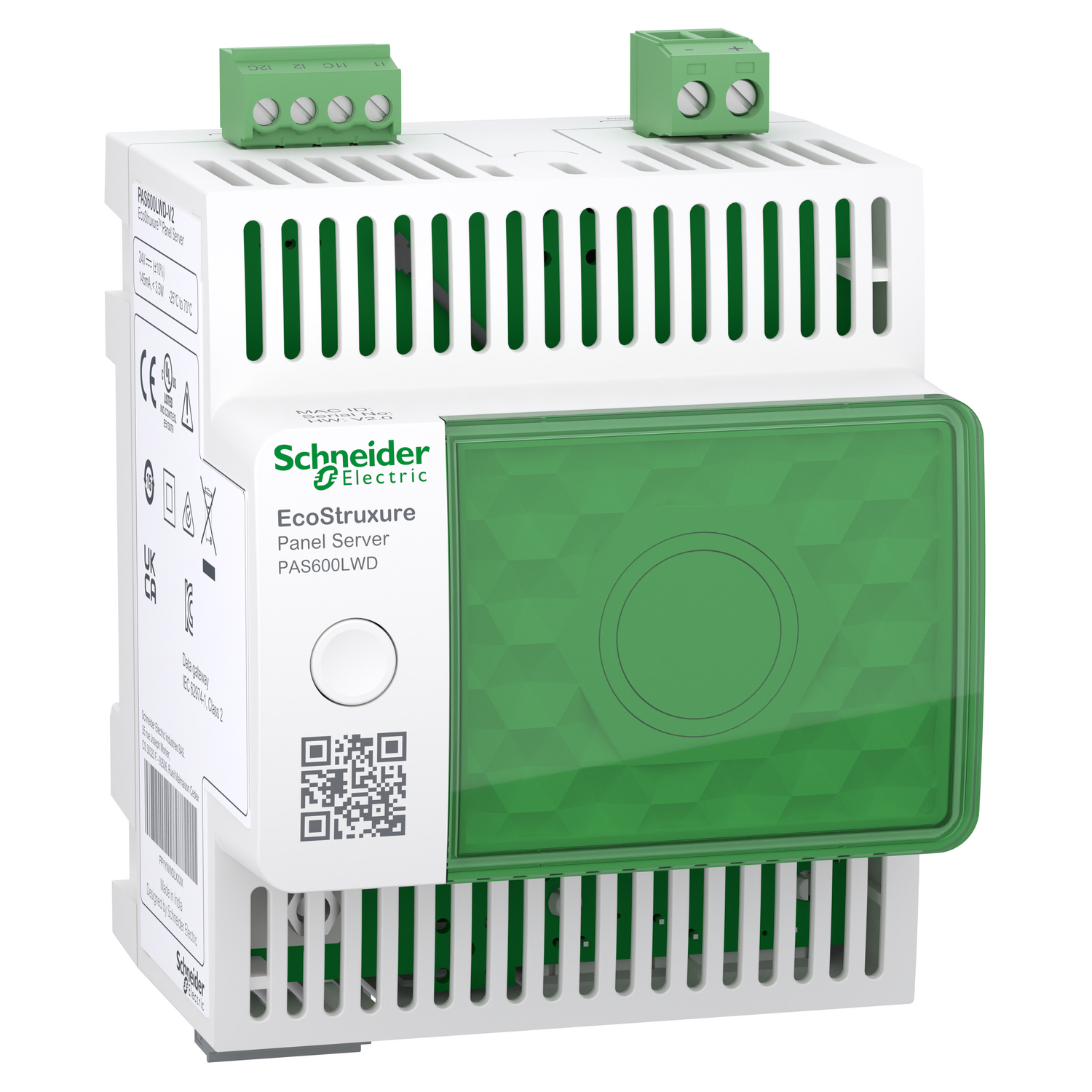

Schneider EcoStruxure PAS600LWD Gateway · EcoStruxure Panel Server Wired by Design

NEW added this week
₹50,904/pcincl. GST-1%
₹43,139 + 18% GST · MRP ₹51,419
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹50,904 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider EcoStruxure PAS600LWD Gateway · EcoStruxure Panel Server Wired by Design: Elume price today ₹50,904 per pc incl. GST, 1% below the ₹51,419 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹55,018₹53,099₹51,180₹49,260₹47,341₹51,419₹50,904
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹50,904
MRP
₹51,419
Lowest in view · 17 Oct
₹50,904
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹48,359/pc on this product

Schneider EcoStruxure PAS600LWD Gateway · EcoStruxure Panel Server Wired by Design from Schneider Electric.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider EcoStruxure PAS600LWD Gateway · EcoStruxure Panel Server Wired by Design · PAS600LWD
Ingress protectionIP40 (front face)
Reference standardIEC 61010
Net weight0.18 kg
BrandSchneider
Brand SKUPAS600LWD
ELINEMHRHJKF22
Sold asPer pc

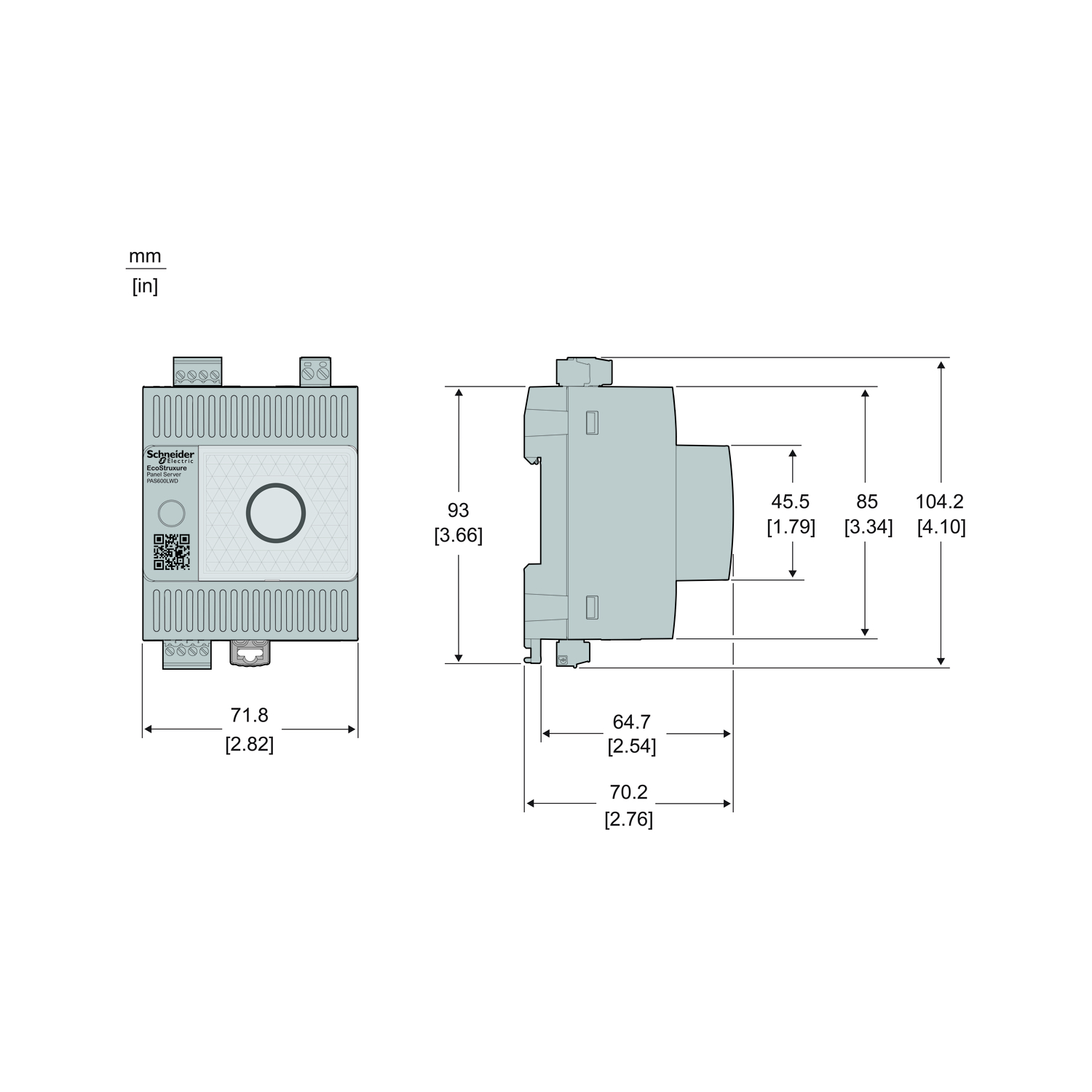

Depth70.2 mm
RangeEcoStruxure
Width72 mm
Height93 mm
TopologySeparated Ethernet network · Switched Ethernet network
StandardsIEC 61010 · IEC 61010-1 · IEC 61010-2-201 · UL 61010 · UL 61010-1 · UL 61010-2-201 · EN 61010-1 · EN 61010-2-201 · CAN/CSA C22.2 No. 61010-1-12 · CAN/CSA C22.2 No. 61010-2-201 · IEC 62974-1 · IEC 61326-1 · EN 61326-1 · EN 55032 · CISPR 11 · FCC CFR 47 part 15 class A · IEC 60945 · EN 62974-1 · DNVGL-GC-0339 · IEC 62947-1
Product namePanel Server Universal Wired by Design
Web servicesHTTPS server · SFTP publication (CSV / JSON) · HTTPS publication (CSV / JSON)

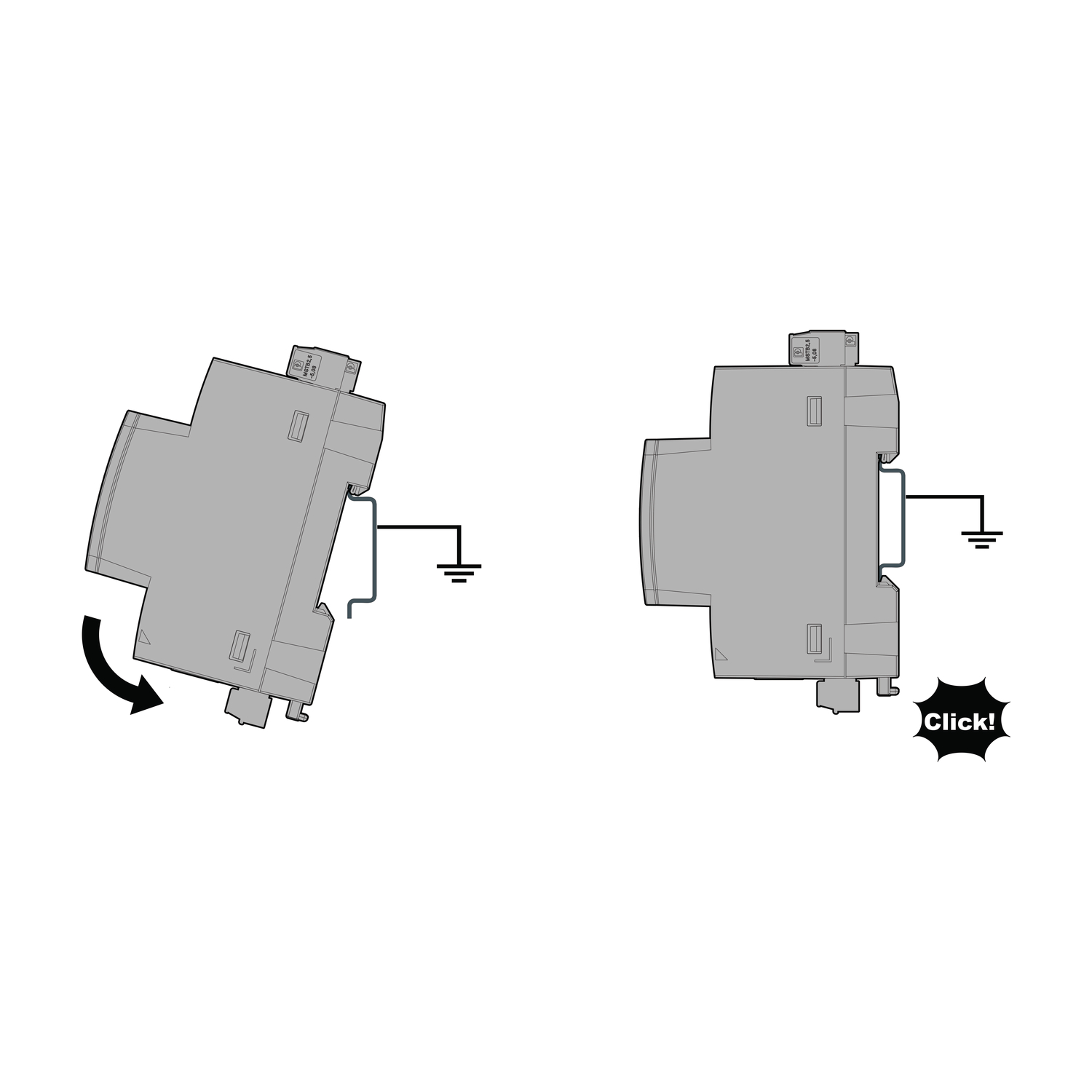

Mounting modeClip-on
Data recordingReal time data monitoring
Realtime clockWith RTC-battery set · With user calibration
Derating factorWith temperature derating of -1 °C per 200 m 4000...5000 m
Memory capacity32 GB eMMC
Mounting supportDIN rail
Number of inputs2 digital
Pollution degree3
Device short namePAS600LWD
Number of devices64 Modbus TCP/IP
Relative humidity5…95 %
Tightening torqueDiscrete I/O: 0.25 N.m · Power supply: 0.6 N.m · Communication: 0.25 N.m
Device applicationGateway
Function availableEmbedded web page for configuration and upgrade · Diagnosis capabilities · Diagnostic report · Diagnostics on communication · Energy management · With integrated web server · Firmware update · Backup/restore configuration · Configurable event
Operating altitude< 5000 m
Range compatibilityEcoStruxure Facility Expert · EcoStruxure Building Operation · EcoStruxure Power Operation · EcoStruxure Power Monitoring Expert · EcoStruxure Asset Advisor · EcoStruxure Energy Hub · EcoStruxure Resource Advisor · Third party SCADA
Communication gatewayEthernet/serial
Communication serviceDevice Profile for Web Services (DPWS) · Modbus TCP client · Modbus TCP server · SNTP client · DHCP client · RSTP
Wire stripping lengthPower supply: 7 mm · Communication: 7 mm · Discrete I/O: 7 mm
Product certificationsCE · cULus · CB · RCM · UKCA · FCC · IC · DNV Marine · IACS E10
Commissioning interfaceEcoStruxure Power Commission desktop · EcoStruxure Power Commission web (for third party device integration) · Web page
Connections - terminalsDiscrete I/O: screw terminal block (top) 0.14…1.5 mm² cable(s) · Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) · Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s)
IP degree of protectionIP40 (front face) · IP20 (casing)
Communication iinterfaceModbus product · No Wi-Fi
Product or component typeGateway
[Us] rated supply voltage24 V DC
Communication network typeEthernet 10/100BASE-T · Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s
Communication port support2 RJ45: ETHERNET · Screw terminal block: RS485
Number of server device(s)32 Modbus RTU product(s) · 128 Modbus TCP/IP product(s)
Communication port protocolModbus TCP · DHCP · HTTPS · NTP/SNTP · IPv4 · IPv6 · TCP/IP
Time synchronisation protocolNTP · SNTP
Maximum power consumption in W3.5 W 24 V
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…70 °C at < 2000 m · -25…60 °C at 2000...4000 m
Data buffer for data publication (cloud, SFTP, HTTPS) depending on network1 month(s)
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
