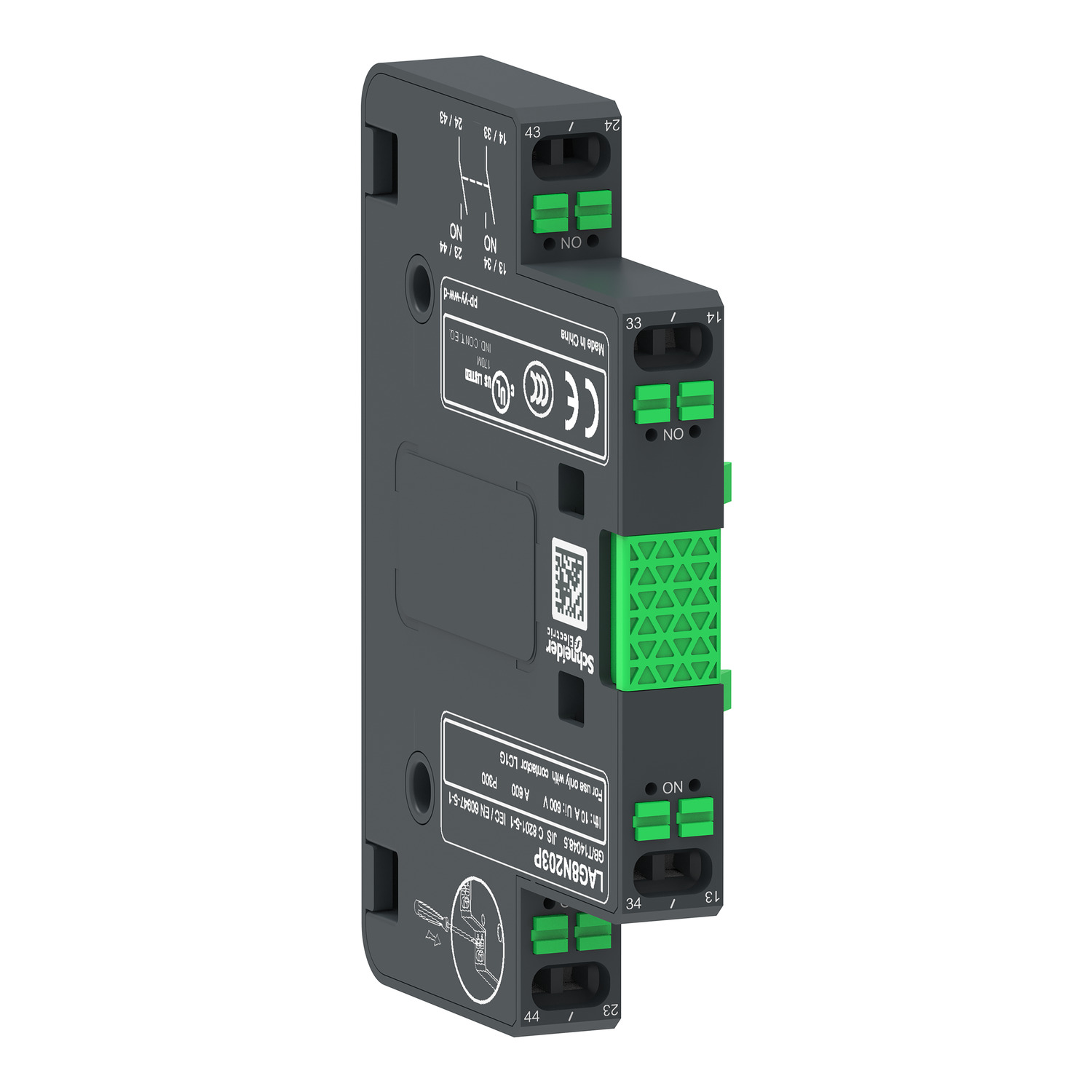

Schneider TeSys LAG8N Auxiliary Contact Block · TeSys Giga contactor · 2NO · IP20 · LAG8N203PLAG8N203P↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
SpecificationTeSys Giga contactor · 2NO · lateral face side mounting · push-in terminals L1/R1
Brand SKULAG8N203P
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider TeSys LAG8N Auxiliary Contact Block · TeSys Giga contactor · 2NO · IP20 · LAG8N203P

NEW added this week
₹3,680/pcincl. GST-1%
₹3,119 + 18% GST · MRP ₹3,717
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹3,680 /pc incl. GST
Free delivery over ₹4,000

Schneider TeSys LAG8N Auxiliary Contact Block · TeSys Giga contactor · 2NO · IP20 · LAG8N203P: Elume price today ₹3,680 per pc incl. GST, 1% below the ₹3,717 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹3,977₹3,838₹3,700₹3,561₹3,422₹3,717₹3,680
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹3,680
MRP
₹3,717
Lowest in view · 17 Oct
₹3,680
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹3,496/pc on this product

These accessories are auxiliary contact block 2NO for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LAG8N Auxiliary Contact Block · TeSys Giga contactor · 2NO · IP20 · LAG8N203P · LAG8N203P
Ingress protectionIP20
Reference standardEN/IEC 60947-5-1
Net weight0.05 kg
BrandSchneider
Brand SKULAG8N203P
ELINEMC622HKKD
Sold asPer pc
Depth84.8 mm
RangeTeSys
Width15.4 mm
Height55.8 mm
StandardsEN/IEC 60947-5-1 · UL 60947-5-1 · CSA C22.2 No 60947-5-1 · GB 14048.5 · IEC 60335-1:Clause 30.2 · IEC 60335-2-40:Annex JJ · UL 60335-1 · UL 60335-2-40:Annex JJ
Protection typeGG fuse 10 A
Non-overlap time1.5 ms on de-energisation no overlap between NC and NO contact · 1.5 ms on energisation no overlap between NC and NO contact
Range of productTeSys G
Device short nameLAG8N
Mounting locationSide
Operating altitude3000 m
Range compatibilityTeSys G LC1G
Protective treatmentTH
Insulation resistance> 10 MOhm
Mechanical durability8 Mcycles
Product certificationsCB Scheme · CCC · cULus · CE · UKCA
Connections - terminalsScrew clamp terminals0.75…2.5 mm²solid stranded without cable end · Screw clamp terminals0.75…2.5 mm²flexible with cable end
IP degree of protectionIP20 conforming to IEC 60529
Pole contact composition2 NO
Minimum switching current1 mA
Minimum switching voltage17 V
Product or component typeAuxiliary contact block
Irms rated making capacity140 A AC conforming to IEC 60947-5-1 · 250 A DC conforming to IEC 60947-5-1
Auxiliary contacts operationInstantaneous
Permissible short-time rating100 A 60 °C 1 s · 120 A 60 °C 500 ms · 140 A 60 °C 100 ms
[Ui] rated insulation voltage600 V conforming to IEC 60947-5-1 · 600 V - certifications CSA · 600 V - certifications UL
[Ue] rated operational voltage600 V AC 25...400 Hz
Ambient air temperature for storage-60…80 °C
Ambient air temperature for operation-25…60 °C
[Ith] conventional free air thermal current10 A (at 60 °C)
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
