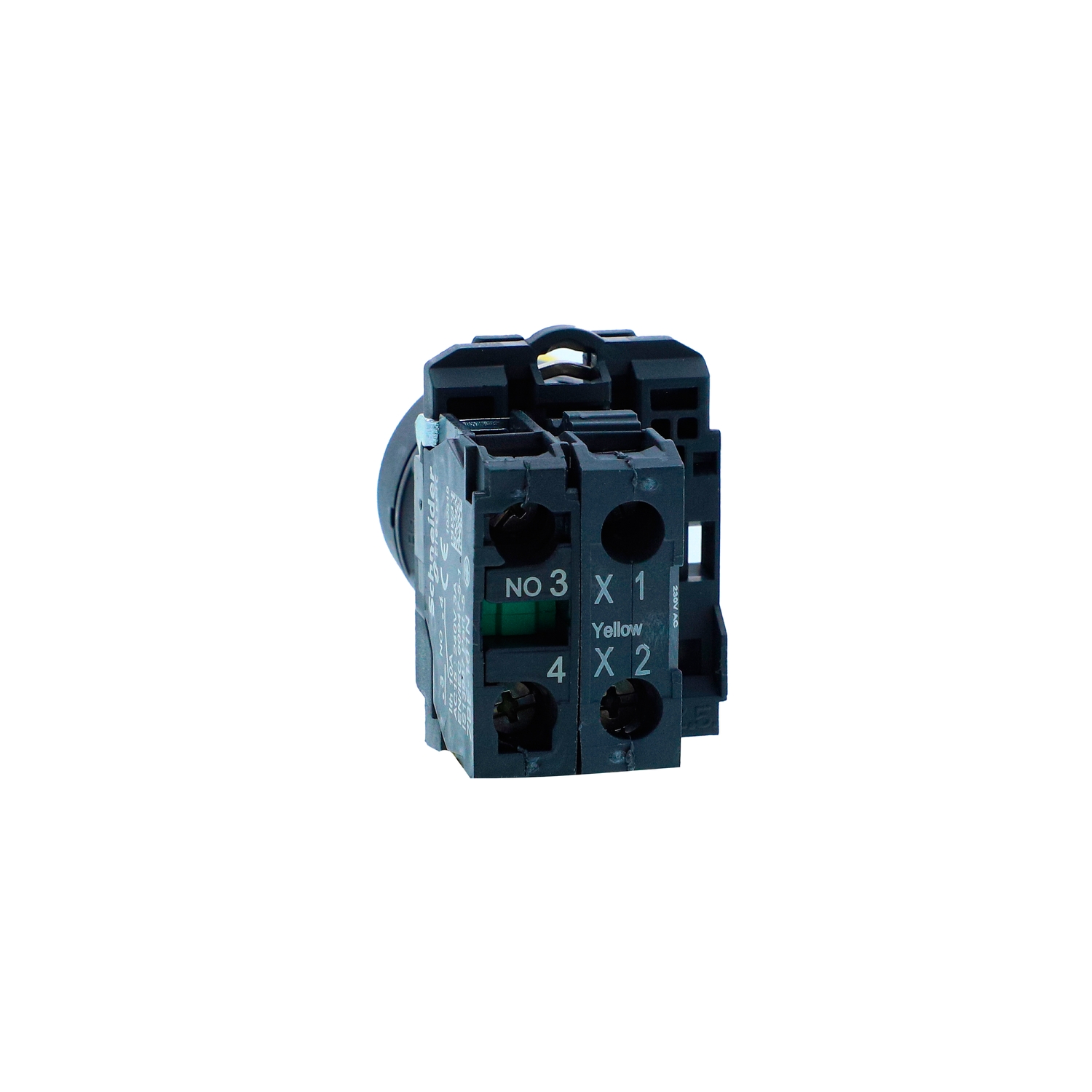

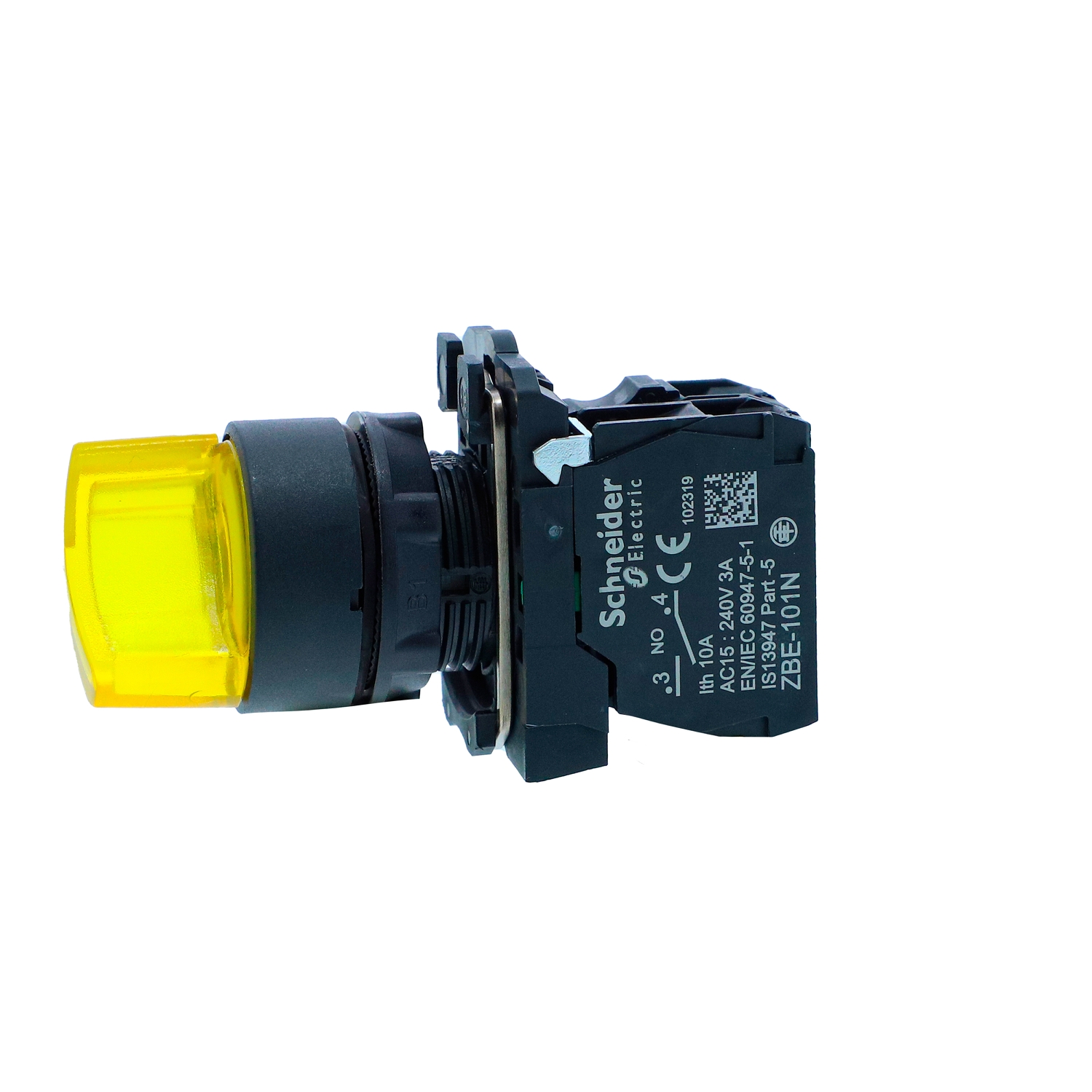

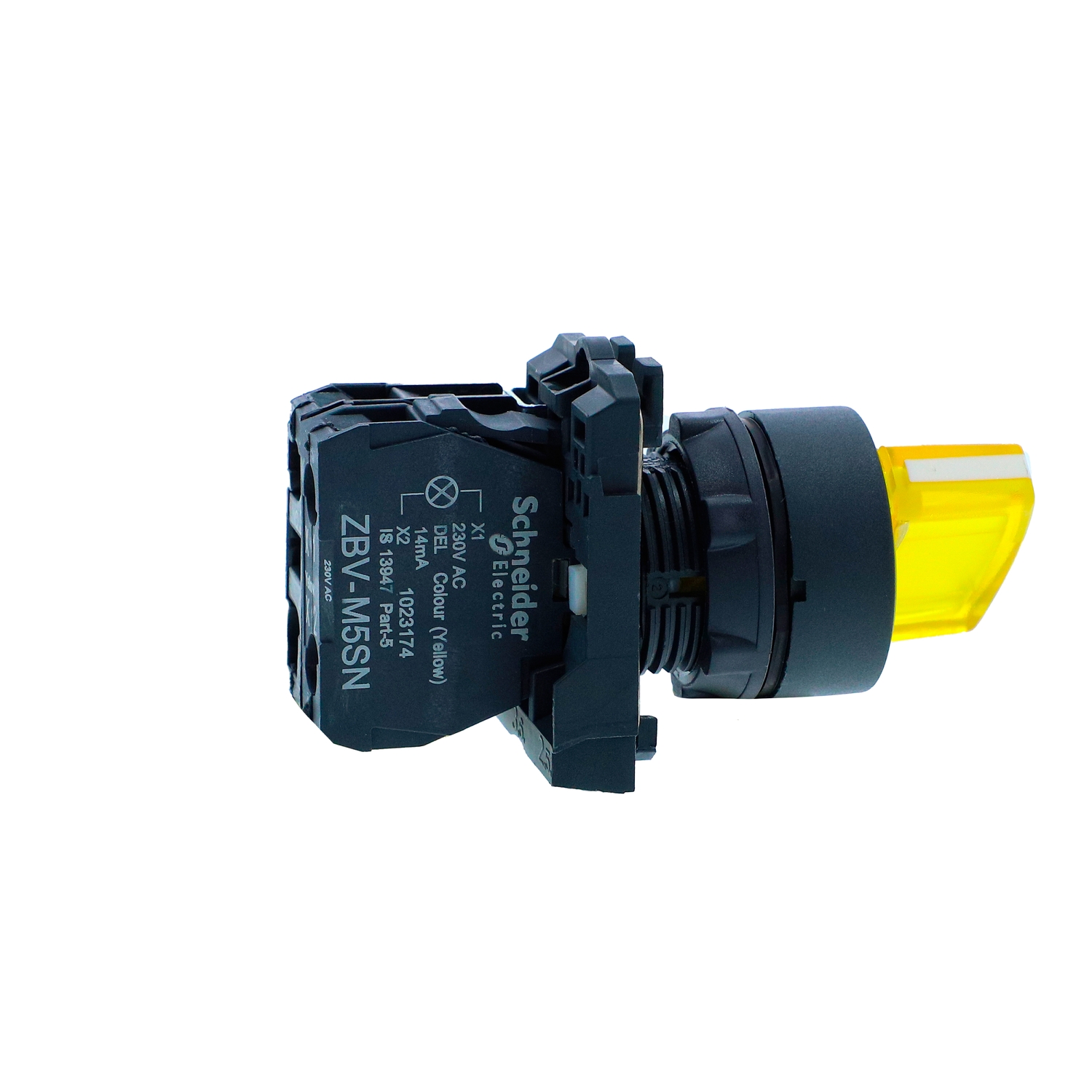

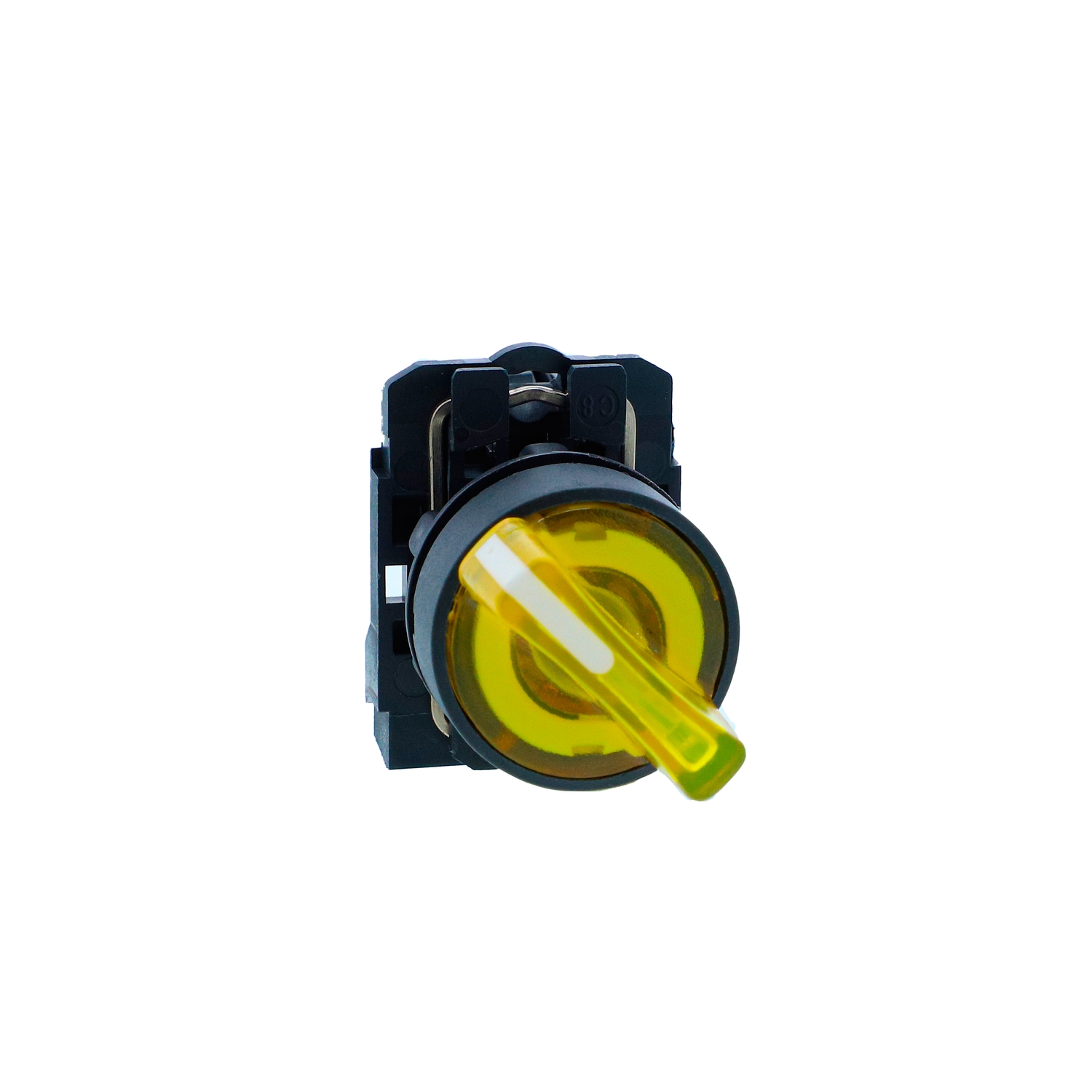

Schneider Harmony XB5N Illuminated Selector Switch · 22 mm · 1 NO · 220...240 V AC · IP65 · XB5AK125M1NXB5AK125M1N↓ 1% off MRP1 / 7
BrandSchneider
CategoryIndustrial Control
Specification22 mm · 1 NO · 220...240 V AC
Brand SKUXB5AK125M1N
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB5N Illuminated Selector Switch · 22 mm · 1 NO · 220...240 V AC · IP65 · XB5AK125M1N

NEW added this week
₹1,414/pcincl. GST-1%
₹1,198 + 18% GST · MRP ₹1,428
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,414 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB5N Illuminated Selector Switch · 22 mm · 1 NO · 220...240 V AC · IP65 · XB5AK125M1N: Elume price today ₹1,414 per pc incl. GST, 1% below the ₹1,428 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹1,528₹1,475₹1,421₹1,368₹1,315₹1,428₹1,414
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,414
MRP
₹1,428
Lowest in view · 17 Oct
₹1,414
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,343/pc on this product

This Harmony XB5N/XB7N, illuminated modular yellow selector switch has 2 positions, operates with a stay-put mechanism, 230 to 240V AC and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB5N Illuminated Selector Switch · 22 mm · 1 NO · 220...240 V AC · IP65 · XB5AK125M1N · XB5AK125M1N
Rated current3 A
Ingress protectionIP65
Reference standardIEC 60947-5-4
Net weight0.048 kg
BrandSchneider
Brand SKUXB5AK125M1N
ELINEKMR6KM2DD
Sold asPer pc
Depth70 mm
Width30 mm
Height42 mm
Head typeStandard
Fixing modeFixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Service life100000 h at rated voltage and 25 °C
Torque value0.14 N.m NO changing electrical state
Bezel materialDark grey plastic
Contacts usageStandard contacts
Device mountingFixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
Surge withstand1 kV conforming to IEC 61000-4-5
Operator profileYellow standard handle (white)
Positive openingWithout
Range of productHarmony XB5N/XB7N
Type of operator2 stay put
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB5N
Mounting diameter22.5 mm
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Current consumption14 mA
Device presentationComplete product
Light source colourYellow
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Overvoltage categoryClass II conforming to IEC 60536
Electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, DC-13, 0.2 A at
Mechanical durability500000 cycles
Product compatibilityZB5...N
Supply voltage limits195…264 V AC
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialPlastic
Connections - terminalsScrew clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Product or component typeIlluminated selector switch
[Us] rated supply voltage220...240 V AC 50/60 Hz
Shape of signaling unit headRound
Contacts type and composition1 NO
Operator position information2 positions 90°
Sale per indivisible quantity20
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1(13-14)NO
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 · 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 · 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 · 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
