Schneider Harmony XB5N Push Button · 22 mm · LED · 1 NC · 230 VXB5AW74M2N↓ 1% off MRP1 / 7
BrandSchneider
CategoryIndustrial Control
Brand SKUXB5AW74M2N
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB5N Push Button · 22 mm · LED · 1 NC · 230 V

Voltage: 230 V
NEW added this week
₹1,931/pcincl. GST-1%
₹1,636 + 18% GST · MRP ₹1,951
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,931 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB5N Push Button · 22 mm · LED · 1 NC · 230 V: Elume price today ₹1,931 per pc incl. GST, 1% below the ₹1,951 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹2,088₹2,015₹1,942₹1,869₹1,796₹1,951₹1,931
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,931
MRP
₹1,951
Lowest in view · 17 Oct
₹1,931
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,834/pc on this product

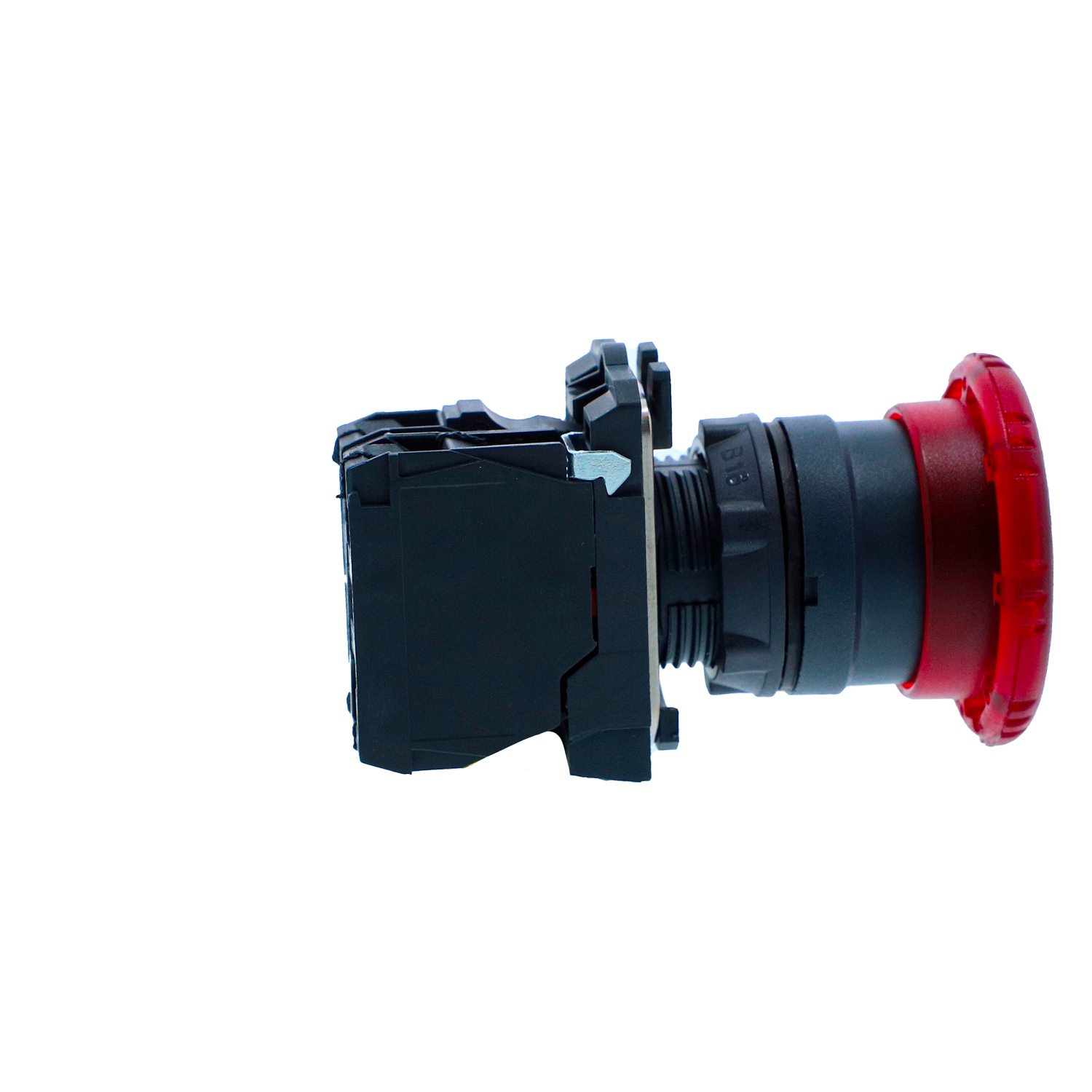

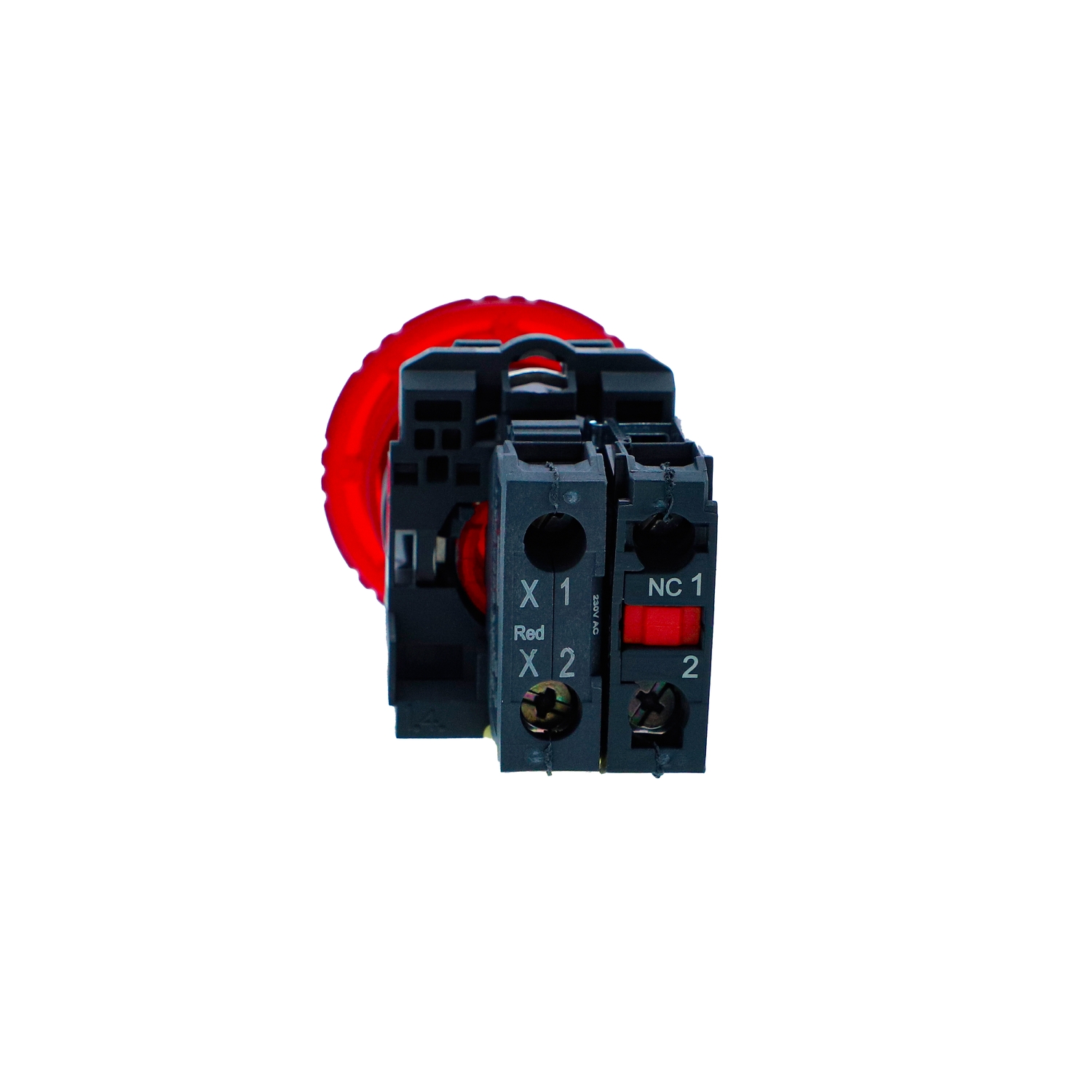

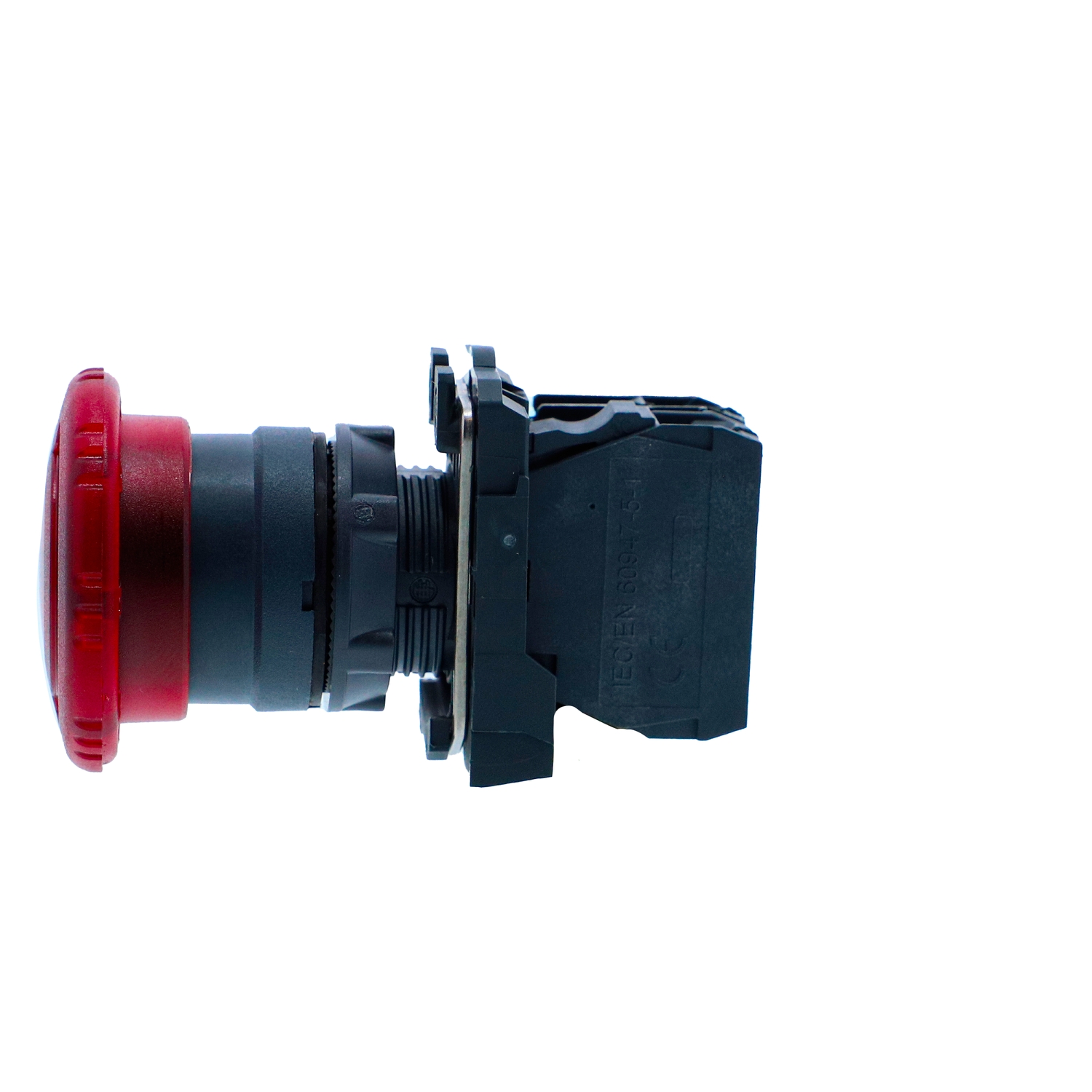

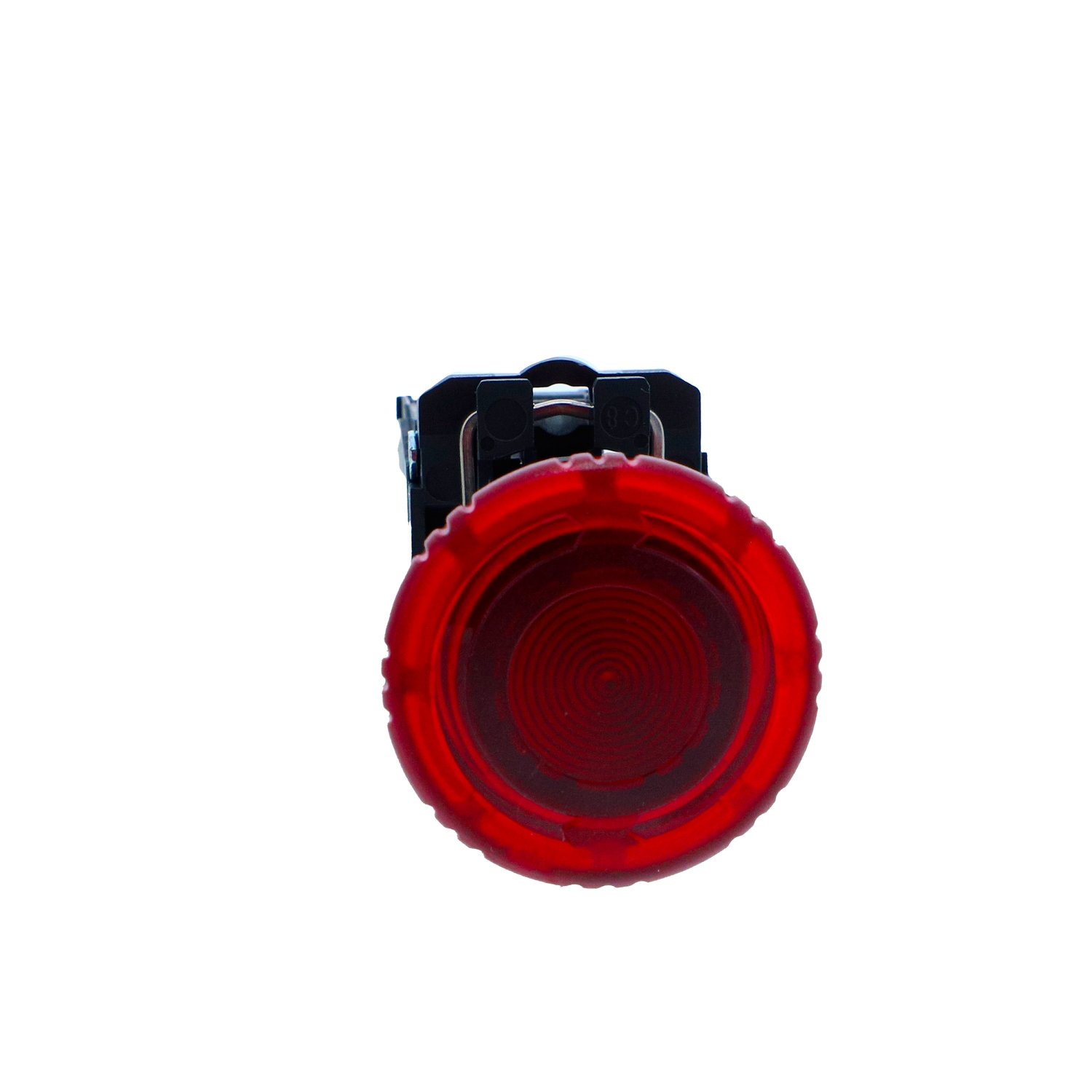

This Harmony XB5N/XB7N, 40mm modular red illuminated mushroom push-button has a latched-turn-to-release mechanism for controlling your machines, operates at 230V AC and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB5N Push Button · 22 mm · LED · 1 NC · 230 V · XB5AW74M2N
Rated current3 A
Ingress protectionIP65
Reference standardIEC 60947-5-4
Net weight0.057 kg
BrandSchneider
Brand SKUXB5AW74M2N
ELINEKD2HJK4RF
Sold asPer pc
Depth82.5 mm
Width40 mm
Height42 mm
MarkingUnmarked
Fixing modeFixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Light sourceLED
Bezel materialDark grey plastic
Contacts usageStandard contacts
Device mountingFixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
Operating force3.5 N NC changing electrical state · 3.8 N NO changing electrical state
Operating travel1.5 mm (NC changing electrical state) · 2.6 mm (NO changing electrical state) · 4.3 mm (total travel)
Operator profileRed flush, unmarked
Positive openingWith conforming to IEC 60947-5-1 appendix K
Range of productHarmony XB5N/XB7N
Type of operatorturn to release
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB5N
Mounting diameter22.5 mm
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Compatibility codeXB5
Device presentationComplete product
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Protective treatmentTH
Electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, DC-13, 0.2 A at
Mechanical durability300000 cycles
Product compatibilityZB5...N
Supply voltage limits195…264 V AC
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialPlastic
Connections - terminalsScrew clamp terminal, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Product or component typeIlluminated emergency switching off push-button
[Us] rated supply voltage230 V
Shape of signaling unit headRound
Contacts type and composition1 NC
Sale per indivisible quantity20
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1(21-22)NC
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 · 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 · 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 · 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Ambient air temperature for storage-40…70 °C
Resistance to electrostatic discharge6 kV on contact (on metal parts) conforming to IEC 61000-4-2 · 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
