Schneider TeSys LR2K Thermal Overload Relay · 0.54…0.8 ALR2K0305↓ 1% off MRP1 / 3
BrandSchneider
CategoryIndustrial Control
Brand SKULR2K0305
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

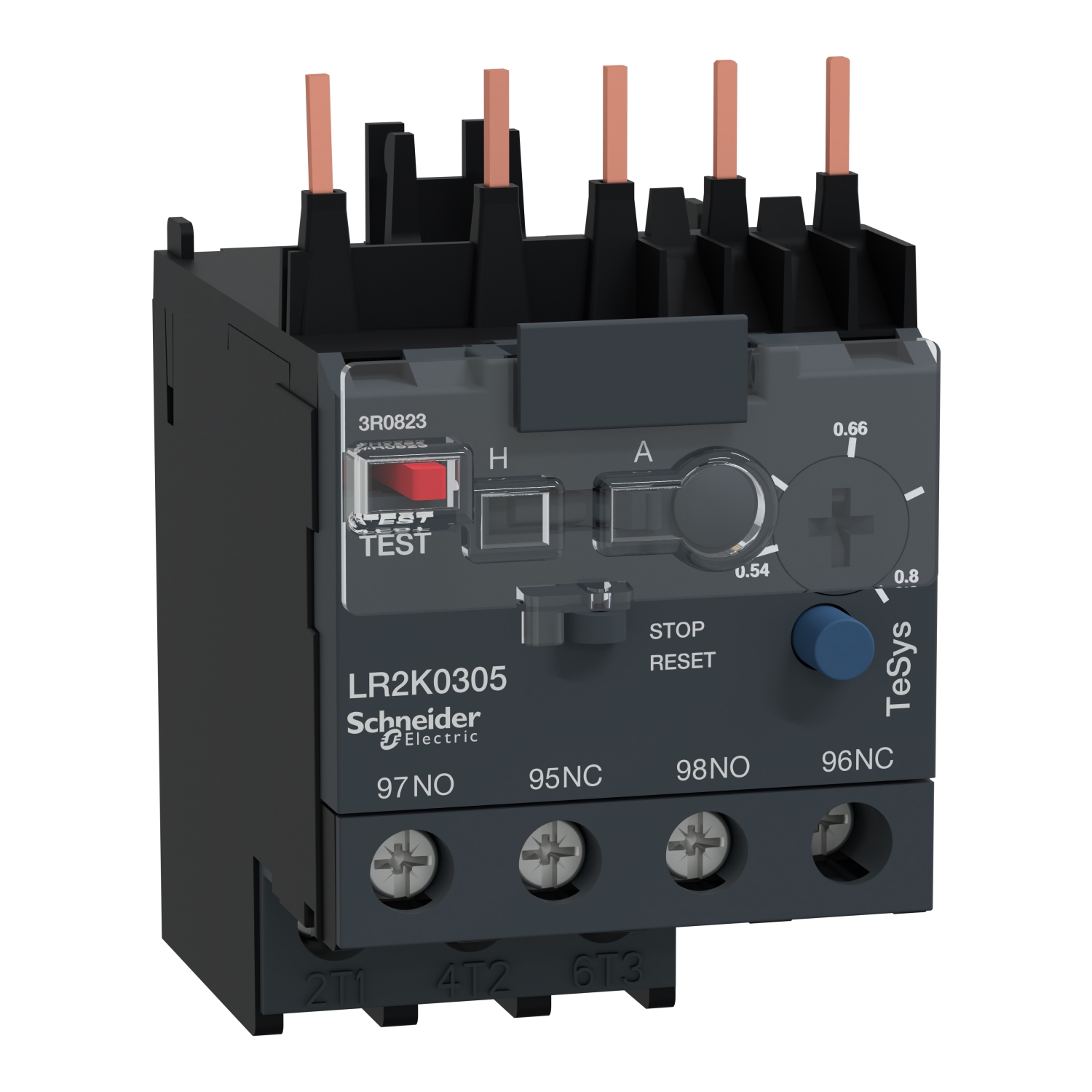

Schneider TeSys LR2K Thermal Overload Relay · 0.54…0.8 A

Setting: 0.54…0.8 A
NEW added this week
₹4,971/pcincl. GST-1%
₹4,213 + 18% GST · MRP ₹5,021
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹4,971 /pc incl. GST
Free pan-India delivery

Schneider TeSys LR2K Thermal Overload Relay · 0.54…0.8 A: Elume price today ₹4,971 per pc incl. GST, 1% below the ₹5,021 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹5,372₹5,185₹4,998₹4,810₹4,623₹5,021₹4,971
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹4,971
MRP
₹5,021
Lowest in view · 17 Oct
₹4,971
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹4,722/pc on this product

TeSys LRK thermal overload relay, 0.8A/690V, thermal setting range 0.54-0.8A, tripping class 10A, for protection of 3-phase motors 0.18kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LR2K Thermal Overload Relay · 0.54…0.8 A · LR2K0305
Ingress protectionIP2X
Reference standardNF C 63-650
Net weight0.145 kg
BrandSchneider
Brand SKULR2K0305
ELINEJPM22RD9P
Sold asPer pc
Depth65 mm
RangeTeSys
Width45 mm
Height58 mm
StandardsNF C 63-650 · IEC 60947 · VDE 0660 · BS 4941
Control typeRed push-button: trip test function · Blue push-button: stop and manual reset · selector switch: manual or automatic reset
Network typeDC · AC
Product nameTeSys LRK
Fire resistance850 °C conforming to IEC 60695-2-1
Flame retardanceV1 conforming to UL 94 · Requirement 2 conforming to NF F 16-101 · Requirement 2 conforming to NF F 16-102
Local signallingTrip indicator (yellow)
Mounting supportUnder contactor · Plate, with specific accessories · Rail, with specific accessories
Device short nameLR2K
Network frequency<= 400 Hz
Relay applicationMotor protection
Tightening torque1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2 · 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm · 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Operating altitude2000 m without derating
Protective treatmentTC conforming to IEC 60068 · TC conforming to DIN 50016
Mechanical robustnessShocks NO contact: 10 Gn for 11 ms conforming to IEC 60068-2-27 · Shocks NC contact: 10 Gn for 11 ms conforming to IEC 60068-2-27 · Vibrations NO contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 · Vibrations NC contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Product compatibilityLP4K · LC1K · LP1K · LC7K
Associated fuse rating6 A gG for signalling circuit conforming to VDE 0660 · 6 A gG for signalling circuit conforming to IEC 60947
Product certificationsUL · CSA · UKCA
Thermal overload classClass 10A conforming to IEC 60947-4-1
Connections - terminalsScrew clamp terminals 1 cable(s) 1.5…4 mm²solid · Screw clamp terminals 2 cable(s) 1.5…4 mm²solid · Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end · Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end · Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end · Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
IP degree of protectionIP2X conforming to IEC 60529
Phase failure sensitivityYes conforming to IEC 60947-4-1
Product or component typeDifferential thermal overload relay
Power dissipation per pole2 W
Auxiliary contact composition1 NO + 1 NC
[Ui] rated insulation voltagePower circuit: 690 V conforming to BS 4941 · Power circuit: 690 V conforming to IEC 60947 · Power circuit: 750 V conforming to VDE 0110 group C · Power circuit: 600 V conforming to CSA C22.2 No 14
[Ue] rated operational voltage<= 690 V for power circuit · 690 V AC AC-15 for signalling circuit · 250 V DC DC-13 for signalling circuit
Ambient air temperature for storage-40…70 °C
Thermal protection adjustment range0.54…0.8 A
Ambient air temperature for operation-20…55 °C without derating conforming to IEC 60947 · -30…60 °C with derating conforming to IEC 60947
[Uimp] rated impulse withstand voltage6 kV
[Ith] conventional free air thermal current6 A for signalling circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Is Schneider TeSys LR2K Thermal Overload Relay · 0.54…0.8 A genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
