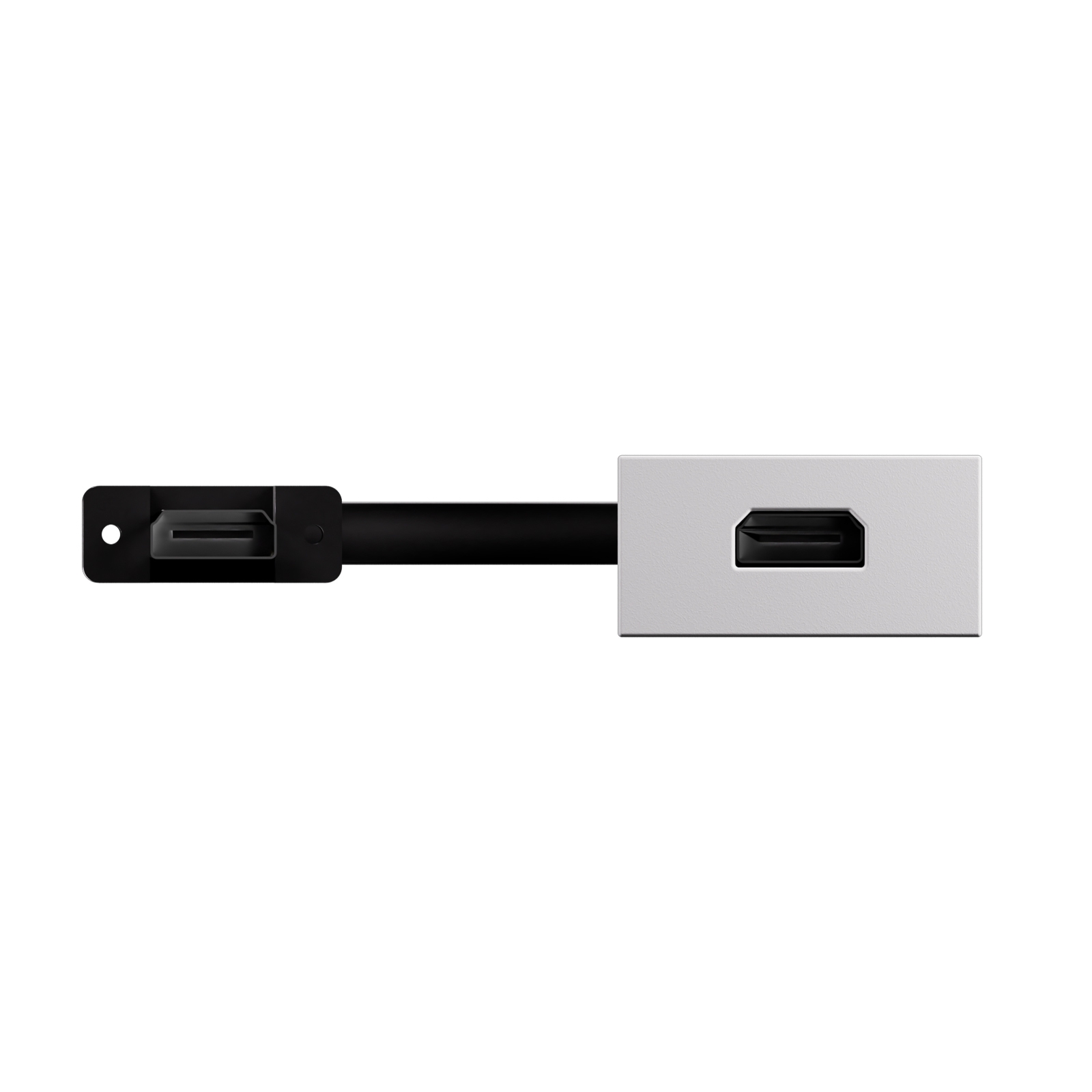

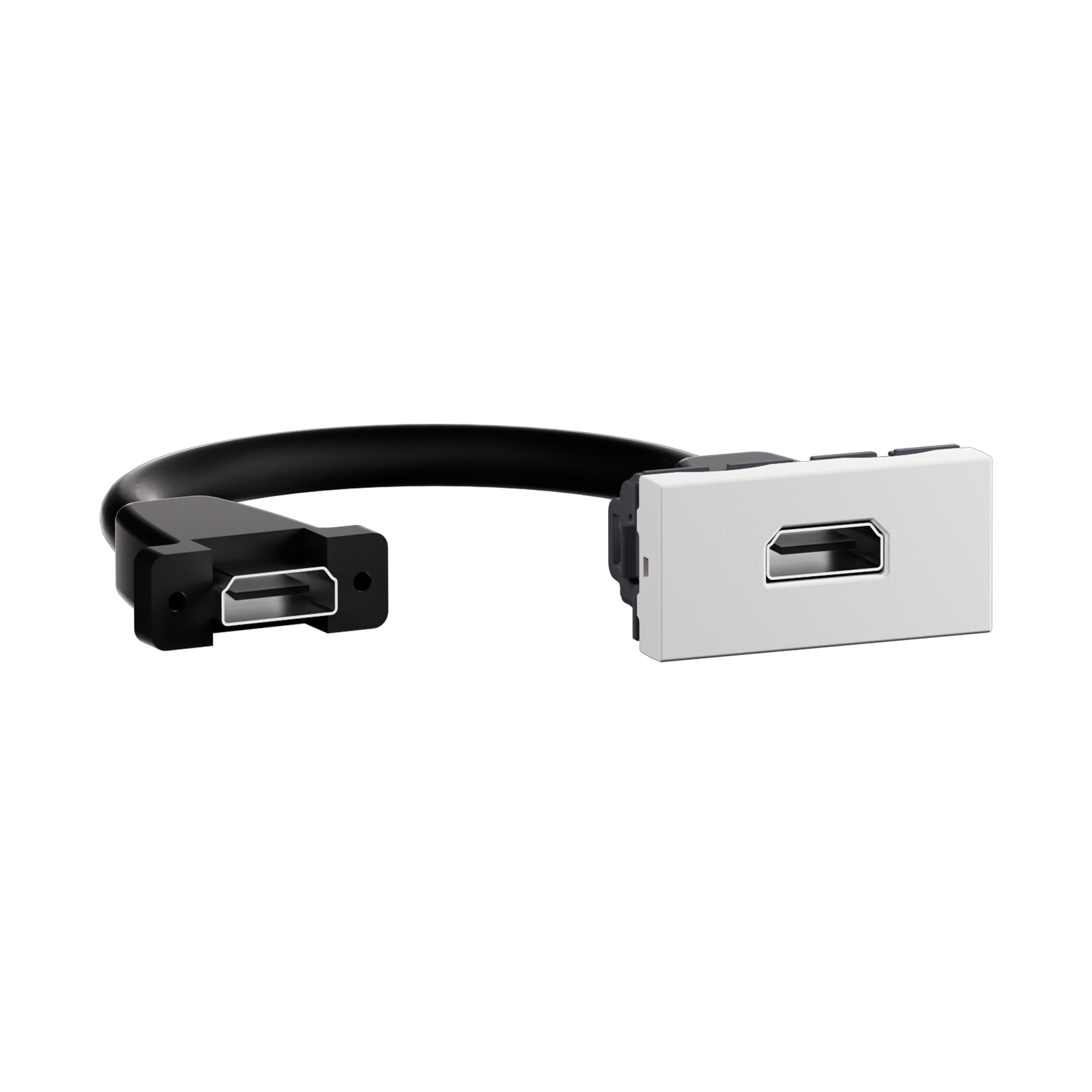

Legrand Legrand Arteor Advance Classic HDMI 2.0 Pre-terminated Socket · 1 M · Matt White · AC4411MW · AC4411MW
Device typeAudio / video outlet
SeriesArteor Advance Classic
Module size1 M
ColourMatt White
Country of originIndia
FinishWhite
Reference standardIS 1293
BrandLegrand
Brand SKUAC4411MW
ELINEJKPJDR99R
Sold asPer pc
ColorMatt White
Warranty2 years warranty provided by the manufacturer from date of purchase
Product CodeAC4411MW
Product features• Preterminated HDMI Socket
• Single module mechanisms The connectors are type A and conform to the HDMI standard.Equipped with a 15 cm cord and 2 female connectors.
To ensure a high-quality result, the connection between the two devices should not exceed a certain distance (see audio/video characteristics table). For longer connections, it is necessary to provide a booster system in the installation
• Used to transmit high definition digital audio/video streams between a source (Blu-ray player, computer) and a compatible receiver (TV, video projector..) in moduler manner.• Equipped with cord, length 15 cm
• Flush & surface mounted.• Colour : White
Product Width (mm)22.5
Product Technical specifications4.1 Audio/Video characteristicsValues indicated for an installation set up in accordance with best practice and connected in compliance with existing standards. Any additional accessories and cords should comply with these same criteria.4.2 Mechanical caracteristicsMin. depth of box : 50 mmImpact tests : IK 04Penetration by solid/liquid matter : IP 40 4.3 Material characteristicsCover plate : ABSSelf-extinguishing : 650°C/30 s 4.4 Climate characteristicsStorage temperature : - 10°C to + 70°CUsage temperature : - 5°C to + 50°C
Ratings as published by Legrand (shop.legrand.co.in). Verify critical parameters against the datasheet before specifying.
