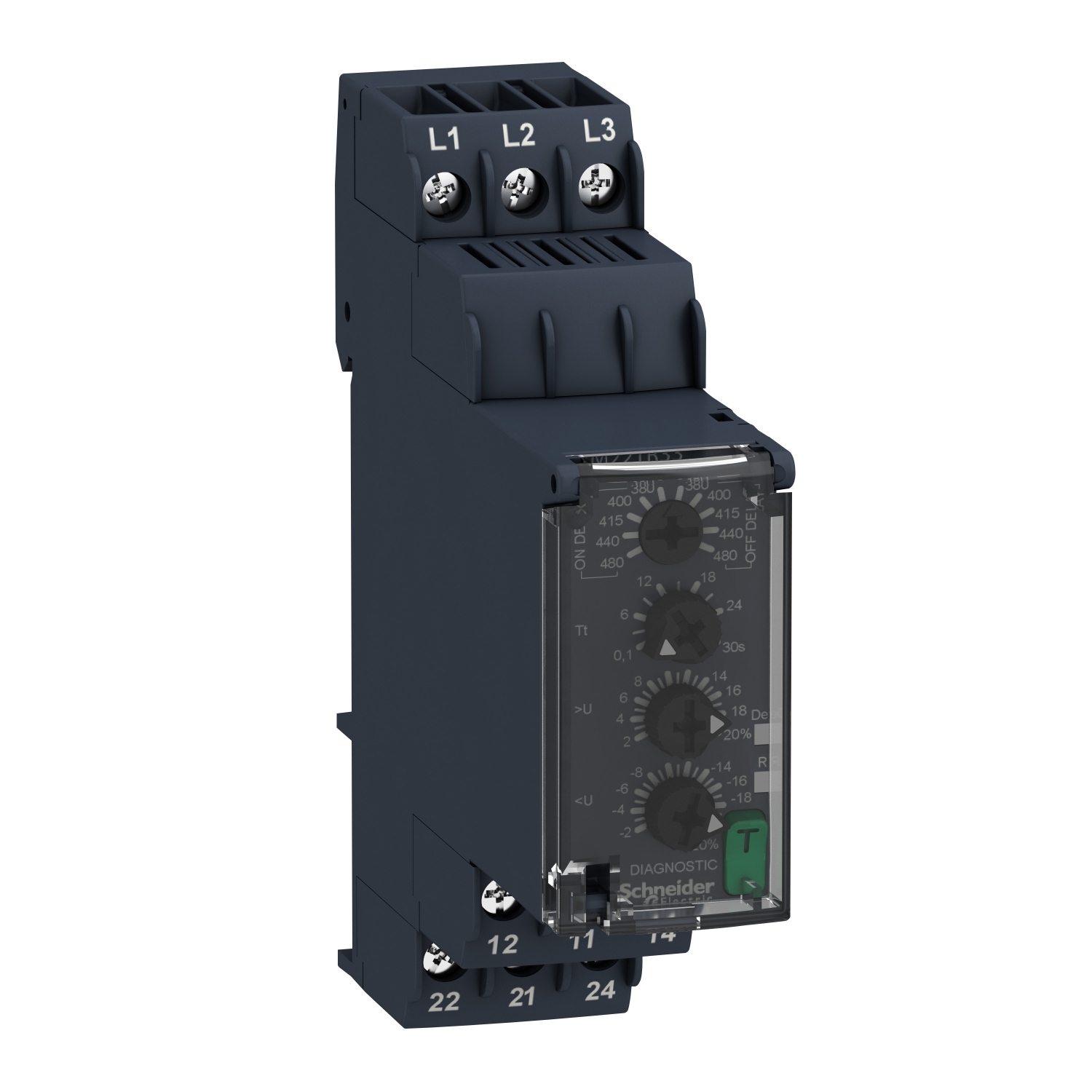

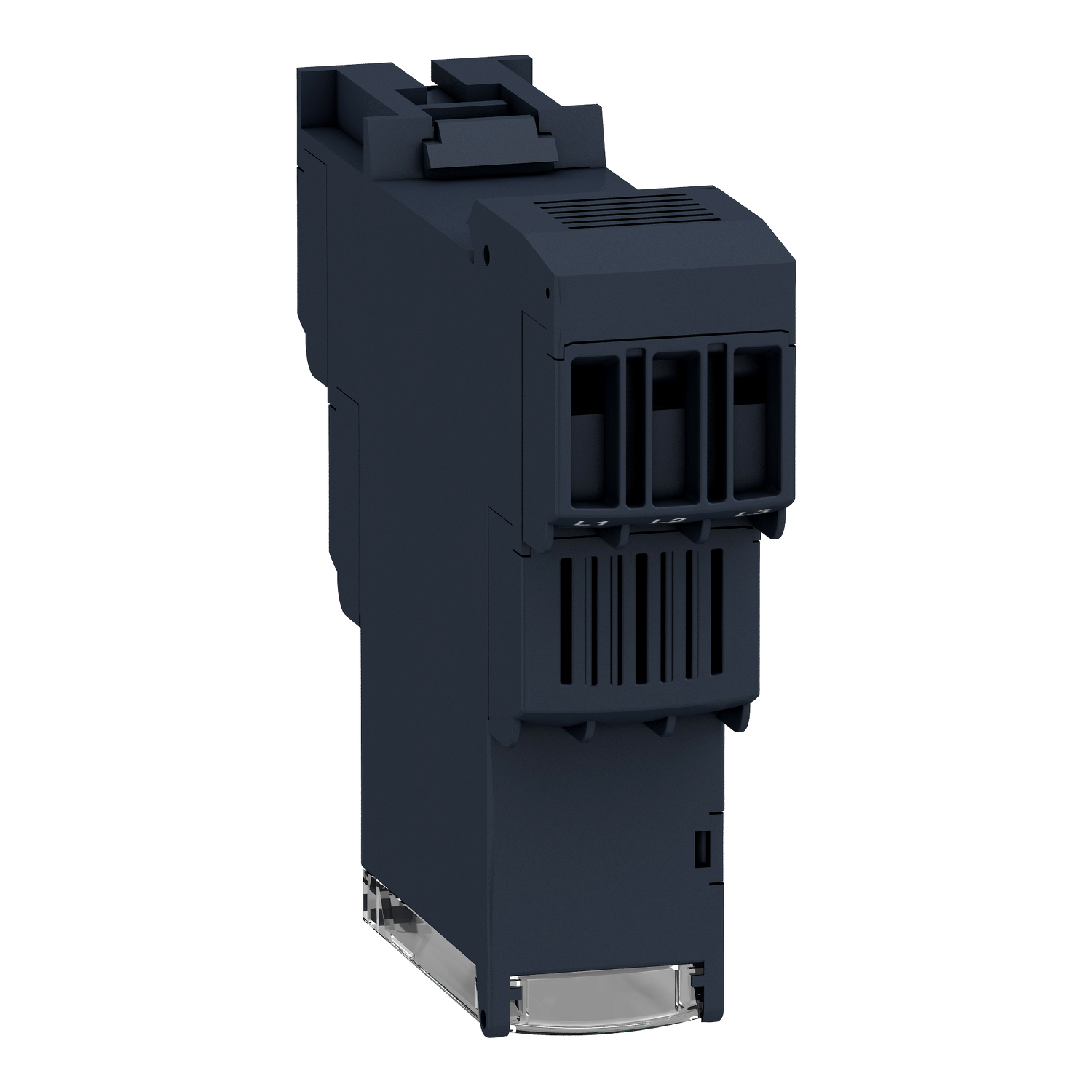

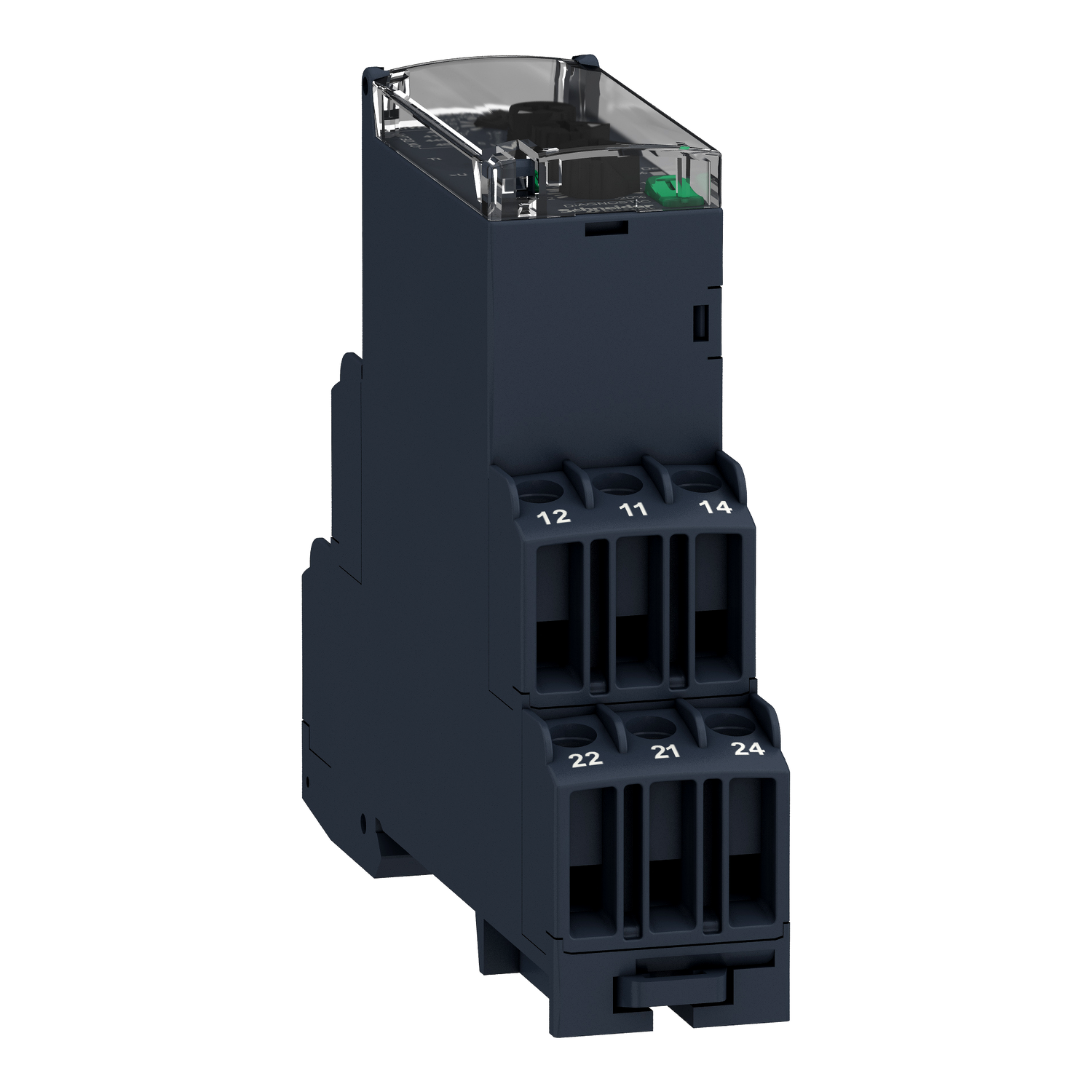

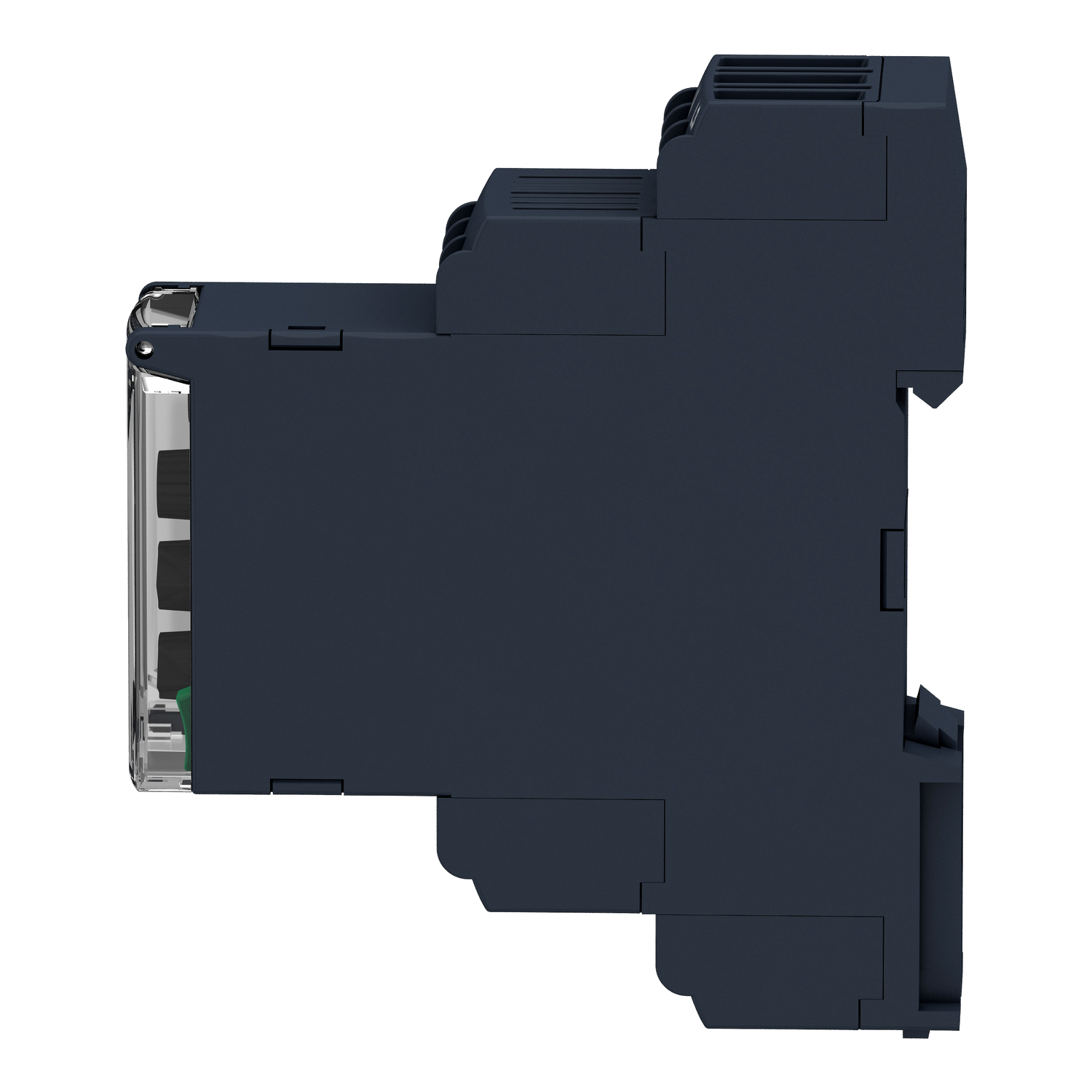

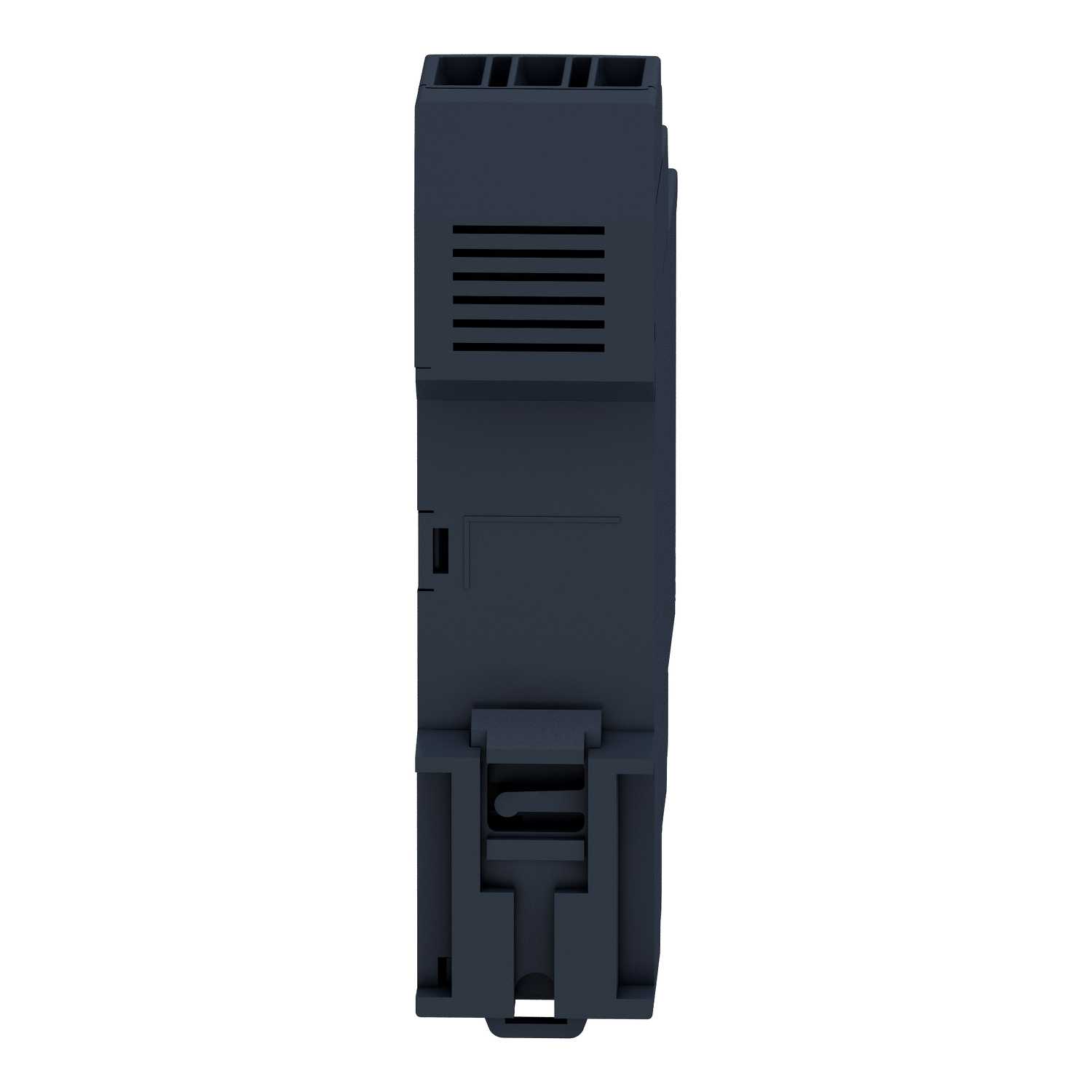

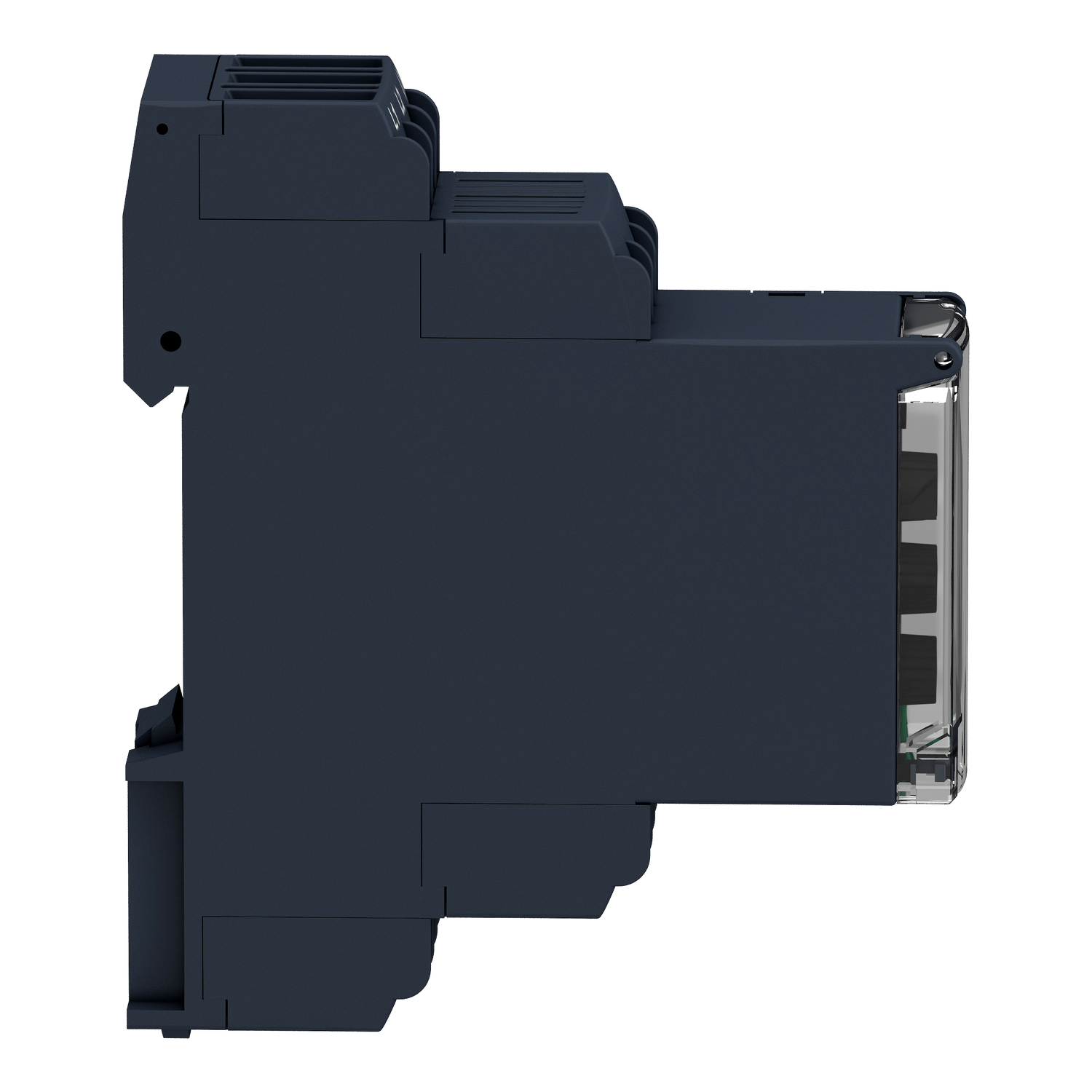

Schneider Harmony Control Relay · 2 C/O · IP20 · RM22TR33RM22TR33↓ 1% off MRP1 / 12
BrandSchneider
CategoryIndustrial Control
Specification2 C/O
Brand SKURM22TR33
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony Control Relay · 2 C/O · IP20 · RM22TR33

NEW added this week
₹7,225/pcincl. GST-1%
₹6,123 + 18% GST · MRP ₹7,298
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹7,225 /pc incl. GST
Free pan-India delivery

Schneider Harmony Control Relay · 2 C/O · IP20 · RM22TR33: Elume price today ₹7,225 per pc incl. GST, 1% below the ₹7,298 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹7,809₹7,536₹7,264₹6,992₹6,719₹7,298₹7,225
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹7,225
MRP
₹7,298
Lowest in view · 17 Oct
₹7,225
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹6,864/pc on this product

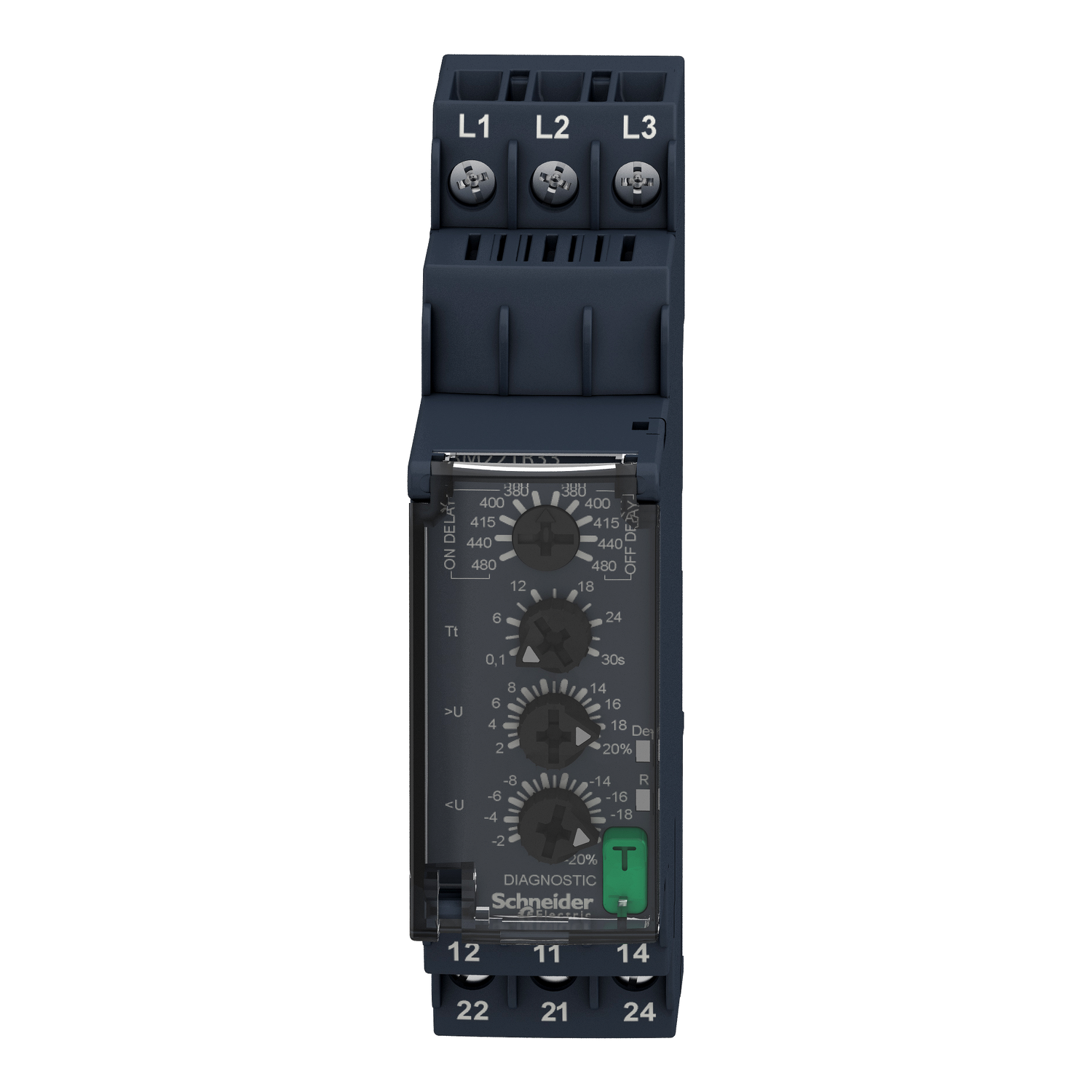

This Harmony RM22-TR relay allows monitoring of phase and undervoltage/overtage in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Control Relay · 2 C/O · IP20 · RM22TR33 · RM22TR33
Ingress protectionIP20 (terminals)· IP40 (housing)· IP50 (front panel)
Reference standardIEC 60255-1
Net weight0.095 kg
BrandSchneider
Brand SKURM22TR33
ELINEHGDMMRCG6
Sold asPer pc
StandardsIEC 60255-1
Relay nameRM22TR
Relay typeControl relay
Reset time1500 ms at maximum voltage
Control typeWith test button
Response time<= 300 ms
Output contacts2 C/O
Repeat accuracy+/- 0.5 % for input and measurement circuit · +/- 3 % for time delay
Time delay typeAdjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Pollution degree3 conforming to IEC 60664-1 · 3 conforming to UL 508
Range of productHarmony Control Relays
Shock resistance15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27 · 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
Supply frequency50...60 Hz +/- 10 %
Contacts materialCadmium free
Measurement error< 1 % over the whole range with voltage variation · < 0.05 %/°C with temperature variation
Measurement range380...480 V voltage AC
Relative humidity93…97 % at 25…55 °C conforming to IEC 60068-2-30
Overvoltage categoryIII conforming to IEC 60664-1 · III conforming to UL 508
Vibration resistance0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 · 1 gn (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 · 0.035 mm (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 · 0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6
Electrical durability100000 cycles
Insulation resistance> 100 MOhm at 500 V DC conforming to IEC 60255-27
Mechanical durability10000000 cycles
Supply voltage limits304…576 V AC
Product certificationsGL · CSA · RCM · CE · EAC · CCC · UL
nominal output current8 A

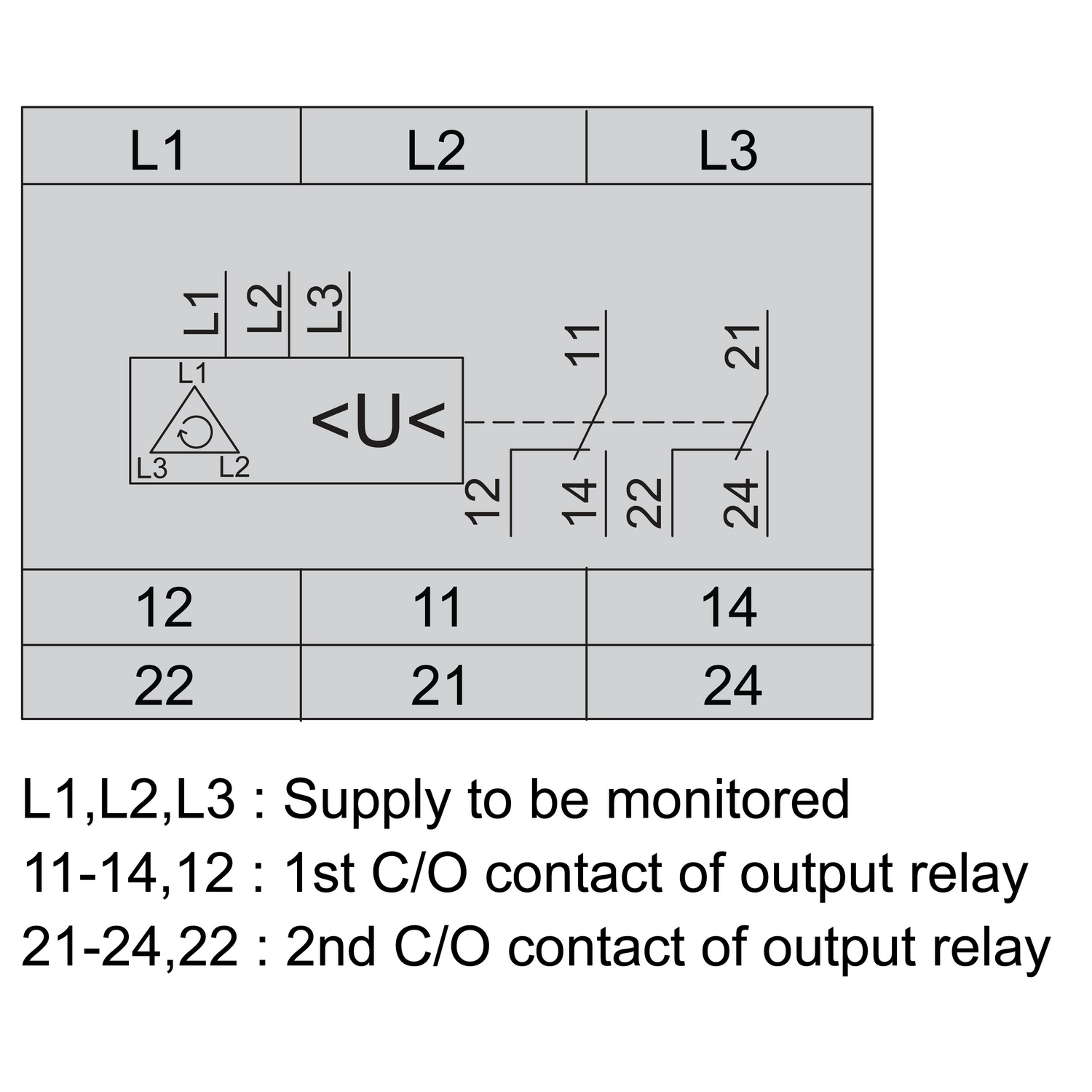

Connections - terminalsScrew terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end · Screw terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end
Dielectric test voltage2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
IP degree of protectionIP20 (terminals) conforming to IEC 60529 · IP40 (housing) conforming to IEC 60529 · IP50 (front panel) conforming to IEC 60529
Maximum measuring cycle150 ms measurement cycle as true rms value
Power consumption in VA15 VA at 480 V AC 60 Hz
Switching capacity in VA2000 VA
Maximum switching current8 A AC
Maximum switching voltage250 V AC
Minimum switching current10 mA at 5 V DC
Product or component type3-phase control relay
[Us] rated supply voltage, self-powered
Relay monitored parametersOvervoltage and undervoltage detection · Phase sequence · Phase failure detection
Voltage detection threshold< 100 V AC
Threshold adjustment voltage2...20 % of Un selected
Contacts type and composition2 C/O
Electromagnetic compatibilityImmunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 · Immunity for industrial environments conforming to IEC 61000-6-2 · Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 · Emission standard for industrial environments conforming to IEC 61000-6-4 · Electrostatic discharge - test level: 6 kV lev
Setting accuracy of time delay10 %
Ambient air temperature for storage-40…70 °C · -40…70 °C
Ambient air temperature for operation-20…50 °C at 60 Hz · -20…60 °C at 50 Hz AC/DC
Setting accuracy of the switching threshold+/- 10 % of the full scale
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
