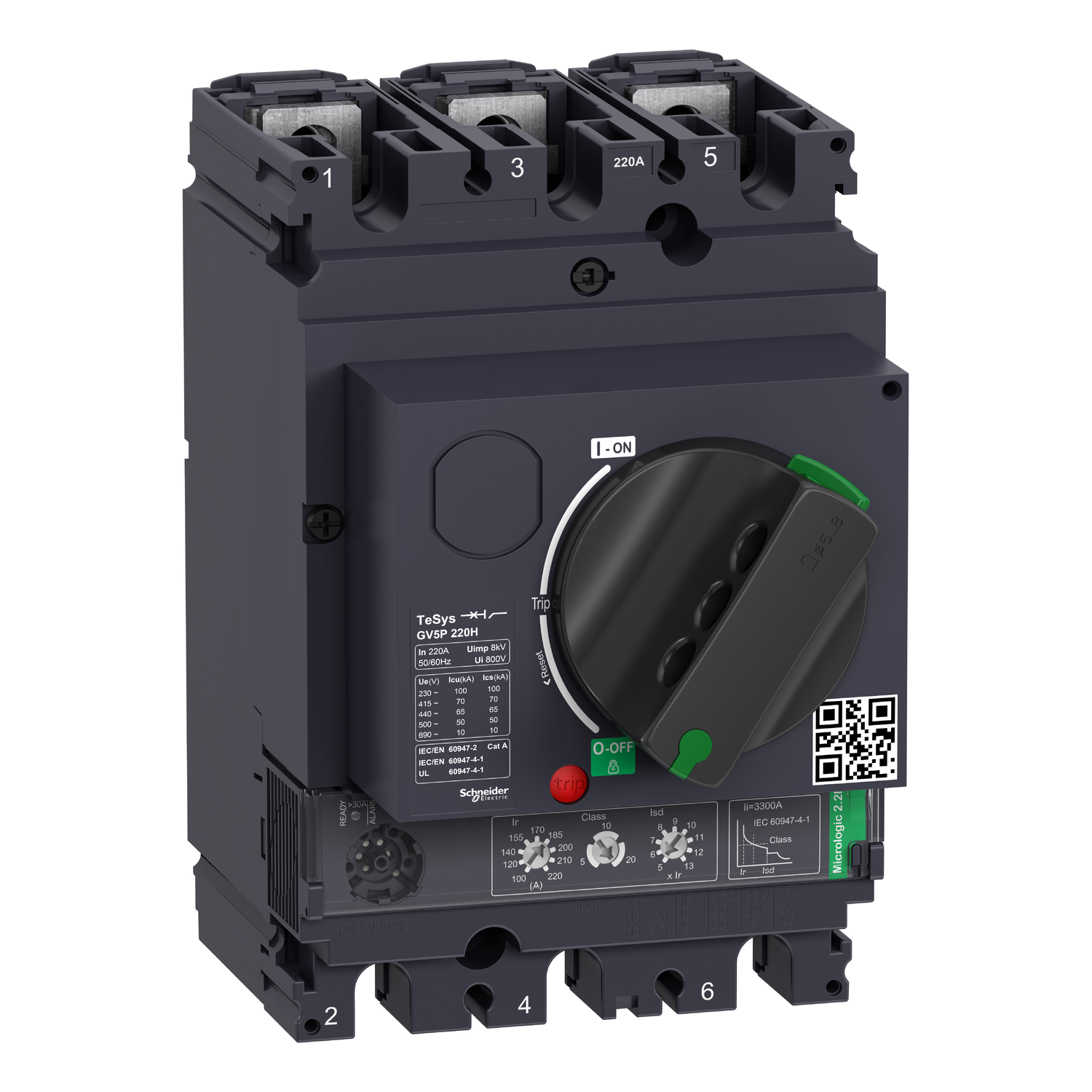

Schneider TeSys GV5P Motor Protection Circuit Breaker · 3P · 70 kA · Anthracite (RAL 7016) · GV5P220HGV5P220H↓ 1% off MRP1 / 5
BrandSchneider
CategoryIndustrial Control
Specification3P · 70 kA
Brand SKUGV5P220H
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider TeSys GV5P Motor Protection Circuit Breaker · 3P · 70 kA · Anthracite (RAL 7016) · GV5P220H

NEW added this week
₹1,05,962/pcincl. GST-1%
₹89,798 + 18% GST · MRP ₹1,07,032
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,05,962 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider TeSys GV5P Motor Protection Circuit Breaker · 3P · 70 kA · Anthracite (RAL 7016) · GV5P220H: Elume price today ₹1,05,962 per pc incl. GST, 1% below the ₹1,07,032 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹1,14,524₹1,10,529₹1,06,534₹1,02,540₹98,545₹1,07,032₹1,05,962
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹1,05,962
MRP
₹1,07,032
Lowest in view · 17 Oct
₹1,05,962
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,00,664/pc on this product

TeSys GV motor circuit breaker, 3 poles (3P), 220A/690V, for protection of 3-phase motors 90-110kW@400V. It provides thermal magnetic protection and additional protections, breaking capacity Icu 70kA, start-stop control by rotary handle, connection for bars or cables with lugs (direct connection of cables with additional connectors). Thermal protection adjustable by dials with a setting current Ir in range 100-220A and a selectable tripping class 5, 10 or 20, magnetic protection at 15 In. Additional protections with fixed pick-up include short time delay protection Isd at 13 Ir, phase unbalance and loss protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys GV5P Motor Protection Circuit Breaker · 3P · 70 kA · Anthracite (RAL 7016) · GV5P220H · GV5P220H
Poles3P
Rated current220 A
Breaking capacity70 kA
Ingress protectionIP40
Reference standardEN/IEC 60947-1
ColourAnthracite (RAL 7016)
Net weight2.6 kg
BrandSchneider
Brand SKUGV5P220H
ELINEGKM76G9JP
Sold asPer pc
Depth155 mm
RangeTeSys
Width105 mm
Height161 mm
StandardsEN/IEC 60947-1 · EN/IEC 60947-2 · EN/IEC 60947-4-1 · UL 60947-4-1 · CSA C22.2 No 60947-4-1
Rated dutyContinuous
Control typeDirect rotary handle
Product nameTeSys GV5 · TeSys Giga
Motor power kW90…110 kW at 400/415 V AC 50/60 Hz · 110 kW at 500 V AC 50/60 Hz · 110…132 kW at 660/690 V AC 50/60 Hz
Fire resistance960 °C conforming to IEC 60695-2-11
Connection pitch35 mm without spreaders
Range of productTeSys GV5
Device short nameGV5P
Poles description3P
Tightening torque15 N.m M8 screw type
Climatic withstandconforming to IACS E10
Device applicationMotor protection
Operating altitude5000 m
[In] rated current220 A at 65 °C
Trip unit technologyElectronic
Utilisation categoryCategory A conforming to IEC 60947-2
Electrical durability5000 cycles for AC-3 at 415 V opening · 5000 cycles for AC-3 at 415 V closing
Mechanical durability20000 cycles
Mechanical robustnessVibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6 · Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6
Product certificationsIECEE CB Scheme · EAC (pending)
maximum operating rate25 cyc/h
Connections - terminalsBars · Lugs
IK degree of protectionIK07 conforming to IEC 62262
IP degree of protectionIP40 conforming to IEC 60529
Magnetic tripping current3300 A
Phase failure sensitivityYes conforming to IEC 60947-4-1
Product or component typeMotor circuit breaker
Suitability for isolationYes conforming to EN/IEC 60947-2
Power dissipation per pole17.6 W
[Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz
Ambient air temperature for storage-50…85 °C
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage8 kV
Rated conditional short-circuit current60 kA at 440 V
[Ith] conventional free air thermal current220 A conforming to IEC 60947-4-1
[Ics] rated service short-circuit breaking capacity100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 · 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 · 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
