Schneider TeSys Deca Auxiliary Contact Block · TeSys D · time delay auxiliary contact block · Dark grey · LADR0LADR0↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
SpecificationTeSys D · time delay auxiliary contact block · 1 NO + 1 NC screw clamp terminals
Brand SKULADR0
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider TeSys Deca Auxiliary Contact Block · TeSys D · time delay auxiliary contact block · Dark grey · LADR0

NEW added this week
₹8,055/pcincl. GST-1%
₹6,826 + 18% GST · MRP ₹8,136
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹8,055 /pc incl. GST
Free pan-India delivery

Schneider TeSys Deca Auxiliary Contact Block · TeSys D · time delay auxiliary contact block · Dark grey · LADR0: Elume price today ₹8,055 per pc incl. GST, 1% below the ₹8,136 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹8,706₹8,402₹8,098₹7,795₹7,491₹8,136₹8,055
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹8,055
MRP
₹8,136
Lowest in view · 17 Oct
₹8,055
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹7,652/pc on this product

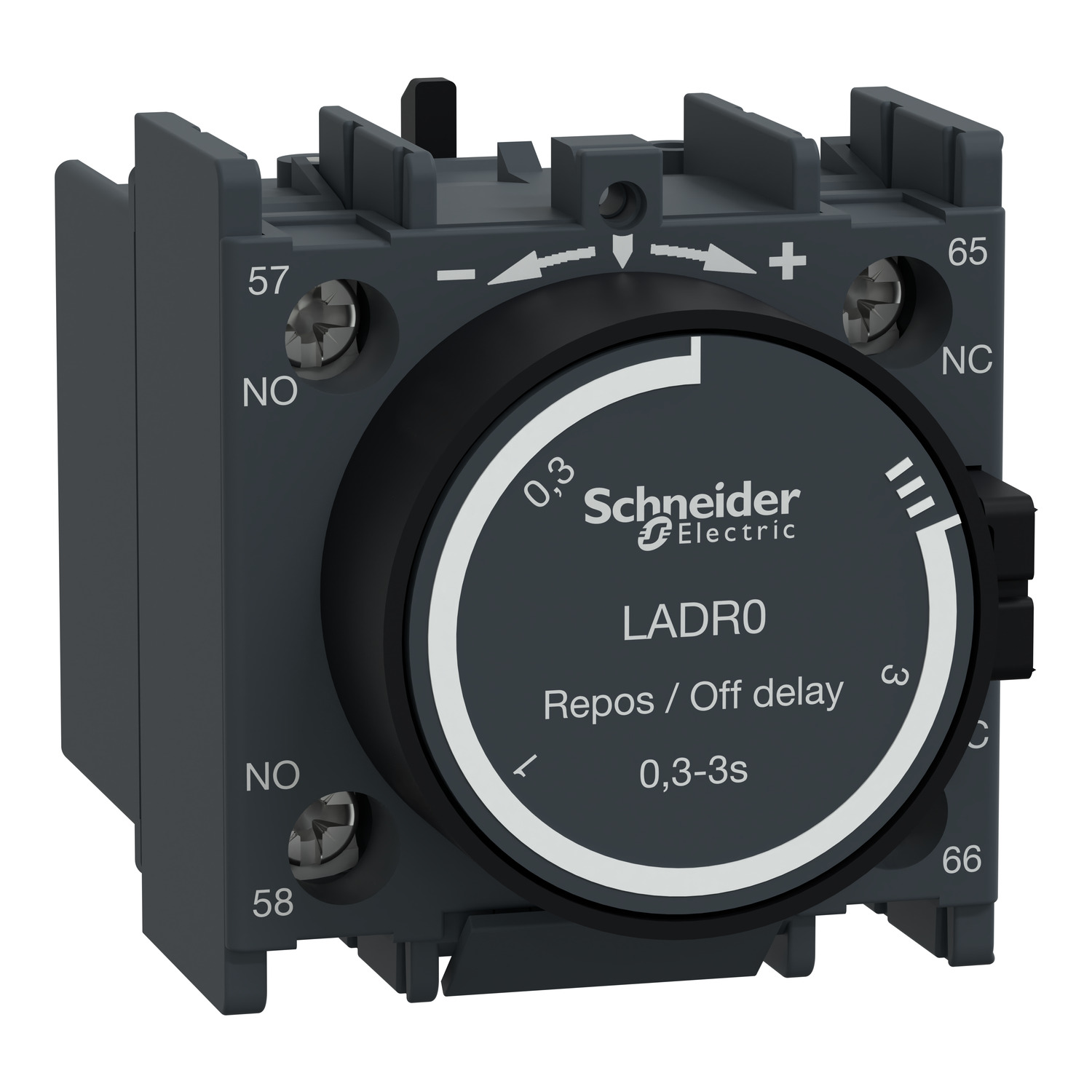

TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 0.3-3s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys Deca Auxiliary Contact Block · TeSys D · time delay auxiliary contact block · Dark grey · LADR0 · LADR0
Rated current6 A
Ingress protectionIP20
Reference standardEN/IEC 60947-5-1
ColourDark grey
BrandSchneider
Brand SKULADR0
ELINEG779KHKCK
Sold asPer pc
Depth61 mm
RangeTeSys · TeSys Deca
Width44 mm
Height48 mm
StandardsEN/IEC 60947-5-1 · UL 60947-5-1 · CSA C22.2 No 60947-5-1 · GB/T 14048.5 · EN 50012 · IEC 60335-1:Clause 30.2 · IEC 60335-2-40:Annex JJ · UL 60335-2-40:Annex JJ
Timer typeOff delay
Product nameTeSys Deca
Protection typeGG fuse 10 A
Non-overlap time1.5 ms on de-energisation no overlap between NC and NO contact · 1.5 ms on energisation no overlap between NC and NO contact
Time delay range0.3...3 s
Mounting locationFront
Tightening torque1.7 N.m - with screwdriver flat Ø 6 mm · 1.7 N.m - with screwdriver Philips No 2 · 1.7 N.m - with screwdriver pozidriv No 2
Contacts operationTime delay
Operating altitude3000 m
Range compatibilityTeSys Deca CAD · TeSys Deca LC1D · TeSys F LC1F · TeSys F CR1F
Protective treatmentTH conforming to IEC 60068
Insulation resistance> 10 MOhm
Mechanical durability5 Mcycles
Product certificationsIECEE CB Scheme · UL · CSA · CCC · EAC · UKCA
Connections - terminalsScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end · Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end · Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end · Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end · Screw clamp terminals 1 cable(s) 1…2.5 mm²rigid · Screw clamp terminals 2 cable(s) 1…2.5 mm²rigid · Screw clamp terminals
IP degree of protectionIP20 conforming to IEC 60529
Pole contact composition1 NO + 1 NC
Minimum switching current5 mA
Minimum switching voltage17 V
Product or component typeTime delay auxiliary contact block
Irms rated making capacity140 A AC conforming to IEC 60947-5-1 · 250 A DC conforming to IEC 60947-5-1
Environmental characteristicNormal environment
Permissible short-time rating100 A 60 °C 1 s · 120 A 60 °C 500 ms · 140 A 60 °C 100 ms
[Ui] rated insulation voltage690 V conforming to IEC 60947-5-1 · 600 V conforming to UL 60947-5-1 · 600 V conforming to CSA C22.2 No 60947-5-1
[Ie] rated operational current6 A at 120 V AC-15 · 1.04 A at 690 V AC-15 · 0.55 A at 125 V DC-13 · 0.1 A at 600 V DC-13
[Ue] rated operational voltage690 V AC 25...400 Hz
Ambient air temperature for storage-60…80 °C
Ambient air temperature for operation-40…70 °C
[Ith] conventional free air thermal current10 A (at 60 °C)
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
