Schneider Mureva Interlocked Socket · 32 A · 3P+N+E · 380 to 415 V · IP6583097↓ 1% off MRP1 / 2
BrandSchneider
CategoryElectrical Accessories
Brand SKU83097
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

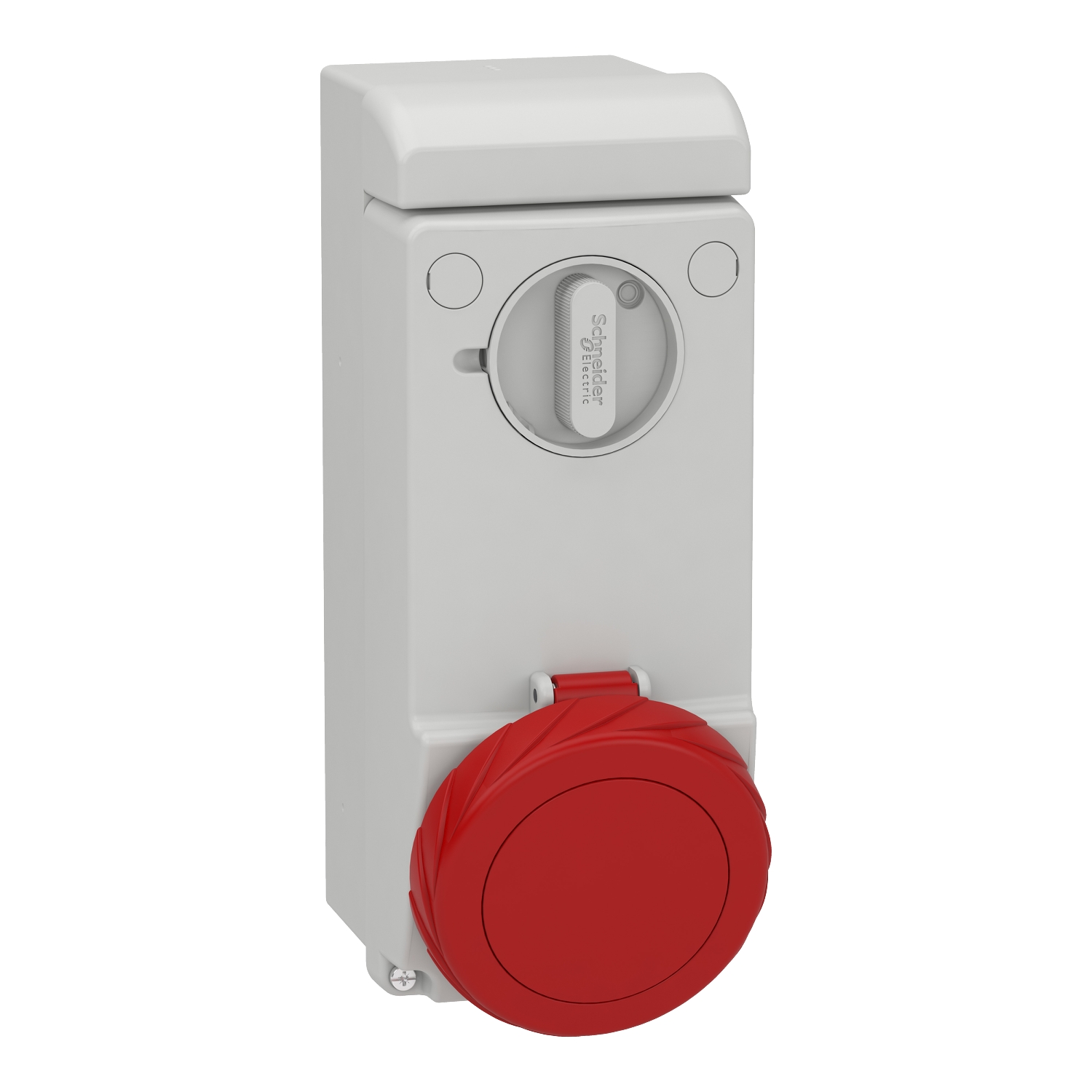

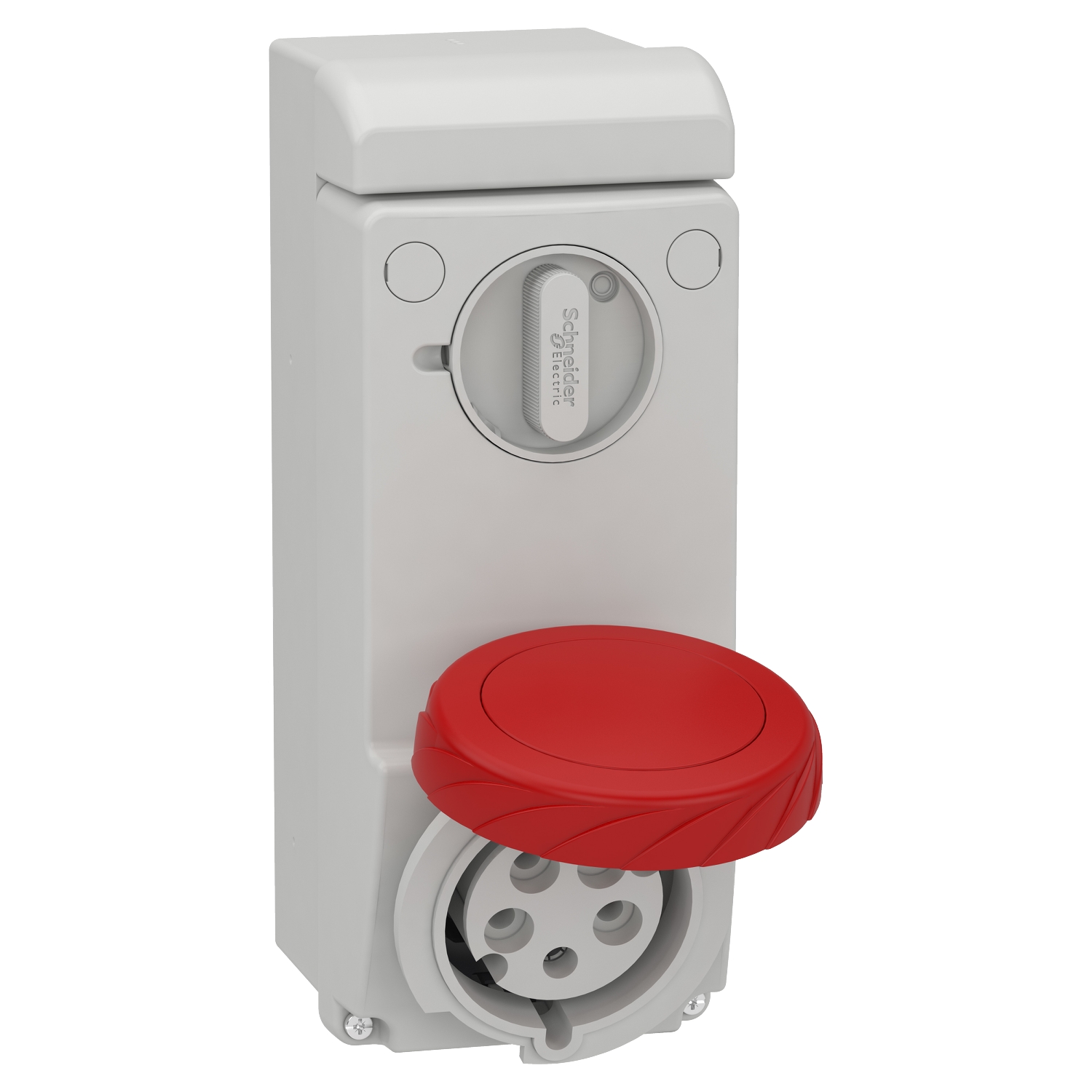

Schneider Mureva Interlocked Socket · 32 A · 3P+N+E · 380 to 415 V · IP65

Rating: 32 A
IP: IP65
Poles: 3P+N+E
NEW added this week
₹20,289/pcincl. GST-1%
₹17,194 + 18% GST · MRP ₹20,494
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹20,289 /pc incl. GST
Free pan-India delivery

Schneider Mureva Interlocked Socket · 32 A · 3P+N+E · 380 to 415 V · IP65: Elume price today ₹20,289 per pc incl. GST, 1% below the ₹20,494 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹21,929₹21,164₹20,399₹19,634₹18,869₹20,494₹20,289
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹20,289
MRP
₹20,494
Lowest in view · 17 Oct
₹20,289
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹19,275/pc on this product

Mureva PK interlocked socket designed for industrial environments, including outdoor-harsh conditions, making it suitable for containerized setups. The Interlocked design prevents accidental disconnection under load and has a 3P+N+E outlet pole configuration. The cable entries are suitable for both flexible and rigid cables. The size of the cable entry in 32A is 25mm for 10mm² cable cross-section. The clock position of contact is 6h. Its Ue rated operational voltage is 380-415VAC at 50/60Hz and its Ie rated operational current is 32A. This interlocked socket with captive screw connection is wall-mounted. The dimensions of the base plate are (W) 103mm x (H) 255mm. Operation temperature is from -25°C up to 40°C, and it reaches IP65 degree of protection. It is made up of self-extinguishing engineering polymer. The color of the product is grey (RAL 7035). Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Mureva Interlocked Socket · 32 A · 3P+N+E · 380 to 415 V · IP65 · 83097
Poles3P+N
Rated current32 A
Ingress protectionIP65
ColourGrey (RAL 7035)
Reference standardIEC 60309-2
Net weight1.209 kg
BrandSchneider
Brand SKU83097
ELINEFM7PDH44P
Sold asPer pc
Depth153 mm
RangeMureva
Width103 mm
Height255 mm
StandardsIEC 60309-2 · IEC 60309-1
Thread typePg 21
cable entryCable gland
Network typeAC
Mounting modeWall-mounted
Base dimension103 x 255 mm
Voltage colourRed
Fire resistance750 °C conforming to IEC 60695-2-11
Outlet standardIndustrial
Protection typeWithout protection
Contacts materialSleeves: nickel plated brass
Device short nameMureva socket
Network frequency50/60 Hz
Poles description3P + N + E
Relative humidity50 % at 40 °C · 70 % at 30 °C · 90 % at 20 °C
[In] rated current32 A
Plug, socket categoryLow voltage
Plug, socket materialHousing: self-extinguishing engineering polymer
Connections - terminalsCaptive screws
IK degree of protectionIK09 conforming to EN 62262
IP degree of protectionIP65 conforming to IEC 60529
Product or component typeInterlocked socket
Maximum cable cross section10 mm²
Maximum cable outer diameter25 mm
Ground lug clockwise position6 h
[Ue] rated operational voltage380...415 V
Ambient air temperature for operation35 °C ( 86400 s ) · -25…40 °C
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Is Schneider Mureva Interlocked Socket · 32 A · 3P+N+E · 380 to 415 V · IP65 genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
