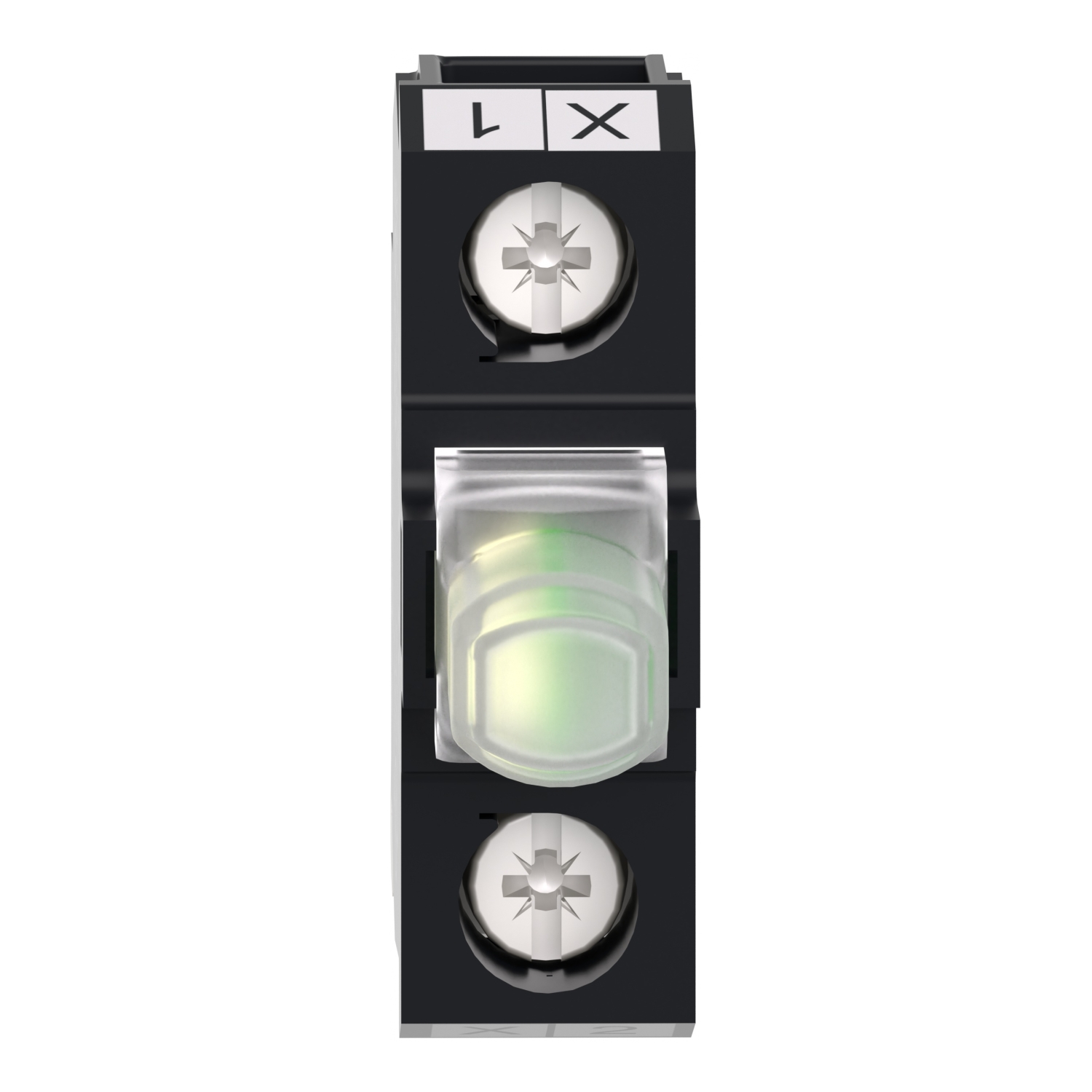

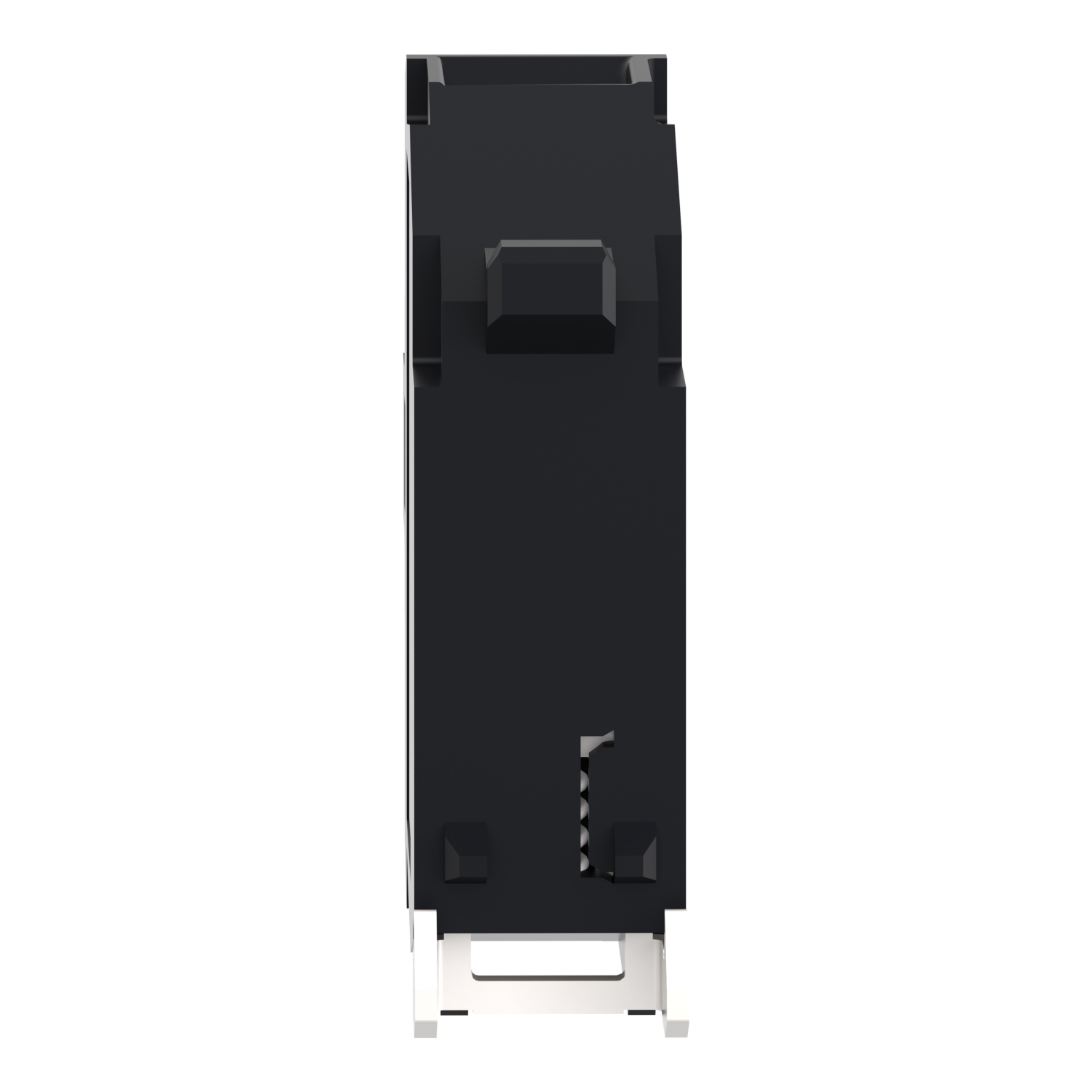

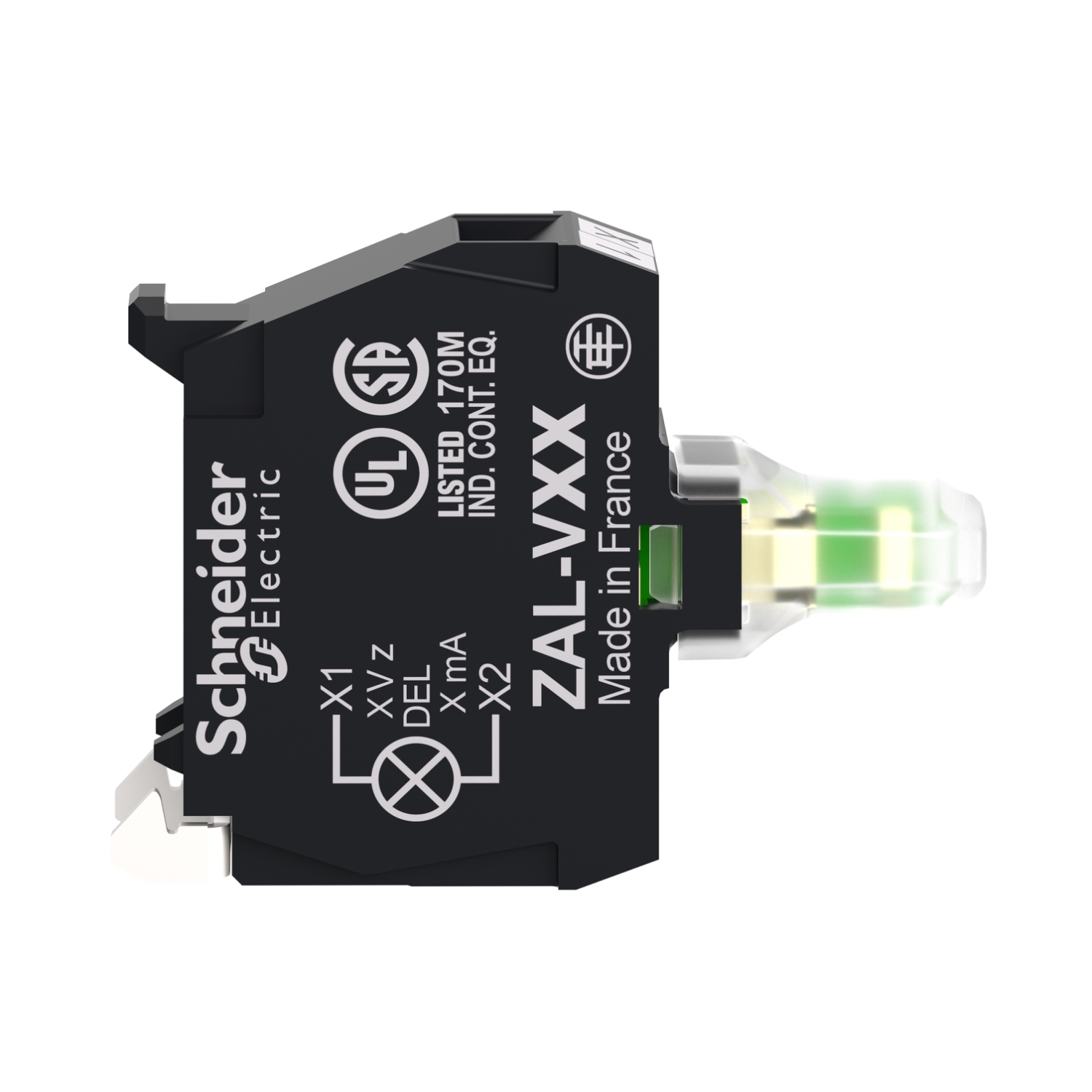

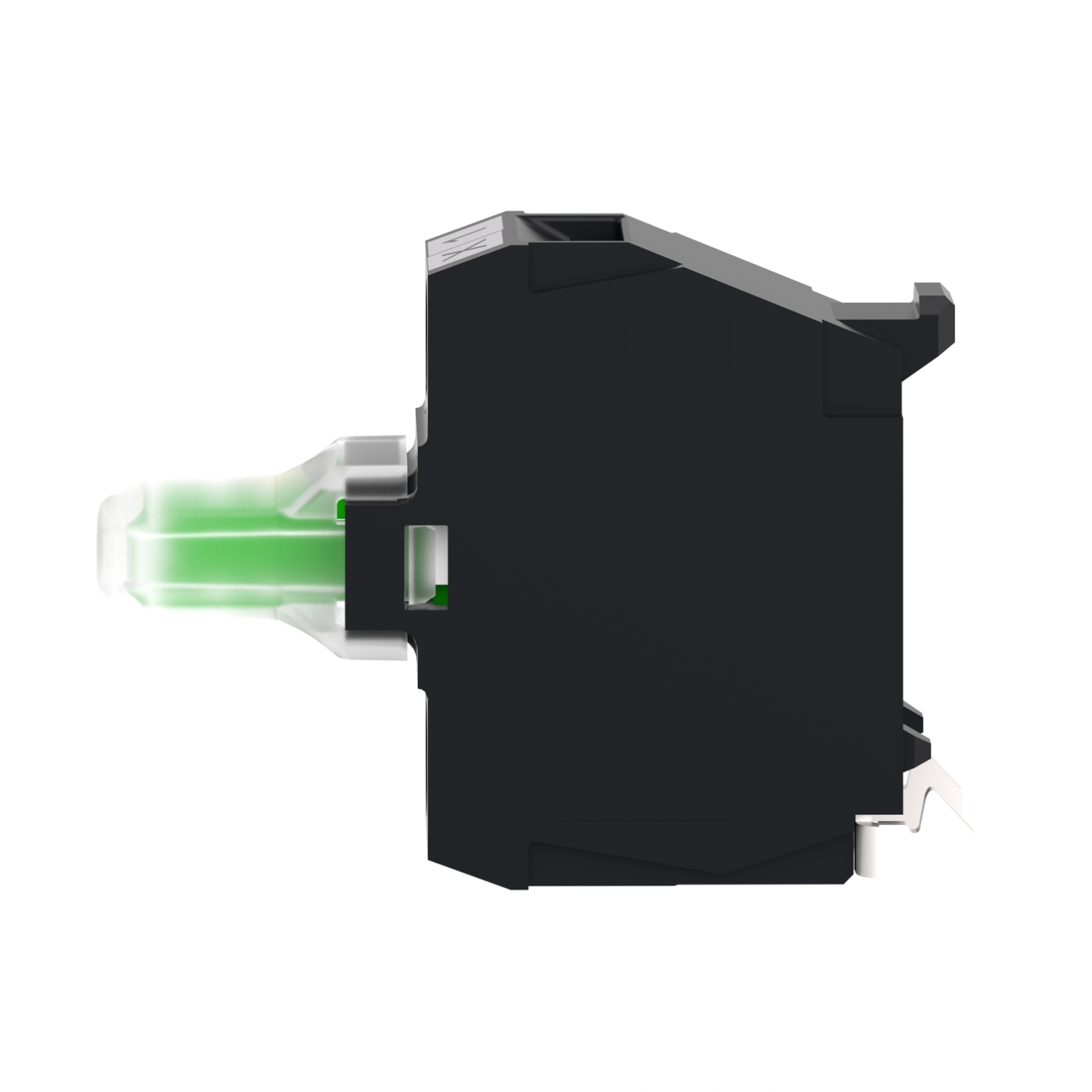

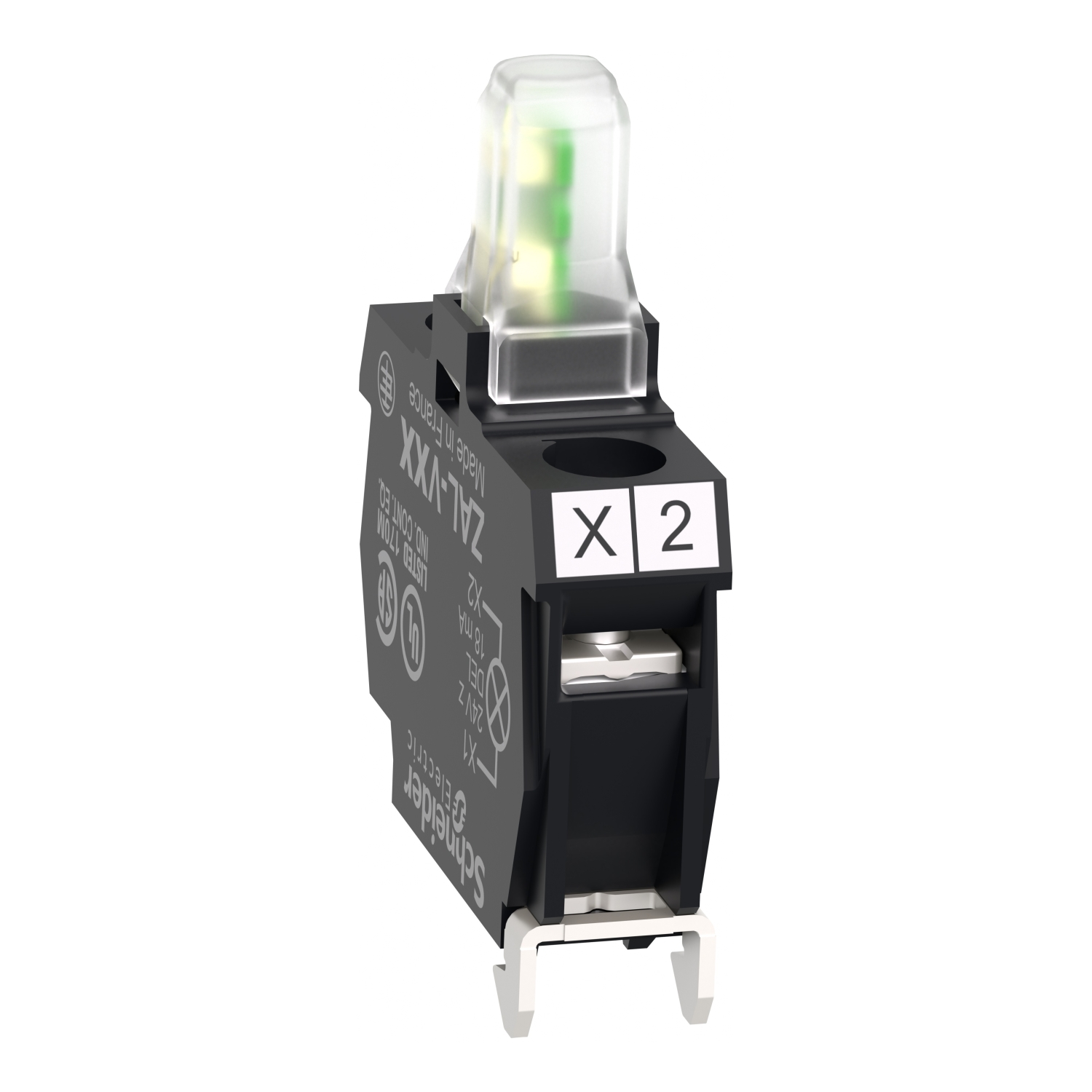

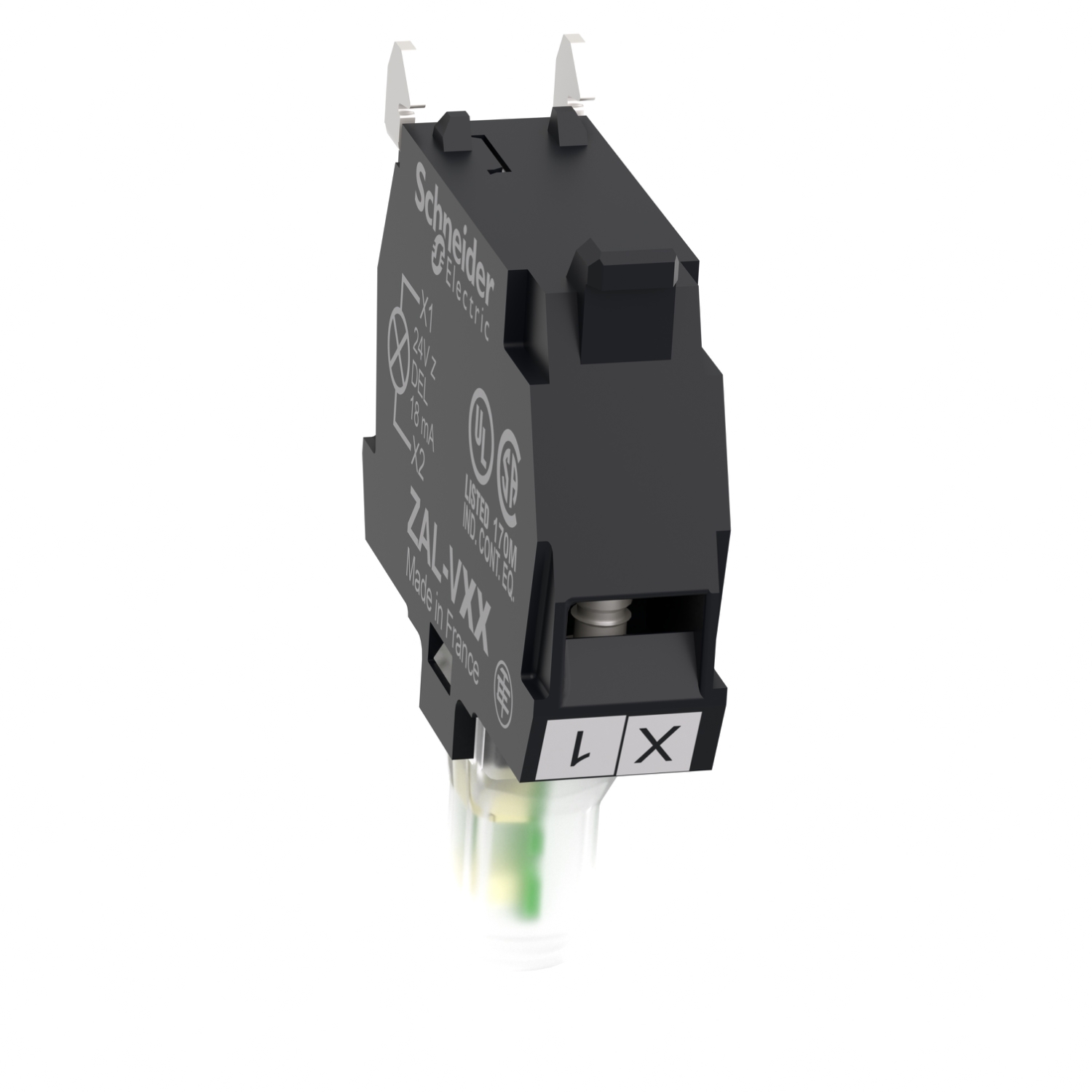

Schneider Harmony XAL ZALV Light Block · Harmony XALD · XALK · white · for head 22mm · universal LED · IP20 · ZALVB1ZALVB1↓ 1% off MRP1 / 9
BrandSchneider
CategoryIndustrial Control
SpecificationHarmony XALD · XALK · white · for head 22mm · universal LED
Brand SKUZALVB1
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XAL ZALV Light Block · Harmony XALD · XALK · white · for head 22mm · universal LED · IP20 · ZALVB1

NEW added this week
₹1,071/pcincl. GST-1%
₹908 + 18% GST · MRP ₹1,082
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,071 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XAL ZALV Light Block · Harmony XALD · XALK · white · for head 22mm · universal LED · IP20 · ZALVB1: Elume price today ₹1,071 per pc incl. GST, 1% below the ₹1,082 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹1,158₹1,117₹1,077₹1,036₹996₹1,082₹1,071
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,071
MRP
₹1,082
Lowest in view · 17 Oct
₹1,071
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,017/pc on this product

This white light block with integral LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XAL ZALV Light Block · Harmony XALD · XALK · white · for head 22mm · universal LED · IP20 · ZALVB1 · ZALVB1
Ingress protectionIP20
Reference standardIEC 60947-5-5
Net weight0.015 kg
BrandSchneider
Brand SKUZALVB1
ELINEFKDKPC63C
Sold asPer pc
Bulb baseIntegral LED
StandardsIEC 60947-5-5 · IEC 60947-5-4 · IEC 60947-1 · IEC 60947-5-1 · CSA C22.2 No 14 · JIS C8201-5-1 · UL 508 · JIS C8201-1
Light sourceUniversal LED
Service life100000 h at rated voltage and 25 °C
Assembly styleFor customer assembly
Signalling typeSteady
Surge withstand1 kV conforming to IEC 61000-5-1
Range of productHarmony XAL
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 · 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Device short nameZALV
Mounting of blockRear mounting
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Light block supplyDirect
Current consumption15 mA
Light source colourWhite
Product destinationFor XB5 Ø 22 mm control and signalling units
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Protective treatmentTH
Vibration resistance5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Supply voltage limits19.2…30 V DC · 21.6…26.4 V AC
Product certificationsUL listed · CSA
Connections - terminalsScrew clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
IP degree of protectionIP20 conforming to IEC 60529
Electromagnetic emissionClass B conforming to IEC 55011
Product or component typeLight block
[Us] rated supply voltage24 V AC/DC
Electrical composition codeMR1 · PR1
Resistance to fast transients2 kV conforming to IEC 61000-4-4
Sale per indivisible quantity5
[Ui] rated insulation voltage250 V (pollution degree 3) conforming to IEC 60947-1
Ambient air temperature for storage-40…70 °C
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation-40…70 °C
Resistance to electrostatic discharge6 kV on contact (on metal parts) conforming to IEC 61000-4-2 · 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
[Uimp] rated impulse withstand voltage4 kV conforming to IEC 60947-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
