Schneider Easy TeSys LRE Thermal Overload Relay · 146…234 ALRE484↓ 1% off MRP1 / 9
BrandSchneider
CategoryIndustrial Control
Brand SKULRE484
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

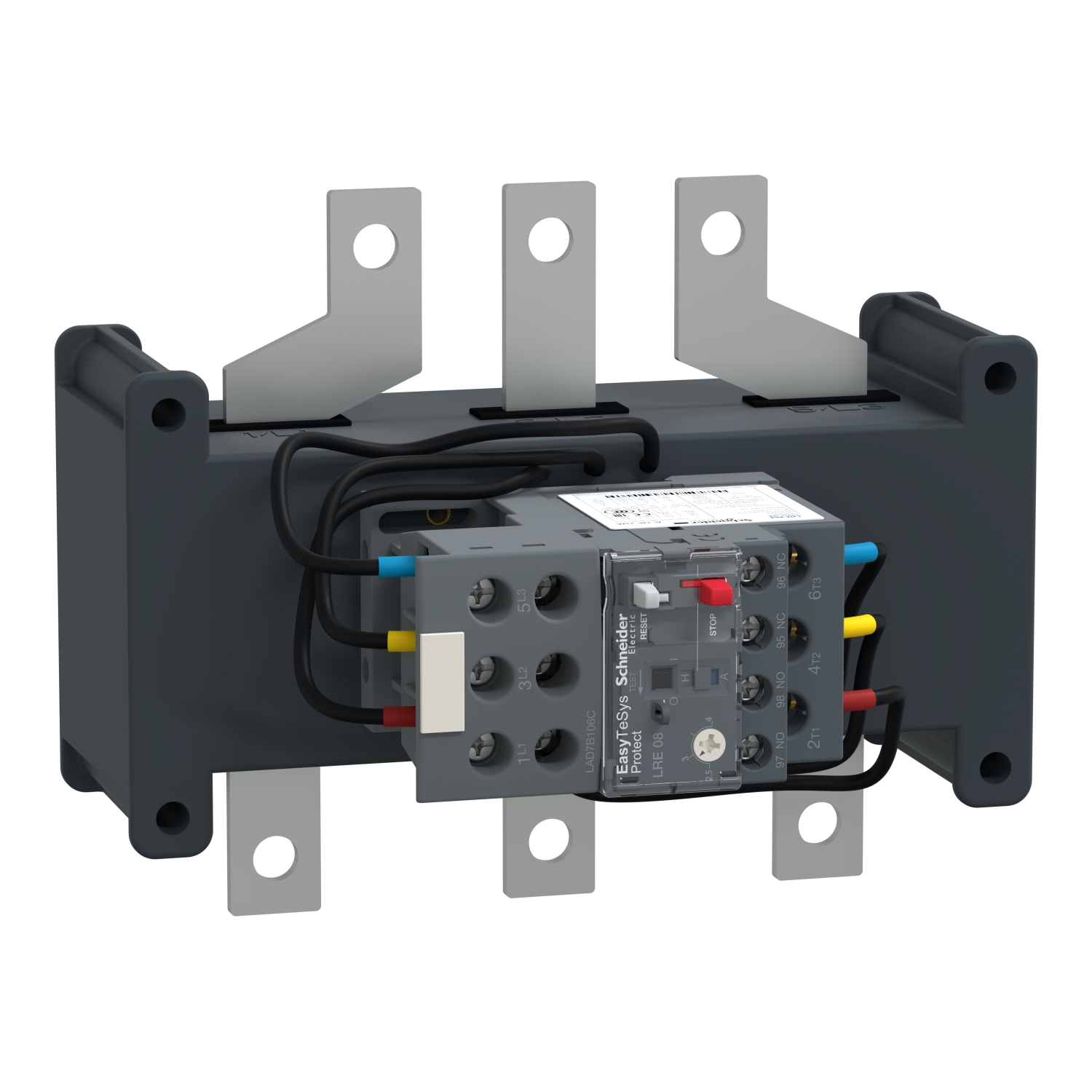

Schneider Easy TeSys LRE Thermal Overload Relay · 146…234 A

Setting: 146…234 A
NEW added this week
₹29,006/pcincl. GST-1%
₹24,581 + 18% GST · MRP ₹29,299
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹29,006 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Easy TeSys LRE Thermal Overload Relay · 146…234 A: Elume price today ₹29,006 per pc incl. GST, 1% below the ₹29,299 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹31,350₹30,256₹29,163₹28,069₹26,976₹29,299₹29,006
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹29,006
MRP
₹29,299
Lowest in view · 17 Oct
₹29,006
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹27,556/pc on this product

The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers GV2 L and GV3 L. Its thermal setting range is 146-234A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on EasyPact TVS contactors with directly connected by connector. It protects unbalanced loads and motors with 90 - 132kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Easy TeSys LRE Thermal Overload Relay · 146…234 A · LRE484
Ingress protectionIP00
Reference standardEN/IEC 60947-1
Net weight2.2 kg
BrandSchneider
Brand SKULRE484
ELINEDF2KGHF3H
Sold asPer pc

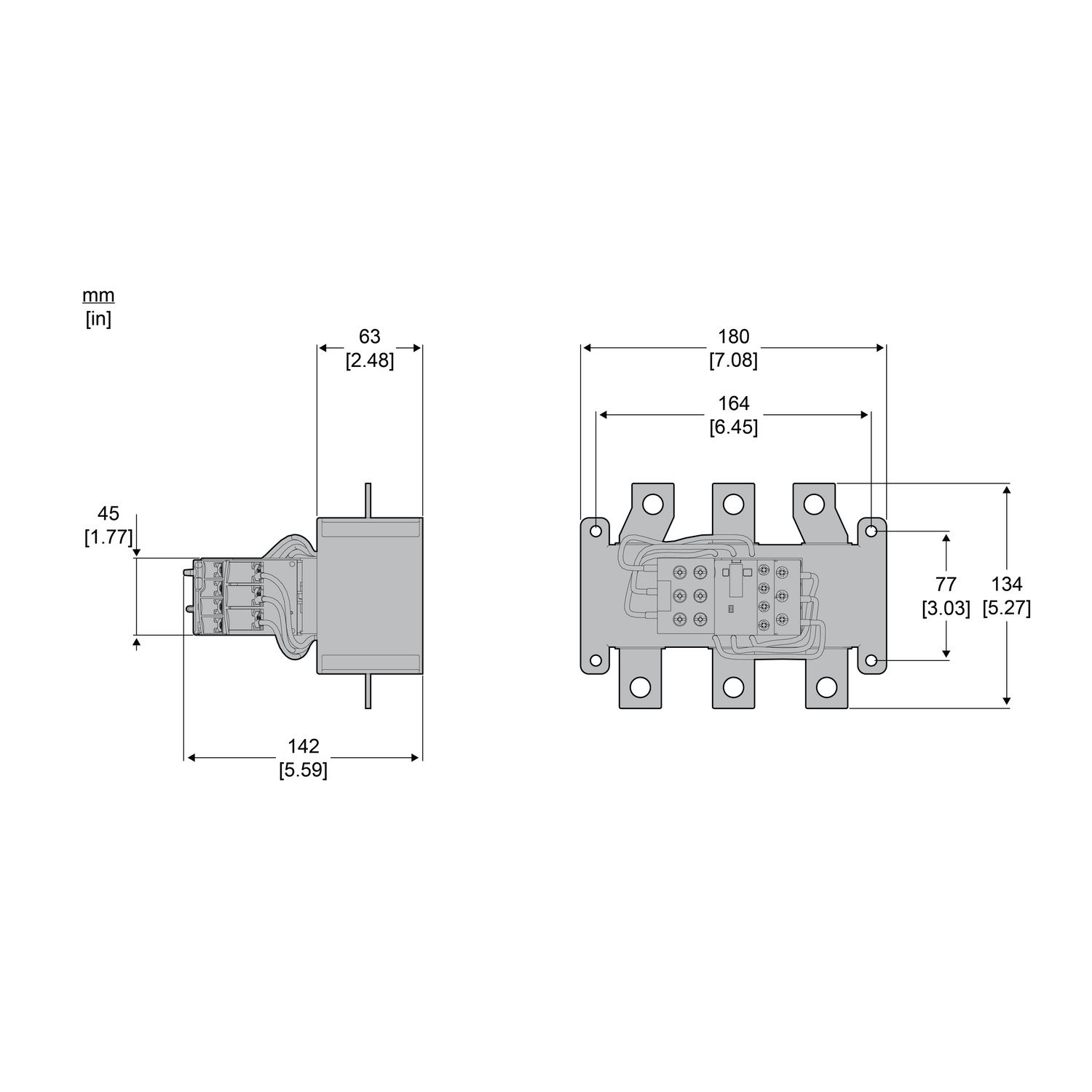

Depth134 mm
RangeEasy TeSys
Width180 mm
Height134 mm
StandardsEN/IEC 60947-1 · EN/IEC 60947-4-1 · EN/IEC 60947-5-1 · GB/T 14048.1 · GB/T 14048.5 · GB/T 14048.4 · EN/IEC 60335-1:Clause 30.2 · EN/IEC 60335-2-40:Annex JJ
Control typePush-button red stop: · Push-button green reset:
Network typeAC
Fire resistance850 °C conforming to IEC 60068-2-1
Connection pitch48 mm
Local signallingTrip indicator
Mounting supportUnder contactor · Plate
Range of productEasy TeSys Protect
Device short nameLRE
Network frequency50...60 Hz
Relay applicationMotor protection
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Dielectric strength6 kV at 50 Hz conforming to IEC 60255-5
Signalling functionRelay trip indicator
Protective treatmentTH conforming to IEC 60068
Mechanical robustnessShocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 · Vibrations: 3 GN conforming to IEC 60068-2-6
Product compatibilityLC1E200...630
Associated fuse rating315 A gG for power circuit · 250 A aM for power circuit · 5 A gG for signalling circuit
Product certificationsCB Scheme · CCC · CE · EAC
Thermal overload classClass 10A conforming to IEC 60947-4-1
Connections - terminalsSignalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end · Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end · Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end · Power circuit: lugs · Power circuit: bars - busbar cross section: 3 x 25 mm
IP degree of protectionIP00 conforming to IEC 60529
Temperature compensation-20…60 °C
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
Product or component typeDifferential thermal overload relay
Auxiliary contact composition1 NO + 1 NC
Electromagnetic compatibilitySurge withstand: 6 kV conforming to IEC 60801-5
Recommended tightening torquePower circuit: 35 N.m - on bars M10 · Power circuit: 35 N.m - on lugs M10 · Signalling circuit: 1.7 N.m - on screw clamp terminals
[Ui] rated insulation voltage690 V conforming to IEC 60947-4-1
[Ue] rated operational voltage<= 690 V AC
Ambient air temperature for storage-60…80 °C
Thermal protection adjustment range146…234 A
Ambient air temperature for operation-20…60 °C without derating conforming to IEC 60947-4-1 · -20…70 °C with derating
[Uimp] rated impulse withstand voltage6 kV
[Ith] conventional free air thermal current5 A for signalling circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
