Schneider TeSys VZ Auxiliary Contact Block · TeSys VARIO · 1 NO + 1 NOVZ20↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
Brand SKUVZ20
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

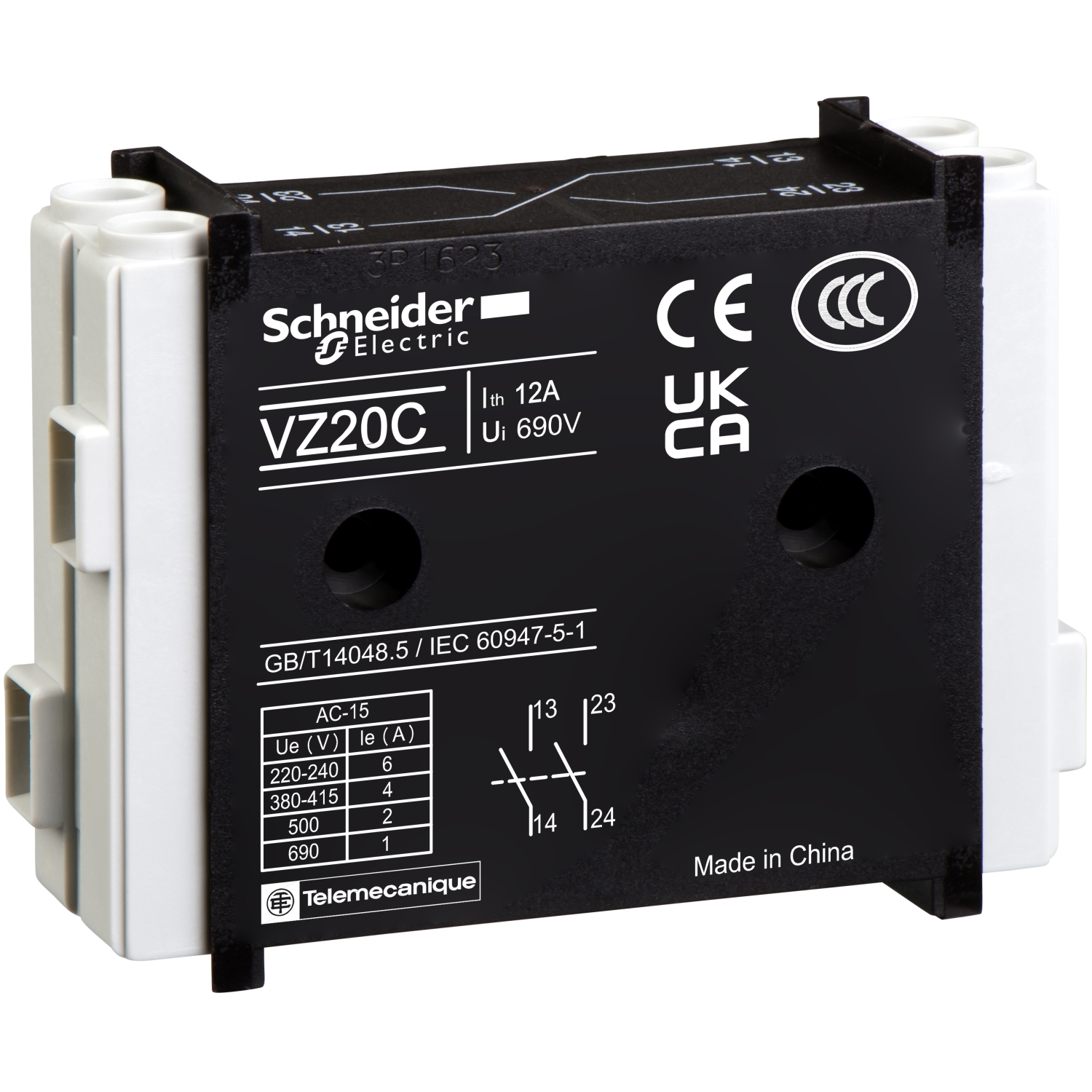

Schneider TeSys VZ Auxiliary Contact Block · TeSys VARIO · 1 NO + 1 NO

NEW added this week
₹2,979/pcincl. GST-1%
₹2,525 + 18% GST · MRP ₹3,009
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹2,979 /pc incl. GST
Free delivery over ₹4,000

Schneider TeSys VZ Auxiliary Contact Block · TeSys VARIO · 1 NO + 1 NO: Elume price today ₹2,979 per pc incl. GST, 1% below the ₹3,009 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹3,220₹3,107₹2,995₹2,883₹2,770₹3,009₹2,979
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹2,979
MRP
₹3,009
Lowest in view · 17 Oct
₹2,979
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹2,830/pc on this product

TeSys Vario add-on module, auxiliary contact block, for TeSys Vario V02 to V6 switch bodies. It provides 2NO contacts (late make) rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZ7 or VZ20 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys VZ Auxiliary Contact Block · TeSys VARIO · 1 NO + 1 NO · VZ20
Ingress protectionIP20
Reference standardIEC 60947-5
Net weight0.05 kg
BrandSchneider
Brand SKUVZ20
ELINED67KR646R
Sold asPer pc
Depth48.5 mm
RangeTeSys
Width20 mm
Height65 mm
StandardsIEC 60947-5
Network typeDC · AC
Fire resistance960 °C conforming to IEC 60695-2-1
Device short nameVZ
Mounting locationLeft · Right
Network frequency50/60 Hz
Performance levelHigh performance
Tightening torque0.7 N.m - on screw clamp terminals
Protective treatmentTC
Electrical durability30000 cycles DC-11 · 100000 cycles AC-15
Mechanical durability100000 cycles
Product compatibilityV3 · V01 · V2 · V0 · V6 · V4 · V1 · V5 · V02
Product certificationsGL · UL · CSA · UKCA
Connections - terminalsScrew clamp terminals 2 cable(s) 0.75…1.5 mm² - flexible - with cable end · Screw clamp terminals 2 cable(s) 1…2.5 mm² - solid
IP degree of protectionIP20 conforming to IEC 60529
Product or component typeAuxiliary contact block
Contacts type and composition1 NO + 1 NO
[Ue] rated operational voltage690 V AC 50/60 Hz
Ambient air temperature for operation-20…50 °C
[Uimp] rated impulse withstand voltage8 kV
[Ith] conventional free air thermal current12 A
[Ithe] conventional enclosed thermal current10 A
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
