Schneider TeSys LRD Thermal Overload Relay · 62…80 ALRD380↓ 1% off MRP1 / 4
BrandSchneider
CategoryIndustrial Control
Brand SKULRD380
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

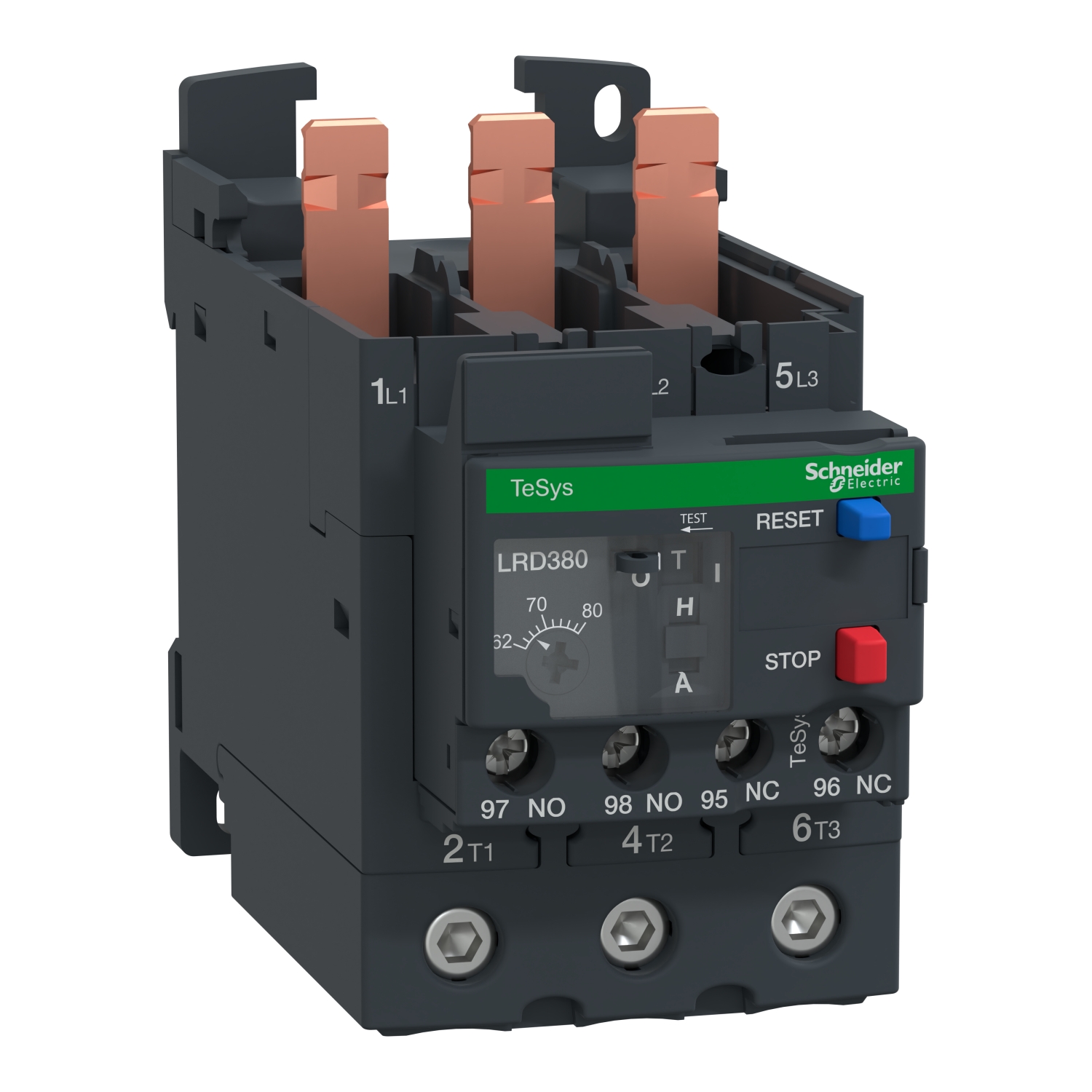

Schneider TeSys LRD Thermal Overload Relay · 62…80 A

Setting: 62…80 A
NEW added this week
₹18,977/pcincl. GST-1%
₹16,082 + 18% GST · MRP ₹19,169
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹18,977 /pc incl. GST
Free pan-India delivery

Schneider TeSys LRD Thermal Overload Relay · 62…80 A: Elume price today ₹18,977 per pc incl. GST, 1% below the ₹19,169 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹20,511₹19,795₹19,080₹18,364₹17,649₹19,169₹18,977
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹18,977
MRP
₹19,169
Lowest in view · 17 Oct
₹18,977
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹18,028/pc on this product

TeSys LRD thermal overload relay, 80A/690V, thermal setting range 62-80A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LRD Thermal Overload Relay · 62…80 A · LRD380
Ingress protectionIP20
Reference standardEN/IEC 60947-4-1
Net weight0.375 kg
BrandSchneider
Brand SKULRD380
ELINED42GD7JMP
Sold asPer pc
Depth123 mm
RangeTeSys · TeSys Deca
Width55 mm
Height70 mm
StandardsEN/IEC 60947-4-1 · EN/IEC 60947-5-1 · UL 60947-4-1 · UL 60947-5-1 · CSA C22.2 No 60947-4-1 · CSA C22.2 No 60947-5-1 · GB/T 14048.4 · GB/T 14048.5
Control typeRed push-button: stop · Blue push-button: reset
Network typeAC · DC
Product nameTeSys LRD · TeSys Deca
Flame retardanceV1 conforming to UL 94
Mounting supportPlate, with terminal block LAD96560 on top · Rail, with terminal block LAD96560 on top · Direct mounting under contactor
Device short nameLRD
Network frequency0...400 Hz
Relay applicationMotor protection
Tightening torqueControl circuit: 1.7 N.m - on screw clamp terminals · Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 25 mm² · Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35 mm²
Climatic withstandconforming to IACS E10
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Dielectric strength1.89 kV at 50 Hz conforming to IEC 60947-1
Permissible current0.95 A at 380 V AC-15 for signalling circuit · 0.06 A at 440 V DC-13 for signalling circuit
Mechanical robustnessShocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 · Vibrations: 3 GN conforming to IEC 60068-2-6
Product compatibilityLC1D80A
Associated fuse rating4 A gG for signalling circuit · 4 A BS for signalling circuit
Product certificationsIEC · UL · CSA · CCC · EAC · DNV-GL · RMRS · EU-RO MR · UKCA
Thermal overload classClass 10A conforming to IEC 60947-4-1
Connections - terminalsControl circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end · Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible with cable end · Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² solid · Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid · Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible · Power circu
IP degree of protectionIP20 conforming to IEC 60529
Temperature compensation-20…60 °C
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0
Product or component typeDifferential thermal overload relay
Power dissipation per pole4.8 W
Auxiliary contact composition1 NO + 1 NC
[Ui] rated insulation voltagePower circuit: 690 V conforming to IEC 60947-4-1 · Power circuit: 600 V conforming to UL 60947-4-1 · Power circuit: 600 V conforming to CSA C22.2 No 14
[Ue] rated operational voltage690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Ambient air temperature for storage-60…70 °C
Thermal protection adjustment range62…80 A
Ambient air temperature for operation-20…60 °C without derating conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage6 kV
[Ith] conventional free air thermal current5 A for signalling circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
