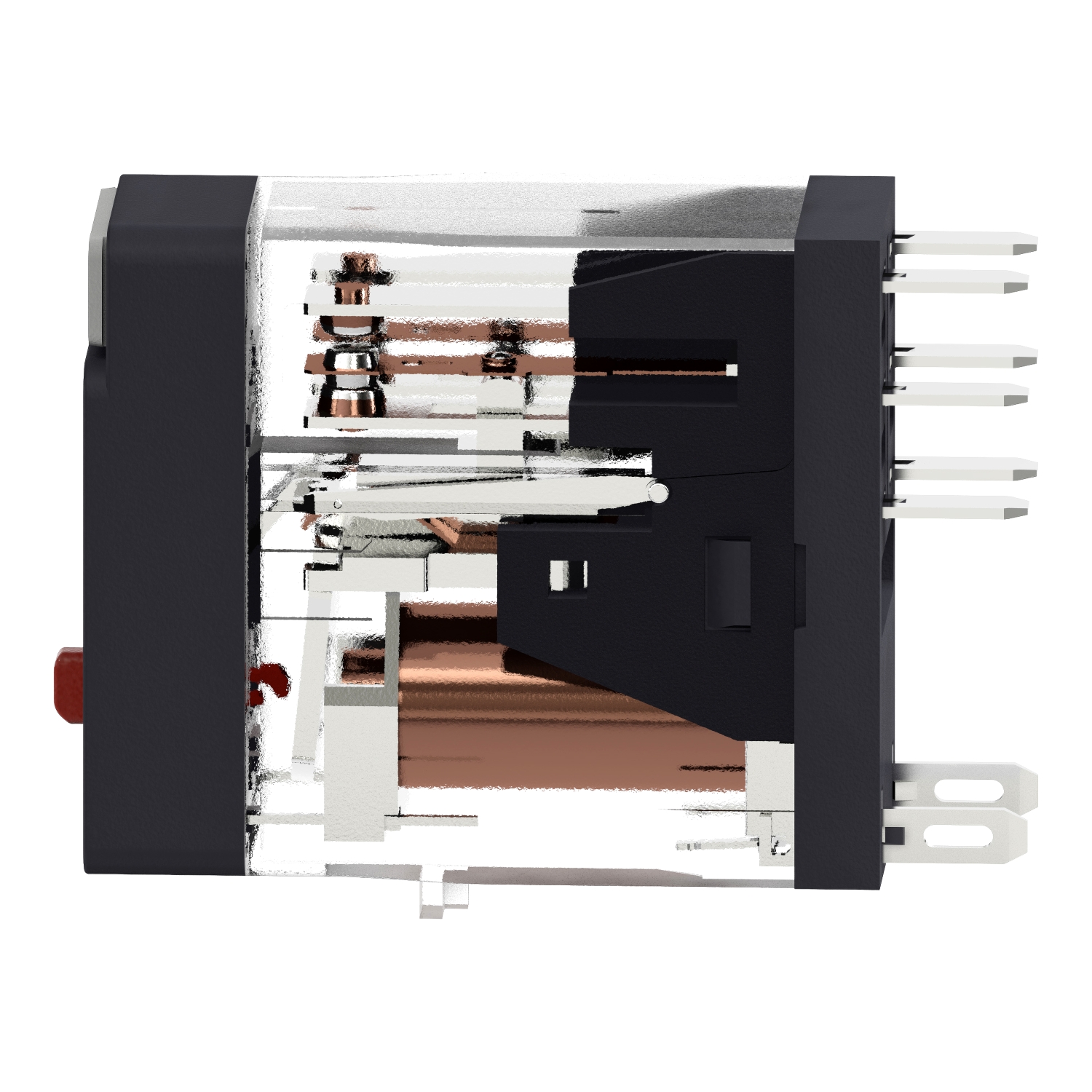

Schneider Harmony Plug-in Relay · 2 C/O · 5 A · 230 V AC coil · IP40 · RXG21P7RXG21P7↓ 1% off MRP1 / 11
BrandSchneider
CategoryIndustrial Control
Specification2 C/O · 5 A · 230 V AC coil
Brand SKURXG21P7
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

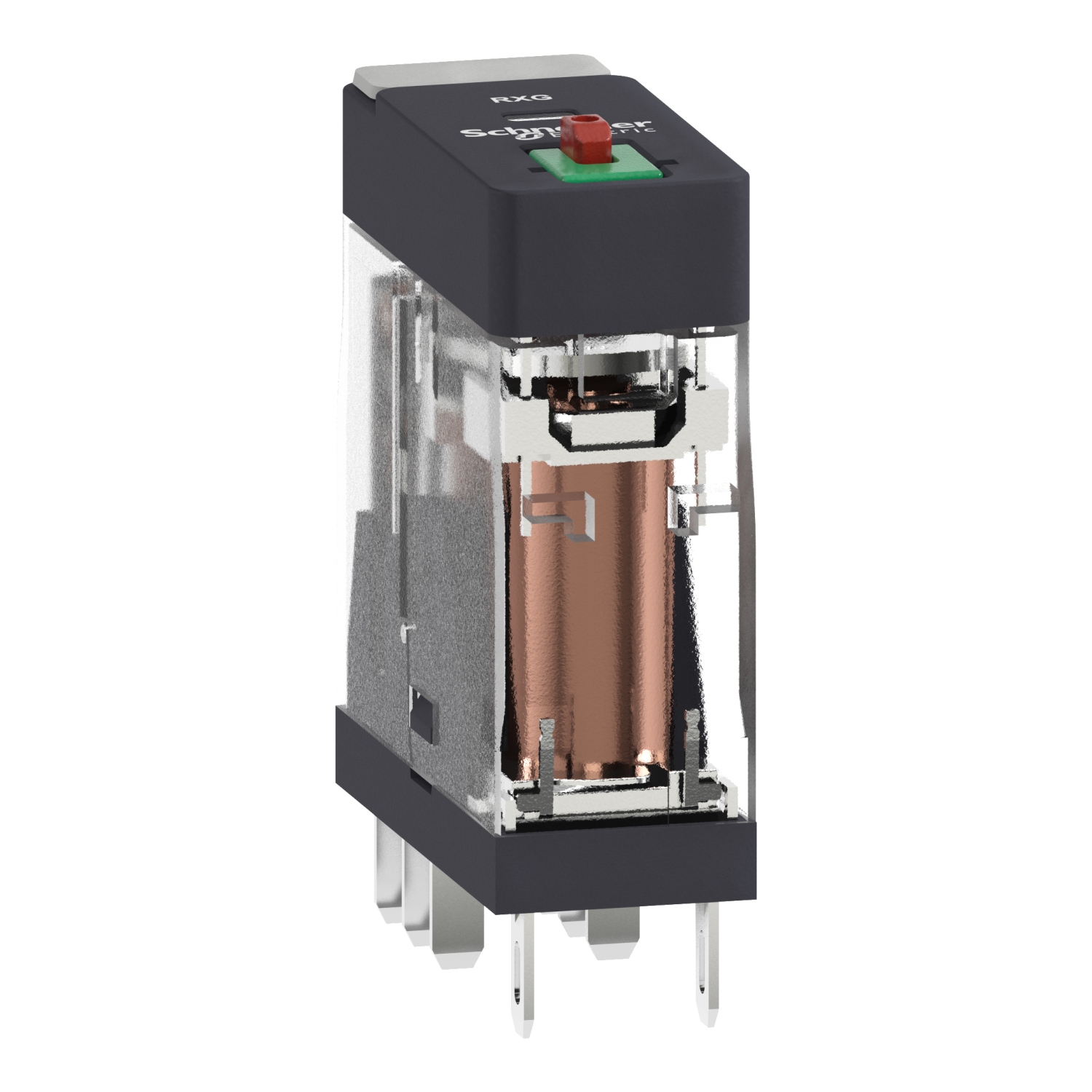

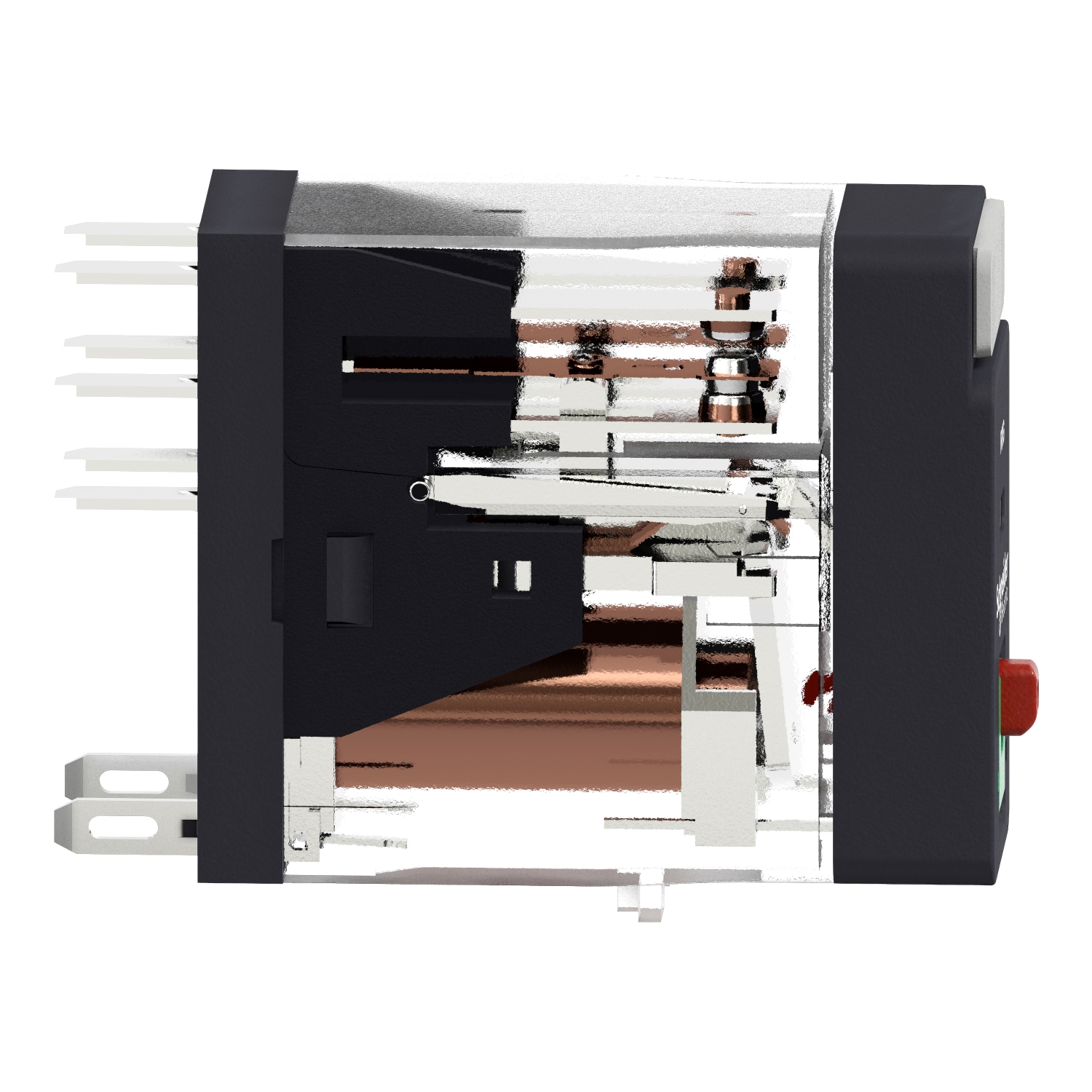

Schneider Harmony Plug-in Relay · 2 C/O · 5 A · 230 V AC coil · IP40 · RXG21P7

NEW added this week
₹1,244/pcincl. GST-1%
₹1,054 + 18% GST · MRP ₹1,257
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,244 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony Plug-in Relay · 2 C/O · 5 A · 230 V AC coil · IP40 · RXG21P7: Elume price today ₹1,244 per pc incl. GST, 1% below the ₹1,257 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹1,345₹1,298₹1,251₹1,204₹1,157₹1,257₹1,244
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,244
MRP
₹1,257
Lowest in view · 17 Oct
₹1,244
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,182/pc on this product

"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Plug-in Relay · 2 C/O · 5 A · 230 V AC coil · IP40 · RXG21P7 · RXG21P7
Rated current5 A
Ingress protectionIP40
Reference standardIEC 61810-1
coil voltage230 V AC
Net weight0.02 kg
BrandSchneider
Brand SKURXG21P7
ELINECHFDMKM34
Sold asPer pc
StandardsIEC 61810-1 · UL 508 · CSA C22.2 No 14
Relay typeInterface relay
Reset time20 ms
status LEDWithout
Series nameRXG series
Test levelsLevel A group mounting

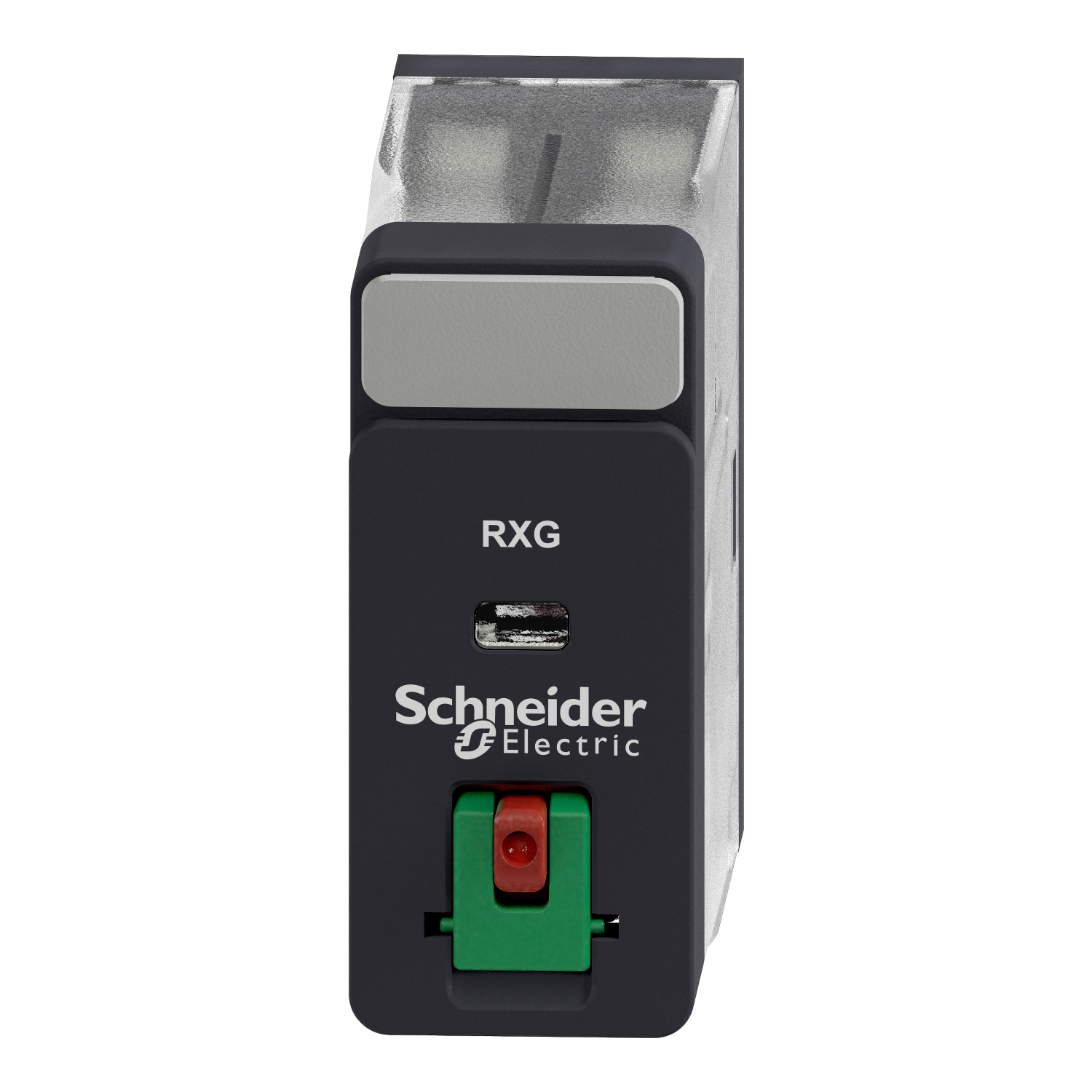

Control typeLockable test button
Load current5 A at 250 V AC

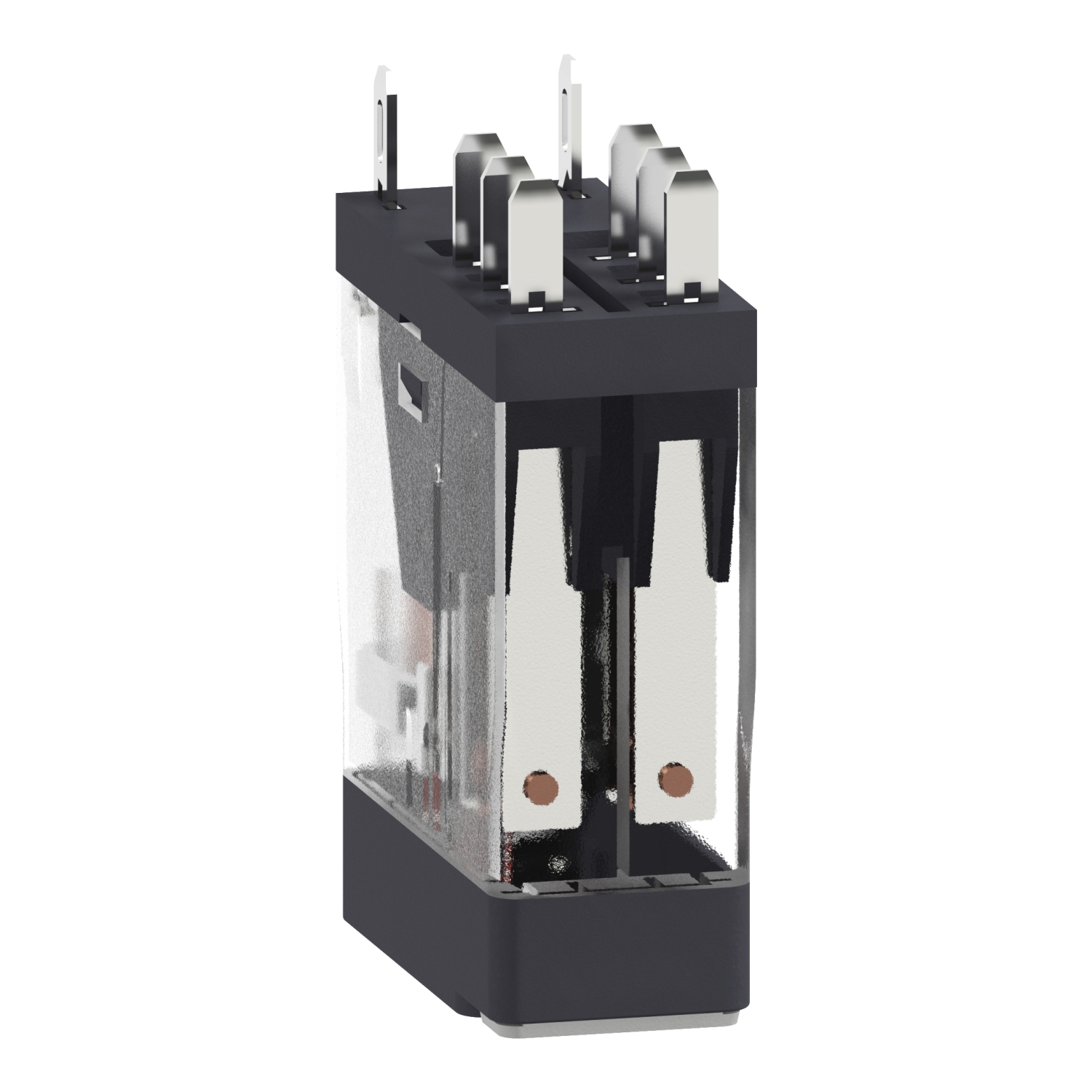

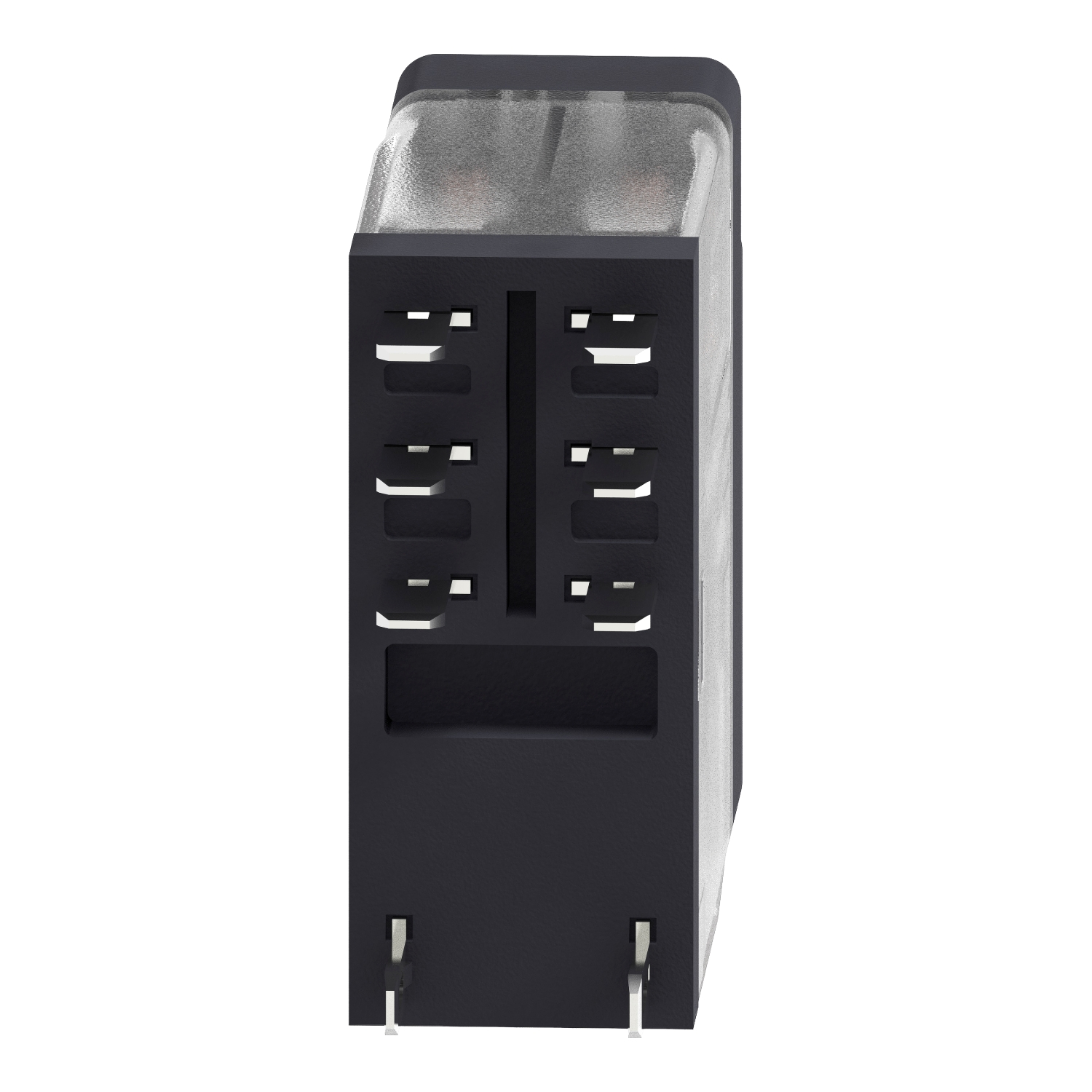

Shape of pinFlat (faston type)
Operating rate<= 1800 cycles/hour under load · <= 18000 cycles/hour no-load
Operating time20 ms
Local signallingFlag
Pollution degree2
Range of productHarmony Electromechanical Relays
Removable legendWith
Contacts materialSilver alloy (AgSnO2In2O3)
Relative humidity10…85 %
Average resistance23500 Ohm at 23 °C +/- 15 %
Contact resistance100 mOhm
Device presentationComplete product
Dielectric strength1000 V AC between contacts with micro disconnection · 5000 V AC between coil and contact with reinforced insulation · 3000 V AC between poles with basic insulation · 1300 V AC terminals and case with basic insulation
Protection categoryRT I
Overvoltage categoryIII
Electrical durability100000 cycles for NO resistive load at 55 °C · 100000 cycles for NC resistive load at 55 °C
Insulation resistance1000 MOhm at 500 V DC
Mechanical durability10000000 cycles
Product certificationsUL · CSA · EAC · CE · DNV
IP degree of protectionIP40
Safety reliability dataB10d = 100000
Utilisation coefficient20 %
Maximum switching voltage250 V AC · 30 V DC
Product or component typePlug-in relay
Drop-out voltage threshold>= 0.3 Uc AC
Maximum switching capacity1250 VA
Minimum switching capacity50 mW at 10 mA, 5 V DC
Electrical insulation classClass F
[Uc] control circuit voltage230 V AC

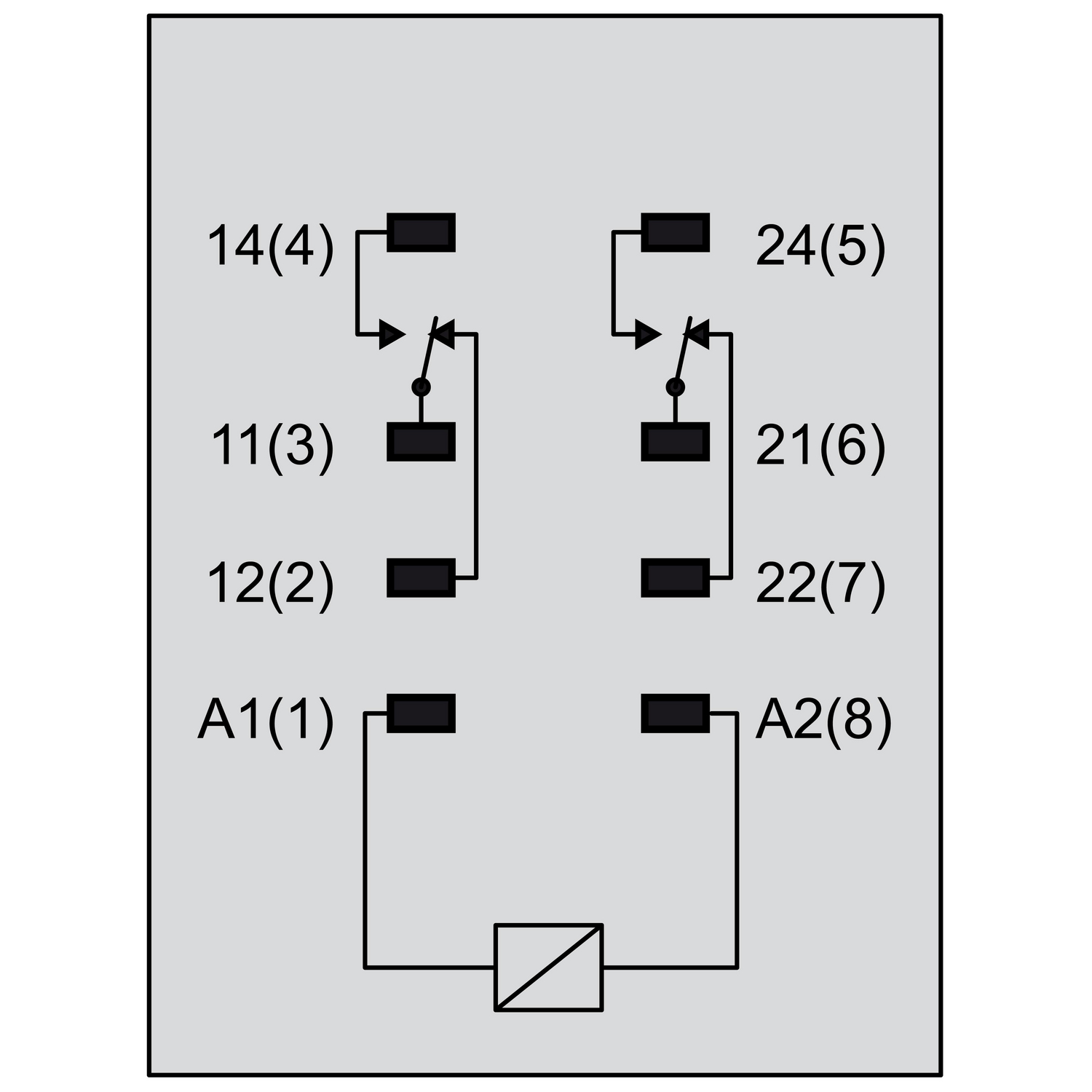

Contacts type and composition2 C/O
[Ui] rated insulation voltage250 V conforming to IEC · 300 V conforming to CSA · 300 V conforming to UL
[Ie] rated operational current5 A at 30 V (DC) conforming to UL · 5 A at 30 V (DC) conforming to IEC · 5 A at 250 V (AC) conforming to UL · 5 A at 250 V (AC) conforming to IEC
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-40…70 °C
[Uimp] rated impulse withstand voltage1200 V AC between contacts with micro disconnection · 6000 V between coil and contact with reinforced insulation · 1500 V between terminals and case with basic insulation · 4000 V between poles with basic insulation
[Ithe] conventional enclosed thermal current5 A at -40…55 °C
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
