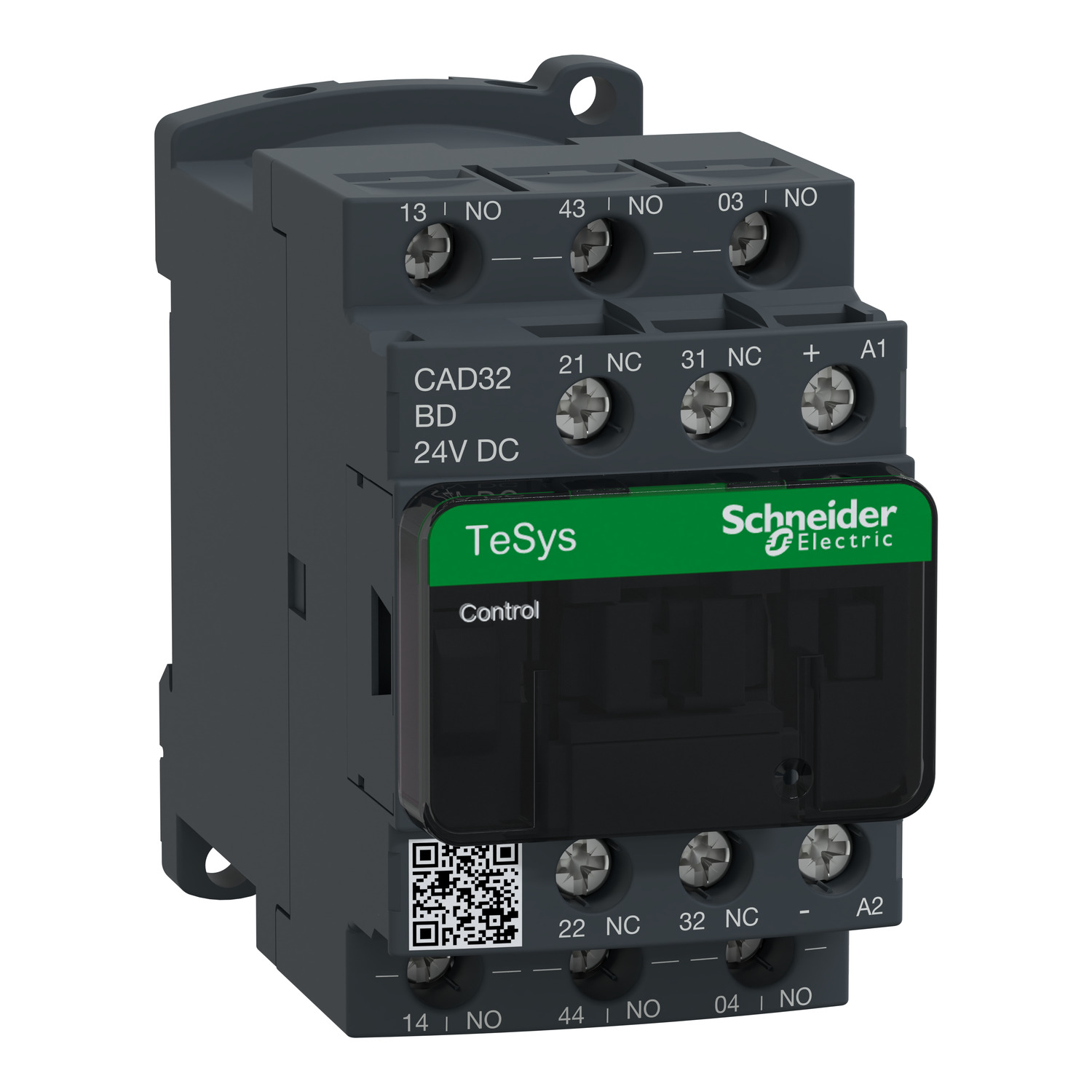

Schneider TeSys CAD Control Relay · 3 NO + 2 NC · 10 A · 24 V DC coilCAD32BD↓ 1% off MRP1 / 6
BrandSchneider
CategoryIndustrial Control
Brand SKUCAD32BD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider TeSys CAD Control Relay · 3 NO + 2 NC · 10 A · 24 V DC coil

Coil: 24 V DC coil
NEW added this week
₹3,867/pcincl. GST-1%
₹3,277 + 18% GST · MRP ₹3,906
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹3,867 /pc incl. GST
Free delivery over ₹4,000

Schneider TeSys CAD Control Relay · 3 NO + 2 NC · 10 A · 24 V DC coil: Elume price today ₹3,867 per pc incl. GST, 1% below the ₹3,906 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹4,179₹4,034₹3,888₹3,742₹3,596₹3,906₹3,867
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹3,867
MRP
₹3,906
Lowest in view · 17 Oct
₹3,867
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹3,674/pc on this product

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys CAD Control Relay · 3 NO + 2 NC · 10 A · 24 V DC coil · CAD32BD
Ingress protectionIP2X front face
Reference standardEN/IEC 60947-5-1
coil voltage24 V DC
Net weight0.58 kg
BrandSchneider
Brand SKUCAD32BD
ELINE63JK4R9M2
Sold asPer pc
Depth93 mm
RangeTeSys · TeSys Deca
Width45 mm
Height77 mm
StandardsEN/IEC 60947-5-1 · GB/T 14048.5 · UL 60947-5-1 · CSA C22.2 No 60947-5-1 · JIS C8201-5-1
Product nameTeSys CAD
Time constant28 ms
Operating time53...72 ms coil energisation and NO closing · 16...24 ms coil de-energisation and NO opening · 47...63 ms coil energisation and NC opening · 15...25 ms coil de-energisation and NC closing
Mounting supportRail · Plate
Non-overlap time1.5 ms on energisation between NC and NO contact · 1.5 ms on de-energisation between NC and NO contact
Device short nameCAD
Inrush power in W5.4 W (at 20 °C)
Tightening torque1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 · 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm · 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Operating altitude0...3000 m
Control circuit typeDC standard
Protective treatmentTH conforming to IEC 60068
Utilisation categoryDC-13 · AC-15 · AC-14
Contactor applicationControl circuit
Insulation resistance> 10 MOhm
Mechanical durability30 Mcycles
Mechanical robustnessShocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 · Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 · Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 · Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
Associated fuse rating10 A gG conforming to IEC 60947-5-1
Maximum operating rate180 cyc/mn
Product certificationsCB · CCC · UL · CSA · EAC · CE · UKCA
Connections - terminalsScrew clamp terminals 1 cable(s) 1…4 mm²flexible without cable end · Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end · Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end · Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end · Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end · Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable en
IP degree of protectionIP2X front face conforming to VDE 0106
Pole contact composition3 NO + 2 NC
Minimum switching current5 mA
Minimum switching voltage17 V
Product or component typeControl relay
Irms rated making capacity140 A AC conforming to IEC 60947-5-1 · 250 A DC conforming to IEC 60947-5-1
[Uc] control circuit voltage24 V DC
[Ui] rated insulation voltage600 V UL certified · 600 V CSA certified · 690 V conforming to IEC 60947-5-1
Control circuit voltage limits0.1...0.25 Uc (-40…70 °C):drop-out DC · 0.7...1.25 Uc (-40…60 °C):operational DC · 1...1.25 Uc (60…70 °C):operational DC
Hold-in power consumption in W5.4 W at 20 °C
[Ue] rated operational voltage<= 690 V AC 25...400 Hz
Ambient air temperature for storage-60…80 °C
Ambient air temperature for operation-40…60 °C · 60…70 °C with derating
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
[Icw] rated short-time withstand current100 A - 1 s · 120 A - 500 ms · 140 A - 100 ms
[Ith] conventional free air thermal current10 A (at 60 °C)
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
