Schneider Harmony XB4 ZBV Light Block · Harmony XB5 · white · for head 22mm · universal LED · IP20 · ZBVM1ZBVM1↓ 1% off MRP1 / 10
BrandSchneider
CategoryIndustrial Control
SpecificationHarmony XB5 · white · for head 22mm · universal LED · screw clamp terminals
Brand SKUZBVM1
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB4 ZBV Light Block · Harmony XB5 · white · for head 22mm · universal LED · IP20 · ZBVM1

NEW added this week
₹2,140/pcincl. GST-1%
₹1,814 + 18% GST · MRP ₹2,162
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹2,140 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB4 ZBV Light Block · Harmony XB5 · white · for head 22mm · universal LED · IP20 · ZBVM1: Elume price today ₹2,140 per pc incl. GST, 1% below the ₹2,162 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹2,313₹2,233₹2,152₹2,071₹1,990₹2,162₹2,140
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹2,140
MRP
₹2,162
Lowest in view · 17 Oct
₹2,140
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹2,033/pc on this product

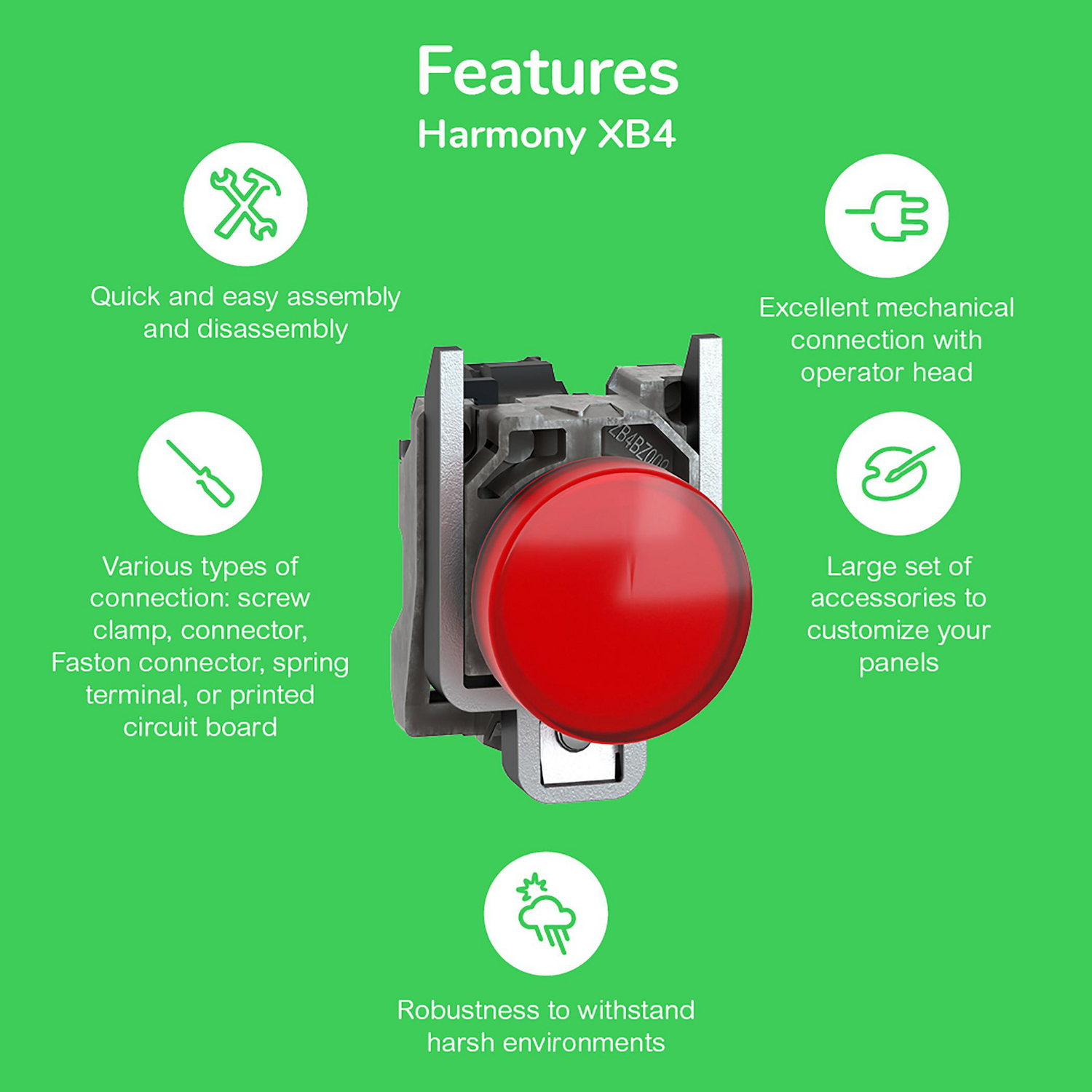

This Harmony ZB, white light block operates with an integral LED. It is supplied with 230V to 240V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB4 ZBV Light Block · Harmony XB5 · white · for head 22mm · universal LED · IP20 · ZBVM1 · ZBVM1
Ingress protectionIP20
Reference standardUL 508
Net weight0.017 kg
BrandSchneider
Brand SKUZBVM1
ELINE6364J73PD
Sold asPer pc
Bulb baseIntegral LED
StandardsUL 508 · IEC 60947-1 · IEC 60947-5-4 · JIS C8201-5-1 · IEC 60947-5-1 · CSA C22.2 No 14 · IEC 60947-5-5 · JIS C8201-1
Light sourceUniversal LED
Service life100000 h at rated voltage and 25 °C
Signalling typeSteady
Surge withstand1 kV conforming to IEC 61000-4-5
Range of productHarmony XB4 · Harmony XB5
Device short nameZBV
Mounting of blockFront mounting
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Light block supplyDirect
Current consumption19 mA
Device presentationBasic element
Light source colourWhite
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Protective treatmentTH
Supply voltage limits195…264 V AC
Product certificationsCSA · UL listed
Connections - terminalsScrew clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
IP degree of protectionIP20 conforming to IEC 60529
Electromagnetic emissionClass B conforming to IEC 55011
Product or component typeLight block
[Us] rated supply voltage230...240 V AC at 50/60 Hz
Electrical composition codeM1 · M2 · M3 · M4 · M5 · M6 · M10 · MF1 · P1 · P2 · PF1
Resistance to fast transients2 kV conforming to IEC 61000-4-4
Sale per indivisible quantity5
Ambient air temperature for storage-40…70 °C
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation-40…70 °C
Resistance to electrostatic discharge6 kV on contact (on metal parts) conforming to IEC 61000-4-2 · 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
