Schneider Harmony XB2 Push Button · 22 mm · 1 NC · Red · IP65 · XB2BT842CXB2BT842C↓ 1% off MRP1 / 5
BrandSchneider
CategoryIndustrial Control
Specification22 mm · 1 NC · Red
Brand SKUXB2BT842C
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB2 Push Button · 22 mm · 1 NC · Red · IP65 · XB2BT842C

NEW added this week
₹1,120/pcincl. GST-1%
₹949 + 18% GST · MRP ₹1,132
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,120 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB2 Push Button · 22 mm · 1 NC · Red · IP65 · XB2BT842C: Elume price today ₹1,120 per pc incl. GST, 1% below the ₹1,132 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹1,211₹1,169₹1,126₹1,084₹1,042₹1,132₹1,120
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,120
MRP
₹1,132
Lowest in view · 17 Oct
₹1,120
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,064/pc on this product

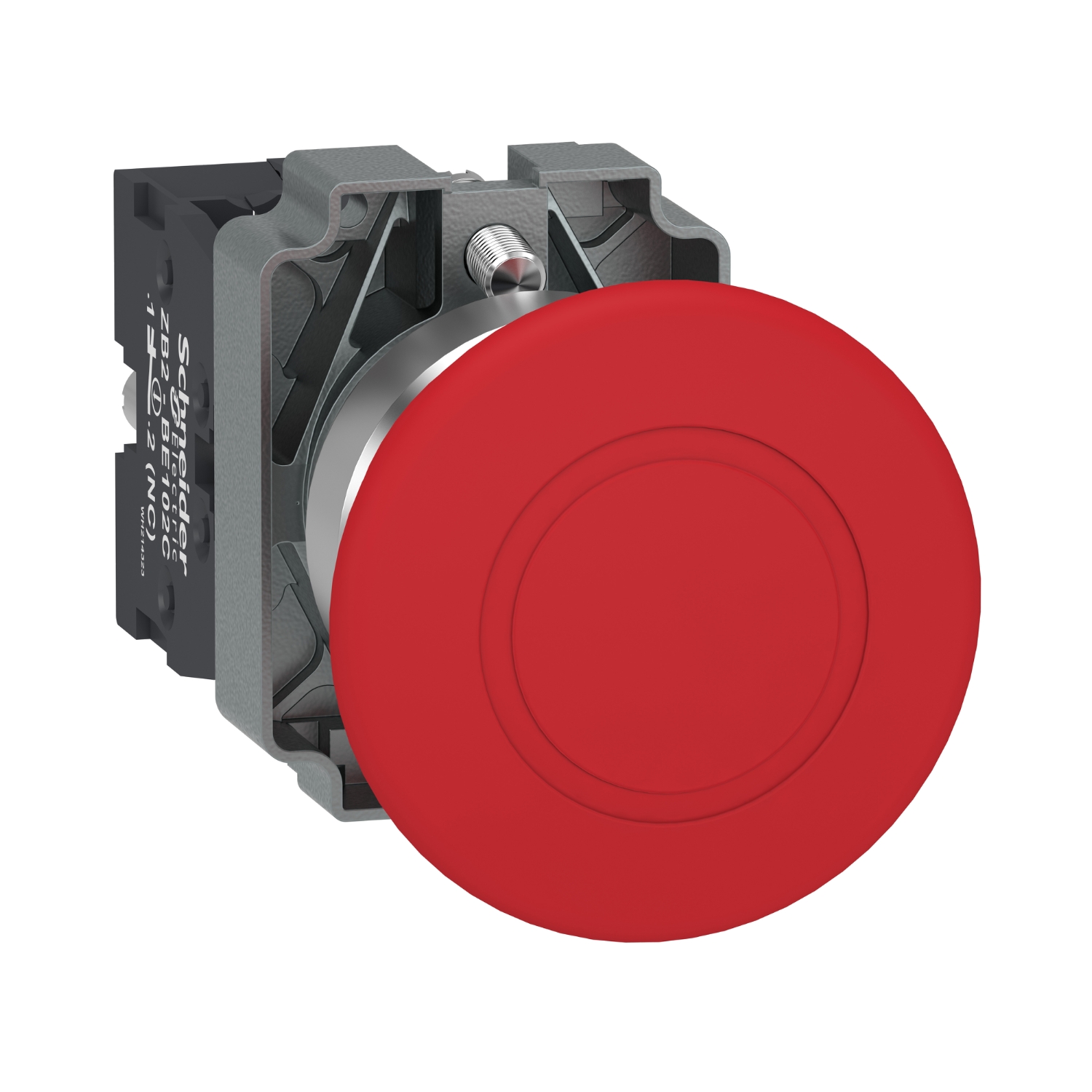

This Harmony XB2 modular 40mm Emergency stop mushroom red push button head operates with a latched push-pull mechanism. This Emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is clearly distinguishable visually at a distance thanks to a clear color and a prominent mushroom shape. It's body/ fixing collar is pre-mounted with an NC contact block. It has a metal bezel, metal fixing base and metal screws for impact and vibration resistance. This push button provides a classic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable because of clear markings, minimizing errors during initial wiring and later maintenance operations. It is dust resistant and water resistant due to its IP65, making it ideal to operate in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB2 Push Button · 22 mm · 1 NC · Red · IP65 · XB2BT842C · XB2BT842C
Rated current3 A
Ingress protectionIP65
Reference standardIEC 60947-5-1
Net weight0.108 kg
BrandSchneider
Brand SKUXB2BT842C
ELINE4FDR2PDH6
Sold asPer pc

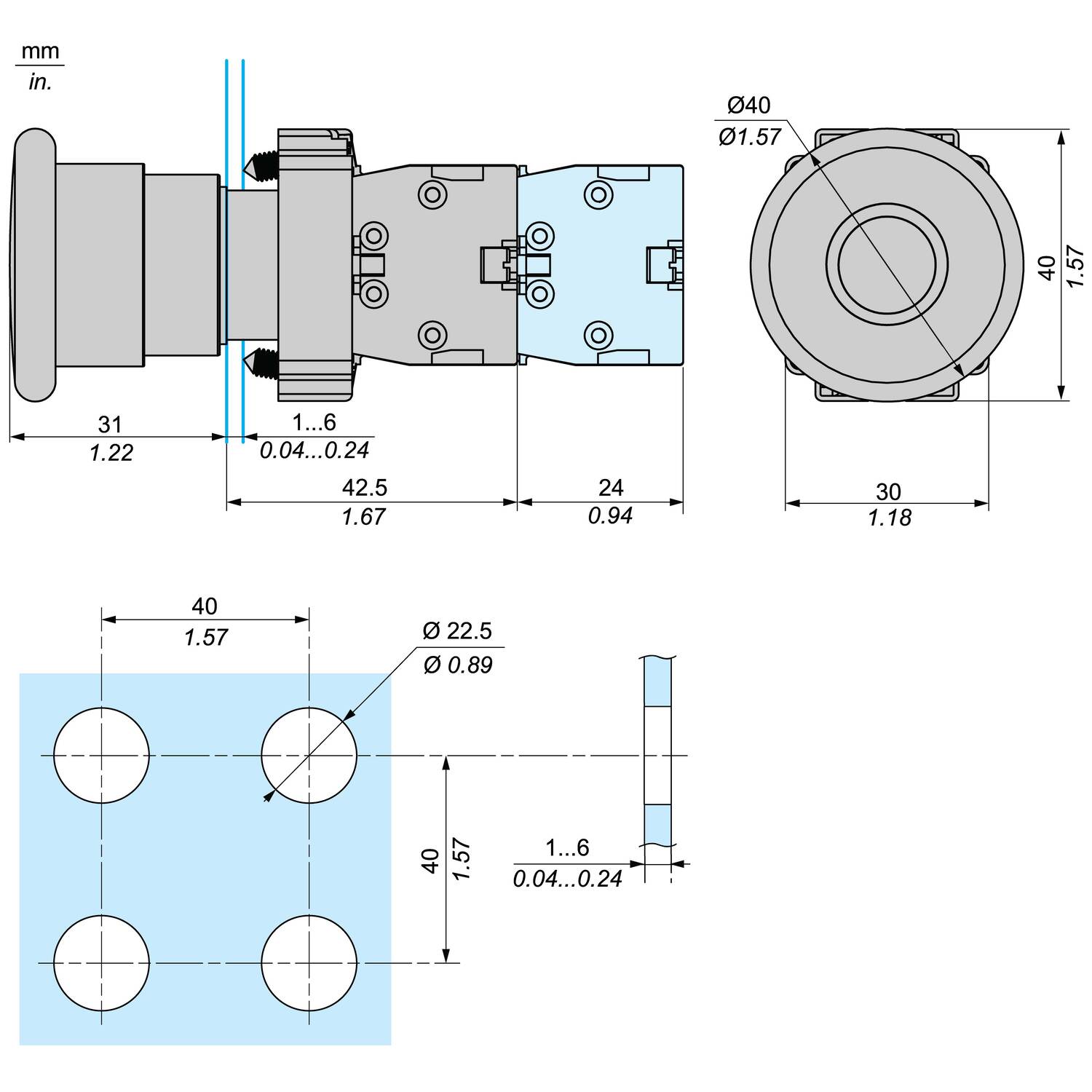

Depth73.5 mm
ResetPush-pull
Width40 mm
Height40 mm
Head typeMushroom
Fixing modeFixing screw beneath head recommended torque: 0.8 N.m · Fixing screw beneath head recommended torque: 1.0 N.m
CustomizableNo
Fixing center>= 30 x 40 mm (1...6 mm thick panel) - thickness: 1…6 mm
Bezel materialChromium plated metal
Contacts usageStandard contacts
Device mountingFixing hole - diameter: 22.5 mm
Operating travel2.0 mm (NC changing electrical state) · 4.6 mm (total travel)
Operator profileRed mushroom Ø 40 mm, unmarked
Positive openingWith NC contact conforming to IEC 60947-5-1 appendix K
Range of productHarmony XB2
Type of operatorpush-pull
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB2
Mounting diameter22.5 mm
Tightening torque0.8…1.0 N.m
Operating positionAny position
Device presentationComplete product
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Protective treatmentTC/TH
Electrical durability1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Mechanical durability300000 cycles
Product compatibilityZB2..C
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialZamak
Connections - terminalsScrew clamp terminal, = 1 x 0.5 mm² with and without cable ends · Faston terminals, connection size: 6.3 mm
Short-circuit protection10 A gL fuse type gG conforming to IEC 60947-5-1
Product or component typeComplete emergency stop push-button
Cap/operator or lens colourRed
Shape of signaling unit headRound
Contacts type and composition1 NC
Sale per indivisible quantity1
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1(11-12)NC
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
