Schneider TeSys Deca GV3P Motor Protection Circuit Breaker · 3P · 30…40 A · 100 kAGV3P40↓ 1% off MRP1 / 6
BrandSchneider
CategoryIndustrial Control
Brand SKUGV3P40
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

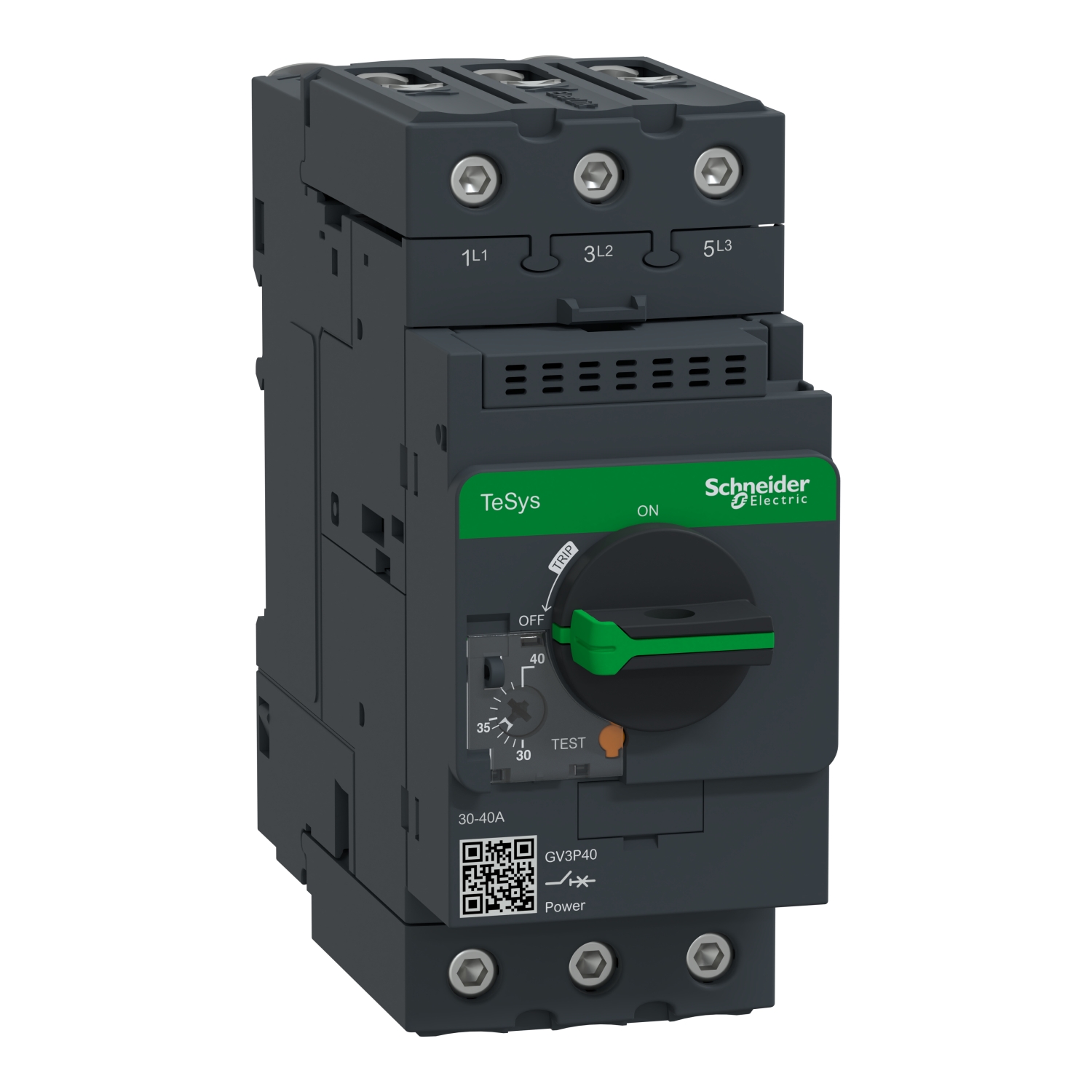

Schneider TeSys Deca GV3P Motor Protection Circuit Breaker · 3P · 30…40 A · 100 kA

Setting: 30…40 A
NEW added this week
₹38,516/pcincl. GST-1%
₹32,641 + 18% GST · MRP ₹38,905
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹38,516 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider TeSys Deca GV3P Motor Protection Circuit Breaker · 3P · 30…40 A · 100 kA: Elume price today ₹38,516 per pc incl. GST, 1% below the ₹38,905 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹41,628₹40,176₹38,724₹37,272₹35,820₹38,905₹38,516
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹38,516
MRP
₹38,905
Lowest in view · 17 Oct
₹38,516
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹36,590/pc on this product

TeSys GV motor circuit breaker, 3 poles (3P), 40A/690V, for 3-phase motor applications 18.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 30-40A, magnetic tripping at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys Deca GV3P Motor Protection Circuit Breaker · 3P · 30…40 A · 100 kA · GV3P40
Poles3P
Rated current40 A
Breaking capacity100 kA
Ingress protectionIP20
Reference standardEN/IEC 60947-2
ColourDark grey
Net weight0.96 kg
BrandSchneider
Brand SKUGV3P40
ELINE479GJ37CR
Sold asPer pc
Depth136 mm
RangeTeSys Deca
Width55 mm
Height132 mm
StandardsEN/IEC 60947-2 · EN/IEC 60947-4-1 · UL 60947-4-1 · CSA C22.2 No 60947-4-1 · IEC/EN 60335-1:Clause 30.2 · IEC/EN 60335-2-40:Annex JJ
Rated dutyUninterrupted conforming to IEC 60947-4-1
Fixing mode35 mm symmetrical DIN rail: clipped · Panel: screwed (with 3 x M4 screws)
Control typeRotary handle
Network typeAC
Product nameTeSys GV3
Motor power kW18.5 kW at 400/415 V AC 50/60 Hz · 22 kW at 500 V AC 50/60 Hz · 37 kW at 690 V AC 50/60 Hz
Fire resistance960 °C conforming to IEC 60695-2-11
Device short nameGV3P
Mounting positionHorizontal · Vertical
Network frequency50/60 Hz conforming to IEC 60947-2
Poles description3P
Tightening torque5 N.m - on screw clamp terminal
Climatic withstandconforming to IACS E10
Device applicationMotor protection
Operating altitude3000 m
[In] rated current40 A
Trip unit technologyThermal-magnetic
Utilisation categoryCategory A conforming to IEC 60947-2 · AC-3 conforming to IEC 60947-4-1
Electrical durability50000 cycles for AC-3 at 415 V In
Mechanical durability50000 cycles
Mechanical robustnessShocks: 15 Gn for 11 ms contactor open · Shocks: 30 Gn for 11 ms contactor closed · Vibrations: 4 Gn, 5...300 Hz
Product certificationsCB Scheme · CE · UKCA · CCC · cULus · EAC · ATEX · LROS (Lloyds register of shipping) · BV · ABS · DNV-GL
IK degree of protectionIK09 enclosure
IP degree of protectionIP20 conforming to IEC 60529
Magnetic tripping current560 A
Phase failure sensitivityYes conforming to IEC 60947-4-1
Product or component typeMotor circuit breaker
Suitability for isolationYes conforming to IEC 60947-1
Power dissipation per pole8 W
[Ui] rated insulation voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
Ambient air temperature for storage-40…80 °C
Thermal protection adjustment range30…40 A conforming to IEC 60947-2
Ambient air temperature for operation-20…60 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
[Ith] conventional free air thermal current40 A conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 · 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 · 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 · 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 · 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
