Schneider Harmony XB5N Selector Switch · 22 mm · 2 NO · IP65 · XB5AG33NXB5AG33N↓ 1% off MRP1 / 7
BrandSchneider
CategoryIndustrial Control
Specification22 mm · 2 NO
Brand SKUXB5AG33N
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB5N Selector Switch · 22 mm · 2 NO · IP65 · XB5AG33N

NEW added this week
₹1,329/pcincl. GST-1%
₹1,126 + 18% GST · MRP ₹1,343
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,329 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB5N Selector Switch · 22 mm · 2 NO · IP65 · XB5AG33N: Elume price today ₹1,329 per pc incl. GST, 1% below the ₹1,343 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹1,437₹1,387₹1,336₹1,286₹1,236₹1,343₹1,329
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,329
MRP
₹1,343
Lowest in view · 17 Oct
₹1,329
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,263/pc on this product

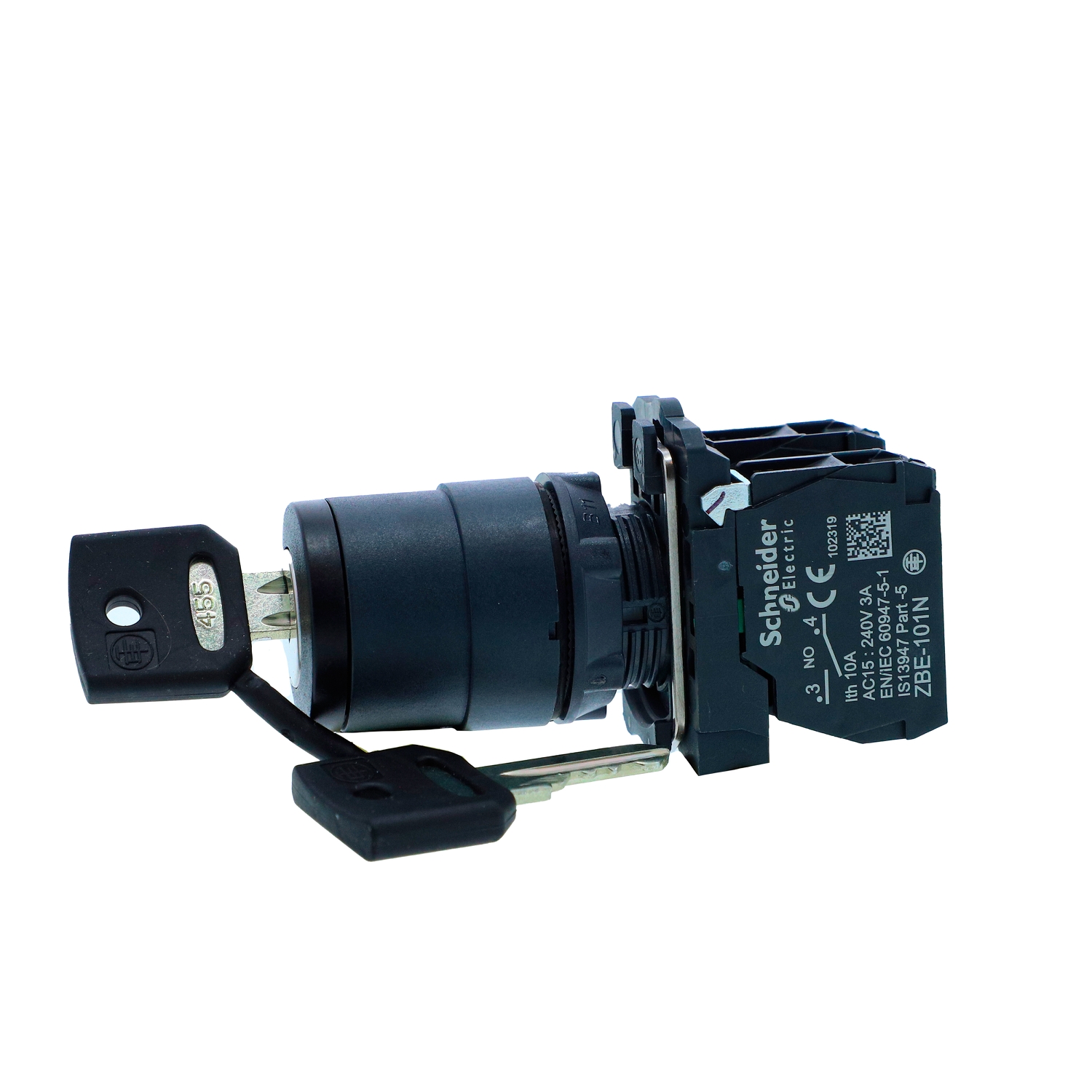

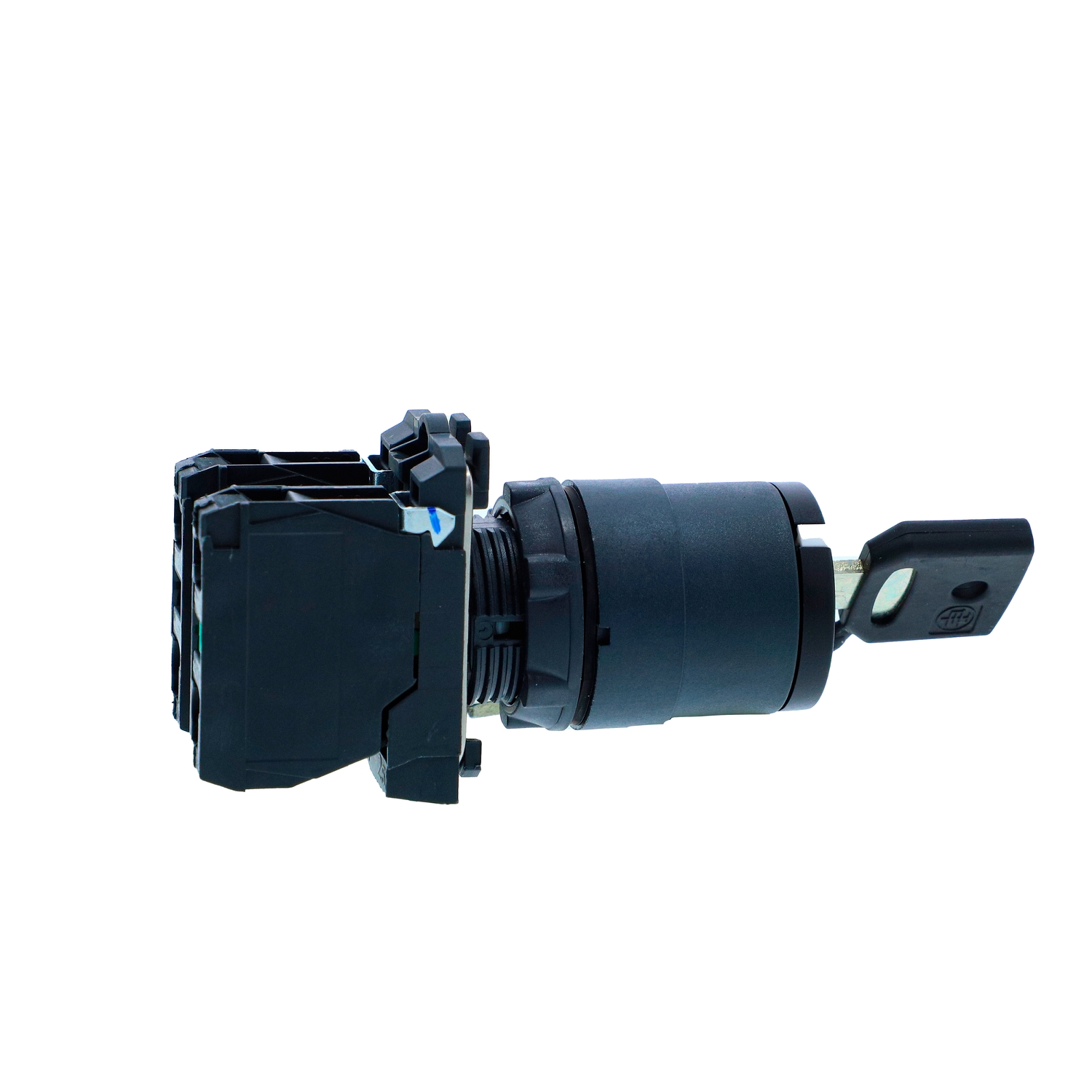

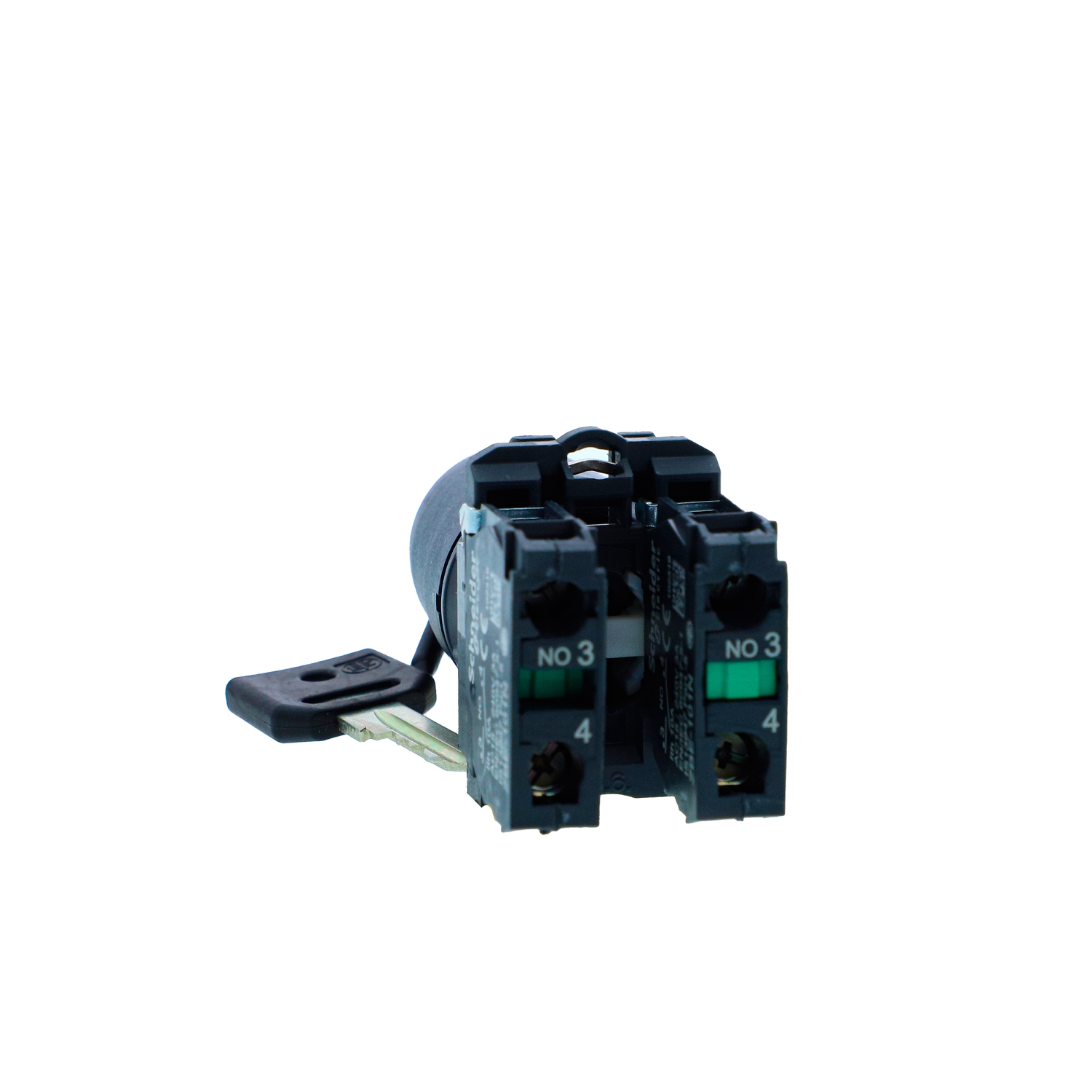

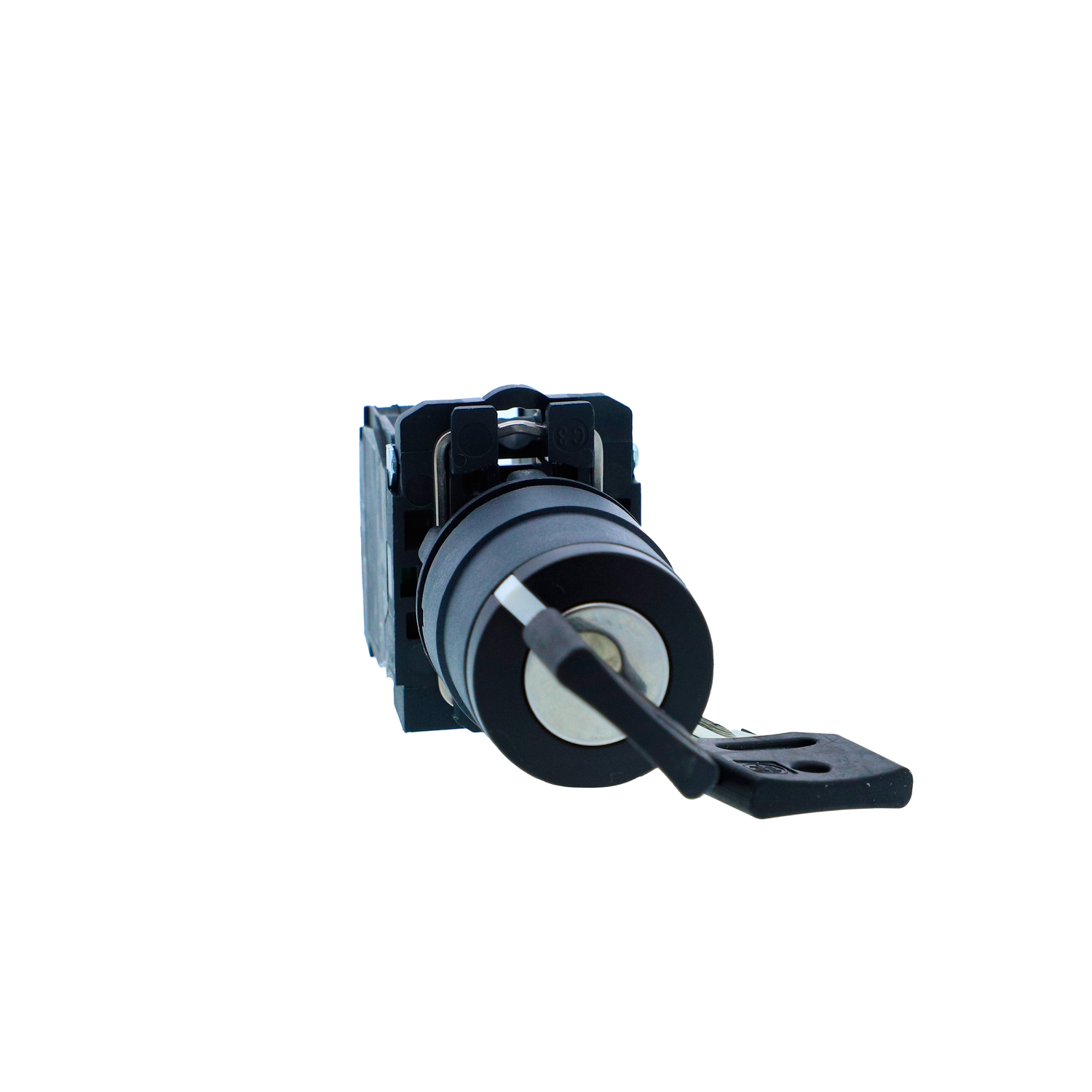

This Harmony XB5N/XB7N, modular black key selector switch (key no.455) has 3 positions, operates with a stay-put mechanism with key withdrawal on the middle position and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB5N Selector Switch · 22 mm · 2 NO · IP65 · XB5AG33N · XB5AG33N
Rated current3 A
Ingress protectionIP65
Reference standardIEC 60947-5-4
Net weight0.087 kg
BrandSchneider
Brand SKUXB5AG33N
ELINE39M77PGPD
Sold asPer pc
Depth96 mm
Width30 mm
Height42 mm
Head typeStandard
Fixing modeFixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Torque value0.14 N.m NO changing electrical state
Bezel materialDark grey plastic
Contacts usageStandard contacts
Device mountingFixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
Surge withstand1 kV conforming to IEC 61000-4-5
Type of keylockKey 455
Operator profileBlack key switch
Positive openingWithout
Range of productHarmony XB5N/XB7N
Type of operator3 stay put
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB5N
Mounting diameter22.5 mm
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Device presentationComplete product
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Overvoltage categoryClass II conforming to IEC 60536
Protective treatmentTH
Electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, DC-13, 0.2 A at
Mechanical durability1000000 cycles
Product compatibilityZB5...N
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialPlastic
Connections - terminalsScrew clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Key withdrawal positionCenter
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Product or component typeSelector switch
Shape of signaling unit headRound
Contacts type and composition2 NO
Operator position information3 positions +/- 45°
Sale per indivisible quantity20
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1(13-14)NO · (23-24)NO
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 · 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 · 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 · 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Is Schneider Harmony XB5N Selector Switch · 22 mm · 2 NO · IP65 · XB5AG33N genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
