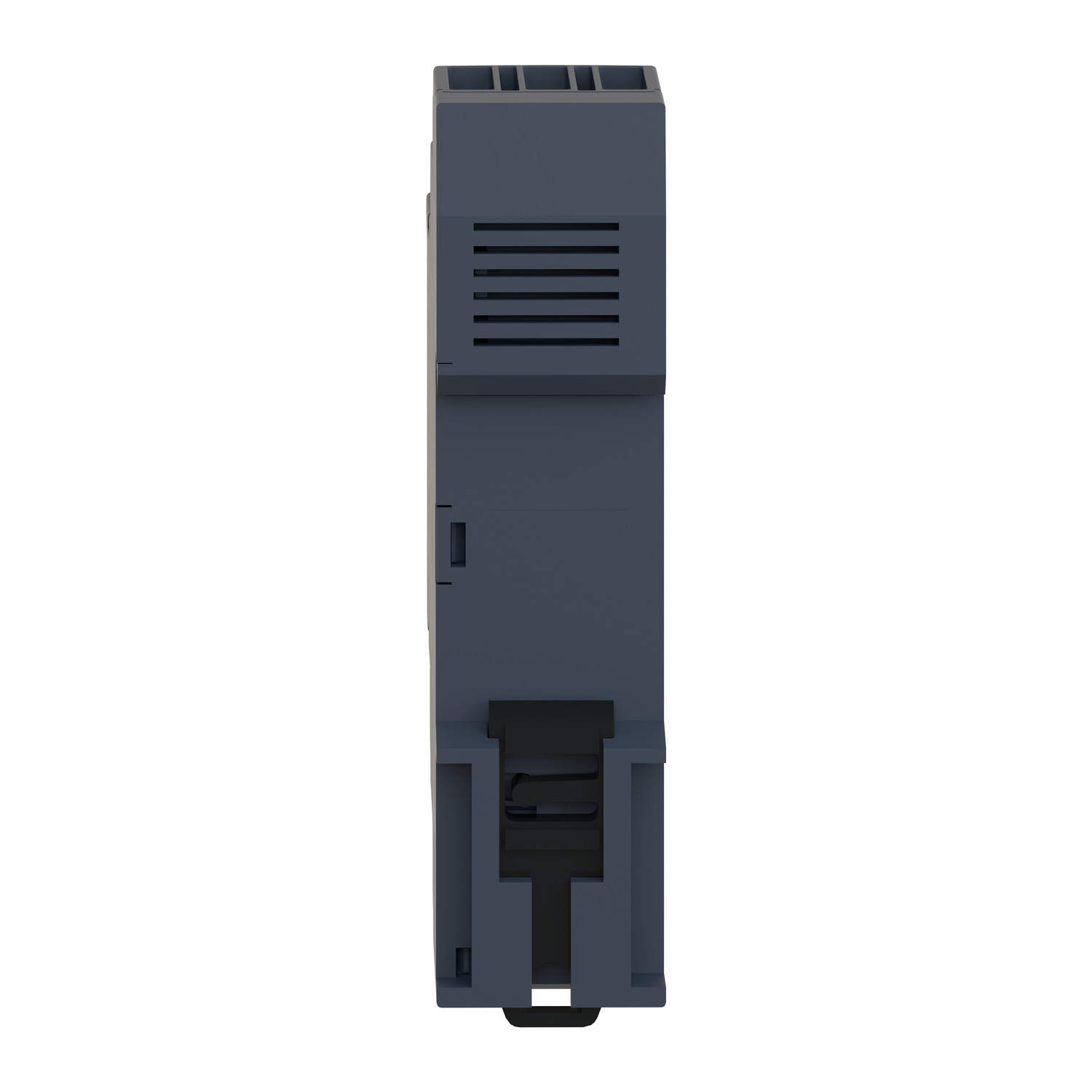

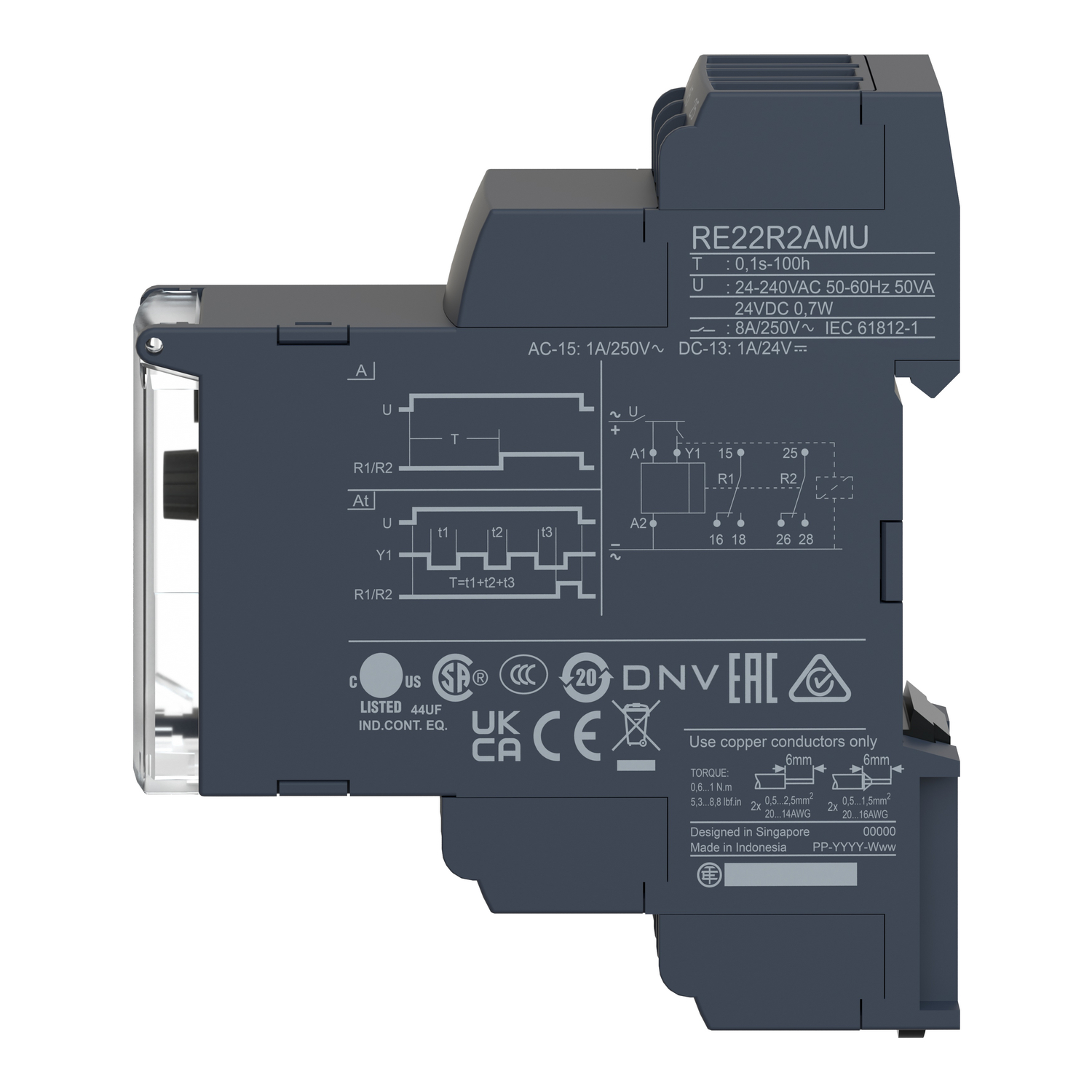

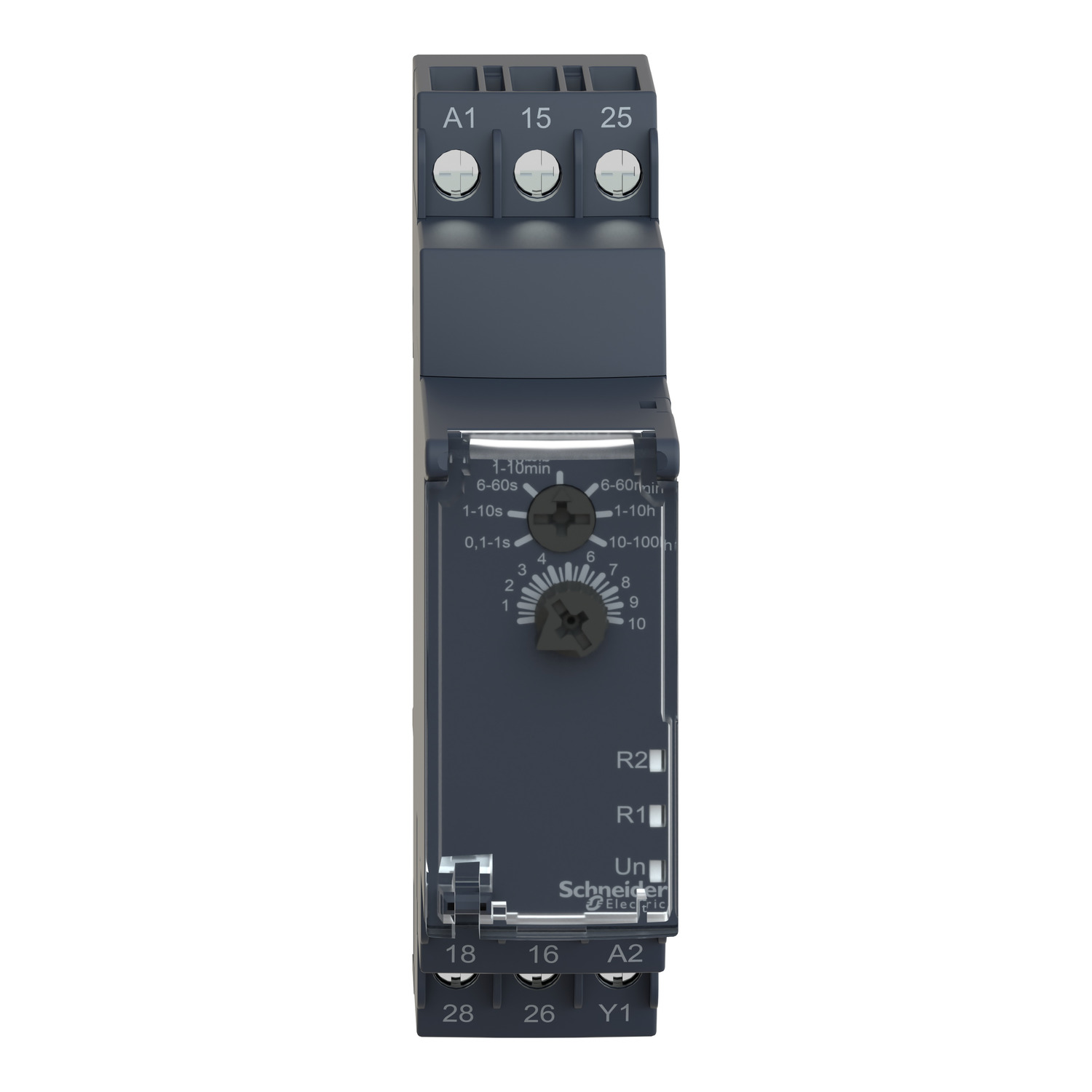

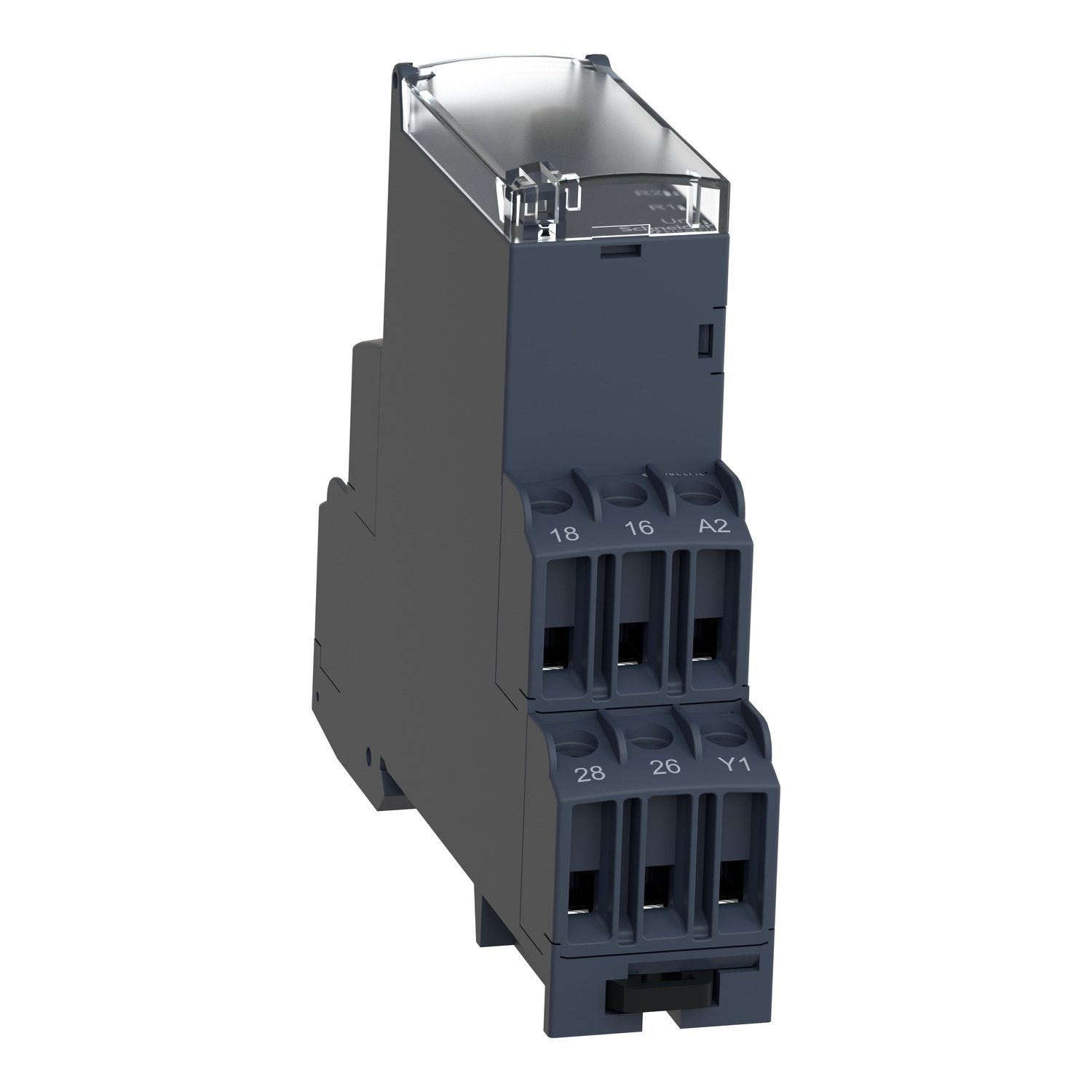

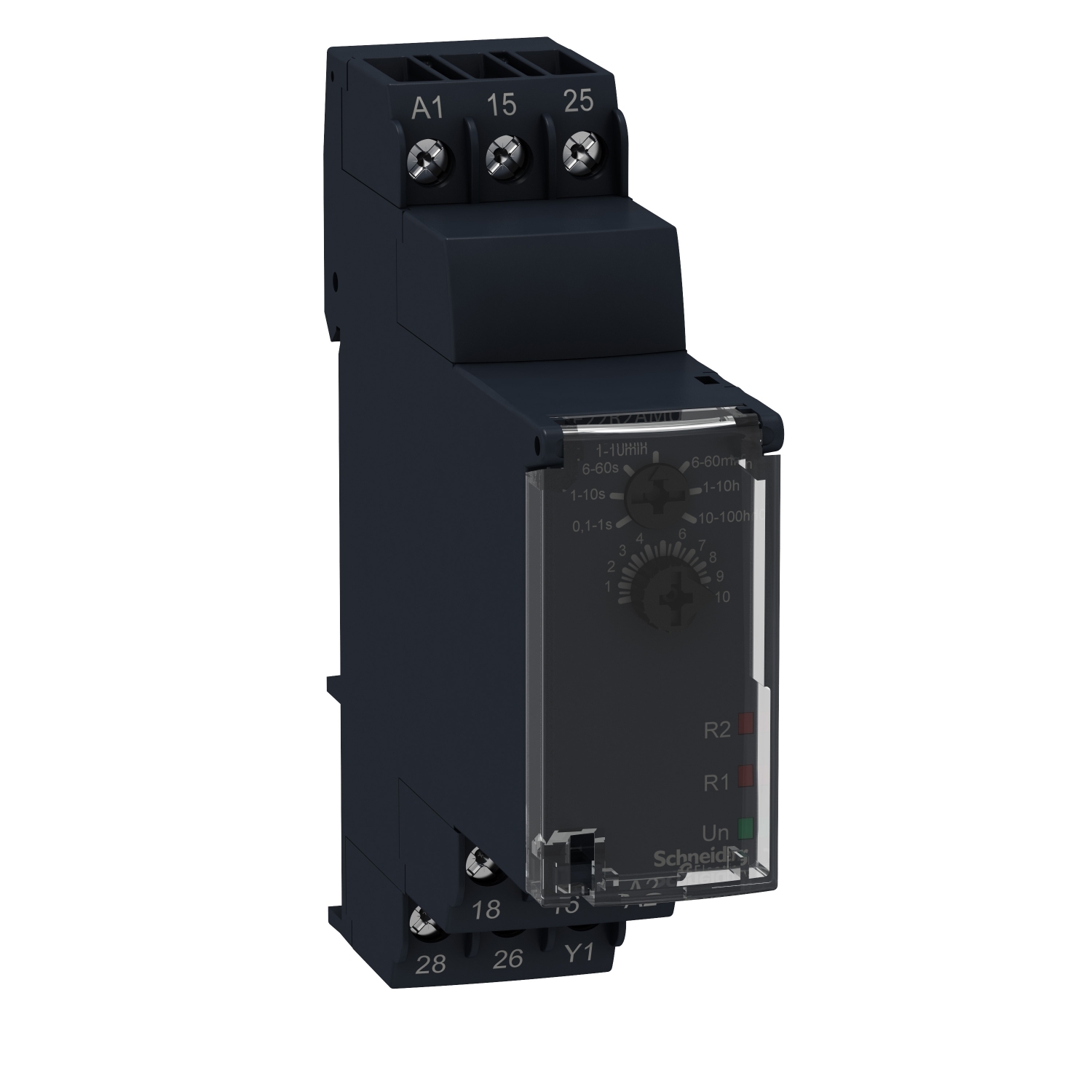

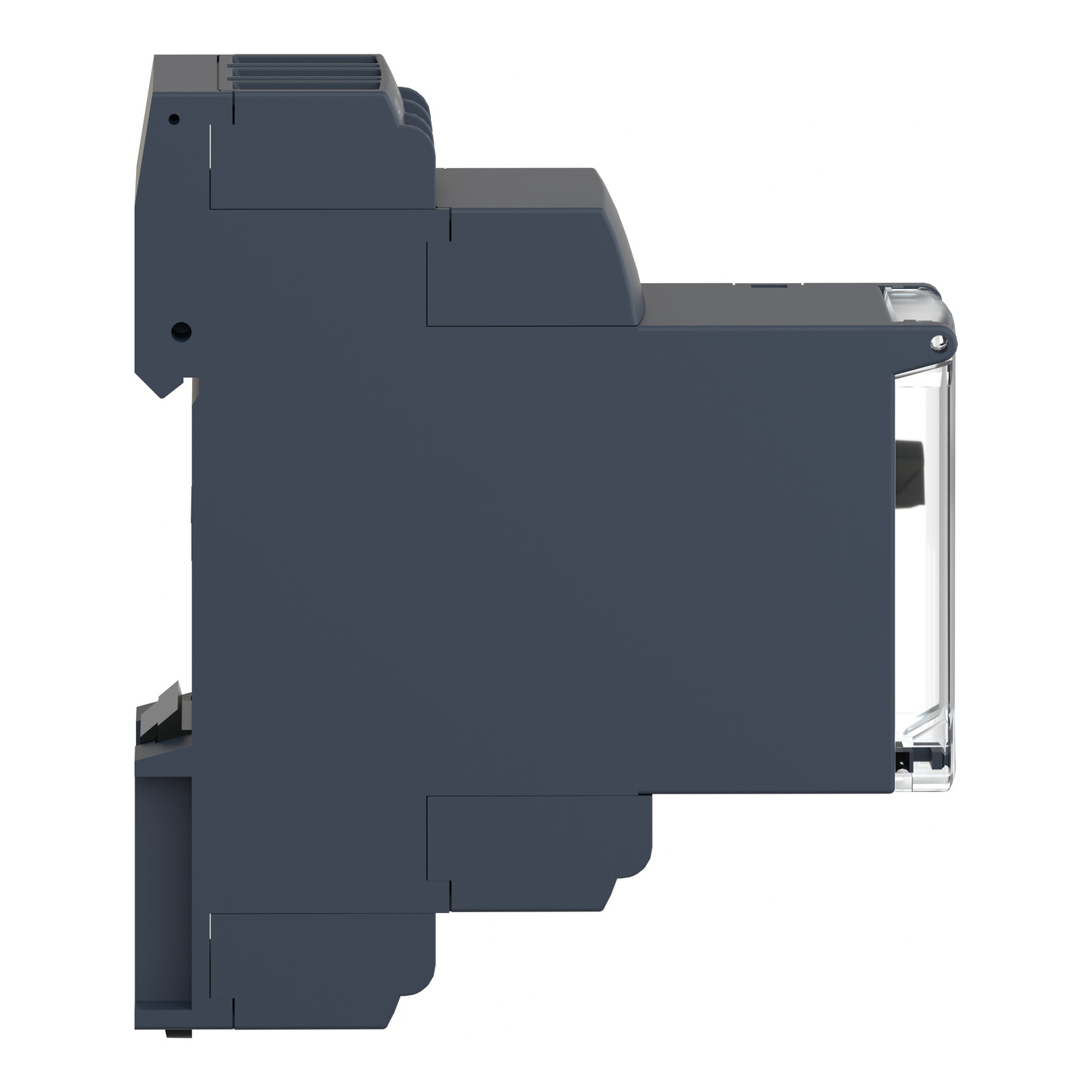

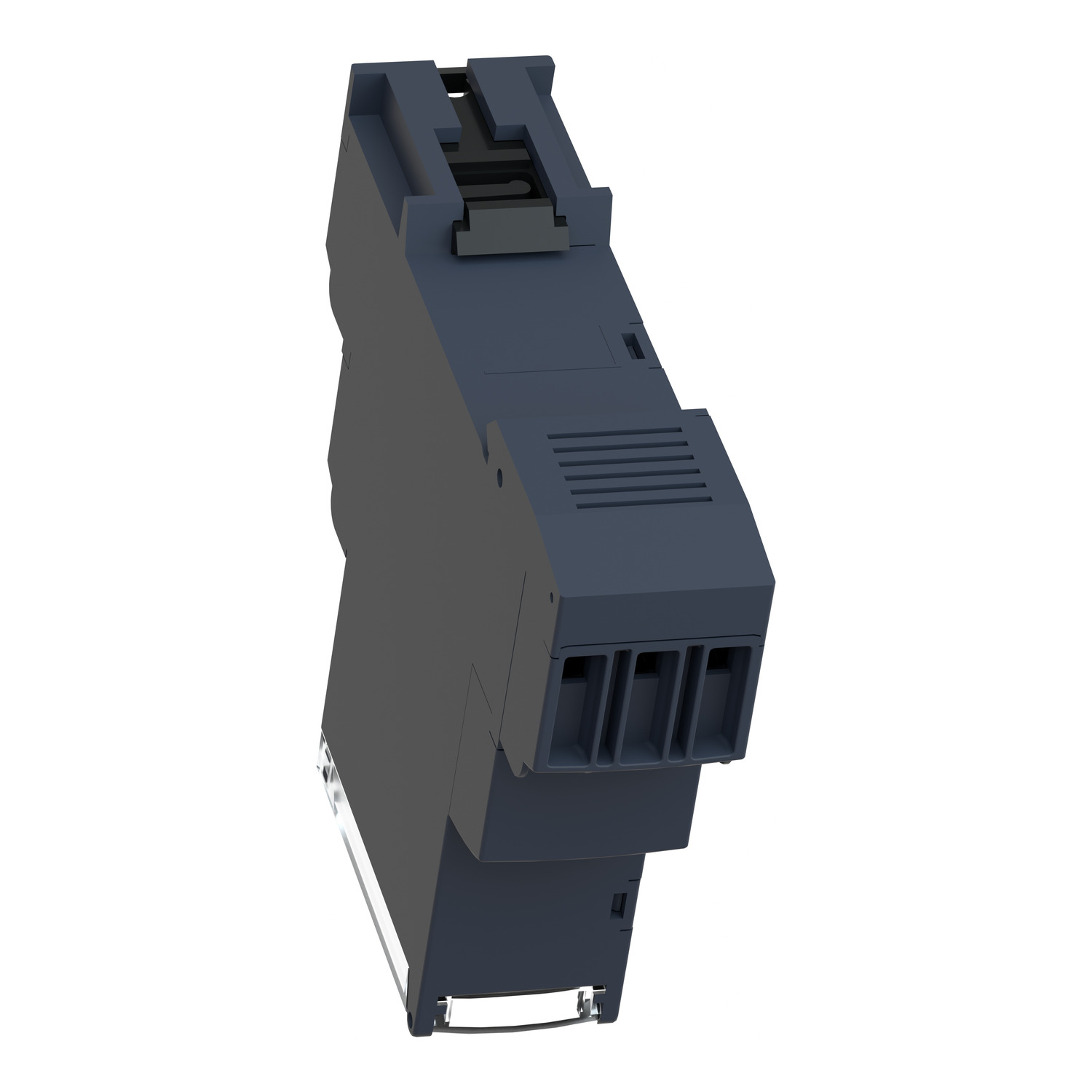

Schneider Harmony Timer RE22 Timing Relay · 2 C/O timed contactRE22R2AMU↓ 1% off MRP1 / 11
BrandSchneider
CategoryIndustrial Control
Brand SKURE22R2AMU
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony Timer RE22 Timing Relay · 2 C/O timed contact

NEW added this week
₹7,445/pcincl. GST-1%
₹6,309 + 18% GST · MRP ₹7,520
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹7,445 /pc incl. GST
Free pan-India delivery

Schneider Harmony Timer RE22 Timing Relay · 2 C/O timed contact: Elume price today ₹7,445 per pc incl. GST, 1% below the ₹7,520 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹8,046₹7,766₹7,485₹7,204₹6,924₹7,520₹7,445
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹7,445
MRP
₹7,520
Lowest in view · 17 Oct
₹7,445
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹7,073/pc on this product

This Harmony RE22 modular single function timer can be set between 0.1 seconds and 100 hours. It provides function A and At and it is mountable on DIN rail. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Timer RE22 Timing Relay · 2 C/O timed contact · RE22R2AMU
Ingress protectionIP40 housing:· IP20 terminal block:· IP40 front face:
Reference standardIEC 61000-6-3
Net weight0.09 kg
BrandSchneider
Brand SKURE22R2AMU
ELINE32M34F7PP
Sold asPer pc
Width22.5 mm
StandardsIEC 61000-6-3 · IEC 61000-6-4 · IEC 61000-6-2 · IEC 61812-1 · IEC 61000-6-1
Directives2004/108/EC - electromagnetic compatibility · 2006/95/EC - low voltage directive
Status LEDLED green (flashing) for timing in progress · LED green (steady) for power ON · LED yellow for relay energised
Control typeRotary knob front panel
Recovery time120 ms on de-energisation
Voltage drift+/- 0.2 %/V
Voltage range0.85...1.1 Us
Power on delay100 ms
Repeat accuracy+/- 0.5 % conforming to IEC 61812-1
Time delay typePower on-delay
Housing materialPolycarbonate
Mounting support35 mm DIN rail conforming to IEC 60715
Range of productHarmony Timer Relays
Supply frequency50...60 Hz +/- 5 %
Time delay range1...10 min · 10...100 h · 1...10 s · 0.1...1 s · 6...60 s · 6...60 min · 1...10 h
Device short nameRE22
Mounting positionAny position in relation to normal vertical mounting plane
Temperature drift+/- 0.05 %/°C
Tightening torque0.6…1 N.m conforming to IEC 60947-1
breaking capacity2000 VA
Function availableA- Power on-delay relay-2 C/O · At- Power on-delay relay w/ pause/summation (Y1)-2 C/O
Dielectric strength2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1
Number of functions2
Discrete output typeRelay
Electrical durability100000 cycles for resistive load, 8 A at 250 V, AC
Insulation resistance100 MOhm at 500 V DC conforming to IEC 60664-1
Mechanical durability10000000 cycles
Power consumption in W0.7 W at 24 V DC
Product certificationscULus · CE · EAC · CSA · RCM · CCC · GL
nominal output current8 A
Connections - terminalsScrew terminals, 2 x 1.5 mm² with cable end · Screw terminals, 2 x 2.5 mm² without cable end
Immunity to microbreaks10 ms
Power consumption in VA50 VA at 240 V AC
Safety reliability dataMTTFd = 182.6 years · B10d = 170000
Maximum switching current8 mA
Maximum switching voltage250 V
Minimum switching current10 mA at 5 V
Product or component typeModular timing relay
[Us] rated supply voltage24...240 V AC · 24 V DC
Control signal pulse width30 ms · 100 ms under load
Contacts type and composition2 C/O timed contact
Setting accuracy of time delay+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Rated impulse withstand voltage5 kV for 1.2…50 µs conforming to IEC 60664-1 · 5 kV conforming to IEC 61812-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
