Legrand Lyncus LED Indicator for Switches · White · 677224: Elume price today ₹42 per pc incl. GST, 28% below the ₹58 MRP. Over the last 30 days it ranged from ₹41 on 23 Oct to ₹42. The average price across the sellers we track is ₹34, the same as here. The lowest tracked seller lists it at ₹34, ₹8 below it (tell us and we match it).

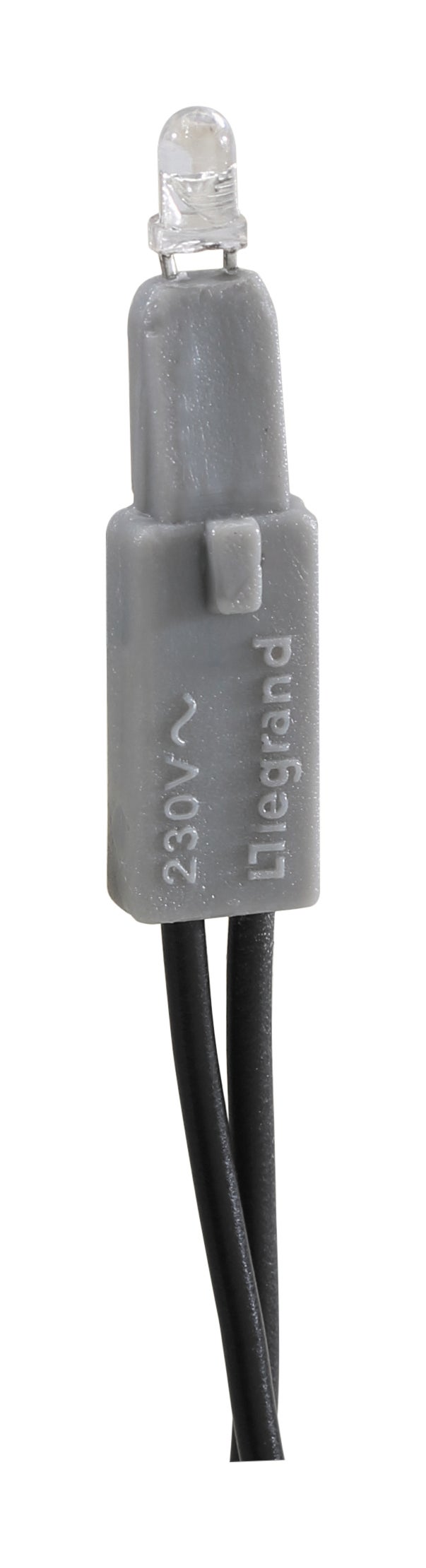

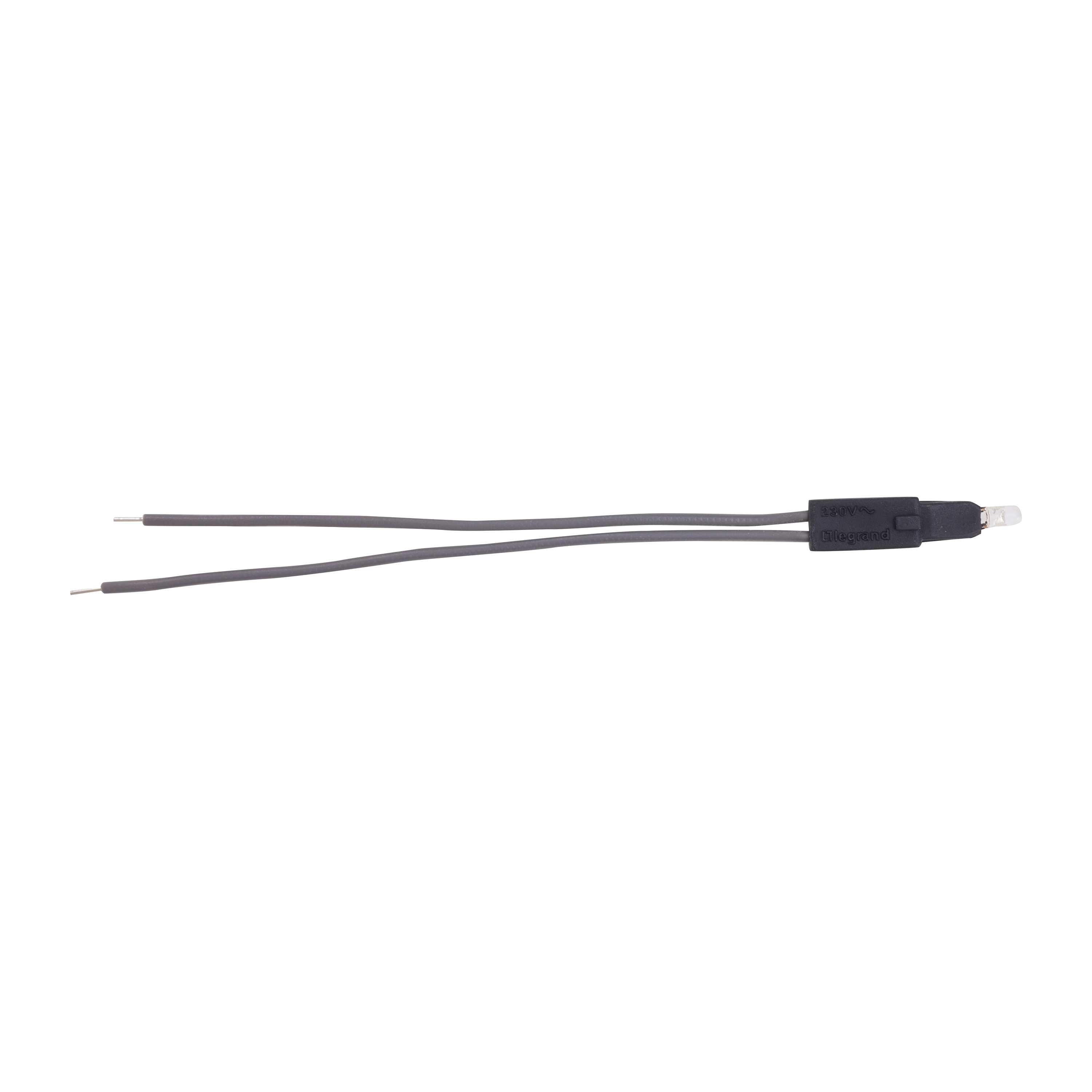

The Lyncus range product with catalog number 677224 is a "Lamp for switches 230 VAC," designed for indication purposes in switches. It features a compact design with overall dimensions of 8 mm width, 135 mm height (including wires), and 5 mm depth, weighing just 2.2 grams. The lamp is provided along with indicator switches or as an individual product, with a wire size of 0.70 mm in diameter and an LED size of 3 mm in diameter at the top. It is constructed using polypropylene FR material for the SA LED and is self-extinguishing at 850°C. The lamp operates at a rated voltage of 240V AC with a maximum current of 0.3 mA AC, and the LED emits a red color. This product conforms to company standards, ensuring reliability and safety in its application.
6A switches are for lights, fans and small sockets. Use a 16A switch for heavy appliances such as an AC, geyser, microwave or room heater, usually paired with a 16A socket on a 2.5-4 sq mm circuit.
Modular switches generally fit only the plates and frames of the same brand and series, because the clip design and module width differ. If you are replacing only switches, check the series of your existing plates first.
A 1-way switch controls a light from one place. A 2-way switch is used in pairs to control the same light from two places, such as the top and bottom of a staircase or both ends of a corridor.
A standard switch takes 1 module. Larger items like 16A sockets, fan regulators and some USB chargers take 2 modules, so count modules before choosing the plate size.
Some switches have a built-in neon or LED indicator that glows when on or off, which helps locate them in the dark. Check the product details; otherwise a separate indicator module can be added.
Switches for household use in India are made to IS 3854 and should carry the ISI mark. Look for flame-retardant polycarbonate housings and silver alloy contacts for a longer life.
