Schneider Harmony XB5N Illuminated Push Button · 22 mm · LED · 1 NO · 24 V AC/DC · BlueXB5AW36B1N↓ 1% off MRP1 / 3
BrandSchneider
CategoryIndustrial Control
Brand SKUXB5AW36B1N
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

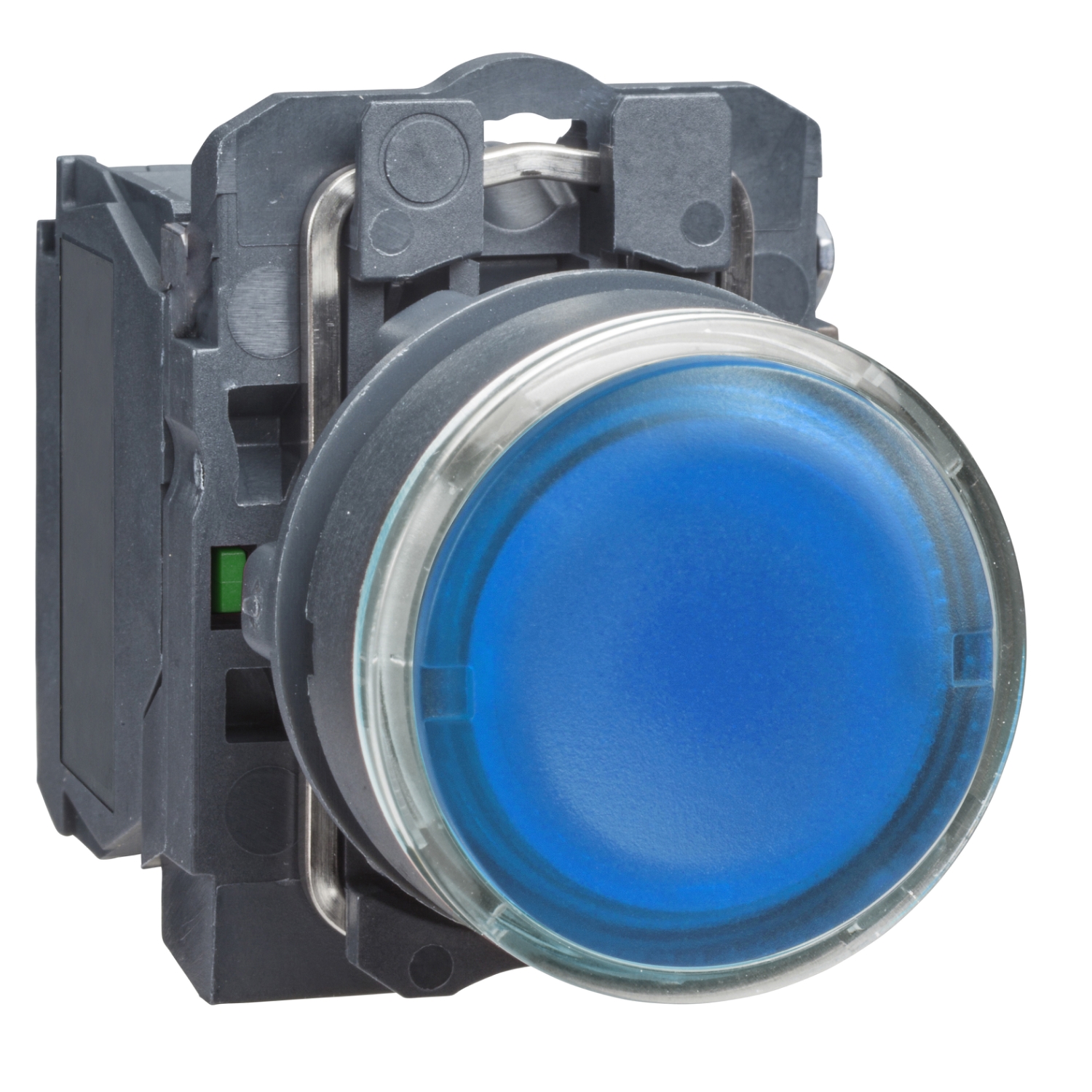

Schneider Harmony XB5N Illuminated Push Button · 22 mm · LED · 1 NO · 24 V AC/DC · Blue

Colour: Blue
Voltage: 24 V AC/DC
NEW added this week
₹1,582/pcincl. GST-1%
₹1,341 + 18% GST · MRP ₹1,598
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,582 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB5N Illuminated Push Button · 22 mm · LED · 1 NO · 24 V AC/DC · Blue: Elume price today ₹1,582 per pc incl. GST, 1% below the ₹1,598 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹1,710₹1,650₹1,591₹1,531₹1,471₹1,598₹1,582
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,582
MRP
₹1,598
Lowest in view · 17 Oct
₹1,582
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,503/pc on this product

This Harmony XB5N/XB7N, modular blue illuminated push-button provides an ergonomic and visual interface for controlling your machines, operates at 24V AC/DC and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It provides a clear help in setting your machines in various settings, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB5N Illuminated Push Button · 22 mm · LED · 1 NO · 24 V AC/DC · Blue · XB5AW36B1N
Rated current3 A
Ingress protectionIP65
Reference standardIEC 60947-5-4
Net weight0.056 kg
BrandSchneider
Brand SKUXB5AW36B1N
ELINE2FRDM6362
Sold asPer pc
Depth57 mm
Width30 mm
Height42 mm
MarkingUnmarked
Bulb baseIntegral LED
Fixing modeFixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Light sourceLED
Service life100000 h at rated voltage and 25 °C
Bezel materialDark grey plastic
Contacts usageStandard contacts
Device mountingFixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
Operating force3.5 N NC changing electrical state · 3.8 N NO changing electrical state
Signalling typeSteady
Operating travel1.5 mm (NC changing electrical state) · 2.6 mm (NO changing electrical state) · 4.3 mm (total travel)
Operator profileBlue flush, unmarked
Range of productHarmony XB5N/XB7N
Type of operatorspring return
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB5N
Mounting diameter22.5 mm
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Light block supplyDirect
Current consumption18 mA
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, DC-13, 0.2 A at
Mechanical durability5000000 cycles
Supply voltage limits19.2…30 V DC · 21.6…26.4 V AC
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialPlastic
Connections - terminalsScrew clamp terminal, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Product or component typeIlluminated push-button
[Us] rated supply voltage24 V AC/DC 50/60 Hz
Cap/operator or lens colourBlue
Shape of signaling unit headRound
Contacts type and composition1 NO
Sale per indivisible quantity20
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1(13-14)NO
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 · 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 · 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 · 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Operator additional informationWith plain lens
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
